Negative Clamper Circuit Simulation using Multisim @mksubbu
Negative Clamper Circuit Simulation using Multisim  @mksubbu
Uploaded August 2021 | Updated November 2026, 3 hours ago

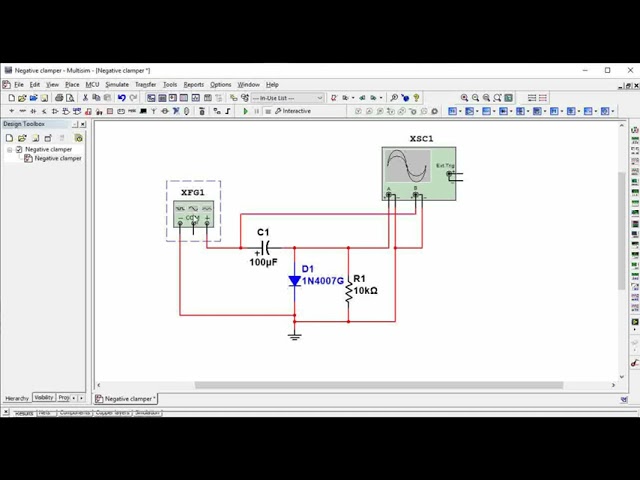

The clamper circuits are also called DC restorers. These circuits are especially used to shift the applied waveforms to above or below levels of the DC reference voltage without showing the impact on the shape of the waveform. This shifting tends to modify the Vdc level of the applied wave.

For more Details: androiderode.com/n-scheme-ece-syllabus-clippers-and-clampers-simulation
For more Videos: youtube.com/channel/UCdICND5gvWw8gx04TNm9QFA
