Multi Guide Mastersmith with Slide Mount and Swivel Post | Fits KMG - Bader

Uploaded October 2017 | Updated September 2026, 2 hours ago

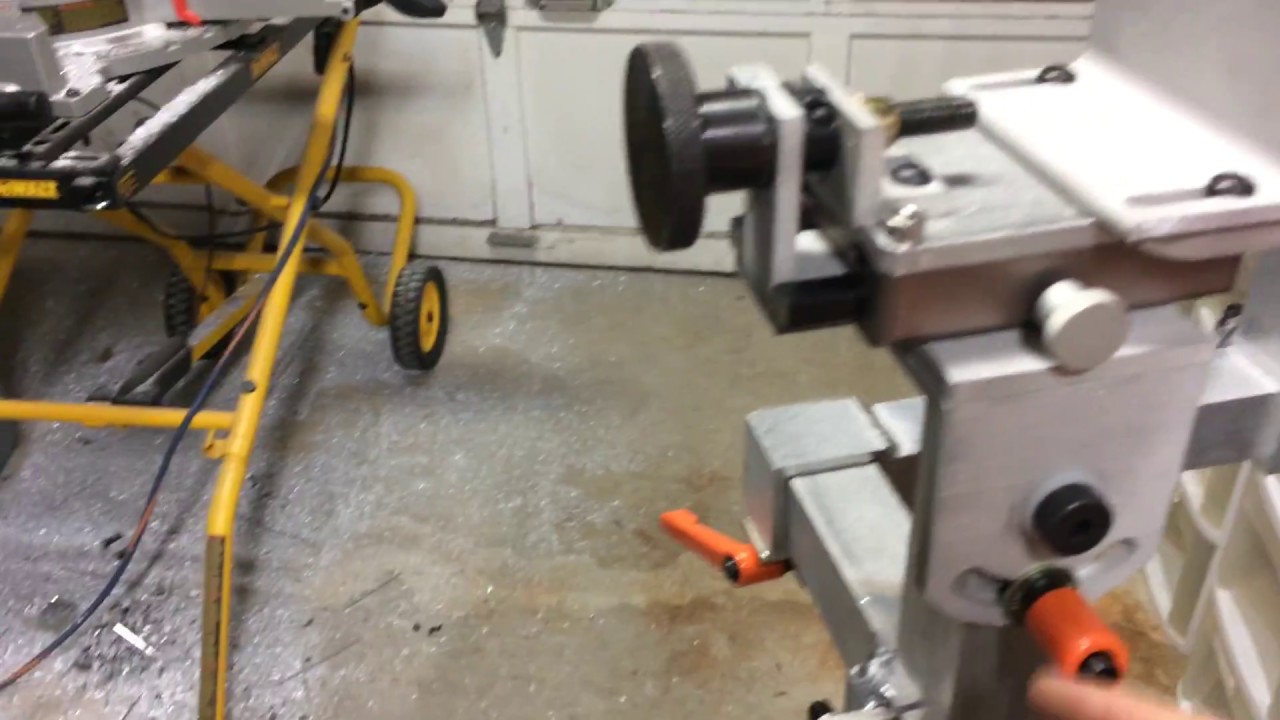

The mount shown in this video is designed for use with KMG and Bader machines but will work with other single tool arm configured sanding machines.

As shown in the video the package is $615.00 Shipped in the USA. Comes with a second base clamp so you can have one to mount on the contact wheel tool arm and one for the flat platen tool arm.

The Multi Guide Mastersmith is the most advanced bevel grind Guide available. It uses a PBC Linear slide with brake. pbclinear.com/UGA-Low-Profile-Uni-Guide-Linear-Slide

youtube.com/watch?v=BNVPMBLSlA4

youtube.com/watch?v=H4QcEjcMfLc
