Uploaded December 2025 | Updated September 2026, 3 weeks ago

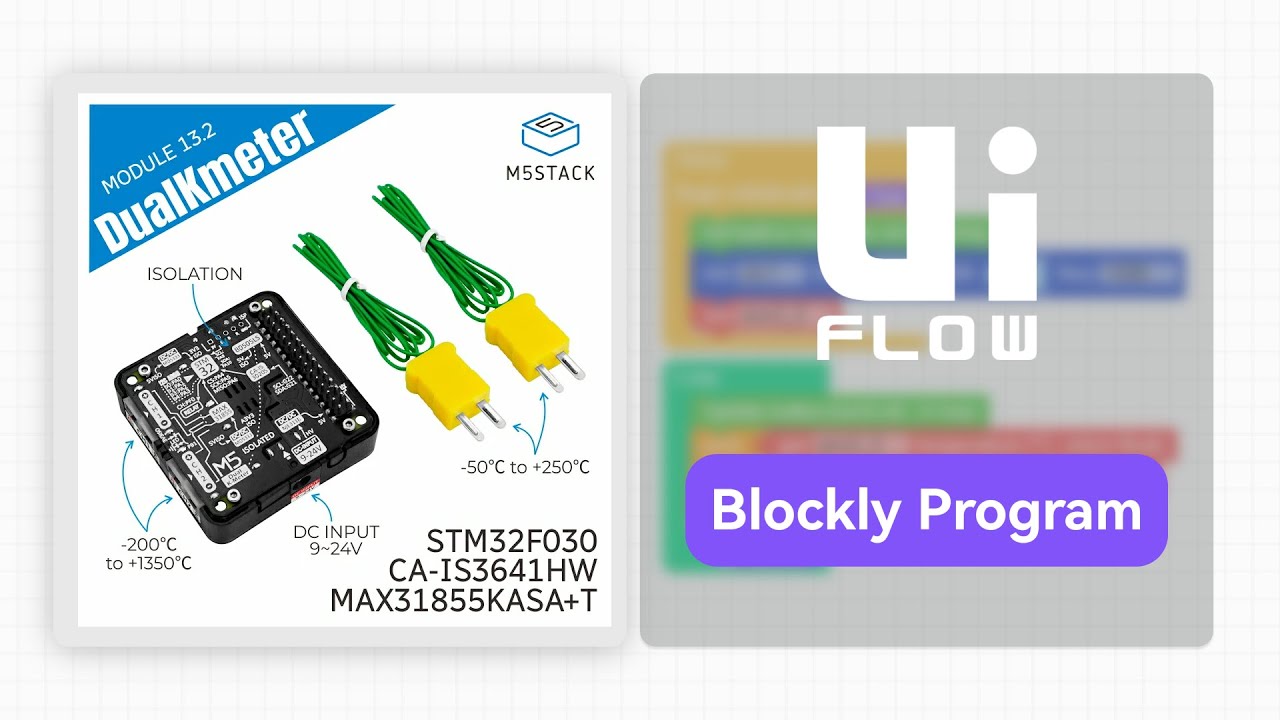

Module13.2 Dual Kmeter is a dual-channel K-type temperature measurement module based on the "MAX31855KASA + stm32f030f4p6 + electrical isolation" solution. This module is equipped with two K-type thermocouple sensor interfaces. It uses signal relays to alternately measure the temperature values of the two channels. The supported measurement range is -200°C to 1350°C, and the measurement accuracy is ±2°C. Meanwhile, this module is also equipped with built-in voltage and signal isolation chips such as B0505LS-1WR2 and CA-IS3020S, ensuring the stability and safety of the system. In addition, the module is equipped with a built-in dip switch, which can conveniently switch between different I2C addresses to meet the diverse application requirements of users. It can be applied in multiple scenarios such as industrial automation and instrument detection.
Module13.2 Dual Kmeter is a dual-channel K-type temperature measurement module based on the "MAX31855KASA + stm32f030f4p6 + electrical isolation" solution. This module is equipped with two K-type thermocouple sensor interfaces. It uses signal relays to alternately measure the temperature values of the two channels. The supported measurement range is -200°C to 1350°C, and the measurement accuracy is ±2°C. Meanwhile, this module is also equipped with built-in voltage and signal isolation chips such as B0505LS-1WR2 and CA-IS3020S, ensuring the stability and safety of the system. In addition, the module is equipped with a built-in dip switch, which can conveniently switch between different I2C addresses to meet the diverse application requirements of users. It can be applied in multiple scenarios such as industrial automation and instrument detection.
