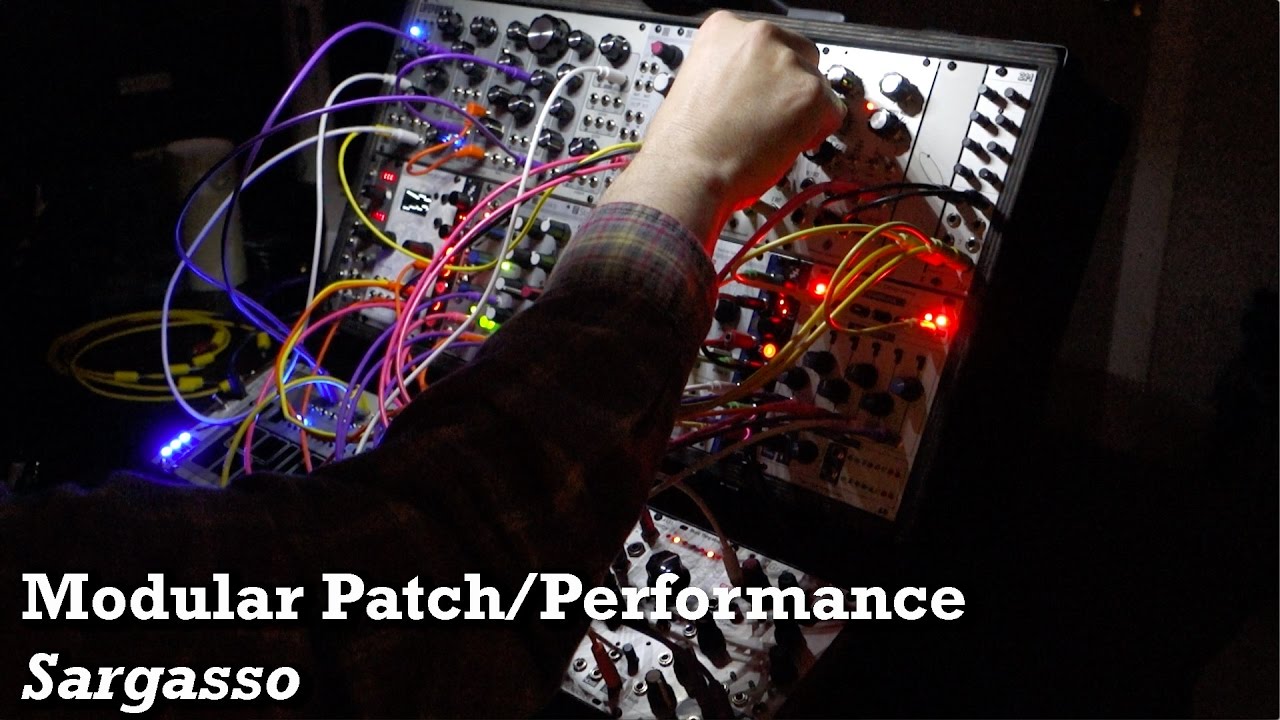

Generative ambient tune driven by Turing Machine.
Patch Description
==============
OK, this is a big one, so I can’t really detail every little thing.
Overall clocking by Pamela’s Workout.
Turing Machine sending V/Oct to E350, Quantized by Disting.
Turing Machine clock-in varied between two channels of Pamela’s Workout (different clock div settings) via Doepfer A-152 sequential switch.
Two channels of O+C (Quadraturia mode) modulating volume of E350, one channel for each output (XY and Z), via DPLPG in VCA mode.
Another channel of O+C modulating Morph X of E350, attenuated by Shades.
Y and Z of E350 modulated by E355, which is in-turn modulated by Make Noise Function (attempting to attenuate via 2x3 Transient Modules mixer).
XY out of E350 to Disting II, in ping-pong delay mode.
One out channel of Disting II to Clouds, the other to MI Ripples filter.
MI Ripples filter FM’d by Pittsburgh SV-1 Osc 1 sine.
E350 channels ultimately sent to Clouds L/R inputs.
Clouds parameters modulated by O+C channels (multed).
Clouds “freeze” switched on and off by Pamela’s Workout channel “/8” and long gate (nice!).
“Wowing” bass provided by Pittsburgh SV-1, filter modulated by SV-1 triangle LFO and arp’d by KB-1.
Tuned drum/bass sounds provided by Peaks in DMC drum mode, triggered by Grids, with "chaos" turned up for unpredictability.
All mixed on Sputnik 6-channel stereo mixer. Channel 1/6 CV panned by Function (multed off TM 2x3 mixer). Not sure this was all that effective.
Thanks for watching/listening!
#eurorack #modular #synthesizer #turingmachine #music
