Kyushu University’s Hattori Lab presents a near-eye display optics concept built around Multi-Aperture Superposition Optics, or MASO, aimed at solving one of the hardest problems in XR hardware: making the optical system both extremely thin and extremely wide field-of-view. The prototype shown here targets about 220° FOV, close to the practical binocular limit of human vision, while keeping the optical stack in the range of only a few millimeters. csede.kyushu-u.ac.jp/hattori
---
HDMI® Technology is the foundation for the worldwide ecosystem of HDMI-connected devices; integrated with displays, set-top boxes, laptops, audio video receivers and other product types. Because of this global usage, manufacturers, resellers, integrators and consumers must be assured that their HDMI® products work seamlessly together and deliver the best possible performance by sourcing products from licensed HDMI Adopters or authorized resellers. For HDMI Cables, consumers can look for the official HDMI® Cable Certification Labels on packaging. Innovation continues with the latest HDMI 2.2 Specification that supports higher 96Gbps bandwidth and next-gen HDMI Fixed Rate Link technology to provide optimal audio and video for a wide range of device applications. Higher resolutions and refresh rates are supported, including up to 12K@120 and 16K@60. Additionally, more high-quality options are supported, including uncompressed full chroma formats such as 8K@60/4:4:4 and 4K@240/4:4:4 at 10-bit and 12-bit color.
---
Instead of relying on one large lens or a conventional waveguide path, the MASO approach uses many small aperture/lens units whose images are optically superposed into one continuous view. The key challenge is hiding the seams between those optical units, so the eye perceives a smooth image field rather than a tiled structure. In the demo, the researchers show how the boundary region can become visually difficult to detect, which is essential for immersive VR or future wide-FOV AR eyewear.
A particularly interesting part of the concept is sensor placement. Because the system creates small optical boundary areas that are not easily visible to the user, the team proposes integrating eye-tracking components directly in front of the eye, rather than only around the side of the optical module. One version of the prototype includes a photodiode and LED-based eye-tracking structure, pointing toward compact gaze sensing, foveated rendering, pupil tracking, and thinner headset architecture.

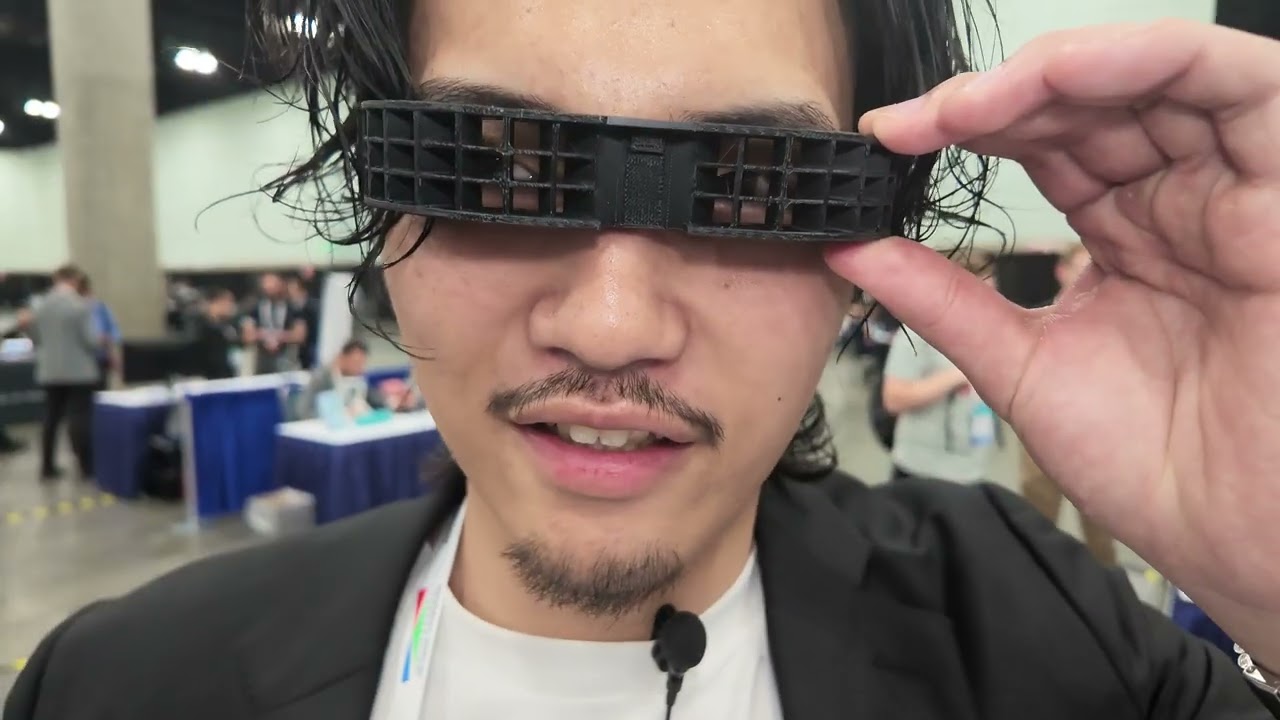

The research was filmed at Display Week 2026 in Los Angeles, where the team also showed a concept model suggesting how the technology could evolve into a very thin head-mounted display. The optical system itself is progressing, but the next major bottleneck is the display surface: the lab explains that a spherical or curved display is needed to fully match the MASO optical geometry, and that such curved microdisplay hardware is not yet broadly available as a standard commercial part.
Future improvements would likely come from shrinking the individual unit lenses, reducing the pitch, and improving optical alignment so the system can move closer to a 2 mm-thick wearable display module. If achieved, the result could be a near-eye display architecture combining ultra-wide FOV, compact optics, integrated eye tracking, and a form factor closer to lightweight glasses than today’s bulky VR optics.
Kyushu University’s Hattori Lab presents a near-eye display optics concept built around Multi-Aperture Superposition Optics, or MASO, aimed at solving one of the hardest problems in XR hardware: making the optical system both extremely thin and extremely wide field-of-view. The prototype shown here targets about 220° FOV, close to the practical binocular limit of human vision, while keeping the optical stack in the range of only a few millimeters. csede.kyushu-u.ac.jp/hattori
---
HDMI® Technology is the foundation for the worldwide ecosystem of HDMI-connected devices; integrated with displays, set-top boxes, laptops, audio video receivers and other product types. Because of this global usage, manufacturers, resellers, integrators and consumers must be assured that their HDMI® products work seamlessly together and deliver the best possible performance by sourcing products from licensed HDMI Adopters or authorized resellers. For HDMI Cables, consumers can look for the official HDMI® Cable Certification Labels on packaging. Innovation continues with the latest HDMI 2.2 Specification that supports higher 96Gbps bandwidth and next-gen HDMI Fixed Rate Link technology to provide optimal audio and video for a wide range of device applications. Higher resolutions and refresh rates are supported, including up to 12K@120 and 16K@60. Additionally, more high-quality options are supported, including uncompressed full chroma formats such as 8K@60/4:4:4 and 4K@240/4:4:4 at 10-bit and 12-bit color.
---
Instead of relying on one large lens or a conventional waveguide path, the MASO approach uses many small aperture/lens units whose images are optically superposed into one continuous view. The key challenge is hiding the seams between those optical units, so the eye perceives a smooth image field rather than a tiled structure. In the demo, the researchers show how the boundary region can become visually difficult to detect, which is essential for immersive VR or future wide-FOV AR eyewear.
A particularly interesting part of the concept is sensor placement. Because the system creates small optical boundary areas that are not easily visible to the user, the team proposes integrating eye-tracking components directly in front of the eye, rather than only around the side of the optical module. One version of the prototype includes a photodiode and LED-based eye-tracking structure, pointing toward compact gaze sensing, foveated rendering, pupil tracking, and thinner headset architecture.
The research was filmed at Display Week 2026 in Los Angeles, where the team also showed a concept model suggesting how the technology could evolve into a very thin head-mounted display. The optical system itself is progressing, but the next major bottleneck is the display surface: the lab explains that a spherical or curved display is needed to fully match the MASO optical geometry, and that such curved microdisplay hardware is not yet broadly available as a standard commercial part.
Future improvements would likely come from shrinking the individual unit lenses, reducing the pitch, and improving optical alignment so the system can move closer to a 2 mm-thick wearable display module. If achieved, the result could be a near-eye display architecture combining ultra-wide FOV, compact optics, integrated eye tracking, and a form factor closer to lightweight glasses than today’s bulky VR optics.
