Uploaded February 2025 | Updated September 2026, 6 hours ago

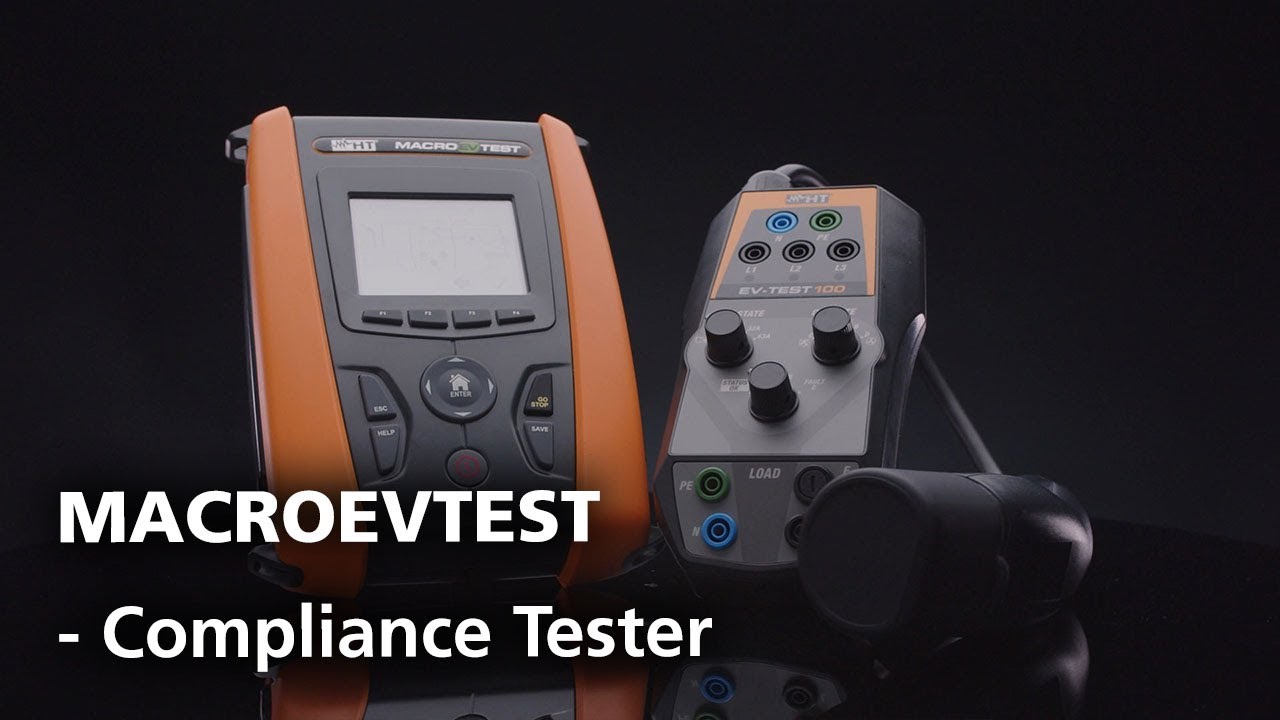

The MACROEVTEST is a multifunction instrument designed for the verification and control of electric vehicle charging stations (EVSE) according to IEC / EN 61851-1 and IEC / EN 60364-7-722 standards.
The compliance tester performs various safety tests, including continuity of the protection cable, insulation resistance, overall earth resistance, and RCD tripping time and current1. Additionally, it can measure environmental parameters like illuminance and temperature, as well as electrical quantities such as voltage, current, power factor, and harmonics.
• Simplifies: Easy connection through built in C100EV cable to EV
• Simulates: EV-Test100 can simulate the presence of a car being recharged
• Guides: To correctly perform all tests all you need to do is to follow the Guided
Procedure displayed by this innovative instrument
• Connects: Indicates how the cables must precisely be connected
• Automatically provides evaluation of the test outcome if compatible or not for the
recharging station safety indicated by a green or red thumb symbol
• Tests: Continuity, insulation, statuses of the recharging station, overall earth
resistance and confirms verification of the RCD’s tripping (Type A,B and type B 6ma)
• Verification, tests & simulates:
• Vehicle not present,
• Present but not being charged
• Present and being charged
• Events and anomalies which can be detected in the recharging phase
• Presence of voltages on the EVSE output connector through LED
• Verifies during the charging phase the block cable release to enhance safety
(More than safe sure)
https://shop.hellermanntyton.co.za/compliance-testers/1730-multifunction-ev-charging-tester-safety-6005243024725.html?utm_source=youtube&utm_medium=social&utm_campaign=youtube-description&utm_content=bG3kaY_Ggiw-za-shop-macroevtest
