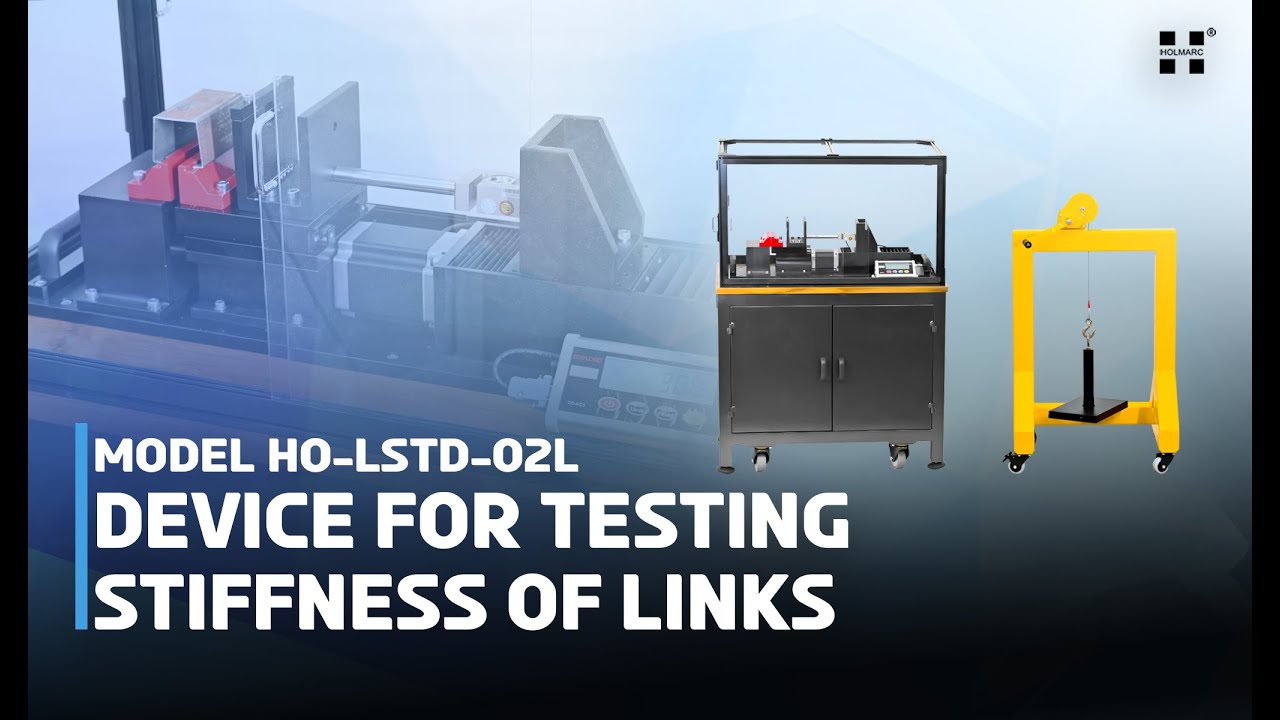

Introducing our advanced Device for Testing Stiffness of Links — a robust and fully automated system for evaluating the strength and stiffness of ammunition links. Designed for high-accuracy testing during Qualification, Acceptance, Surveillance, Endurance/Creep Testing, Life Extension, and Refurbishment processes.
🔧 System Overview:
✅ Supports multiple calibers: 30 mm, 12.7 mm, 7.62 mm
✅ Windows-based software for real-time data acquisition, comparison & extrapolation
✅ Steel frame construction with solid wood top
✅ Safety enclosure with acrylic cover for the force measurement setup
✅ Integrated data logging with monochrome laser printer
⚙️ Technical Specifications:
🔩 General Construction
Material: Steel table with solid wood top
Dimensions: 1200 × 750 × 1000 mm
Surface Finish: Epoxy painted metallic parts + polished wooden surfaces
🌀 Motorized Drive System
Motor Type: Bipolar Stepper Motor | Step Angle: 1.8° | Operating Temp: –20 °C to +50 °C | Rated Voltage: 2.7 V | Current per Phase: 6 A | Resistance per Phase: 0.45 Ω | Holding Torque: 8.7 Nm | Speed Control: Variable, via motor controller
⛓ Force Measurement System
Load Cell Type: S-Type | Capacity: 450 kg | Measurement: Tension Load | Cable Length: 3 m
🖥️ Software Interface
OS: Windows-based
Capabilities: Real-time data recording, test analysis, graph plotting, result extrapolation, printable reports
🎯 Applications:
Ammunition link strength & stiffness testing
Defence equipment quality assurance
Research & development testing
Life-cycle extension analysis
📩 Mail us at sales@holmarc.com for more details
