This is GraphicsEngine, the part of Physx3D which draws everything on the screen. It is a complete 3D graphics engine that I programmed myself. It can even render in stereoscopic 3D.
In terms of calculation resources, I do only provide one CPU core for it, meaning it has to run sequential and thus be extremely efficient.

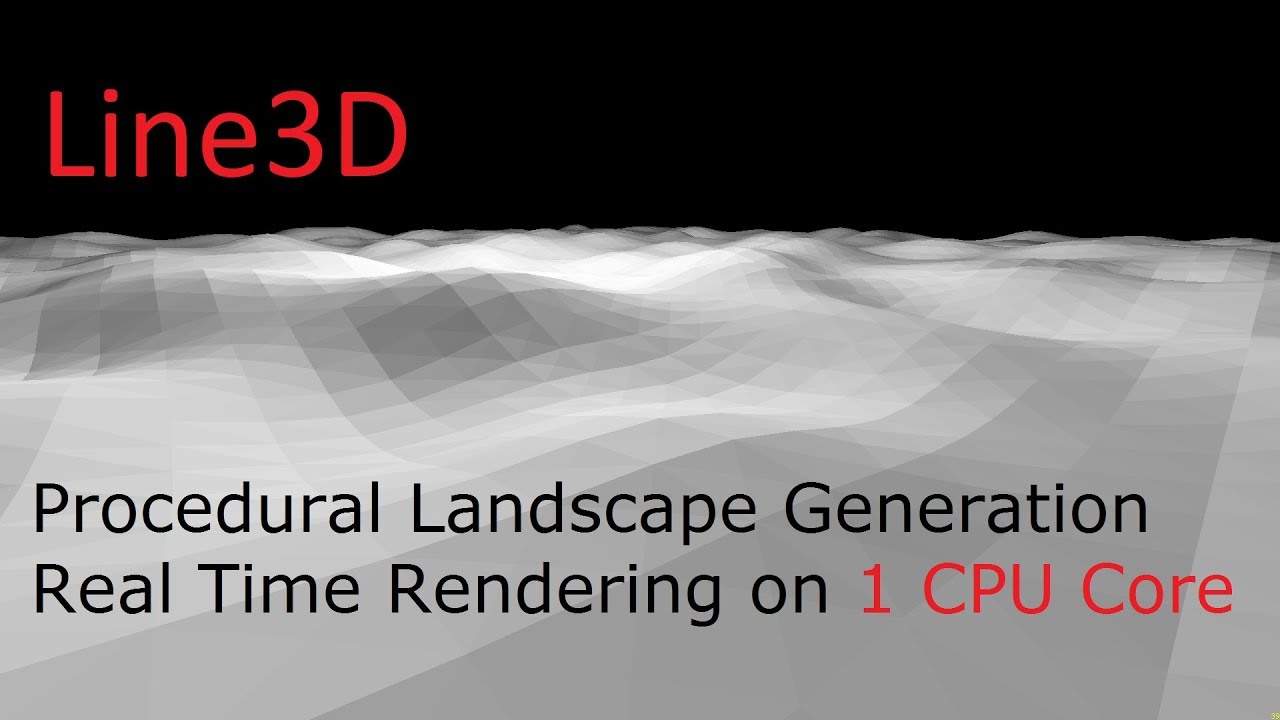

The grid in this demo consists of 100x100 points that are moved up and down via a 3D SimplexNoise (x, y, time) function. Every 4 points are connected with 4 individual triangles and a point in the middle of the four. Yes, you are seeing 40000 triangles being sequentially rendered in real time at more than 15fps. And it is all pure Java.
More information at: projectphysx.de
This is GraphicsEngine, the part of Physx3D which draws everything on the screen. It is a complete 3D graphics engine that I programmed myself. It can even render in stereoscopic 3D.
In terms of calculation resources, I do only provide one CPU core for it, meaning it has to run sequential and thus be extremely efficient.
The grid in this demo consists of 100x100 points that are moved up and down via a 3D SimplexNoise (x, y, time) function. Every 4 points are connected with 4 individual triangles and a point in the middle of the four. Yes, you are seeing 40000 triangles being sequentially rendered in real time at more than 15fps. And it is all pure Java.
More information at: projectphysx.de


![FluidX3D [FLUID SIMULATION] Taylor-Couette Flow
FluidX3D is a GPU-accelerated real time 3D fluid simulation based on the Lattice Boltzmann Method.
This demo shows the famous Taylor-Couette flow which occurs when in a cylindrical container an inner cylinder is rotated. The fluid then forms convection-like vortices with a specific width and periodicity, depending on the rotation frequency of the inner cylinder, the exact geometry and the fluid viscosity.
FluidX3D has been completely overhauled, all velocity sets (D2Q9, D3Q7, D3Q13, D3Q15, D3Q19, D3Q27) as well as all collision operators (single relaxation time (SRT), two relaxation time (TRT), multi relaxation time (MRT)) have been added and can be freely combined. In my implementation, neither TRT or MRT have any measurable performance impact since the bottleneck is still the memory bandwidth, capped by the hardware to about 420GB/s on the Titan Xp. The swap algorithm is OS-Pull (fastest algorithm, but not as memory efficient) and the data layout is the faster struct-of arrays (SoA). Ive reached the optimization limit with 2.9 Giga lattice updates per second (GLUPs) for D3Q19 on the Titan Xp.
Ive rewritten my graphics library Line3D in OpenCL with the Bresenham algorithm for drawing lines on a bitmap. It can handle up to 2 billion lines per second, which is way faster than all other graphics libraries for primitive shapes out there.
For more information about FluidX3D and my other projects, visit
http://www.projectphysx.de FluidX3D [FLUID SIMULATION] Taylor-Couette Flow](https://i.ytimg.com/vi/DTEc-CfI3b4/mqdefault.jpg)

![PhysX3D [GRAVITY SIMULATION] Osculating Orbits vs. Paths
Today I updated my osculating orbit function. For the internal calculation I changed from Euler angles to the more common angles used as orbital elements. I also added the calculation and visualization of the eccentric anomaly for both elliptic and hyperbolic orbits. With the ecentric anomaly I can paint the orbits so that the color is brightest behind each body and than gets dimmer, which lets one spot bodies on their orbits even without their names being displayed.
More information at: http://www.projectphysx.de
Music: Civil Twilight - Letters from the Sky PhysX3D [GRAVITY SIMULATION] Osculating Orbits vs. Paths](https://i.ytimg.com/vi/FCoBsC3Sols/mqdefault.jpg)

![PhysX3D [GRAVITY SIMULATION] Public Release Trailer
PhysX3D is a real time gravitational n-body simulation featuring the symplectic Velocity Verlet integrator, CPU multithreading, GPU acceleration for harnesting multi-teraflops graphics cards, and finally the most efficient 3D graphics engine ever written in Java, including full VR support.
Everything you see in the video (except for the reverse scene at 2:22) has been calculated and rendered in real time on a laptop.
Ive been working on PhysX3D for three years now, writing thousands of lines of source code in order to create the most efficient gravitational n-body simulation possible.
By the way, I am 19 years old.
Free download at http://www.projectphysx.de
Music: Thomas Bergersen - Final Frontier PhysX3D [GRAVITY SIMULATION] Public Release Trailer](https://i.ytimg.com/vi/GFzisvhtRS4/mqdefault.jpg)
