This is a Lenovo E570 screen replacement guide
For the repair we need the following tools: Phillips screwdriver and a plastic pick
To begin turn off the laptop and disconnect the power cord.
Now we can remove the bezel. Start from the left side. Gently pull the inner edge of the bezel away from the glass. Once the edge is unsnapped go around the perimeter unsnapping the tabs at the top, right side and the bottom. Put the bezel aside.
Using a Phillips screwdriver remove four screws holding the LCD panel. Two screws at the top and two more screws at the bottom. Place the LCD on the keyboard. Gently peel off the clear tape securing the video connector. Using plastic pick open the connector's bracket. Disconnect the video cable. Discard the old panel.
At this point the new LCD can be installed.

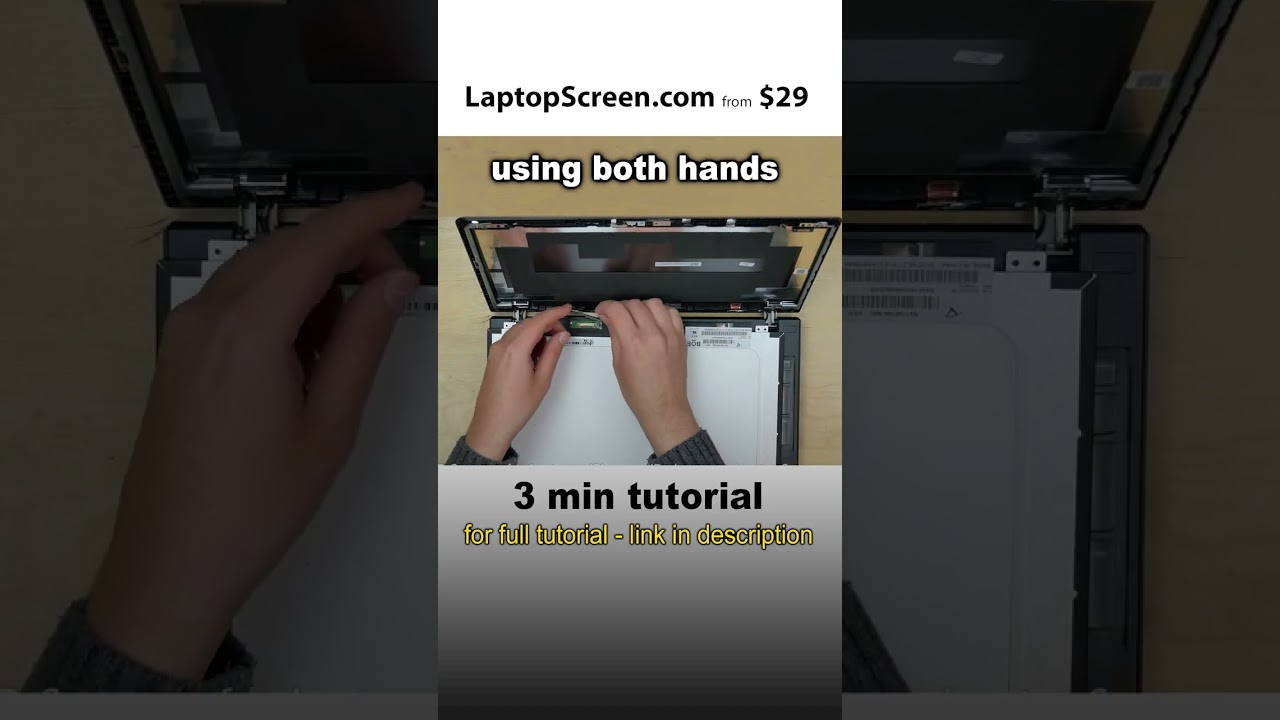

Take the new LCD screen and place it on the keyboard. Using both hands reconnect the video cable. Close the connector's bracket. Secure it with clear tape.
CAUTION! It is very important not to force any of the connectors. You must not twist or slant the connector when plugging it in.
Lift the screen up aligning it with mountain holes. Now we can test the screen.
Reconnect the power cord and turn the laptop on. If the start up graphics appears the screen is working and we can continue installation process. Turn the laptop off and disconnect the power cord.
Replace four Phillips screws. One in each corner. Replace the bezel. Start from the bottom. Press firmly snapping the tabs back in place near the hinges, then move along the perimeter.
Use one hand to support the back cover and press firmly along the bottom of the bezel. Turn the laptop over and make sure that the bezel is snapped in near the hinge cover.
Turn the laptop on and if the start up graphics appears the LCD screen is installed correctly and we are done!
