Latching relay (start - stop) Circuit Wizard simulation @PizzeyTechnology
Latching relay (start - stop) Circuit Wizard simulation  @PizzeyTechnology
Uploaded July 2023 | Updated November 2026, 1 day ago

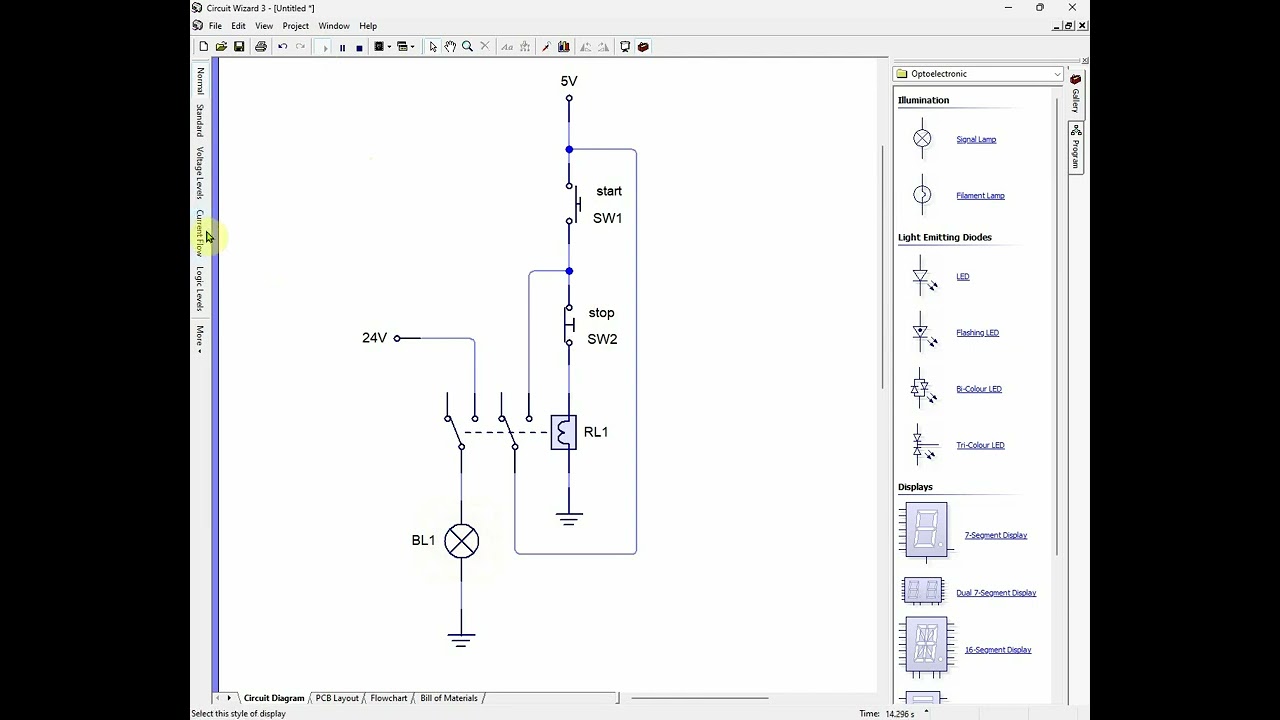

This circuit uses a normally open (N/O) push-to-make switch to latch the relay on and a normally closed (N/C) push-to-break switch to reset the latch. When the start switch is closed, the coil is powered and the relay contacts change position. When the start switch is released, the coil remains powered via the relay contacts until the stop switch is pressed.
