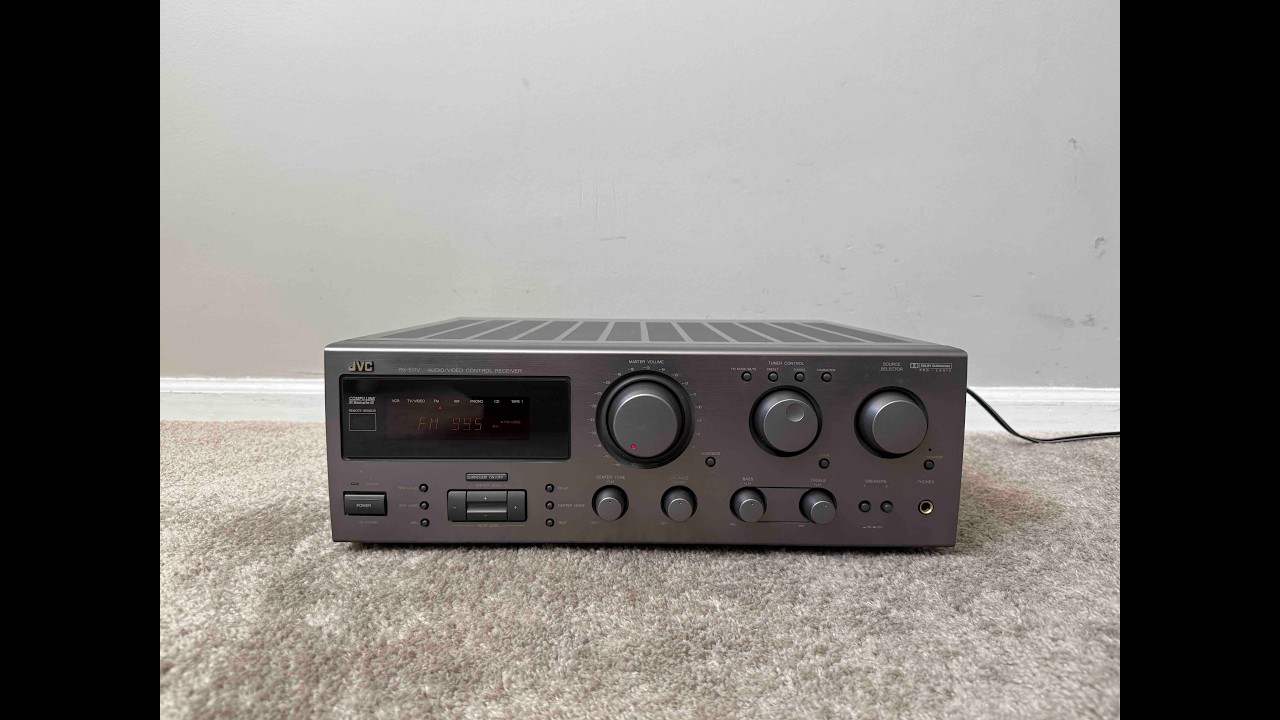

JVC RX-517VTN Home Theater Digital Surround Audio Video Control Receiver System

Specifications
Tuning range: FM, MW
Power output: 80 watts per channel into 8Ω (stereo)
Surround output: 75W (front), 75W (center), 20W (rear)
Frequency response: 10Hz to 30kHz
Total harmonic distortion: 0.4%
Input sensitivity: 2.5mV (MM), 210mV (line)
Signal to noise ratio: 70dB (MM), 91dB (line)
Output: 200mV (line)
Video Connections: composite
Dimensions: 435 x 156 x 405mm
Weight: 10.6kg
Accessories: remote control
Year: 1995
