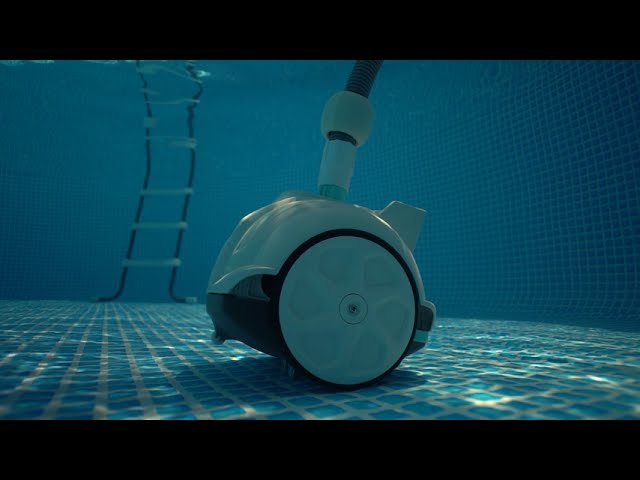

Learn how to set up your Intex ZX150 Automatic Pool Cleaner in 10 easy steps:

1. Remove the suction outlet strainer grids from the strainer connectors – 00:12

2. Attach the hose to one of the water outlet strainer connectors, and attach the strainer hole plug to the other water outlet strainer connector hole – 00:18

3. Screw the hose collar nuts to one end of the hose and the foam float to the other – 00:29

4. Assemble brush with brush support and press them into the slots at the back of the cleaner – 00:44

5. Connect the end of the hose with the foam float to the auto pool cleaner – 01:00

6. Hold the pool cleaner vertically and slowly lower the device into water – 01:06

7. Remove any trapped air – 01:10

8. Attach the other end of the hose to the hose adapter – 01:18

9. Open the air release valve. Once water begins flowing, close it– 01:29

10. Turn on the filter pump – 01:33


*Cleaning of the valve or cartridge – 01:40

*To clean the pool cleaner:

1. Turn off the filter pump – 02:10

2. Lift the hose slowly and take the pool cleaner above the water till all the water has been released – 02:12

3. Remove the hose, unscrewing the hose collar nut counterclockwise – 02:16

4. Flip the cleaner over and push the left and right levers to unlock – 02:19

5. Remove the debris net from the cleaner base and wash it off the debris net with a garden hose – 02:28

6. Reassemble pool cleaner – 02:34
