Uploaded March 2026 | Updated September 2026, 3 weeks ago
2008 Chevy Avalanche with an idle-only misfire and a P0300 random misfire code. In this lesson, I use misfire counters and secondary ignition testing to isolate the dominant cylinder and prove the fault without guessing.
This is a great example of why a random misfire code does not mean every cylinder deserves equal attention. Cylinder 1 stood out immediately in the data, and the secondary ignition pattern supported that direction. The fault ended up being a bad spark plug with a cracked porcelain, and moving the plug moved the bad pattern and the miss.
In this video I cover:
• Using history and current misfire counters to choose direction
• Why one cylinder can cause a P0300
• Secondary ignition waveform analysis on a coil-over-plug system
• Burn time changes and what they can mean
• Why idle-only misfires often make you suspect a mechanical issue first
• Using a swap test to confirm the fault
• Why misfire counters help, but should not be blindly trusted
Timestamps:
Misfire counters and P0300 direction [00:00]
Cylinder 1 stands out in the data [00:27]
Idle-only misfire: initial diagnostic thoughts [01:04]

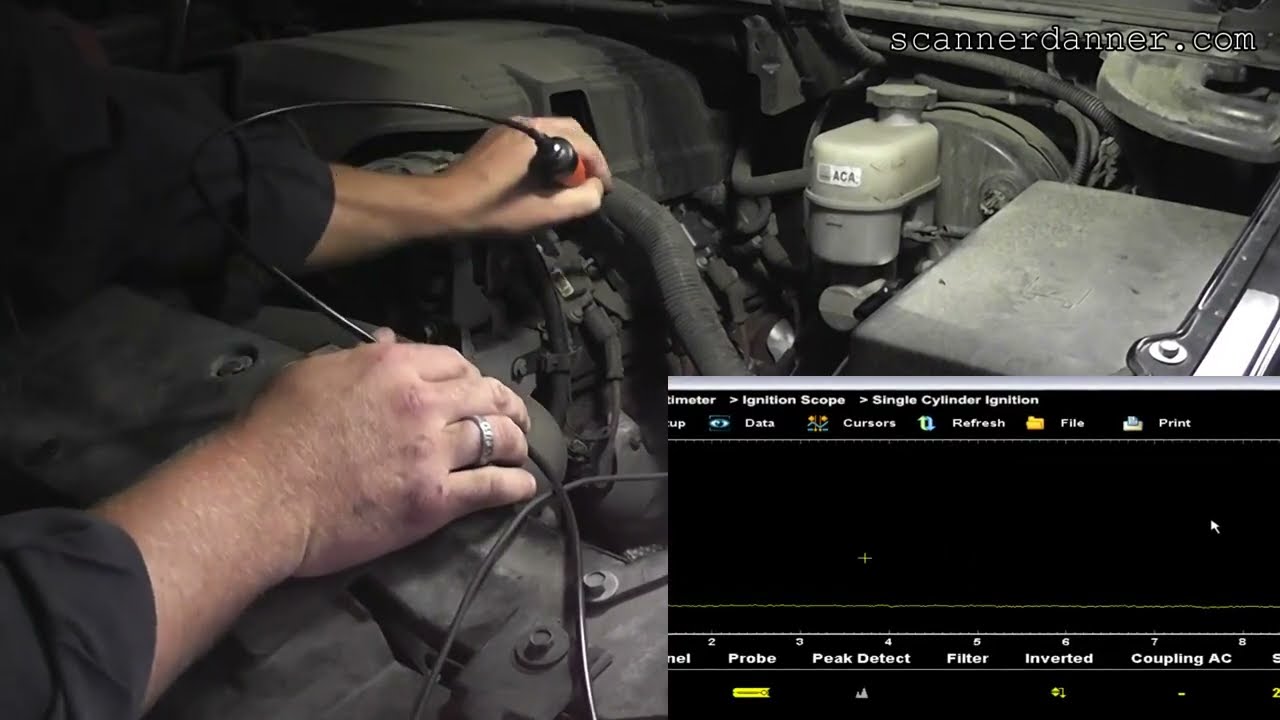

Secondary ignition setup and waveform review [01:17]
Cylinder 1 burn time inconsistency [02:18]
Comparing cylinder 1 to known good cylinders [03:31]
Mechanical suspicion vs ignition fault [04:26]
Spark plug inspection changes the direction [05:04]
Cracked porcelain found on cylinder 1 plug [05:20]
Swap test setup and verification [06:08]
Bad waveform moves with the spark plug [06:29]
Misfire counters after the plug swap [07:16]
Final diagnosis and repair recommendation [08:14]
