In this video, we'll show you how to replace the P6 sensor.
When reassembling the group head parts after cleaning, if the lower group head part is not properly aligned while tightening the shower screen screw, the sensor probe can get caught between the upper and lower parts and may eventually break. Avoid this by placing the machine upside down when installing the group head parts.
When this sensor is broken, it causes an incorrect metal (group) temperature reading and needs to be replaced.
This video is part of a series that we produce, helping our users self-repair their Decent Espresso Machine.
※ Only do this repair in consultation with Decent tech support
※ Doing otherwise might break your machine or void your warranty.
Chapters:
00:12 Tools
00:17 Power Disconnection
00:37 Remove External Components
01:19 Remove the Main Cover
01:41 Remove the Chassis
02:10 Turn the machine upside down
02:40 Remove the 5 screws on the group head support
03:06 Turn the machine back into its upright position
03:14 Lift the group head cover and insulation plate
03:39 Remove the sensor bracket
03:59 Remove the old sensor
04:10 Disconnect the sensor cable and remove cable ties
04:37 Pull out the old sensor cable

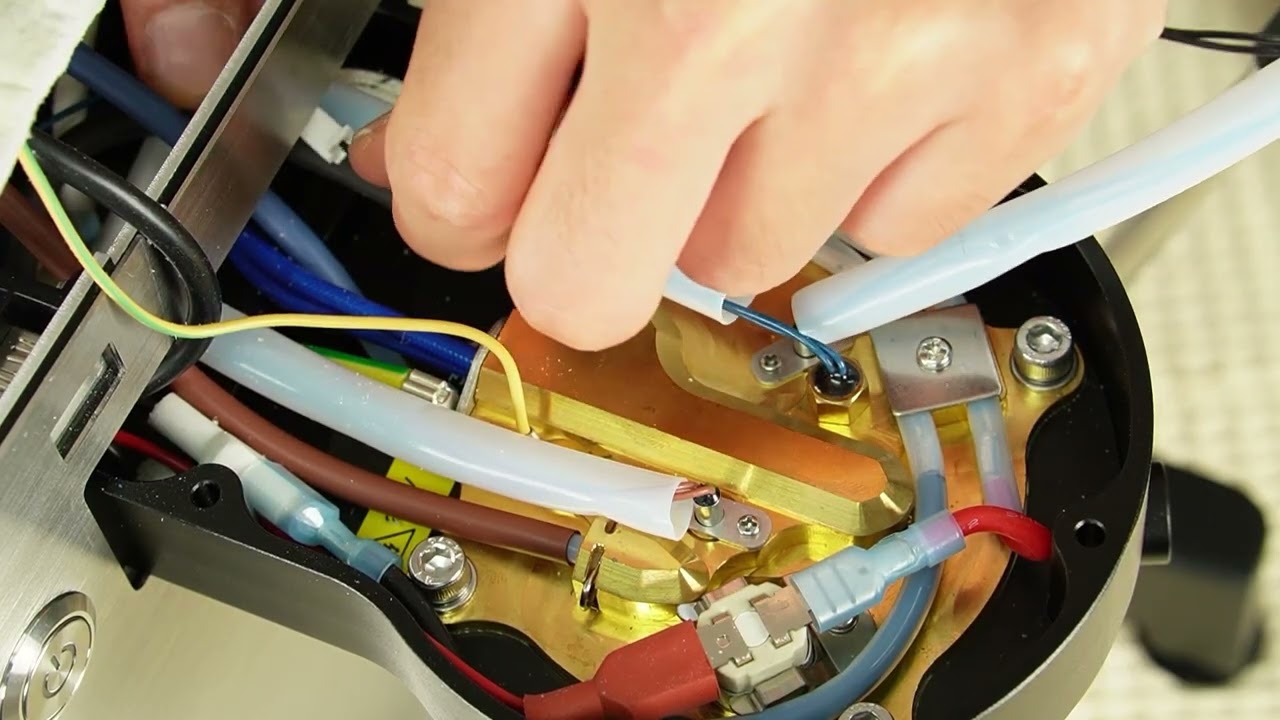

04:57 Install the new sensor
05:29 Connect the new sensor cable
05:59 Mount new cable ties
07:00 Organize insulation plate and cables
07:12 Mount the group head cover
07:26 Install the side chassis
07:50 Place a cloth and turn the machine upside down
08:04 Insert and secure the screws in the group head support
08:31 Contact us if you have any questions
