Most techs learn on standard Schrader valves, where a service hose depressor forces down a spring-loaded core pin. Multi-position service valves are different — there's no spring, no core, and no Schrader seal. Instead, they use a purely mechanical dual-seating design that you control manually with a refrigeration service wrench.

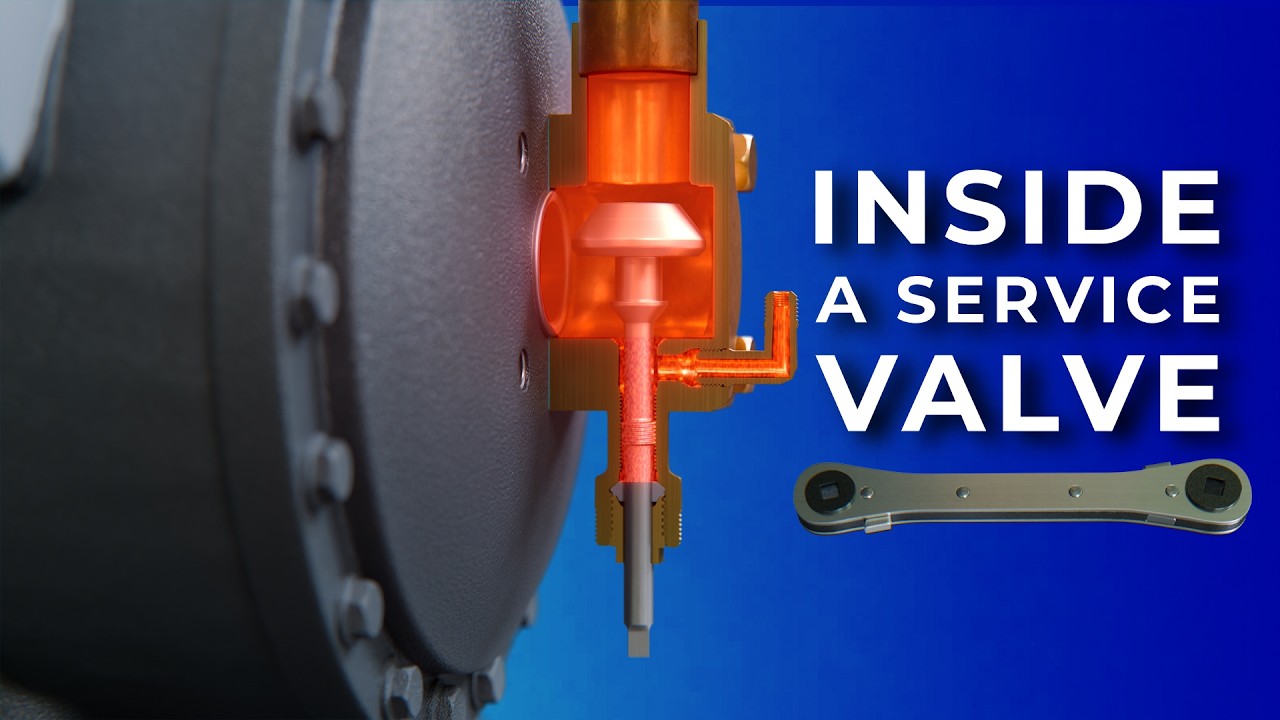

In this 3D breakdown, we open up a valve to show exactly how it works internally: the packing nut, the stem threads, and the three seating positions — back seated, mid seated (or "cracked off the back-seat"), and front seated. We cover why you should always loosen the packing nut before turning the stem, and what happens if you skip that step (shredded seals or a sheared brass stem).
We also walk through real field applications and hazards: how front seating the suction or discharge valve on a running compressor can cause a deep vacuum, motor overheating, electrical arcing, or a catastrophic deadhead failure. Then we get into king valves and queen valves — what makes a valve earn that name, how they're used to isolate a liquid receiver, and how a pump-down actually works.
If you work on commercial refrigeration or large tonnage HVAC systems, understanding how these valves function — not just where they are — is critical to doing the job safely.
---
