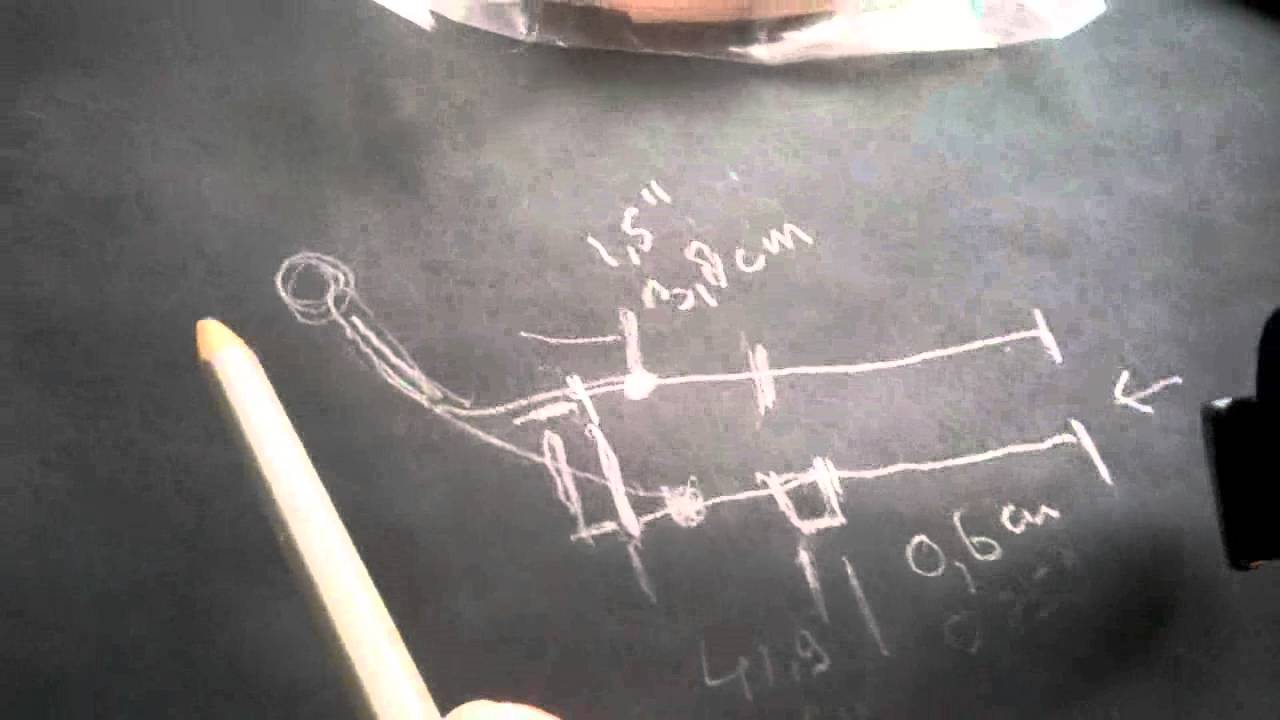

How do you make a J-pole antenna for the 2 meterband ?
Link : http://animals.home.xs4all.nl/files/J-pole_2meter_inch-cm_plans.png
I would like to show you how you can make a simple and cheap antenna from 300 Ohm twinlead wire.
Very simple antenna you can make in 10 minutes and is handy to take with you and is better than a rubber duck on your handheld. The gain is about 2.5dBi and costs less than Euro 5.
The J-pole antenna, more properly known as the J antenna, was first invented by Hans Beggerow in 1909 for use in Zeppelin airships. Trailed behind the airship, it consisted of a single element, one half wavelength long radiator with a quarter wave parallel feedline tuning stub. This concept evolved to the J configuration by 1936 attaining the name J Antenna by 1943.
Link : en.wikipedia.org/wiki/J-pole_antenna
Link : aktuellum.com/mobile/circuits/antenna-patent
Link : http://animals.home.xs4all.nl/files/J-pole_2meter_inch-cm_plans.png
