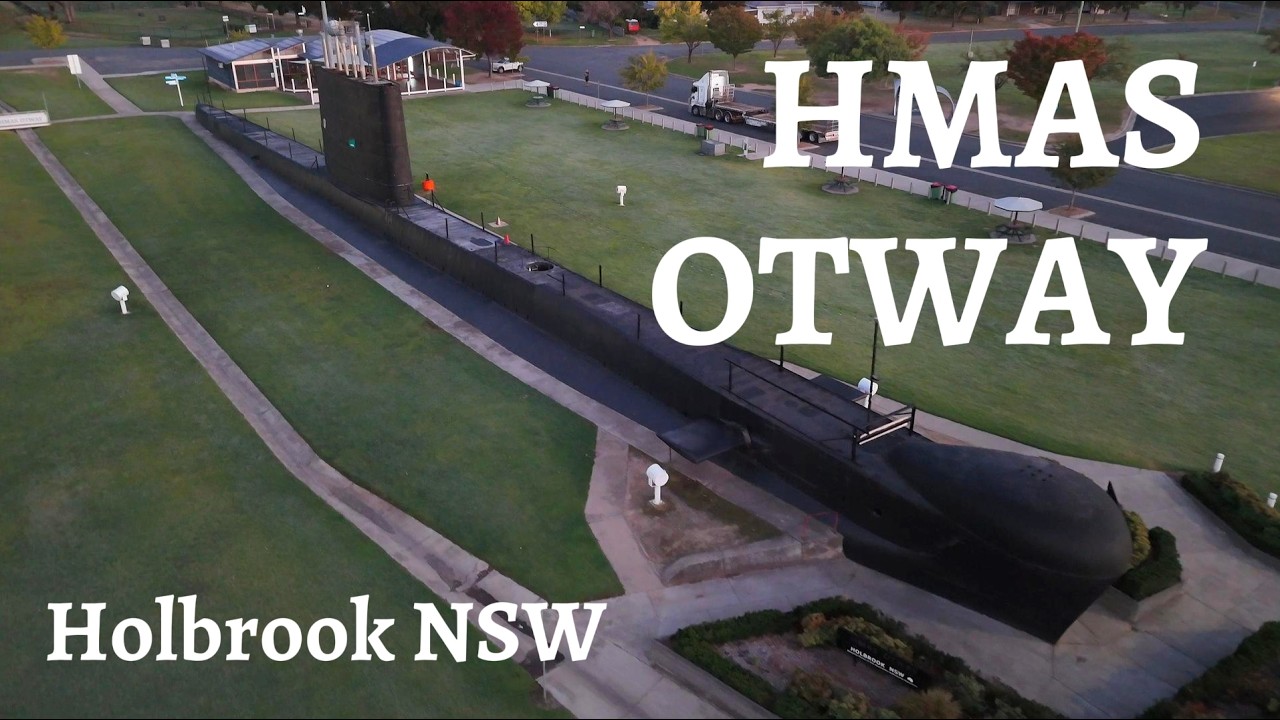

Drone footage of the HMAS Otway submarine in the town of Holbrook, New South Wales, Australia. Filmed at sunrise on 19 April 2026.
HMAS Otway (S 59) was an Oberon-class submarine of the Royal Australian Navy (RAN). One of the first four Oberon-class boats ordered for the RAN, Otway was built in Scotland during the mid-1960s, and commissioned into naval service in 1968. The submarine was decommissioned in 1994. The submarine's upper casing, fin, and stern are preserved at Holbrook, New South Wales.
The submarine was 295.2 feet (90.0 m) long, with a beam of 26.5 feet (8.1 m), and a draught of 18 feet (5.5 m) when surfaced. At full load displacement, she displaced 2,030 tons when surfaced, and 2,410 tons when submerged. The two propeller shafts were each driven by an English Electric motor providing 3,500 brake horsepower (2,600 kW) and 3,500 shaft horsepower (2,600 kW); the electricity for these was generated by two Admiralty Standard Range supercharged V16 diesel generators.
The submarine could travel at up to 12 knots (22 km/h; 14 mph) on the surface, and up to 17 knots (31 km/h; 20 mph) when submerged, had a maximum range of 9,000 nautical miles (17,000 km; 10,000 mi) at 12 knots (22 km/h; 14 mph), and a test depth of 200 metres (660 ft). When launched, the boat had a company of 8 officers and 56 sailors, but by the time she was decommissioned, the number of sailors had increased to 60. In addition, up to 16 trainees could be carried.
The main armament of the Oberons consisted of six 21-inch (533.4 mm) torpedo tubes. The British Mark 8 torpedo was initially carried by the submarine; this was later replaced by the wire-guided Mark 23. Between 1977 and 1985, the Australian Oberons were upgraded to carry United States Navy Mark 48 torpedoes and UGM-84 Sub Harpoon anti-ship missiles. As of 1996, the standard payload of an Australian Oberon was a mix of 20 Mark 48 Mod 4 torpedoes and Sub Harpoon missiles. Some or all of the torpedo payload could be replaced by Mark 5 Stonefish sea mines, which were deployed through the torpedo tubes. On entering service, two stern-mounted, short-length 21-inch (53 cm) torpedo tubes for Mark 20 anti-submarine torpedoes were also fitted. However, the development of steerable wire-guided torpedoes made the less-capable aft-firing torpedoes redundant; they were closed off, and later removed during a refit.
Holbrook is a small town in Southern New South Wales, Australia. It is on the Hume Highway, 384 kilometres by road North East of Melbourne and 492 kilometres by road south-west of Sydney between Tarcutta and Albury. The town is in the Greater Hume Shire which was established in May 2004 from the merger of Culcairn Shire with the majority of Holbrook Shire and part of the Hume Shire.
At the 2016 census, Holbrook had a population of 1,715 people. The district around Holbrook is renowned for local produce including merino wool, wheat and other grains, lucerne, fat cattle and lamb.
