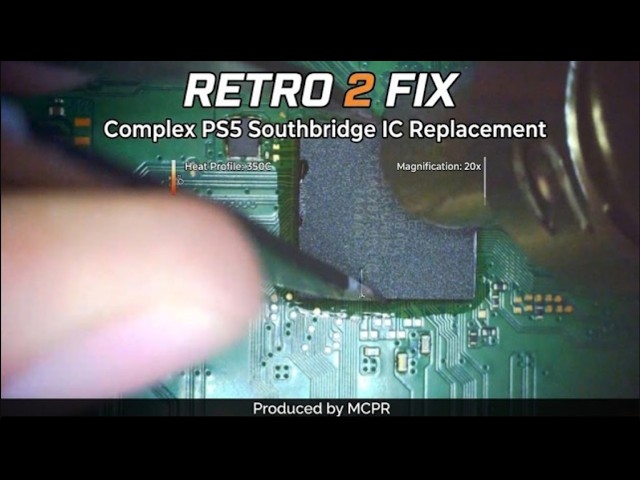

Replacing the Southbridge IC on a PlayStation 5 motherboard is one of the most complex board-level repairs you can attempt on modern hardware.
In this video, we take you through the entire process—from diagnosing no-power/boot issues to chip removal, BGA cleaning, reballing, and precise alignment using hot air and BGA rework tools.
Repair Overview:
Diagnosis & Power Testing: Identifying Southbridge failure / standby power faults.
Chip Removal: Applying flux and controlling heat profiles to pull the original BGA IC safely.
Pad Prep: Cleaning oxidation and leftover solder from the motherboard pads.
Reballing / Replacement: Aligning and soldering the new Southbridge chip.
Testing & Verification: Confirming power rail recovery and full boot to system dashboard.
⚠️ Disclaimer: This repair involves high heat and advanced micro-soldering techniques. Attempting this without thermal management experience can permanently damage the motherboard or neighboring components.
Tools Used:
Hot Air Rework Station
Micro-soldering Iron & Fine Tips
BGA Reballing Stencil & Solder Balls / Paste
Amtech Flux & desoldering Wick
Microscope
If this guide helped you understand the repair process, don't forget to Like, Comment, and Subscribe for more board-level console repairs!
