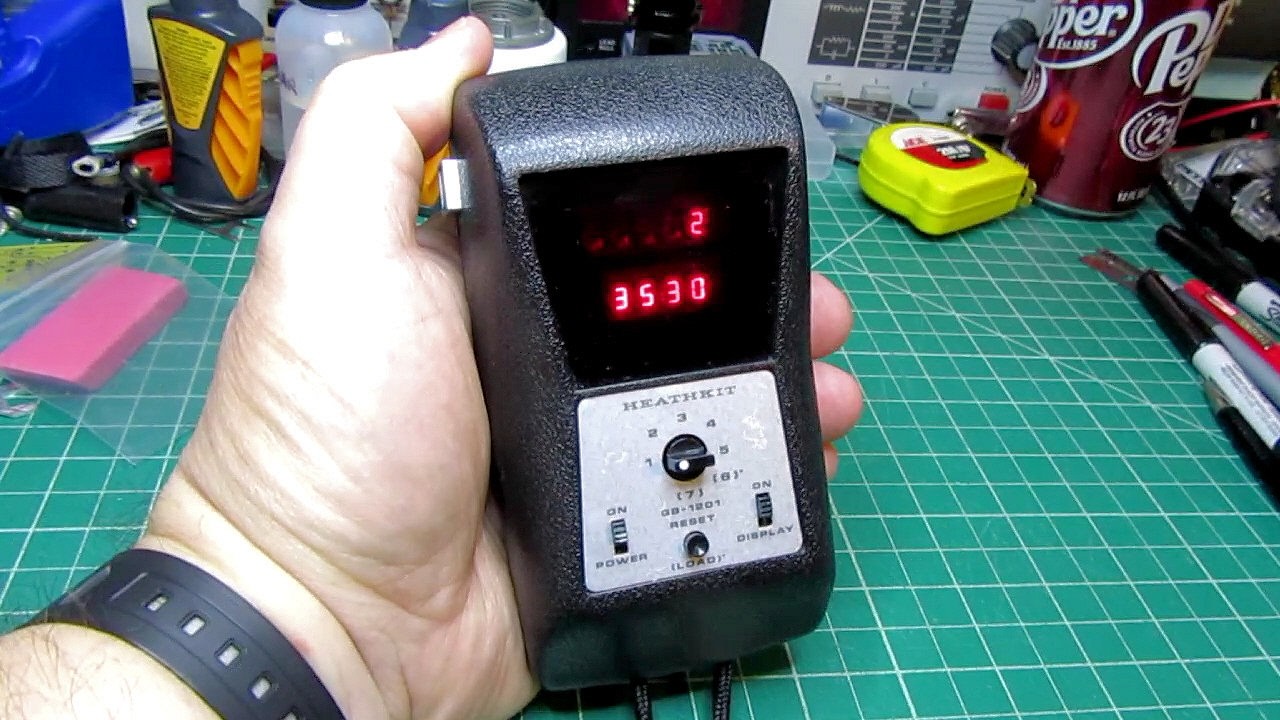

In this video, I document a rare 'fringe' product in the old Heathkit's product lineup, the "Heathkit GB-1201 Deluxe Digital Stopwatch", which was produced for only a short while starting in 1975
I talk about the product history and features, my restoration of the example I own, I give a brief demonstration, and I go through the circuit theory.
Then I add two BONUS supplements:
- National Semiconductor MM5865 timer IC pinout and functional description
- Design and fabricating a 3D printable "sunshield" for the GB-1201, modeled
after the original Heathkit shield
I have created three files that will be useful to anyone trying to use, restore, etc; a GB-1201: An STL file for 3D printing a replacement "sunshield", instructions in PDF format for making and using the sunshield, and a PDF document that describes the pin-out functions of the National Semiconductor MM5865 universal programmable timer IC, around which the GB-1201 is designed. These files make be downloaded here:
serpentwebsite.com/fileshare.htm
Timeline Table of Contents:
00:00 History
08:20 New Ni-Cd battery
26:07 Initial tests
28:34 Better-informed tests
29:52 IC replacement and Demonstration
36:41 Functions 1 through 5
45:33 Programming Digits
49:30 S/S and F/S jacks
55:36 Functions 6 & 7 Programming
1:00:31 Re-assembly & new Lanyard
1:04:03 Beauty Shot
1:04:25 Post-restoration overview
1:06:06 New "Converter-Charger" (AC "wall wart")
1:10:16 Overview of Heathkit manual
1:30:36 Schematic & Circuit Theory
1:56:25 Deep Dive into the MM5865 timer IC(s)
2:22:50 Designing and 3D printing replacement sunshield
