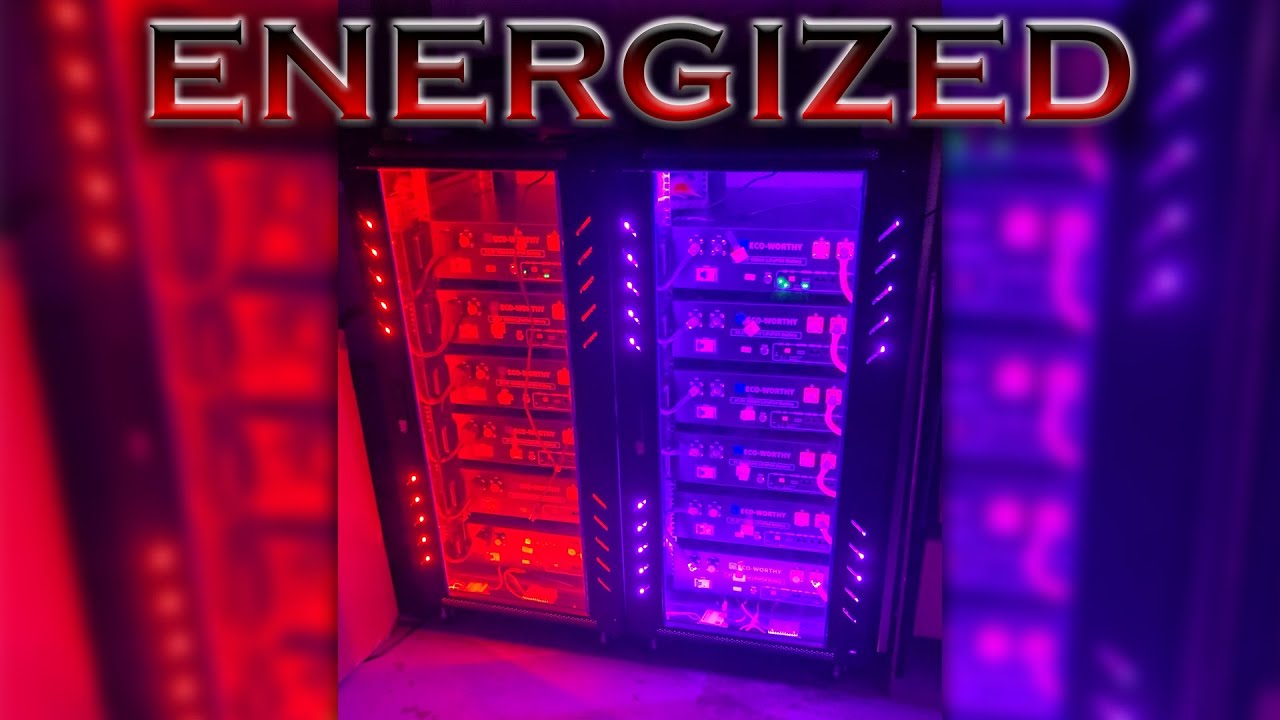

Transform your battery rack from “hidden in a corner” to “front‑and‑center showpiece” while adding a useful safety cue. In this build, I add a bus‑energized LED strip to my 60kWh home battery rack so it only lights when the DC bus is live—instantly telling you the system is energized. It’s a quick, modular DIY using a buck converter + LED controller, with an optional path to WLED/SOC logic later.
What you’ll see:
How the LED indicator works as a visual “bus live” safety cue
Parts list and simple wiring: battery bus → buck → LED controller → LED strip
Modular connectors, soldering tips, and clean cable management
Testing, remote control, and ideas for upgrading to WLED/SOC in the future
Parts (or equivalents):
Addressable LED strip (single run split across two racks)
LED controller (simple RF today; WLED-capable if you want smart later)
Buck converter (drops pack/bus voltage to LED strip voltage)
Connectors, ring terminals, heat‑shrink, wire, adhesive mounting
The Parts List!
BTF-Lighting FCOB WS2811 IC 864LED 24v LEDS - amzn.to/4olYcA7
BTF-Lighting SP530E LED Controller - amzn.to/3W00UPA
48v (60v max) to 24v Buck Converter - amzn.to/4nQmjqI
Alternative LED WS2814 RGBW (used in my house) - amzn.to/4qdIIjm
Heat Shrink Tubing - amzn.to/4ojEyom
Kester Solder - amzn.to/42ECGOv
My current favorite WLED Controller - amzn.to/439Ls7i
Notes:
The LEDs only illuminate when the bus is energized—great for status at a glance
Future upgrade: drive colors/animations by battery SOC with WLED
Always follow electrical safety best practices around high‑energy DC systems
If you found this helpful, please like, share, and subscribe for more DIY solar, smart home, and power projects. #DIY #SolarPower #BatteryRack #LiFePO4 #LED #OffGrid #SmartHome #WLED
