Uploaded April 2017 | Updated November 2026, 3 hours ago

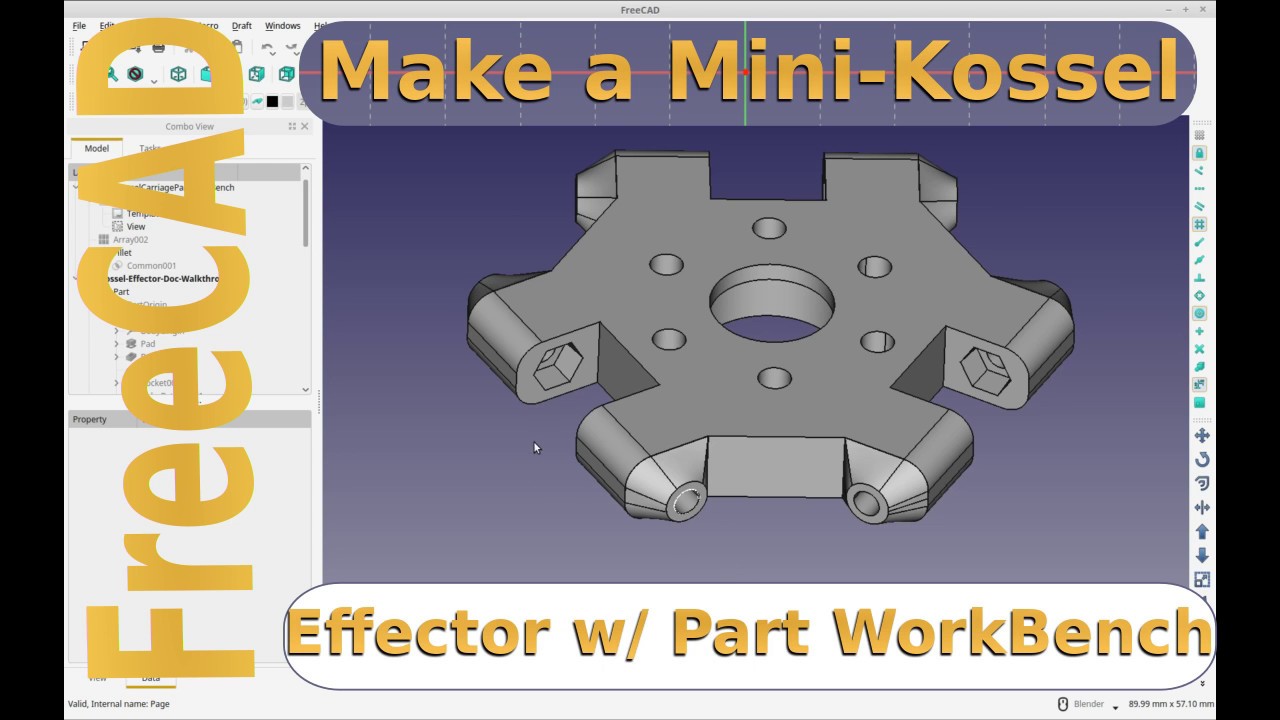

This is an at length walk through designing the End Effector for the Mini-Kossel 3d Printer. It is targeted at the FreeCAD beginner. This component of the tutorial series uses the Part Workbench instead of Part Design Workbench. There are two main reasons for this; 1.) To teach how to use the Part Workbench 2.) I was having problems with the Polar Array in Part Design Workbench. Also, I wanted to see if it could save time ( doesn't seem to ).
Additionally, I have done a version of this video using sketcher. I will upload it when the Polar Array function in Part Design WB is stabilized.
Once again I am using the FreeCAD daily build:
OS: Linux Mint 17.3 Rosa
Word size of OS: 32-bit
Word size of FreeCAD: 32-bit
Version: 0.17.10707 (Git)
Build type: None
Branch: master
Hash: 04a3283000cfdf92b26c54fd4ae7a0fbd636a74b
Python version: 2.7.6
Qt version: 4.8.6
Coin version: 4.0.0a
OCC version: 7.1.0
Table of Contents
INTRO ( Skip-able )
00:00 Intro
00:35 Polar Array Problems
02:41 Sketch Basis
CHAPTER 1 - Main Body
03:15 - 6 Sided Polygon for Main Body
04:00 - Cube and 12 Sided Polygon for Openings
05:00 - Positioning the Openings
07:00 - Final Positioning of the Openings
07:32 - 1sdt Boolean Cut with Cube and 12 Sided Polygon
08:10 - Simple Copy and Rotate to Create "Polar Array"
09:04 - Create Intersection
09:32 - Measurement Check ( Skip-able )
CHAPTER 2 - Rod Stand-offs
10:09 - Create the Rod Stand Off
12:36 - Position Rod Stand Off
13:45 - Align Rod-End to Front Edge
14:26 - Array Copy the Rod-End
15:26 - Rod Bolt Through Holes
CHAPTER 3 - Hot-end Mount
19:20 - Hot-end Opening
21:06 - Hot-end Mounting Holes
CHAPTER 4 - Rod Bolt Nut Capture
22:07 - Nut Capture Polygon's in Draft Workbench
24:00 - Move the Second Polygon into Main Body
24:51 - Nut Capture Loft
25:27 - Center Loft and Copy
27:21 - Polar Array of the Nut Capture Loft
28:27 - Boolean Cut of Nut Access Loft
CHAPTER 5 - Finalizing
28:55 - Fillet Edges
30:00 - Tech. Drawing ( Skip-able )
32:00 - Wrap Up ( Skip-able )
