Is your ESP32-C6 failing to upload with Exit Status 2? This guide covers how to update to Espressif v3.0.0, configure 16MB flash settings, and solve detection issues in the Arduino IDE for RainMaker and sensor projects
Setting Up ESP32-C6 in Arduino IDE and Troubleshooting Exit Status 2
00:09 ESP32-C6 Wroom v2
00:24 ESPconnect check model ESP32

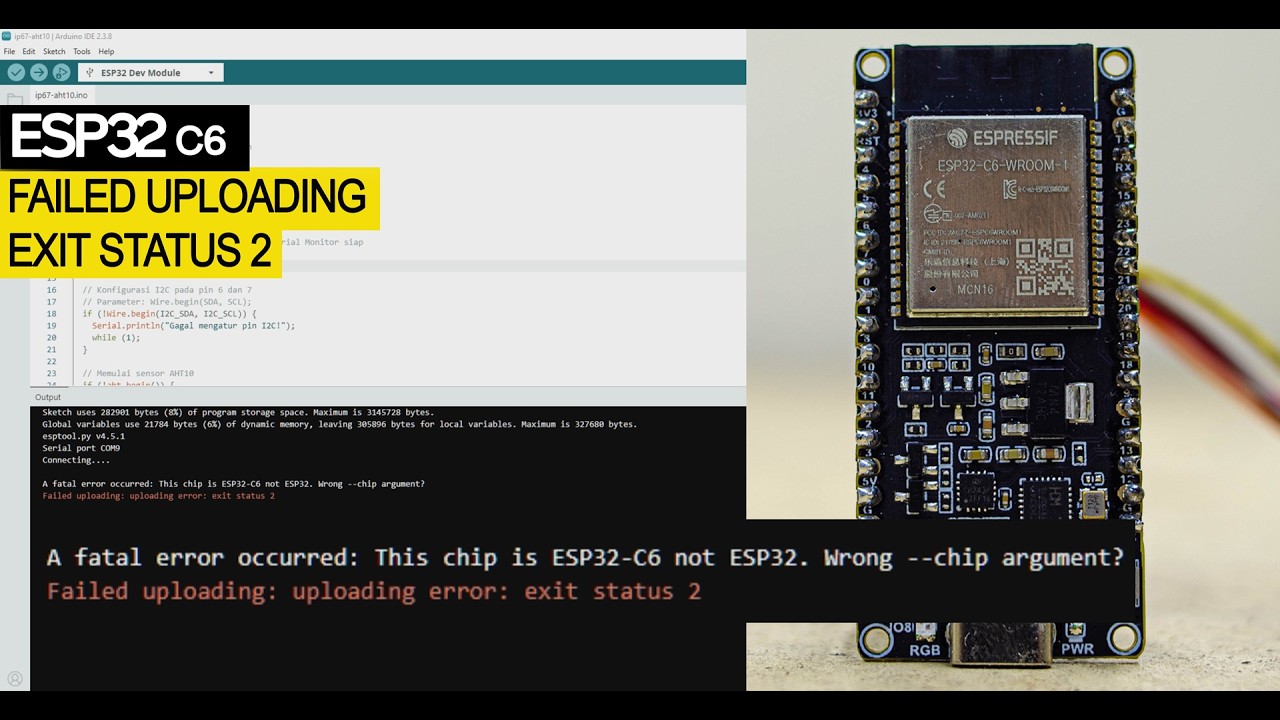

00:38 Problem ESP32-C6 Failed uploading Exit status 2.
01:02 Update ESP32-C6 board Arduino IDE
02:04 Setup ESP32-C6 board model
03 ESP32c6 flash the Rainmaker program.
The ESP32-C6 is a powerful Wi-Fi 6 and Matter-enabled microcontroller. However, because it is a newer chip, you might encounter detection issues or the dreaded "Exit Status 2" upload error if your environment isn't configured correctly.
Follow this step-by-step guide to update your environment and successfully flash your ESP32-C6 (16MB model).
1. Essential Prerequisites
Hardware: ESP32-C6 v2 WROOM with 1 USB-C port.
Verification: Before opening the IDE, ensure your USB-C cable is data-capable. Check Windows Device Manager under "Ports (COM & LPT)" to confirm the board is detected when plugged in.
2. Updating the Board Manager
If your board is not detected, it is likely because your ESP32 core is outdated. Version 3.0+ is required for C6 support.
Open Arduino IDE.
Go to File - Preferences.
In the Additional boards manager URLs field, add the official Espressif link:
espressif.github.io/arduino-esp32/package_esp32_index.json
Go to Tools - Board - Boards Manager.
Search for "ESP32 by Espressif Systems" and ensure you update to version 3.0.0 or higher. This version adds support for the C3, C5, C6, H2, P4, S2, and S3.
3. Troubleshooting "Exit Status 2" (The Clean Flash)
The "Exit Status 2" error often occurs due to incorrect board selection or a corrupted previous flash. To fix this:
Board Selection: Go to Tools - Board - ESP32 and select ESP32C6 Dev Module.
Port Selection: Select the COM port that matches your board name.
The "Empty Program" Test:
Open a blank sketch (void setup(){} and void loop(){}).
Attempt to upload. If this succeeds, the "Exit Status 2" error is resolved, and your communication link is stable.
4. Advanced Configuration for ESP RainMaker & Sensors
Once the basic flash is successful, you can proceed to more complex implementations, such as using an AHT10 sensor or the ESP RainMaker ecosystem.
Flash Settings for RainMaker:
When moving to RainMaker, your upload settings must be precise to accommodate the larger framework:
Erase Flash: Set to Enabled (highly recommended for the first RainMaker flash to clear old credentials).
Flash Mode: Select the mode compatible with your WROOM model (usually DIO or QIO).
Flash Size: Select 16MB to match your hardware.
Partition Scheme: Select a RainMaker specific partition. This allocates the necessary space for the NVS (Non-Volatile Storage) used for Wi-Fi provisioning and cloud metadata.
5. Final Implementation
After configuring the partitions:
Enter your full code (e.g., your AHT10 sensor logic).
Click Upload.
The ESP32-C6 should now boot correctly, initialize the sensor, and connect to the RainMaker cloud.
Tip: If the board still fails to enter "Download Mode" automatically, hold the BOOT button, press and release RESET, then release BOOT before clicking the upload button in the IDE.
