So we're here on the site. We're just doing install of an automation system on another hydropower
But I'm going to run through that install process.
First of all, we're going to locate the bracket that holds that auto system
and drill some bolts

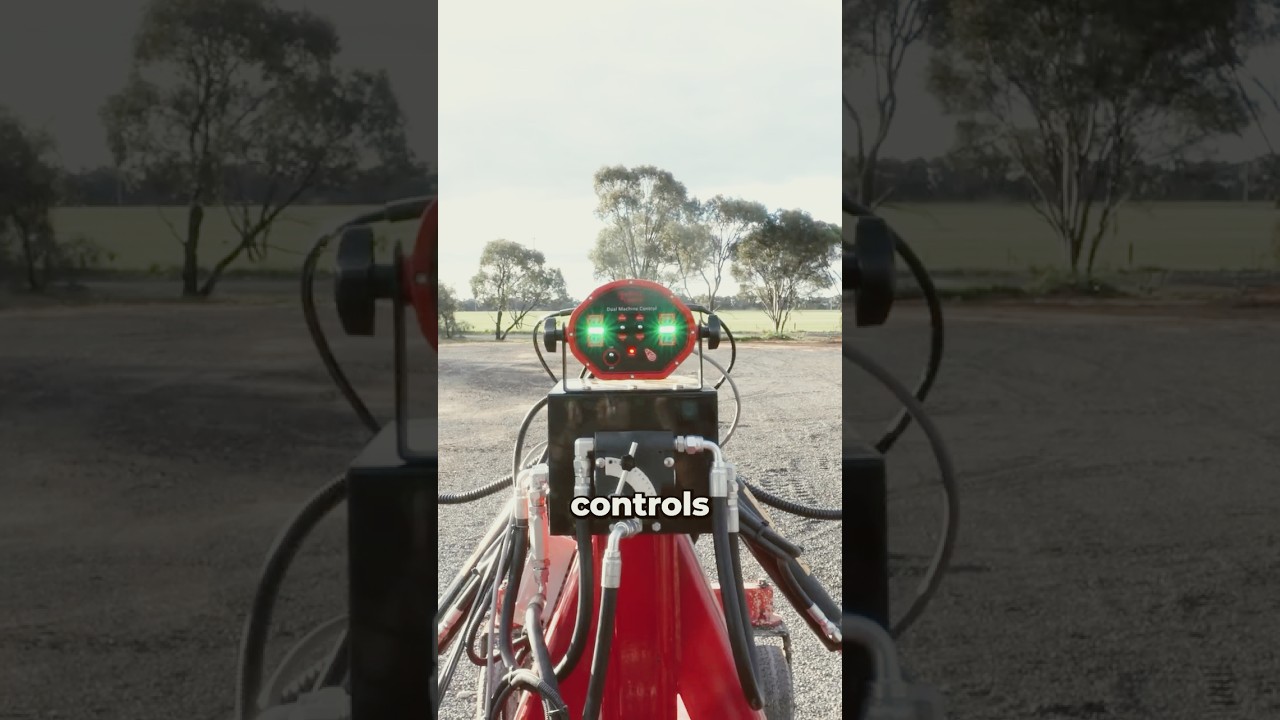

it directly in front of the operator so you can see the controls as we're operating.
we've got the power supply running through to the Anderson plug there.
running back to the battery with an inline fuze
We've got a left and a right receiver cable that
plugged in firstly to the receivers,
the left cable goes to the left receiver and the right cable goes through to the right receiver
that communication cable that talks to the valve bank.
With this system, it does have a piggy back plug into the communication box on the blade itself.
Now that's a four port Deutsche plug,
the correct polarity to raise and lower the left ram and raisin lower the right ram.
were marrying up into the operation of the controls within the skid steer itself.
with the automation system in.
And once we put that into automation mode, we don't need to do the height control so we can ride along and slew the blade and extend the blade with the automation system operating the height control at all times.
variable flow controller, and that really helps us with the full control.
If we're operating it manually, we might boost that flow control valve up slightly when we're operating in auto mode. I bring that down a little bit,
and that's something you're going to have to work out with your machine. And what is the best flow rates for your hydraulics
---------------------------------------------------------------------------------------------------------
