🔩 Drilling Jig Assembly in Siemens NX 2212

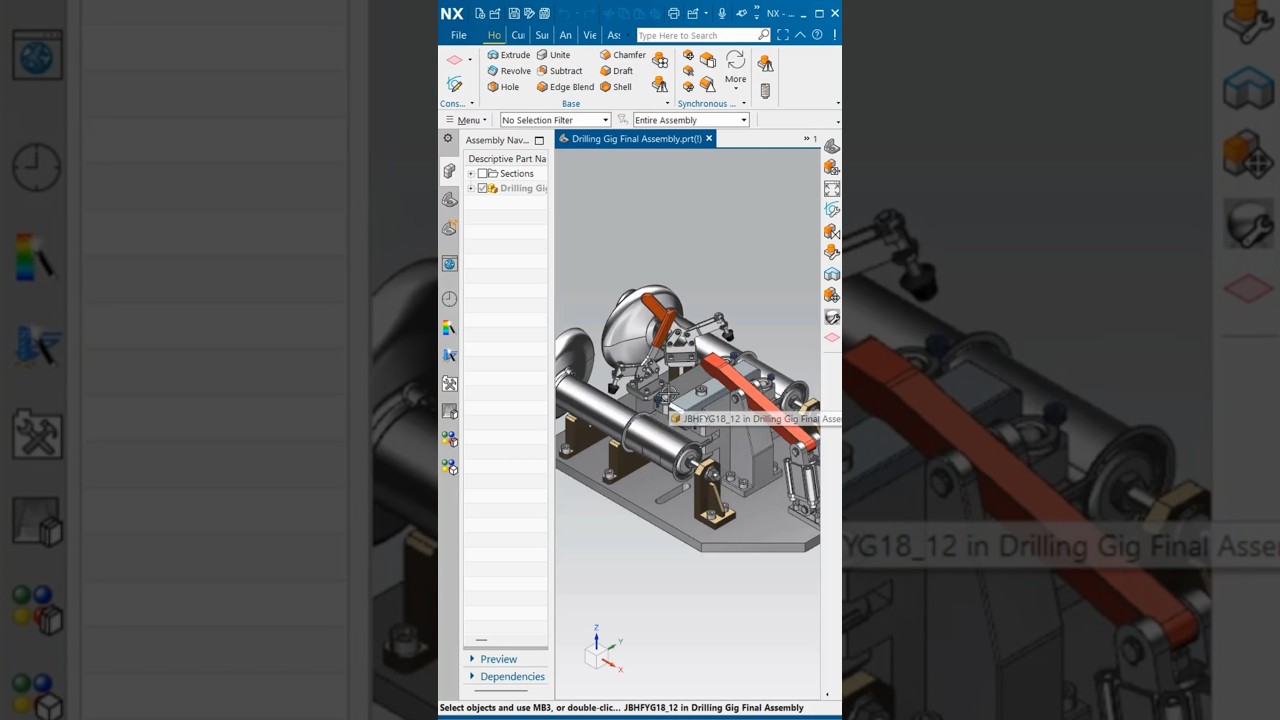

Watch this complete Drilling Jig Full Assembly designed using a professional bottom-up CAD workflow in Siemens NX 2212.

⚙️ Project Highlights:
✔ 40 Parts | 6 Sub-Assemblies | 1 Main Assembly
✔ Touch, Align, Concentric & Angle Constraints
✔ Mirror, Rectangular & Circular Patterns
✔ Real-world Manufacturing Application

Perfect for Mechanical Engineering students, CAD learners, and design professionals.
