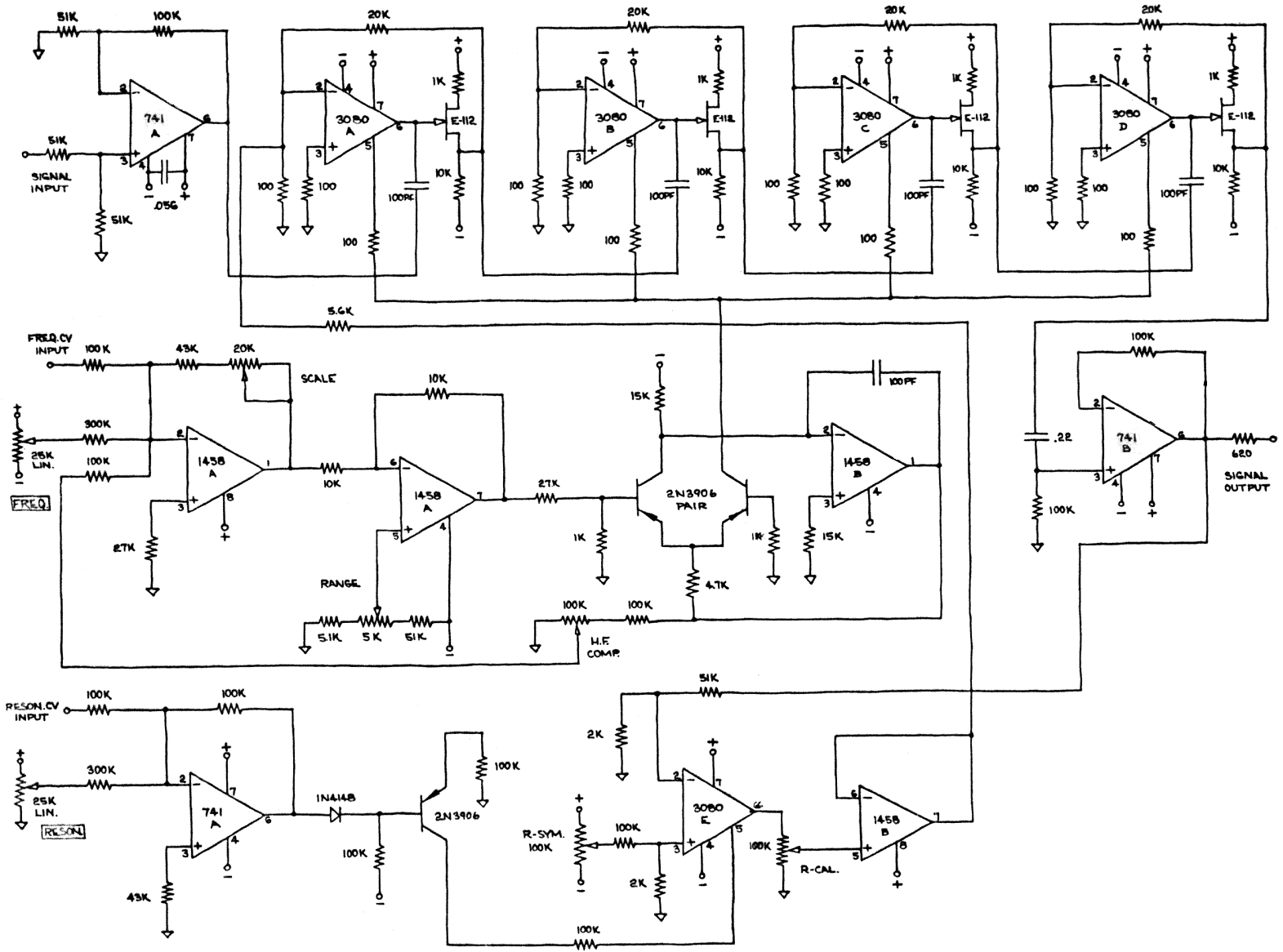

Here's the schematic:
synthfool.com/docs/Polyfusion/polyfusion_vcfhi.gif
I'm running it from +/- 12V.
The OTAs are LM13700s with the diode pin (2 and 15) not connected to anything. Buffer inputs on the OTAs (pins 7 and 10) are grounded.
The op amps are all TL074 besides one NE5532... don't use the NE5532 for the buffers I mention in the video because their input impedance might mess up the filter.
Works so great, and is **so** **smooth**.
Excellent 4-pole high pass VCA and super-bonus -- the resonance can be voltage controlled too! SWEET!!!
Also, whoever drew the schematics for Polyfusion is a master. Really good looking. A work of art.
