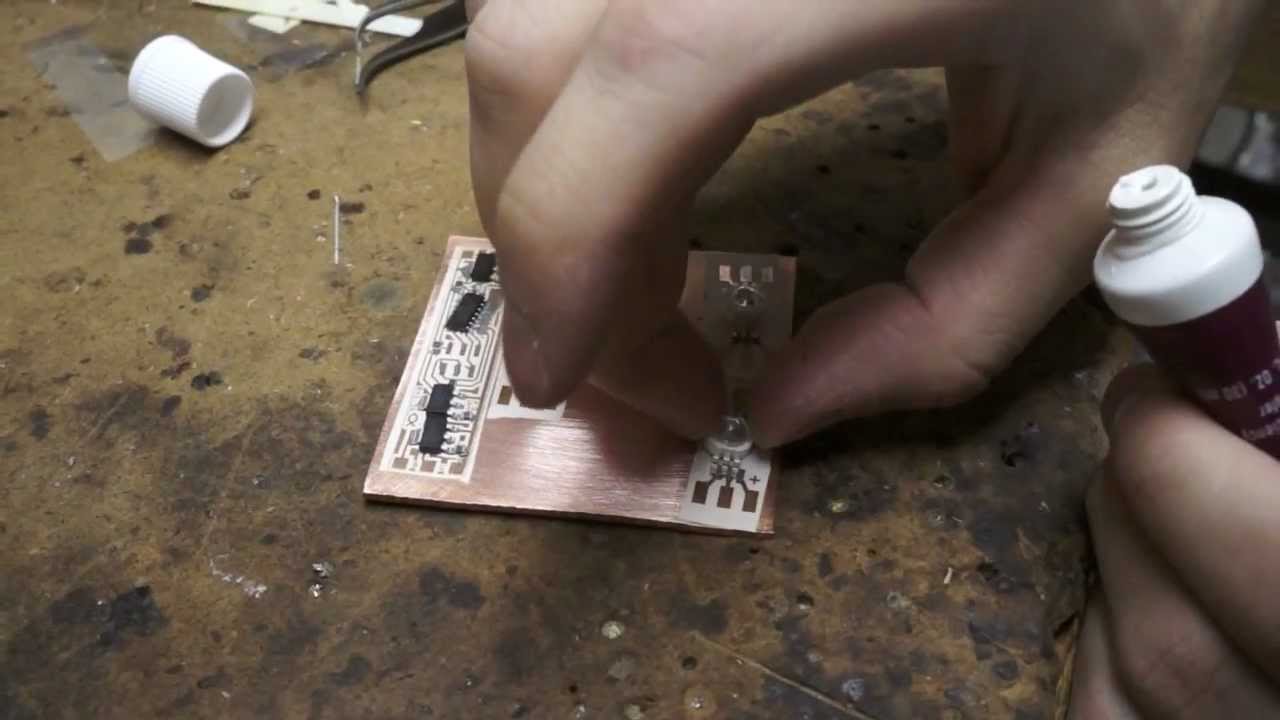

Ever want to print your own PCBs for high power LEDs, other SMT power devices, but regular PCBs can't sink enough heat? Fear no more! You can print them right onto silicone thermal tape!

I use the very thin thermal tape - it seems to carry the heat better if you aren't constantly under pressure.

Thermal Tape:
digikey.com/product-search/en?x=0&y=0&lang=en&site=us&KeyWords=BER246-ND

Pulsar Paper used for toner transfer:
digikey.com/product-detail/en/50-1101/182-1003-ND/3386
