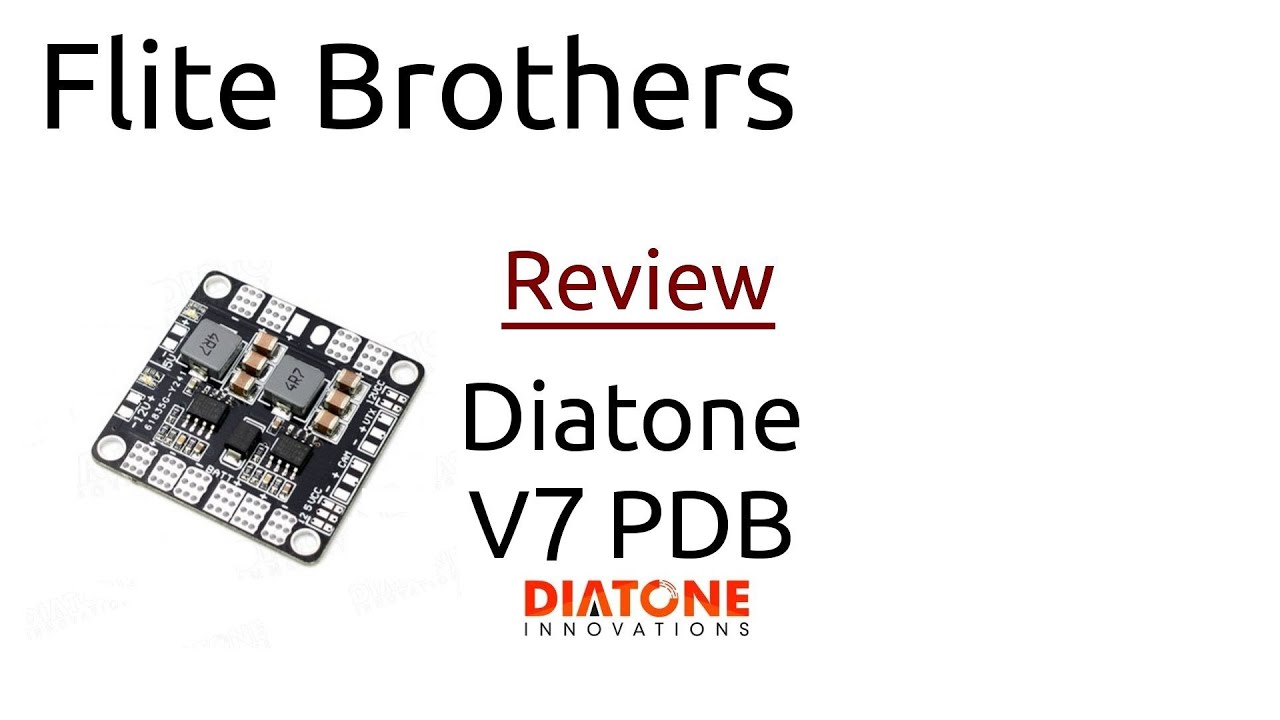

Steve does a review of the new Diatone V7 Mini PDB

PDB is available in the US at:
diatoneusa.com

#diatone #diatoneusa

Manufacturers Specification

2oz copper & 4-layers PCB.
ESC & Battery solder tabs in pairs.
Solder Bridges of various voltage for Camera & VTX.
DC/DC synchronous buck regulator, Efficiency is up to 95%.
TVS(Transient Voltage Suppressor) protection for DC/DC chip.
5V & 12V Output LED indicators & Short circuit tolerant.

Specification:
Working Voltage: 3~6S LiPo
Output Voltage: 5V&12V
Output Current: 2A
ESC outputs: 4
Current output:4*20A
Size: 36*36mm
Weight: 5.5g
Mounting: 30.5mm / Φ3mm
