Learn how to build data-backed templates in Lucid that perform real-time calculations as you diagram. This tutorial covers setting default styles, creating custom data fields for assignees or time, and building shape libraries. Discover how to use if-else conditional formatting to change shape colors based on data thresholds. You will also see how to group dynamic shapes, like progress donuts, with formulas that sum up properties across your entire document.

Create intelligent diagrams today:
lucidchart.com

This video was made around or before 2024. The UI might look different today, but the functionality should still work.

*Timestamps*
0:02 Building custom data-backed templates
1:10 Setting default styles for shapes and lines
1:48 Adding custom data fields to shapes
2:36 Saving shapes to custom libraries

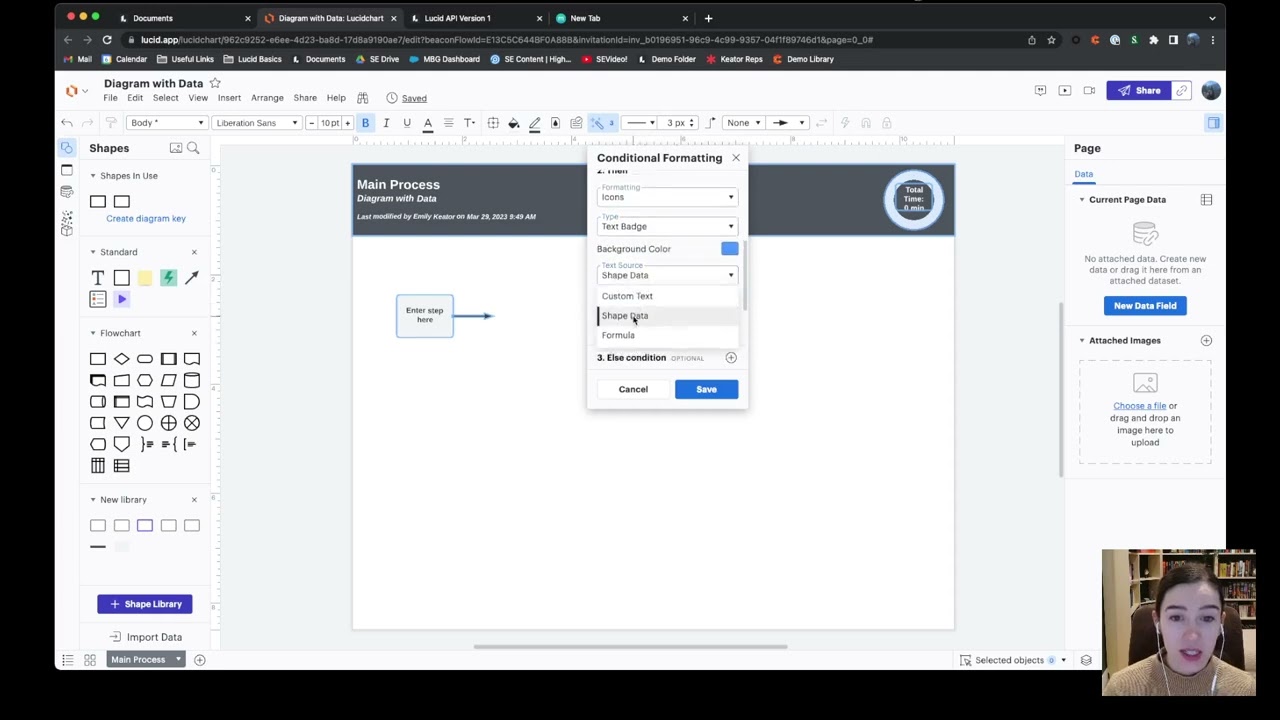

3:35 Setting up conditional formatting rules
4:23 Using if-else logic for data alerts
5:10 Creating group shapes and dynamic icons
6:31 Summing data values with parent formulas
