Because Union Pacific Big Boy #4014 was not cab signal equipped, Ns dispatchers would display signals with the flashing white Rule 280a "Clear to Next Interlocking" lamp, even in situations where the interlockings were back to back like CP-ROCKVILLE to CP-MARY on Pittsburgh Line track #1.

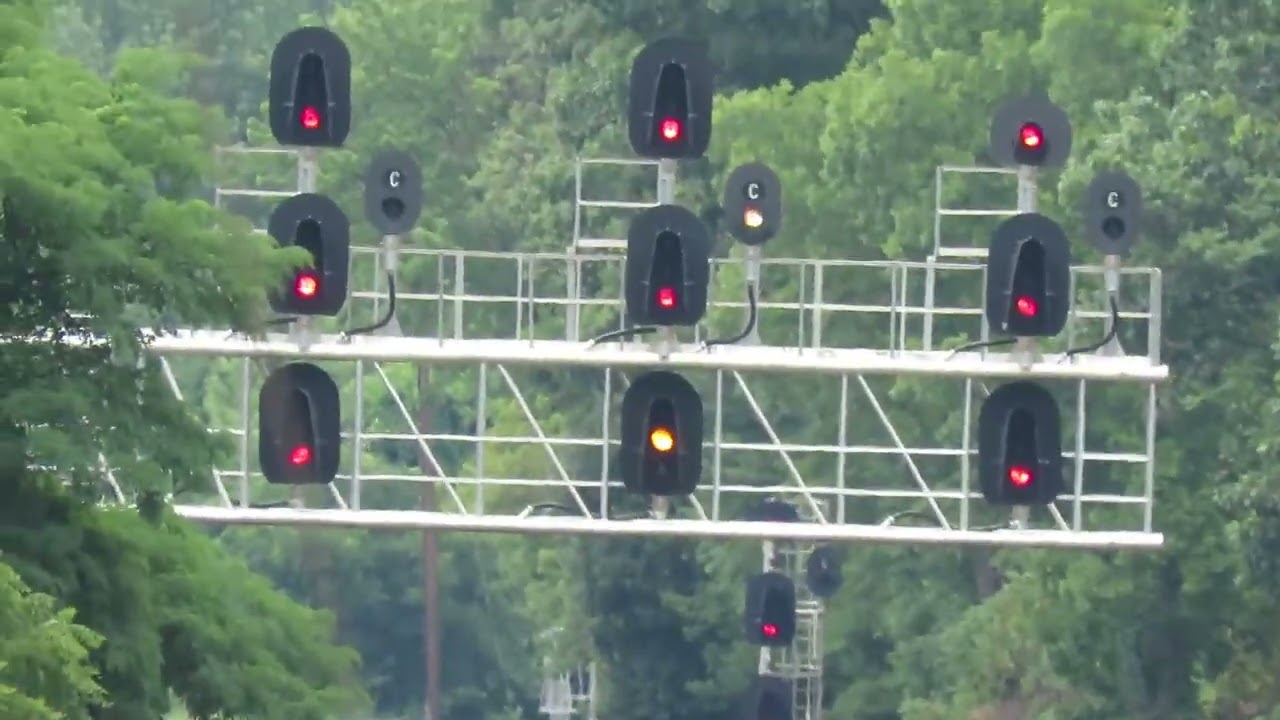

In this video we first see the westbound track 2 signal at CP-ROCKVILLE displaying Slow Approach, R/R/*Y*, with the "C" lamp illuminated for a stop signal at CP-MARY about 5000 feet to the west on track #1. When the dispatcher lines a route between CP-MARY and CP-BANKS, the signal at CP-ROCKVILLE upgrades to Medium Approach with the "C" lamp lit. The plan for #4014 was to proceed past the far end of CP-MARY and then reverse into Enola Yard to spend the night.
Note that the Slow Approach and "C" lamps are flashing with the same cadence. This indicates that the interlocking has a single source for pulsed lamp current that is then directed to the lamps that require it.
