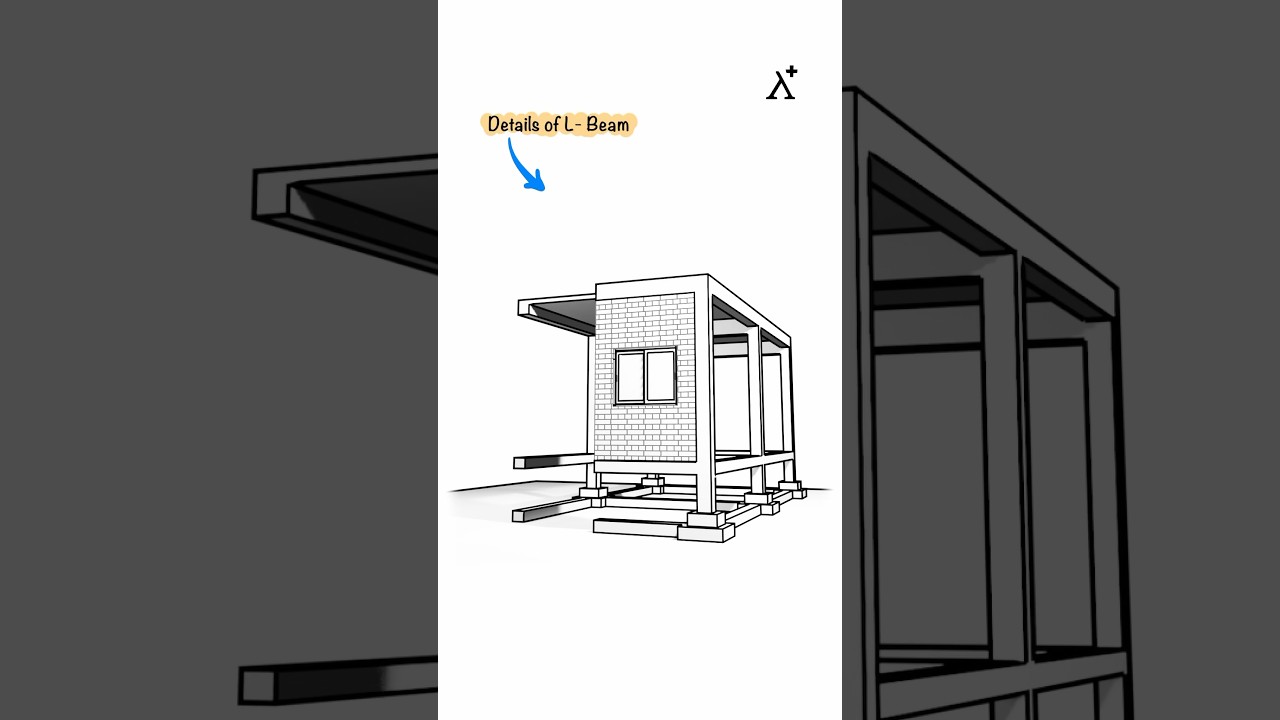

This animation explains the structural details of an L-Beam, including its effective width of flange and web, depth considerations, and its role in load transfer.

Key Takeaways:

L-Beam is an edge beam used in reinforced concrete slabs.

It provides additional support at corners and slab edges.


The effective width of the flange depends on slab depth and beam span.

L-Beams help in efficient material usage and better strength distribution.

L-Beams are essential in load transfer and structural stability, ensuring stronger and more durable structures!
