In this video, we’ll go over how to set up the hardware and software configurations for a CK3C to command a direct PWM signal and read sinusoidal feedback through CK3C stacked accessories. We will cover topics such as:

• A brief hardware introduction about ACC-8FS and ACC-51S
• How to configure jumper positions for accessories
• How to stack the accessories

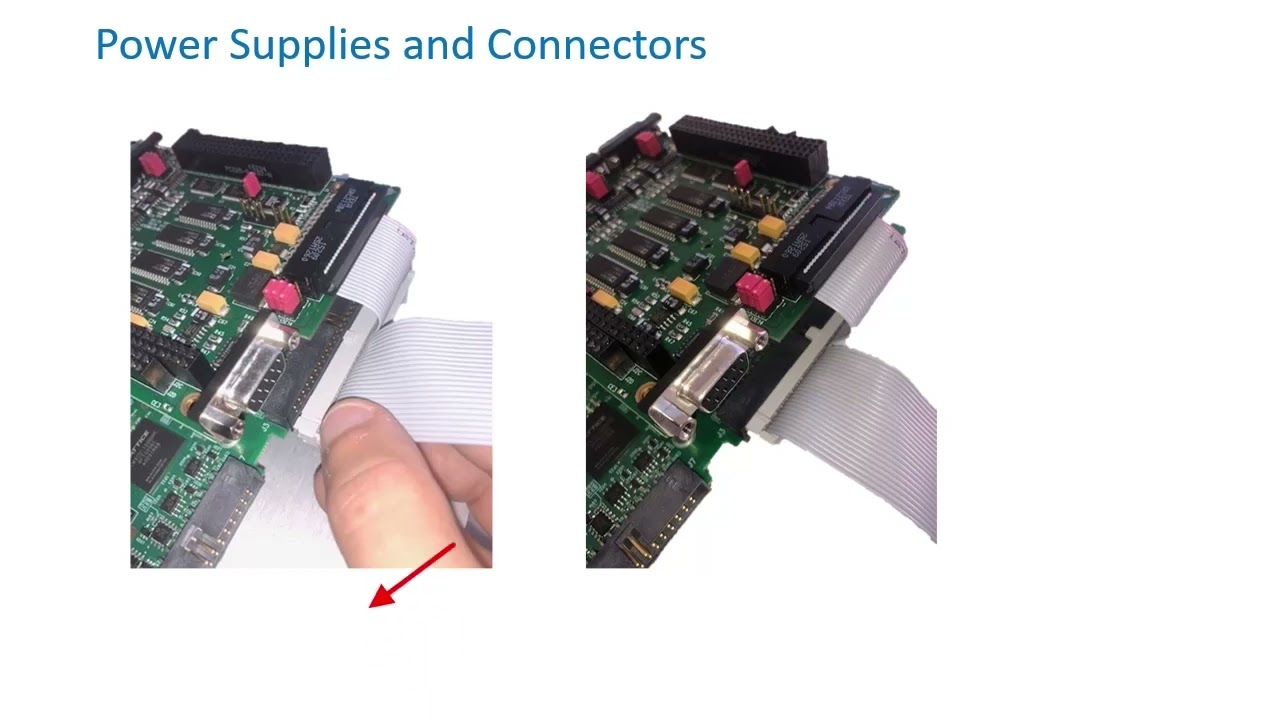

• How power supplies and connects are needed
• What PMAC structure are used for the ACC-8FSAn example of an encoder conversation table entry for the ACC-51S
