First off, music: youtube.com/user/AdhesiveWombat
The PVC pipe on the side of the monitor was a precisely tuned inductor created to fool the main circuit board into thinking that the horizontal deflection was connected so I could throw audio into the actual deflection coil.

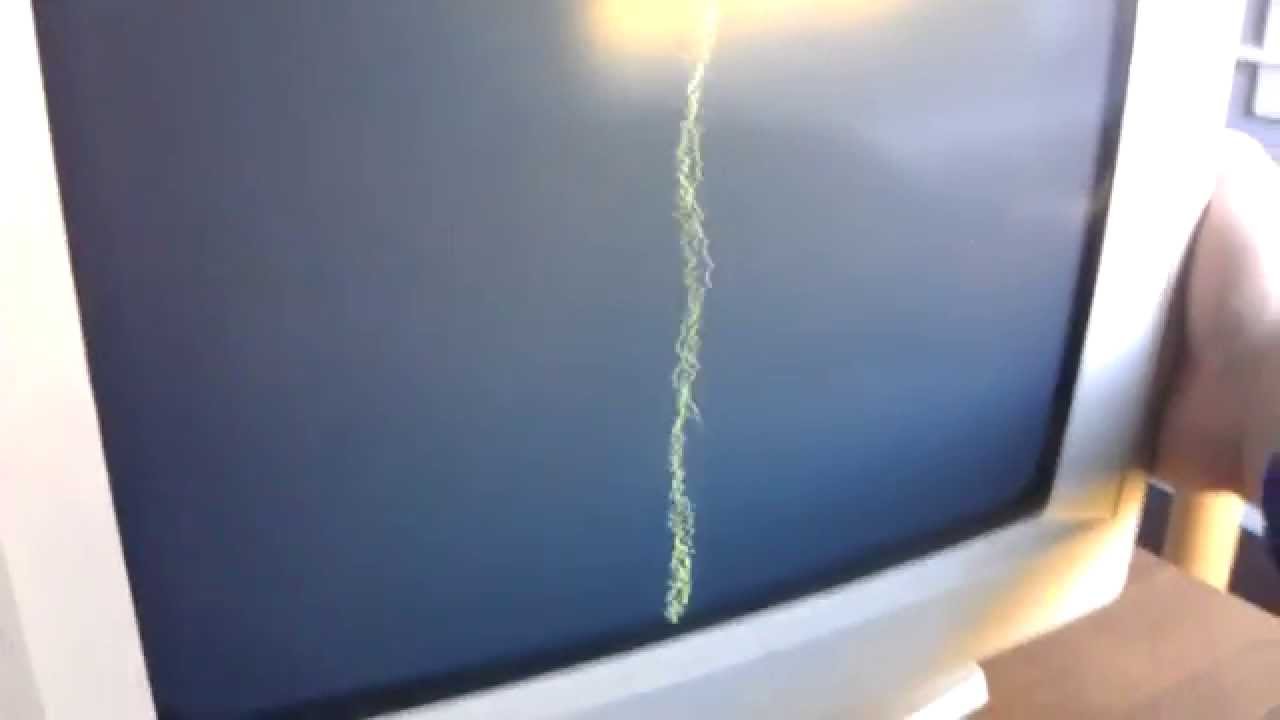

I had to put the deflection coil in series with the speaker because the transistor amplifier I designed couldn't drive a 0.3 ohm load, this is why there wasn't very much movement on the screen. Not sure why I had to raise the brightness as the monitor ran. Also not sure why I get activity without the cable connected!
This transistor amplifier design I made had one main trick up it's sleeve: it can amplify a DC signal. This means that once I get it working completely, I can trace logic signals!
Power supply is an old ATX 350w with the 12v, 0v, and -12v rails being used, and all parts were scavenged from another (newer) color CRT computer monitor.
