Uploaded April 2018 | Updated September 2026, 1 week ago

---

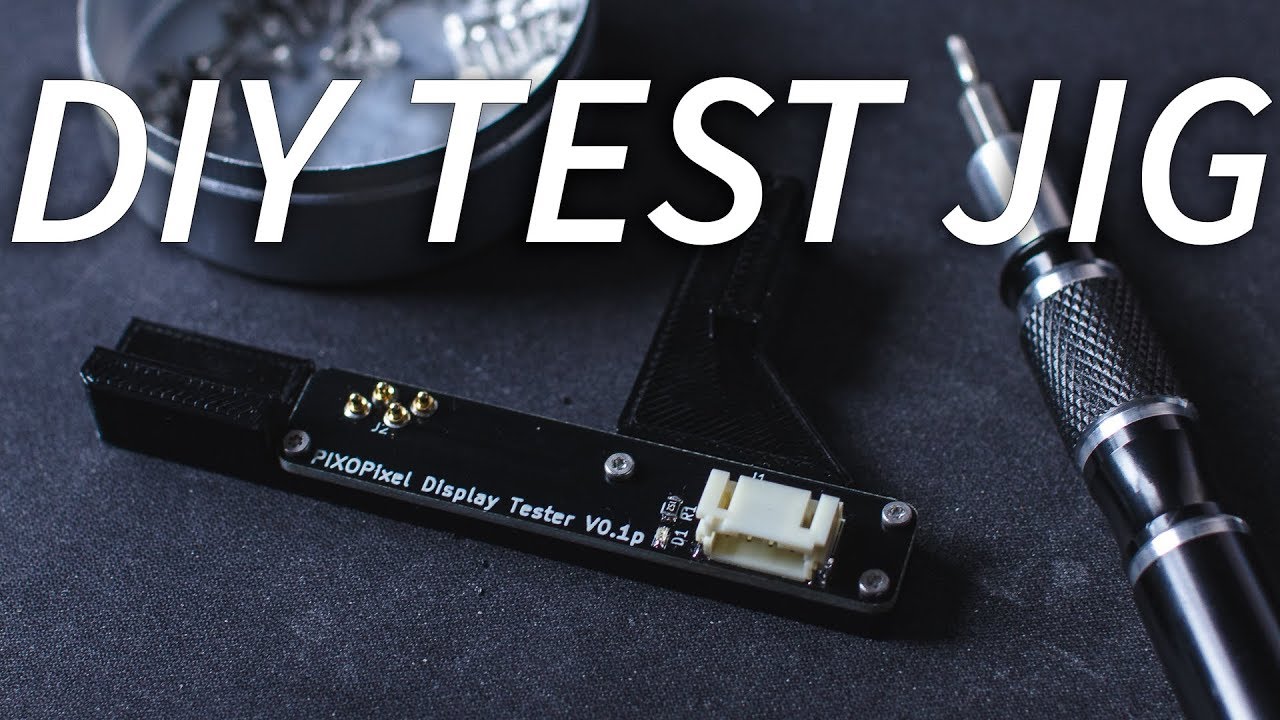

I needed to make a testing jig for the LED panels on the PIXO Pixel because my friend at Roboteurs will be populating the LEDs on their Pick N Place machine. So I made this! First time using Pogo Pins.

Check out the Roboteurs Website: roboteurs.com

Thingiverse File for the Jig: thingiverse.com/thing:2881933
