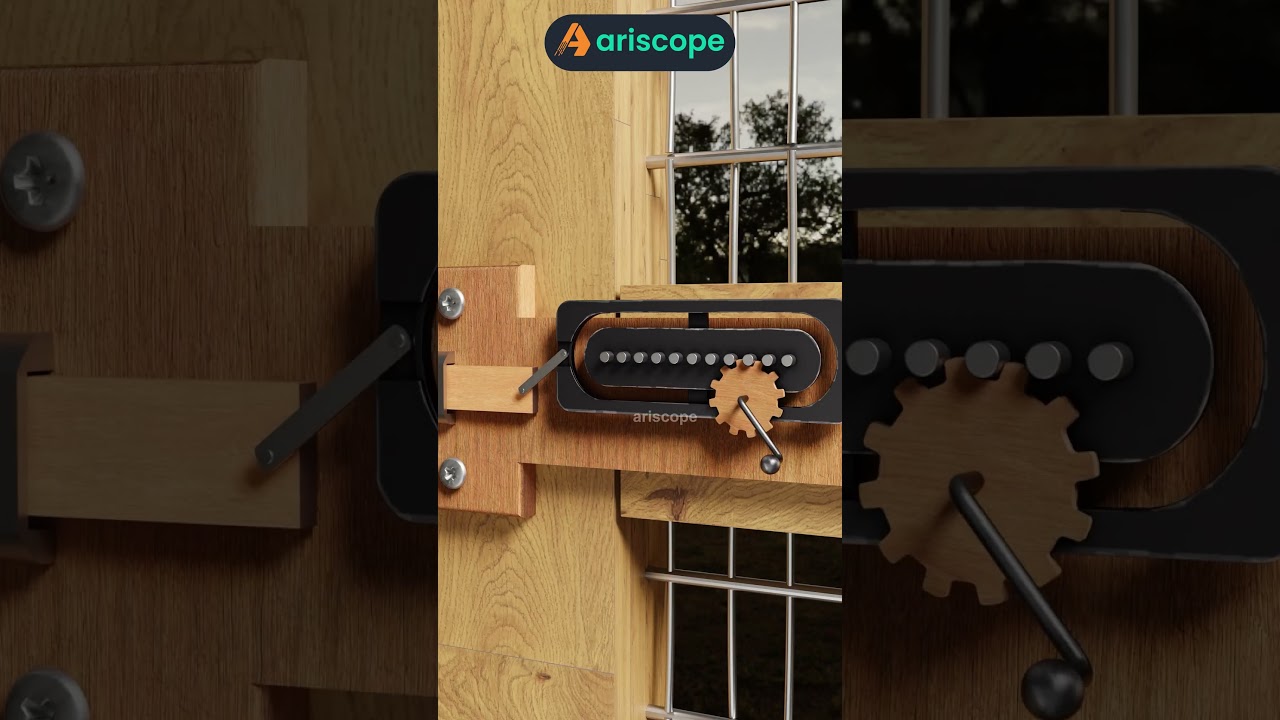

Explore the fascinating mechanics behind this clever mangle-rack door latch. Utilizing a circular pinion gear meshing with a linear rack, the mechanism efficiently converts rotational motion into smooth linear reciprocating motion. As the pinion rotates, the rack glides back and forth, securing or unlocking the wooden door. With precision engineering, the pinion shaft moves up and down to bypass the guides at the rack's ends, ensuring flawless operation. This innovative design is ideal for those who appreciate smart door latch systems with seamless mechanical performance.
