Uploaded June 2026 | Updated September 2026, 1 week ago

---

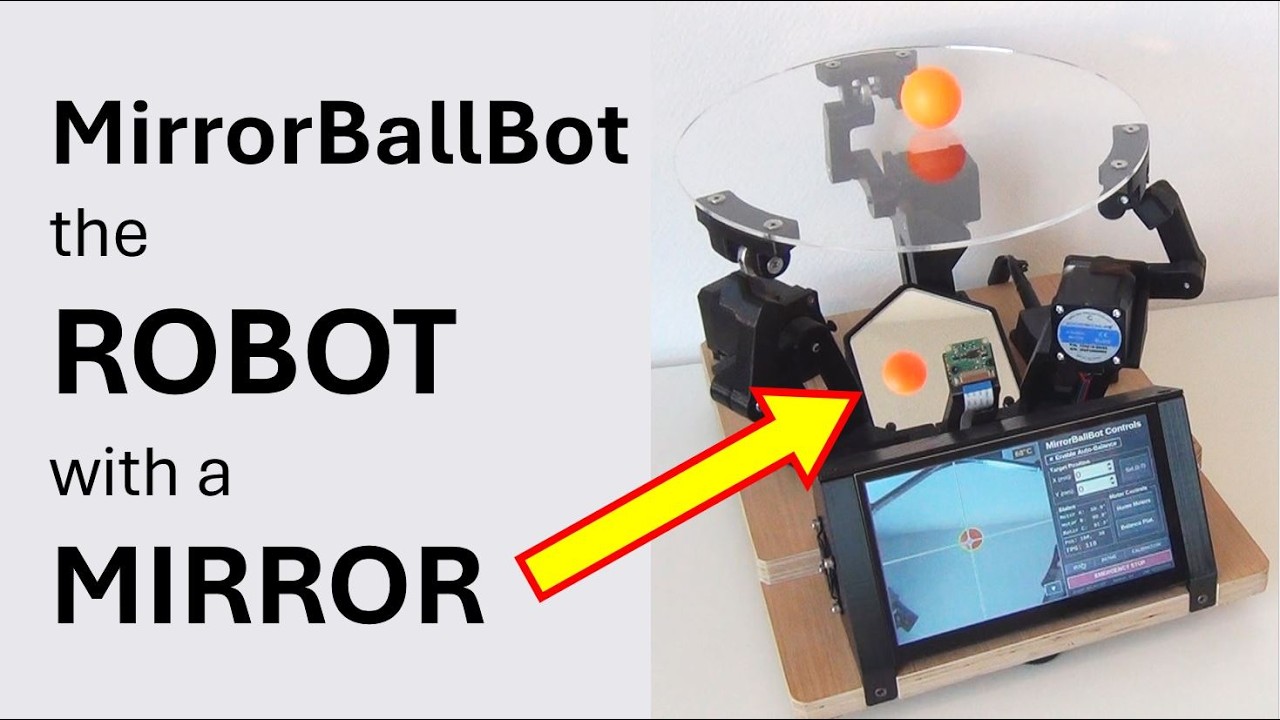

MirrorBallBot is an innovative yet simple ball balancing robot. Most ball balancing robots place the camera either above the platform (resulting in a taller structure) or underneath it (requiring a smaller platform). I wanted neither... so I added a mirror. Problem solved!

What it can do:
- Auto-balance – keeps the ball centered
- Follow your finger on the touchscreen in real time
- Record and replay custom paths
- Predefined paths: square, circle, triangle, infinity, line
- Automatic color calibration

Open source – Python / MicroPython
All files, code, schematics, 3D printing files, and a detailed manual are linked below.
Materials cost: ~€300

Special thanks to:
- ELECROW for sponsoring the 7" DSI touchscreen
- PCBWay for sponsoring the custom PCB and supporting the DIY community

Hope you like the project! Let me know what you think.

Links:
- GitHub: [github.com/AndreaFavero71/mirrorballbot]

Sponsors:
- PCBWay: [pcbway.com/]
- ELECROW: [elecrow.com/7-inch-800-480-dsi-display-touch-screen-with-bracket-compatible-with-raspberry-pi.html?idd=5]

0:00 Disturbance rejection of the robot
0:10 Introduction to MirrorBallBot
0:27 Finger-follower and path recording feature
0:53 Classic camera placement
1:18 Solving the camera placement with a mirror
1:56 Predefined geometrical Paths
2:47 Touchscreen graphical interface
3:14 Calibration, and automatic ball color calibration (HSV) demo
3:35 Commercial components (stepper motors, Raspberry Pi camera, 7-inch DSI touchscreen by ELECROW)
3:51 Custom PCB (Raspberry Pi HAT) by PCBWay
4:25 Electronic (Raspberry Pi 4B, RP2040, TMC2209)
5:04 Open Source, files and conclusions

#robot
#3dprinting
#DIY
#BallBalancingRobot
#OpenSource
#RaspberryPi
#ComputerVision
# Ball Balancing Robot
