Automated Fiber Preparation Station @thorlabs

Uploaded April 2024 | Updated September 2026, 2 hours ago

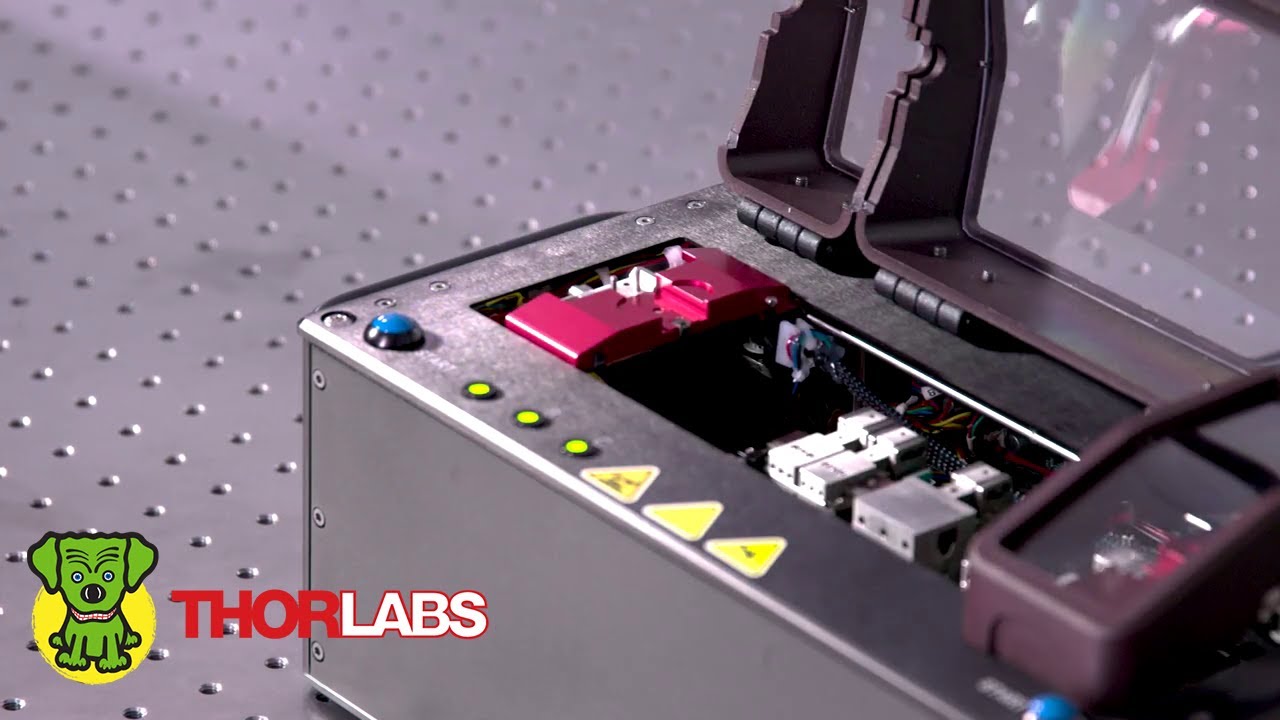

This automated fiber preparation station is a fully integrated solution for stripping, cleaning, and cleaving two optical fibers in preparation for splicing. This customer-inspired product is a result of our commitment to partnering with our customers to create custom solutions for their needs. The station features short processing times, low splice failure rates, and the ability to prepare two different fibers in parallel.

For more information, see the complete web presentation: thorlabs.com/newgrouppage9.cfm?objectgroup_id=16488&ytid=4YXCtwJcDeU
