After building the Drum Brain Controller I couldn’t get it to work with my drum triggers. I had thought it would be pretty easy - both the triggers and Atari controller port were 5v so I thought it make sense Hitting the trigger would essentially act like a button press resulting in the appropriate sound being played.

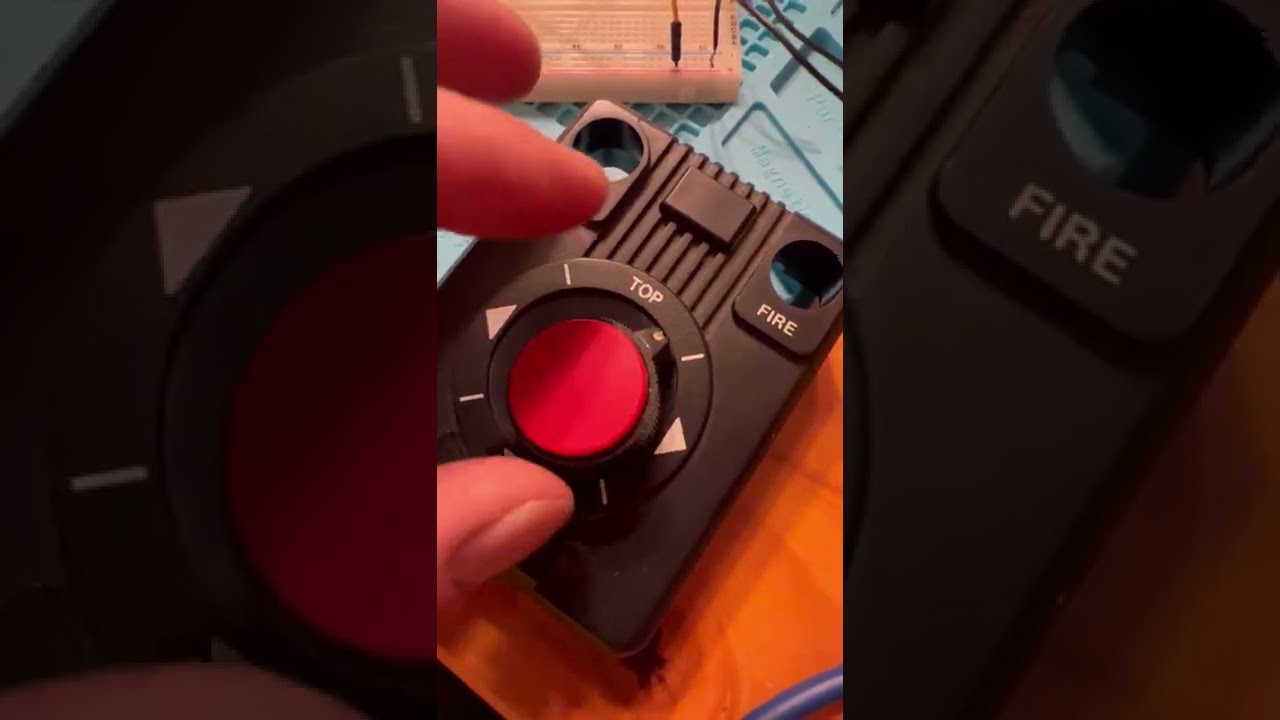

But it wouldn’t work. So I played around with the controller some more using the dual fire buttons to test if my idea was working. I then wondered if the pads I was using were too tough. They were designed for stage play so maybe they were not generating enough power with each hit. So I connected another wire in series using whatever resistors I had lying around. I didn’t bother looking at the values. I first started with a potentiometer to see that if I did apply too much or too little resistence this way the sound would trigger and it worked. So I found one of my weakest resistors with the thought process that it would keep from triggering the sound from the start but not too much to prevent a sound altogether. I also used a trigger from my Drumfire as those were designed to be placed on a drum itself so I figured it would be more sensitive.

So far from my limited testing it seemed to work. While inconsistent in this test, it did appear to trigger the sound. I don’t think i was making any kind of accidental contact in my circuit. While I couldn’t find my alligator clips I tested the trigger on the bench seat to kind of see if that made a difference and it seemed to work all the same.

My next test will be to determine the resistance I need (Bad Beer Rots the Gut but Vodka Goes Well) and then get a weak enough pot to wire into place.

While I did use a joystick to make this controller, I don’t like the idea of trashing joysticks for one-offs. I didn’t feel bad about this one because it was already broken. I want to design a simple enough box so that this can be produced (like the Quadtari) and perhaps make a more in-depth program for sound.

As a side note, I had also considered looking at using a Quadtari and paddle inputs for this project after I made my Quiztari program. While Quiztari didn’t use the paddle, I wondered if reading the voltage of the paddles vs a simple on/off would make the design easier and more dynamic. Perhaps a Drum Brain Plus in the future.
