Uploaded February 2025 | Updated September 2026, 1 week ago

---

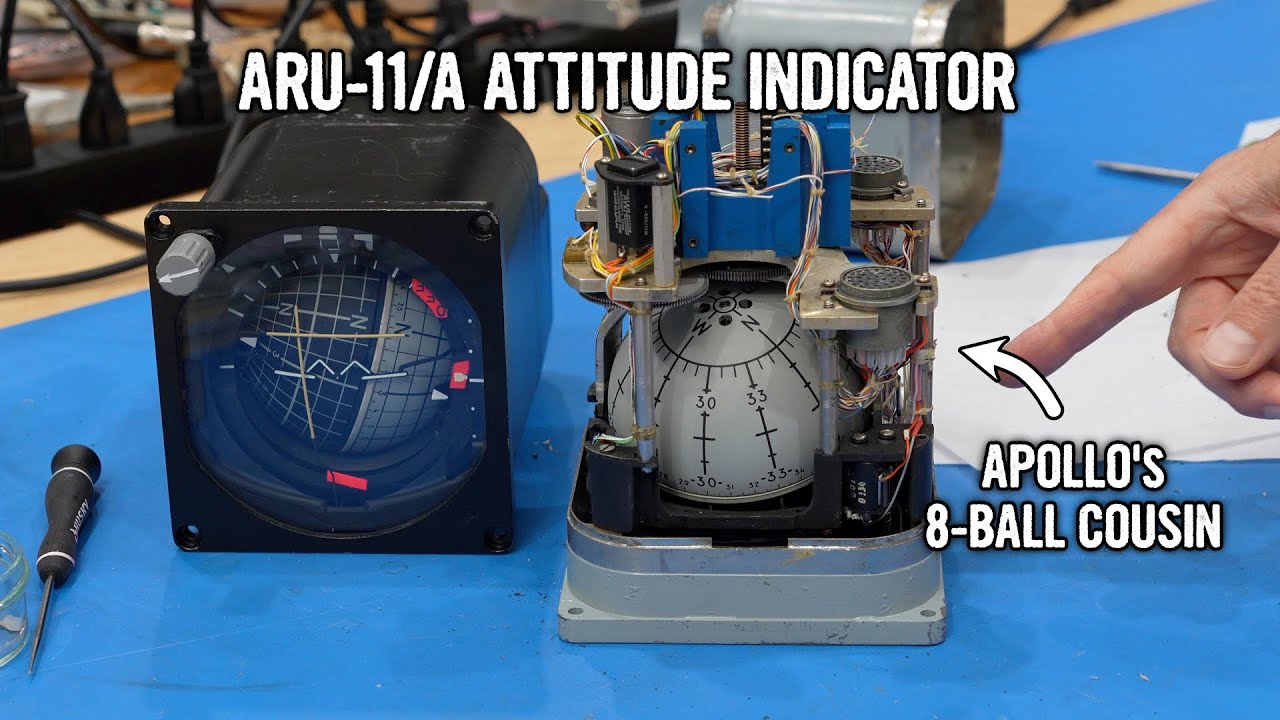

The ARU-11/A is the next best thing to the Apollo "8-Ball" attitude indicator. We tear one down to understand it, then hook it up, and it promptly releases the magic smoke.

Master Ken's in-depth article about his reverse engineering of the ARU-11/A: righto.com/2024/09/f4-attitude-indicator.html

Stuff that supports the channel:
- Support us on Patreon: patreon.com/curiousmarc
- Amazon links for the tools I use in the lab: curiousmarc.com/amazon-links
- Channel merch on Fourthwall: curiousmarc-shop.fourthwall.com
- Legacy channel merch on Teespring (I don't have everything transferred to Fourthwall yet): teespring.com/stores/curiousmarcs-store

"Elevator Music" Credit: Crinoline Dreams by Kevin MacLeod

Our lovely sponsors
- PCBWay: fast turn PCBs, pcbway.com
- Electro-Rent: electrorent.com
- Keysight: test instruments: keysight.com
- Samtec: connectors: samtec.com
- R&D Microwaves: rdmicrowaves.com

Get more technical info on the companion site: curiousmarc.com
Contact info: youtube.com/curiousmarc/about

00:00 Apollo FDAI and ARU-11
02:25 Teardown
11:02 Reverse engineering
12:30 Hookup and release of magic smoke
15:08 The slip ring had previous catastrophic damage
20:21 Three axis servomotor tests
24:09 Future work
