Uploaded April 2025 | Updated September 2026, 6 days ago
Frustrated with only two 3 way switches on the RM Pocket? No longer!
In this video I show how to re purpose the rotary pot to a 3 way switch.
🔧 Smart Mod for More Control

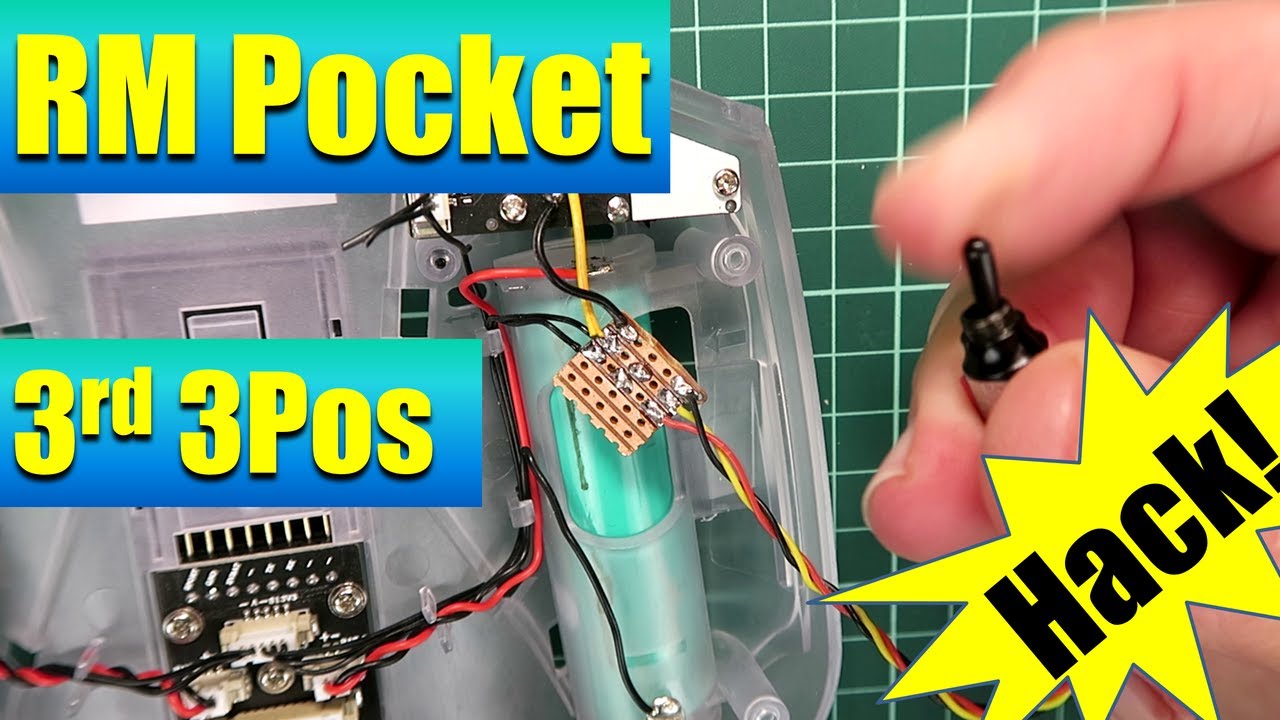

The video showcases how to modify the Radiomaster Pocket transmitter to add a third three-position switch, using a rotary potentiometer that is typically underutilized.
📦 Preparation with Backup Unit
Rather than risk damaging his main unit, the creator uses a second radio for experimentation, underlining caution and careful planning before modding.
🧰 Hardware Disassembly and Inspection
The mod starts with opening the device and identifying the rotary pot's pins—3.3V, ground, and signal—which are key to rerouting the input to a new switch.
🔬 Precise Electrical Analysis
Measurements reveal that what’s labeled as 3.3V is actually 5.4k ohms off due to an internal pull-up resistor. The creator validates all lines with a multimeter for accuracy.
🔄 Switch Integration
A center-off three-position switch is wired into the system using resistors (or repurposed potentiometer terminals) to simulate a mid-point voltage, effectively creating a virtual “zero” signal.
🛠️ Smart Resistor Use and Testing
A voltage divider is formed using a 4.7k resistor to mimic the mid position. The old potentiometer is used as a static resistor, demonstrating a resourceful hardware hack.
🕹️ Physical Placement and Flexibility
The new switch can be mounted in various positions; the creator opts to drill a hole near the vent—customizable for user preference.
🔁 Software Calibration in EdgeTX
Since the mid-switch voltage wasn’t exactly zero, the solution involves setting a custom curve in EdgeTX to correct the signal mapping, converting -37 to 0 effectively.
✅ Successful Implementation and Testing
Post-mod, the switch functions perfectly—+100, 0, -100 values on channel 5 allow for seamless gyro control and other applications like aileron/elevator rate control.
🎉 Final Proof and Thanks
The mod is demonstrated in action, showing live channel values and aircraft rate changes. Viewers are thanked for sticking through the DIY journey.
🔗 Please tell me if any of the links provided no longer work!!
🛒 Zorro Switches https://www.tekrc.eu/shop/parts/radiomaster-zorro-3-position-switch-switch-b-and-switch-c/
🛒 RadioMaster Pocket Hall Gimbal Transmitter https://s.click.aliexpress.com/e/_DBpJzqt
👀 Click Here to Subscribe bit.ly/1nformatica
🛠 I buy most of my gear from https://s.click.aliexpress.com/e/_APpCVa You can help me by using these links!
👍 Follow on Facebook facebook.com/1nformatica
💲 If you would like to buy me a coffee: paypal.me/1nformatica
Start Time,Title
00:00,"Intro: What is this Sorcery?"
00:33,"Switch Limitation Explained"
01:06,"Spare Radio Disassembly Begins"
01:38,"Inside the Pocket: Component Focus"
02:09,"Identifying Potentiometer Pins"
02:39,"Electrical Measurements"
03:11,"Voltage Divider Planning"
03:41,"Resistor Configuration Explained"
04:13,"Wiring the New 3-Way Switch"
04:43,"Mounting Switch & Reversible Mod"
05:13,"Testing Functionality with EdgeTX"
05:34,"Software Fix for Midpoint Signal"
05:57,"Curve Setup in EdgeTX"
06:28,"Curve Correction Explained"
07:01,"Final Mixes Setup"
07:22,"Functional Test: All Positions Work"
07:54,"Full Demonstration and Outro"
