Uploaded July 2026 | Updated September 2026, 1 week ago

---

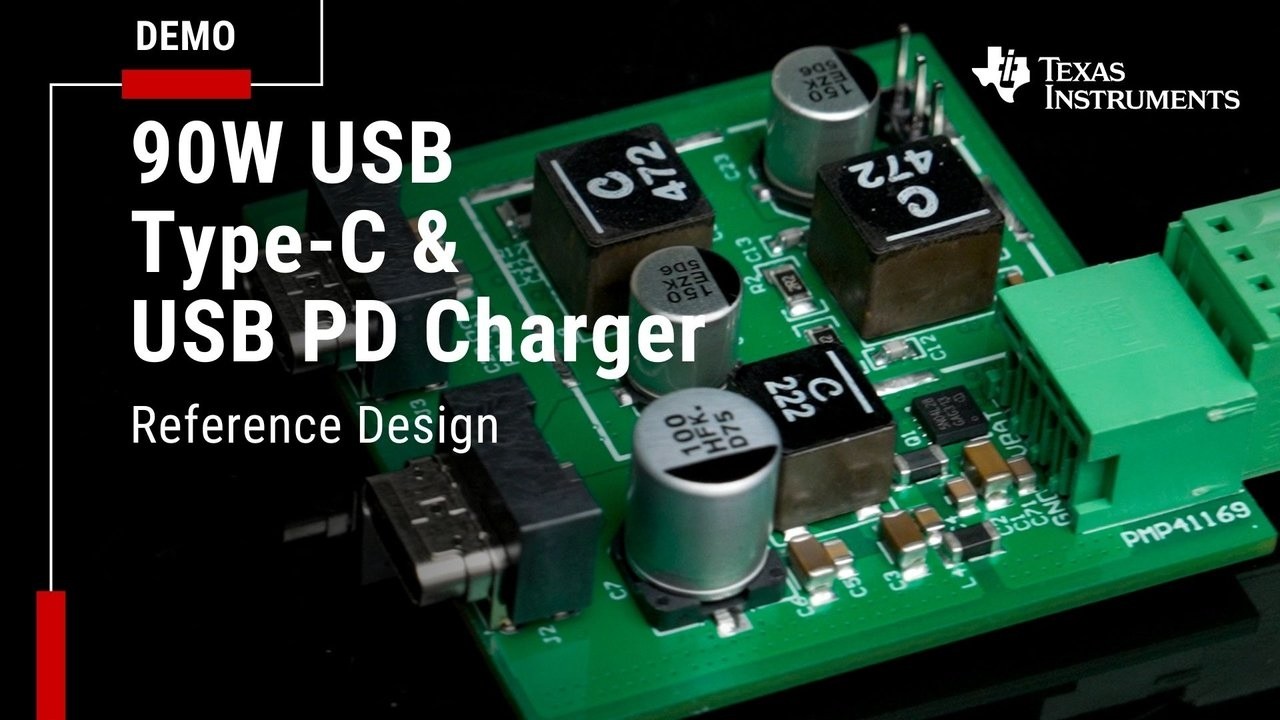

This reference design is a 90W automotive charger for dual Type-C® and USB Power Delivery (PD) with 60W maximum power per port. The TPS25772-Q1 is used as a dual USB Type-C PD controller with an integrated buck-boost regulator. The TPS55389-Q1 is used as a buck-boost regulator for the second port. The board is compliant with stringent CISPR 25 Class 5 conducted and radiated EMI.
Learn more about PMP41169 reference design
ti.com/tool/PMP41169
Evaluate TPS25772-Q1 dual-port USB Type-C® PD controller
ti.com/product/tps25772-q1
Learn more about USB Type-C and USB Power Delivery ICs
ti.com/product-category/interface/usb-ics/usb-type-power-delivery-ics/overview.html
Learn more about automotive USB charging
ti.com/solution/automotive-usb-charging
