This video is for Thang010146.
This uses a similar design based on the 180 Degree Oscillation Mechanism.

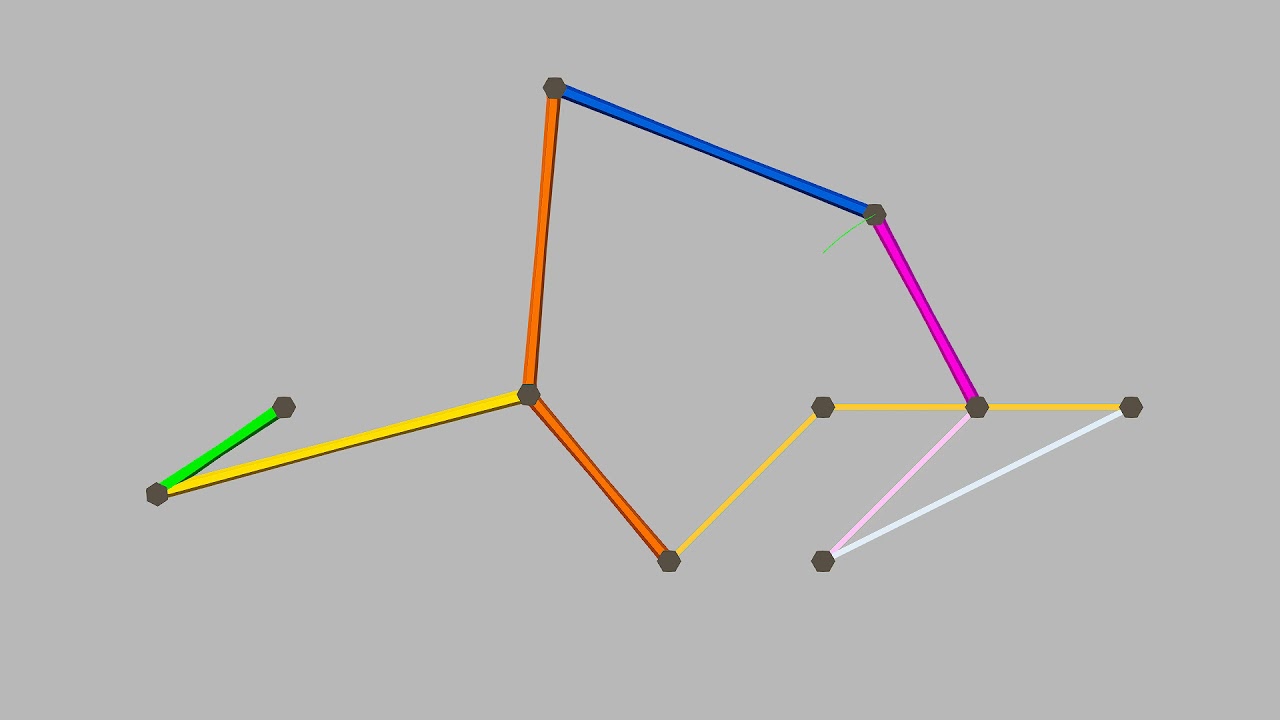

The light colored lines indicate the other edge case at which the linkage rests at.

LINK LENGTHS:
Crank: Length = 2; Angle = 180°
Yellow: Length = Any value; Angle = 0° (Extending off of crank)
Small Orange Link: Length = 2*sqrt(2); Angle = 45° Clockwise (Extending off of yellow link)
Large Orange Link: Length = 4 Angle = 90° Counter-Clockwise (Extending off of yellow link) (Small and large orange links act as one solid link)
Blue Link: Length = 2*sqrt(5) or about 4.4721359; Angle = arctan(1/2) or about 26.5650512° Clockwise (Extending off of orange link)
Pink Link: Length = 2*sqrt(2); Angle = 45° Clockwise; (Extending off of blue link)
