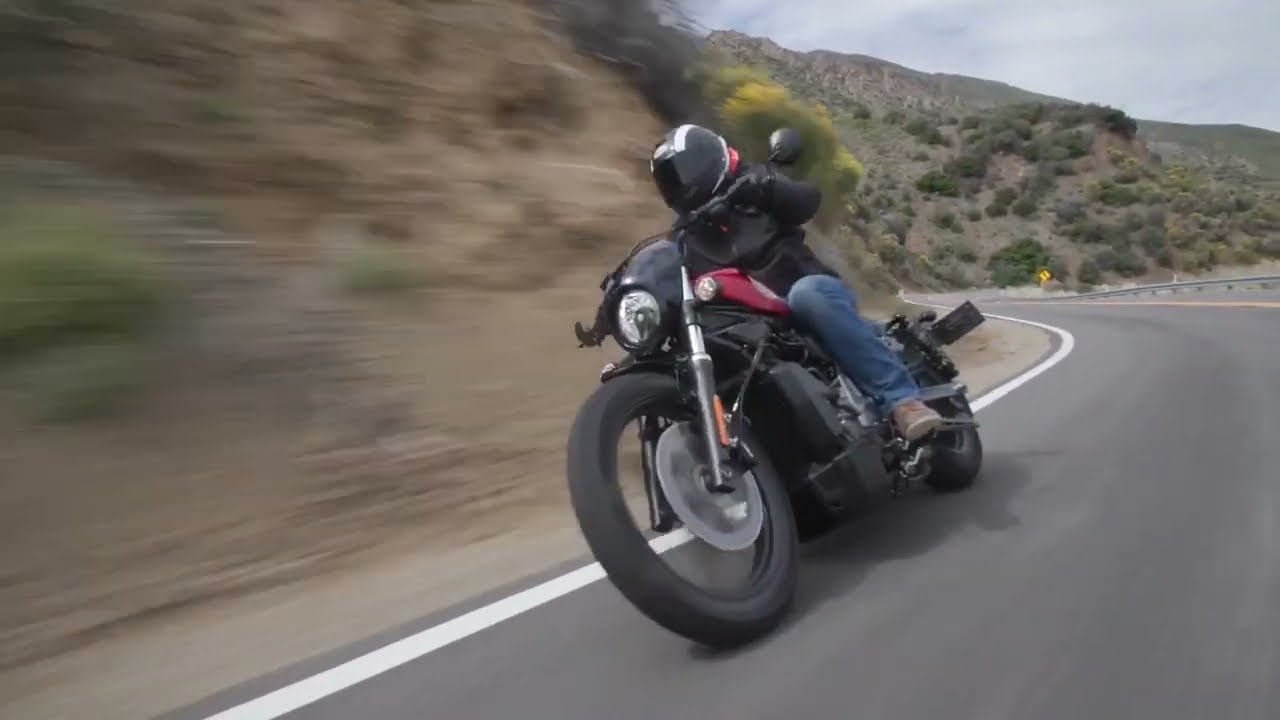

The 2022 Harley-Davidson Nightster model creates the next-generation of Harley-Davidson Sportster rider. Combining classic Harley Sportster lines with modern performance via the new Revolution Max 975T powertrain and a host of contemporary electronic rider aids and features. The 2022 Nightster will surely make a splash among consumers.
Read more on HotBike.com: hotbike.com/2022-harley-davidson-nightster-first-ride
“The Nightster is an instrument of expression and exploration, underpinned by performance,” said Jochen Zeitz, Chairman, President and CEO of Harley-Davidson. “By building on the 65-year Sportster legacy, the Nightster provides a canvas for creativity and personalization, offering the ultimate platform for customization and expression for new and existing riders.”
At the heart of the 2022 Nightster model is the new Revolution Max 975T powertrain. It is a liquid-cooled, 60-degree V-Twin with a torque curve that stays flat through the broad powerband – and engine performance designed to deliver strong acceleration and robust power through the mid-range. The length and shape of the intake velocity stacks, combined with the airbox volume, are tuned to maximize performance across the engine speed range. The profiles of dual overhead camshafts and Variable Valve Timing phasing on the intake valves are designed to match the performance of this engine.
Revolution Max 975T Engine Specs
Displacement 975cc
90 HP (67 kW) @7500 RPM
70 ft. lbs. (95 Nm) peak torque @ 5000 RPM
97mm bore x 66mm stroke
Compression Ratio 12:1
Hydraulic valve lash adjustment ensures quiet operation and eliminates the need for costly, complicated service procedures. Internal balancers help reduce engine vibration to enhance rider comfort and improve vehicle durability. The balancers are tuned to retain just enough vibration to make the motorcycle feel alive.
The Nightster model pairs a nimble, lightweight chassis with a powerful engine tuned for strong mid-range performance, an ideal combination for navigating urban traffic and charging along curving backroads. Mid foot controls and a low-rise handlebar put the rider in a centered, comfortable posture on the bike. Unladen seat height is 27.8 inches. The low seat height combined with a narrow profile makes it possible for most riders to confidently place feet down flat at a stop.
The Revolution Max 975T powertrain is the central, structural component of the Nightster motorcycle chassis, which significantly reduces motorcycle weight and results in a very stiff chassis. The tail section structure is lightweight aluminum. The swingarm is formed of welded rectangular steel tubing and is an attachment point for the dual rear shock absorbers.
Front suspension is 41mm Showa Dual Bending Valve conventional forks designed to provide improved handling performance by keeping the tire in contact with the road surface. The rear suspension features dual outboard emulsion-technology shock absorbers with coil springs and a threaded collar for pre-load adjustment.
Traction Control System (TCS) is designed to prevent the rear wheel from excessive spinning under acceleration. TCS can improve rider confidence when available traction is compromised by wet weather, an unanticipated change in the surface, or when riding on an unpaved road. The rider can deactivate TCS in any Ride Mode when the motorcycle is stopped and the engine is running.
Drag-Torque Slip Control System (DSCS) is designed to adjust engine torque delivery and reduce excessive rear-wheel slip under powertrain-induced deceleration, which typically occurs when the rider makes an abrupt down-shift gear change or quickly reduces the throttle while on wet or slippery road surfaces.
The Nightster model offers selectable Ride Modes that electronically control the performance characteristics of the motorcycle, and the level of technology intervention. Each Ride Mode consists of a specific combination of power delivery, engine braking, ABS and TCS settings.
The rider may use the MODE button on the right-hand controller to change the active ride mode while riding the motorcycle or when stopped, with some exceptions. A unique icon for each mode appears on the instrument display when that mode has been selected.
The Nightster model arrives at authorized Harley-Davidson dealerships globally beginning in April 2022. US Base MSRP is $13,499 (Vivid Black) and $13,899 (color options).
