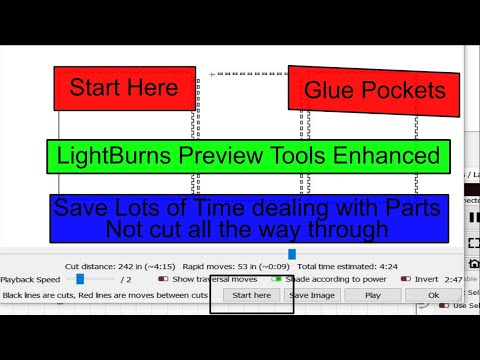

Name: Start From Here in Preview Mode in LightBurn @computercreationz
Uploaded: 2026-09-22T08:17:00-05:00
Duration: 8 min 17 s
Description: Start From Here in Preview Mode in LightBurn

Start From Here in Preview Mode in LightBurn

Computer Creationz 2026-09-22 | Start From Here in Preview Mode in LightBurn

Making a simple easy wide brim hat jig, tips & tricks for holding down the hat while engraving.

Computer Creationz 2025-09-25 | 00:00 - Start
00:06 - Intro
03:25 - Tips for holding down the hat brim
05:10 - Making the Jig in LightBurn
09:05 - Making the inner protection part of the jig
12:00 - Lens tip for easy engraving

willieanddollydesigns.com/collections/blank-hats

Creating a Simple Jig for Engraving Wide Brim Hats: Tips and Techniques

Engraving wide brim hats can be a challenging task, especially when it comes to ensuring that the brim remains flat during the engraving process. In this guide, we will explore how to create a simple jig that will help you achieve professional results. We will cover the materials needed, the design process using LightBurn, and effective techniques for securing the hat.

Hello, I’m Robert Kofed from Computer Creations. Today, I want to share my experience with engraving wide brim hats and how I set up a jig to make the process easier and more effective. Although I haven't engraved many hats, the ones I have done turned out well, and I believe that with the right setup, you can achieve great results too.

## Understanding the Jig Setup

The primary challenge when engraving wide brim hats is keeping the brim flat to ensure an even engraving. I used a Thunder Nova 35.100 CO2 laser for my engravings, and while the results were good, I noticed some areas where I needed to adjust the power settings. For my engravings, I used a speed of 600 mm/s at 20% power and 318 lines per inch.

### Measuring the Hat

To create the jig, the first step is to measure the hat. Here’s how I did it:
1. **Measure the Height and Width**: Use a tape measure to get the dimensions of the hat.
2. **Measure the Inside Dimension**: This is crucial for ensuring that the jig fits the hat properly.

Once you have these measurements, you can proceed to design the jig in LightBurn.

## Designing the Jig in LightBurn

### Creating the Jig Shape to

1. **Open LightBurn**: Start by launching the software.
2. **Draw the Oval**: Using the measurements from the hat, create an oval shape that is a quarter inch larger than the hat’s dimensions. This allows for a little extra space around the perimeter.
3. **Adjust for the Crown**: Make sure the jig is about half an inch larger than the measurement where the crown of the hat starts to roll. This ensures that the brim sits flat.

### Material Selection

I made my jig out of 3/8 inch material, which I had on hand. I also added 5-inch legs made from curtain rods to elevate the jig. This setup is straightforward and effective.

## Securing the Hat

One of the biggest challenges is keeping the hat securely in place during engraving. Here’s the method I used:

1. **Masking Tape**: Cover the perimeter of the jig with 3-inch wide masking tape. This will help in securing the hat without leaving residue.
2. **Two-Sided Tape**: Apply thin strips of two-sided tape on top of the masking tape. I recommend using FastCap speed tape, but any thin two-sided tape will work.
3. **Additional Masking Tape**: Place strips of masking tape on the underside of the jig. This creates a barrier between the two-sided tape and the hat, preventing any residue from sticking to the hat.

When you place the hat in the jig, the two-sided tape will grip the masking tape, keeping the brim flat and secure during engraving.

## Cutting the Jig

After designing the jig in LightBurn, you can cut it out using your laser. Here’s a quick overview of the cutting process:
1. **Select the Shapes**: Choose both the interior and exterior ovals you created.
2. **Group and Cut**: Group the shapes and send them to the laser for cutting. You can use either 1/4 inch or 3/8 inch material, depending on your preference.

## Creating an Insert for the Hat

To protect the crown of the hat during engraving, I created an insert:
1. **Measure the Insert**: The insert should measure 8.5 inches tall by 7 inches wide.
2. **Use Aluminum Tape**: Cover the insert with aluminum tape to protect it from soot and to reflect any engraving that might come close to the edges.

## Engraving Techniques

When it comes to engraving, I recommend using a 4-inch lens for better focus and depth. Here’s why:
- **Deeper Focus Area**: A 4-inch lens has a deeper infocus area, which helps in achieving a cleaner engraving.
- **Removing the Extension Tube**: By removing the extension tube, you can avoid smoke contamination on the hat and ensure better clearance for any undulations in the hat’s edge.

## Conclusion

Creating a jig for engraving wide brim hats is a straightforward process that can significantly improve your results. By following the steps outlined in this guide, you can ensure that your hats are engraved evenly and professionally. Remember to adjust your laser settings as needed and always test your setup before proceeding with your final engravings. I hope you found this guide helpful. If you enjoyed this content, please consider liking and subscribing for more tips and tricks in the future.

---
Generated by Galaxy.ai YouTube Summarizer

Cherry Keepsake Box Engrave with 15 watt UV Laser! We Talk Testing and struggles.

Computer Creationz 2025-09-25 | In this video we discuss the process I used to determine the settings I used (included in this video) to engrave this MakerFlo large cherry keepsake box. No LightBurn instruction on this one just my thoughts and how it turned out. I would appreciate your in;it on this style of video.

makerflo.com/products/valet-box-large

Tip for holding down large brim hats for engraving

Computer Creationz 2025-09-25 | Found a sweet way to hold down large brim hats for engraving. I used to use this method on my Cnc machine!

Thunder Ignite 2025, thoughts after the event (you need to see this)

Computer Creationz 2025-08-12 | My opinion on this event and what it was all about.

thunderlaserusa.com

00:00 - Start
00:07 - Intro and How Ignite 2025 was structured
03:47 - Titan Pro
04:50 - Q & A with Josh Evans of LoneStar Adhesive
07:09 - Main Area Meeting Area with 10 Lasers
08:17 - Candid Shots of Class Rooms
08:55 - Start of Day 2 at Thunder Ignite 2025
09:39 - Closer Laser Video
10:31 - Candid shots
10:46 - Attendee Thoughts about the event

Quick way to align large work in a uv laser

Computer Creationz 2025-08-06 | ...

LBX 2025, Making Jigs in LightBurn

Computer Creationz 2025-08-05 | Google drive Link to slide deck for this session: drive.google.com/file/d/1nJ9GpL7qe0qnslABk_0fueoukmCYZuda/view?usp=share_link

Mastering Jig Creation in LightBurn for Enhanced Laser Production

TLDR: This blog post explores the process of creating jigs in LightBurn, a crucial skill for increasing production efficiency in laser engraving. It covers the benefits of jigs, suitable materials, essential tools, and step-by-step instructions for designing and using jigs effectively. The insights shared by Robert Kofid, a seasoned laser product creator, highlight the importance of jigs in scaling production from small to large quantities, ensuring accuracy and speed in the engraving process.

Creating jigs in LightBurn is a vital skill for anyone looking to enhance their laser engraving production. In this post, we will delve into the benefits of jig making, suitable materials, essential tools, and a step-by-step guide to designing and using jigs effectively. This knowledge can significantly improve your production rates, especially as your business scales from small to large quantities.

## The Importance of Jigs in Laser Production
As businesses grow, the demand for larger quantities of products increases. For instance, if a client requests 10 keychains, the process may be manageable. However, if they return asking for 100, the challenge escalates. Understanding how to create jigs can alleviate the pressure of scaling production, allowing for faster and more efficient workflows.

### Benefits of Jig Making
1. **Increased Efficiency**: Jigs streamline the engraving process, reducing setup time and manual adjustments.
2. **Consistency**: They ensure that each product is produced with the same precision, maintaining quality across larger batches.
3. **Time-Saving**: Once a jig is created, it can be reused, saving time on future projects.

## Suitable Materials for Jigs
The choice of materials for jigs can vary based on the type of laser setup you are using. Here are some common materials:
- **Cardboard**: Ideal for practice jigs due to its availability and ease of use, but not durable for long-term use.
- **Birch Plywood**: A good option for more permanent jigs.
- **MDF**: Suitable for various jig applications.
- **True Flat Ply**: Preferred for its cleanable surface, making it ideal for thinner jigs.
- **Acrylic**: While it is a good substrate, it can be more expensive.

### Considerations for Jig Thickness
The thickness of your jig should correspond to the product you are working with. For example, a thin jig may suffice for flat keychains, but thicker materials are necessary for items like coasters with feet.

## Types of Jigs
There are two primary types of jigs based on the laser setup:
1. **Gantry Style Jigs**: More complex to create, requiring specific design elements for effective use.
2. **Galvo Style Jigs**: Generally simpler, as they often utilize a turret system for engraving.

## Essential Tools in LightBurn
To effectively create and use jigs in LightBurn, you need to master a few key tools:
- **Rectangle Tool**: For creating the base shape of your jig.
- **Pencil Tool**: Useful for adding design elements.
- **Laser Position Tool**: A critical tool for aligning your jig with the laser head.
- **Array Tool**: For duplicating designs across the jig.
- **Offset Tool**: Helps in creating inner layers for accurate placement of products.

## Designing a Jig: Step-by-Step Guide
### Step 1: Create the Base Shape
Start by creating a rectangle that matches the dimensions of your product. For example, if you are making a jig for business cards, create a rectangle that fits the card size.

### Step 2: Add Target Markers
Incorporate target markers at opposite corners of the jig. This will help in aligning the jig with the laser head during setup.

### Step 3: Create a Tool Layer
Use the offset tool to create an inner rectangle that will serve as a tool layer. This layer ensures that any graphics you drop into the jig will be centered correctly, regardless of any cutouts you make for finger holes or other features.

### Step 4: Design Cutouts
If necessary, create cutouts for easy removal of products from the jig. For instance, a finger hole can be added to facilitate the removal of engraved items.

### Step 5: Duplicate Designs
Use the array tool to create multiple copies of your design within the jig. Adjust the spacing to ensure that all items fit comfortably.

### Step 6: Save Your Design
Once your jig is complete, save it in your art library for future use. This allows for quick access and modifications as needed.

## Setting Up the Jig in LightBurn
1. **Load the Jig Template**: Import your jig design into LightBurn.
2. **Use Absolute Coordinates**: Set your LightBurn to absolute coordinates for easier alignment.
3. **Align the Jig**: Use the laser position tool to align the jig with the laser head. Click on the target markers to ensure accurate placement.
4. **Secure the Jig**: Once aligned, secure

Take the Array Tool in LightBurn to the next level!

Computer Creationz 2025-06-18 | 00:00 - Start
00:07 - Simple Array Use and how to make it better !
01:31 - Unlocking a higher level using the Virtual Array Tool
06:55 - Generating a Pattern with the Virtual Array

Maximizing Material Efficiency with the Array Tool in LightBurn

This video explores advanced techniques for using the Array Tool in LightBurn, demonstrating how to maximize material usage and create intricate patterns efficiently. By utilizing features like the virtual array, users can significantly increase the number of shapes cut from a material, as shown through practical examples with logos and snowflakes.

In the world of laser cutting, efficiency is key. Robert Kofed from Computer Creations shares valuable insights on how to leverage the Array Tool in LightBurn to optimize material usage. This guide will walk you through advanced techniques that can help you cut more shapes from your material, ultimately saving time and resources.

##understanding the Basics of the Array Tool

The Array Tool in LightBurn allows users to create multiple copies of a shape in a grid format. For instance, when working with a 12x20 piece of acrylic, you might start by creating a simple logo, such as the state of Nevada. By default, you can generate a grid of shapes, and in this example, you could fit 297 shapes onto the acrylic.

However, this initial layout may not be the most efficient use of your material. With a few adjustments, you can significantly increase the number of shapes you can cut.

## Introducing the Virtual Array Feature

One of the most powerful features of the Array Tool is the virtual array option. To utilize this feature, you need to have more than one shape selected. For example, by duplicating the Nevada shape and enabling the virtual array, you can create a layout that allows for more flexibility in arranging the shapes.

### Steps to Create a Virtual Array
1. **Select Multiple Shapes**: Duplicate your shape and select both.
2. **Enable Virtual Array**: In the Array Tool settings, ensure that the virtual array option is turned on.
3. **Generate the Array**: Create the array as you normally would. Initially, it may look similar to the standard array, but the key difference is that the shapes are not yet finalized.

### Manipulating the Virtual Array

Once you have your virtual array set up, you can manipulate the shapes freely. For example, by selecting a shape and rotating it, you can see how it affects the overall layout. This flexibility allows you to optimize spacing and arrangement without committing to a final design.

After adjusting the layout, you can modify the number of rows and columns to maximize the number of shapes. In the example provided, this method allowed for an increase of 81 additional shapes, bringing the total to 378.

## Finalizing the Array

Once you are satisfied with the layout, you can finalize the array by flattening it. This action converts the virtual shapes into actual, usable shapes that can be cut from your material. You can then group them for easier handling and positioning.

## Creating Patterns with the Virtual Array

The virtual array feature is not only useful for maximizing material but also for creating intricate patterns. For instance, if you want to design a festive snowflake pattern, you can follow similar steps:

1. **Import Individual Shapes**: Bring in multiple snowflake designs, ensuring each is grouped.
2. **Enable Virtual Array**: Select all snowflakes and turn on the virtual array option.
3. **Adjust Layout**: Move and rotate the snowflakes to create a more random and visually appealing pattern.

### Filling Gaps in the Pattern

If you notice gaps in your design, you can easily add new shapes, such as circles, to fill those spaces. By selecting the new shape and using the right-click menu, you can add it to the existing array, allowing for a cohesive design.

## Conclusion

The virtual array feature in LightBurn is a game-changer for anyone looking to maximize their material usage and create complex designs efficiently. By understanding and utilizing these advanced techniques, you can significantly increase the number of shapes you cut from your materials, making your projects more cost-effective and visually appealing. Whether you're working on logos or festive patterns, the Array Tool can help you achieve your goals with ease.

The Basics of Timing a Galvo Laser

Computer Creationz 2025-06-16 | https://haotianlaser.store

Miscroscope I used, here is my Amazon affiliate link(Great way to support the channel
amzn.to/43I49Qi

Black Aluminum Business cards used for engraving test designs (my affiliate link)
amzn.to/4e3pyXD

00:00 - Start
00:16 - Intro Timing your galvo
03:46 - Set up in LightBurn for the pattern timing test
08:35 - Deffinitions and Location of Galvo Timing Info
12:48 - Laser ON TC settings
13:51 - What your test pattern should look like !
18:50 - Laser Off TC
20:10 - Results of Laser off TC
23:11 - Polygon TC Changes
25:48 - Bonus Footage - Saving All your setting in just

This guide explains the importance of timing in Galvo lasers, detailing how to check and adjust timing settings using LightBurn software and a USB microscope to ensure high-quality engraving results.

In the world of laser engraving, timing is a crucial factor that can significantly affect the quality of your results. This guide will walk you through the process of checking and adjusting the timing on your Galvo laser, ensuring that you achieve the best possible outcomes for your projects.

## What is Timing?
Timing in the context of Galvo lasers refers to the synchronization between the laser firing and the movement of the mirrors. Proper timing is essential for achieving precise engravings. If the timing is off, you may end up with substandard results, such as gaps or uneven lines in your engravings.

## Materials Needed
To check the timing on your Galvo laser, you will need the following materials:
- Black aluminum business cards
- USB microscope (approximately $40 on Amazon)

These tools are essential for accurately assessing the quality of your engravings, as the details may not be visible to the naked eye.

## Setting Up Your Laser
Before diving into the timing adjustments, you need to set up your engraving pattern in LightBurn. Here’s how:
1. **Create a Pattern**: Generate a rectangle that is 1 inch wide by 0.7 inches high. You will create two rectangles on different layers: one set to line and the other to fill.
2. Adjust Settings: For a 15-watt Galvo laser, set the following parameters:
- Speed: 100 mm/s
- Frequency: 40
- Q Pulse: 1 (for the line layer)
3. Modify Lines Per Inch (LPI)**: For the fill layer, reduce the LPI to around 6 to simplify the pattern, allowing for easier timing checks.
4. **Preview the Design**: Ensure that the two rectangles are centered and ready for engraving.

Understanding Timing Adjustments
Timing adjustments involve two key parameters: the laser on time and the laser off time. These settings determine how quickly the laser fires and stops as it moves across the material.

Laser On Time
- **Definition**: This is the delay before the laser fires after the mirrors start moving. A high value may leave gaps, while a low value can cause excessive burning.
-Adjustment: If you notice gaps at the intersections of your lines, you may need to decrease the laser on time.

Laser Off Time
-Definition: This is the delay after the laser stops firing before the mirrors move again. Similar to the on time, a high value can lead to excessive burning, while a low value may cause gaps.
-Adjustment: If the lines do not meet cleanly, you may need to increase the laser off time.

Checking Your Timing
Once you have set up your engraving pattern and adjusted the timing settings, it’s time to check the results:
1.Engrave the Pattern: Send the design to your Galvo laser and engrave it onto the black business card.
2. Examine Under the Microscope: Use the USB microscope to closely inspect the intersections of the horizontal and vertical lines. Look for clean intersections without gaps or bulges.

What to Look For
Clean Intersections: The lines should meet without any gaps. If you see gaps, adjust the laser on or off time accordingly.
Sharp Corners: Ensure that the corners of your engravings are sharp and not rounded. This may require adjustments to the polygon TC settings in LightBurn.

Fine-Tuning Your Settings
After checking your engravings, you may need to fine-tune your settings:
Polygon TC Settings: Adjust these settings to achieve sharper corners. A typical setting might be around 100, but you can experiment to find what works best for your specific laser and lens.
Save Your Settings; Once you have dialed in your settings, it’s crucial to save them. LightBurn allows you to export your settings, which can be a lifesaver if you need to reinstall the software or switch computers.

conclusions
By following these steps, you can ensure that your Galvo laser is properly timed, leading to high-quality engravings. Regularly checking and adjusting your settings will help maintain the performance of your laser and improve the quality of your work. Remember to save your settings frequently to avoid losing your hard work. With practice, you will become proficient in timing your Galvo laser, allowing you to produce exceptional results in your engraving

Picture to Pattern in LightBurn, learn this skill to broaden your proficiency!

Computer Creationz 2025-05-30 | In this video I will show you how to use taking a picture of an item and generate a pattern from the picture to generate product that you can use or sell. Once you see how effective this process is its usage is limitless. This is the longest video I’ve ever produced. But it covers everything you need to learn this skill. I cover this process twice so if you watch the first half of the video you will get most of the info. I do have some bonus footage of a nice touch to finish off my project.

Laser Used Thunder Nova 35-100
thunderlaserusa.com

Eva boat foam used, this is my affiliate Amazon link help support my channel!
amzn.to/4krR3MX

00:00 - Start
00:07 - Intro
03:06 - Back Section of Kayak
06:21 - Getting Started in LightBurn
14:04 - Snap to Objects is On!
17:21 - Node Editing
21:17 - Cutting out pattern for back of Kayak
22:50 - Paper Template fitting (Back side)
24:36 - Cutting EVA foam panel
36:49 - Laying out the outline for front foam
38:37 - More Node Editing
41:31 - Cutting out front paper template
44:02 - Cutting front foam
47:42 - Bonus Footage Lets take it up a notch!

LBX 2025 Information here, conversations with Joe Spanier from LightBurn Software. Don’t miss out!

Computer Creationz 2025-05-24 | Get your LBX2025 tickets at
lightburnsoftware.com

Use $25 discount coupon
COMPUTERCREATIONZ-LBX2025

00:00 - Start
00:59 - How to make Jigs - My Presentation at LBX 2025
01:48 - Make Great Connections that could change everything!
02:09 - Meet Joe Spanier - LightBurn Software
09:14 - LightBurn 2.0 comming
10:28 - Speaker at LBX Info
11:54 - Class sign ups when you buy your tickets
12:29 - Ticket Info
13:20 - $25 coupon code
15:46 - Info about New York City and the event location
18:12 - Other things to do around the event location

LBX 2025: What to Expect from the Upcoming LightBurn Software Event

LBX 2025, scheduled for July 19-20, promises an engaging experience for laser enthusiasts with numerous classes, networking opportunities, and a vendor fair. Attendees can expect to learn about LightBurn software, connect with like-minded individuals, and explore new technologies in the laser crafting community.

The LBX 2025 event is just around the corner, taking place on July 19th and 20th. This gathering promises to be a fantastic opportunity for laser enthusiasts and professionals to connect, learn, and grow within the community. In this blog post, we will explore what attendees can expect from the event, including classes, networking opportunities, and the vendor fair.

### Dates and Ticket Information

The LBX 2025 event will be held on July 19th and 20th, with a ticket cutoff date of June 15th. Tickets are priced at $150 for two days, which includes a year’s worth of LightBurn software, making it an excellent value for attendees. Additionally, a $25 discount coupon is available for those who watch the promotional video.

### Location and Accessibility

This year’s event will take place in New York City, a location chosen for its accessibility to international visitors. With three major airports nearby and numerous hotels within walking distance, navigating the city is easier than many might expect. Attendees can utilize Google Maps or Apple Maps for navigation, and the subway system is user-friendly, especially with mobile payment options.

### Classes and Workshops

Attendees can look forward to a variety of classes and workshops throughout the two days. Robert Kofoed, a speaker at the event, will present on how to create jigs using LightBurn software, which can significantly enhance productivity for laser operators. The event will feature multiple sessions running simultaneously, ensuring that there is something for everyone.

### Live Q&A Sessions

One of the highlights of LBX 2025 will be the live Q&A sessions with the development team. These sessions provide a platform for attendees to ask questions directly to the developers, fostering a collaborative environment where users can share their experiences and suggestions for software improvements.

### Building Connections

One of the primary goals of LBX 2025 is to facilitate networking among attendees. Joe Spanier from LightBurn Software emphasized the importance of in-person connections, stating that many attendees leave with valuable contacts and friendships. The event will feature a networking session on Saturday night, allowing participants to mingle and discuss their experiences.

### Vendor Fair

The vendor fair will showcase nearly 20 sponsors, including major names in the laser industry. Attendees will have the chance to interact with vendors, explore new products, and even participate in a separate vendor fair for those interested in selling their laser-crafted goods. This fair is free to attend, making it accessible for anyone in the area.

### Encouraging Collaboration

LBX 2025 aims to build a community of laser creators who can support one another. Joe Spanier highlighted that the event is designed to encourage collaboration and knowledge sharing among attendees. This community-driven approach is essential for driving innovation and growth within the laser crafting industry.

### Feedback and Improvement

The event also serves as a platform for gathering feedback on LightBurn software. Attendees are encouraged to share their experiences, both positive and negative, which helps the development team understand user needs and improve the software continuously.

## Conclusion

LBX 2025 is shaping up to be an exciting event for anyone involved in the laser crafting community. With a packed schedule of classes, networking opportunities, and a vibrant vendor fair, attendees will have ample chances to learn, connect, and grow. If you’re considering attending, now is the time to secure your ticket and prepare for an enriching experience in New York City. Don't miss out on this opportunity to enhance your skills.

Simple Knife jig for your Galvo, This can be a real time saver !

Computer Creationz 2025-05-01 | Just wanted to show you the simple knife handle jig I made for JDS Bison river 1501 Knives. I have to engrave both the handle and the blade with two different graphics. I engraved all the knife handles first then went back and engraved the blades laser. this little jig saved me lots of time.

Convert to Path to save your textual Galvo Projects

Computer Creationz 2025-04-18 | In this short video I talk about using the convert to path feature in LightBurn to give you the ability to engrave only the letters that need additional passes from your Galvo laser. This option would work on any Galvo laser.

Maximizing Engraving Quality: A Guide to Converting Text to Path in LightBurn

TLDR: This blog post provides a detailed guide on how to enhance engraving quality on softballs and baseballs using LightBurn software by converting text to paths, allowing for precise adjustments and multiple passes for optimal results.

Engraving on soft surfaces like softballs and baseballs can be challenging, especially when trying to achieve a consistent and high-quality finish. In this guide, we will explore a practical tip for improving your engraving results using LightBurn software, specifically focusing on the technique of converting text to paths.

## Understanding the Challenge

When engraving items such as softballs, you may encounter issues where certain parts of your design do not engrave as deeply or clearly as others. For instance, while engraving a design that includes text, you might find that some words or letters appear faint compared to others. This inconsistency can be frustrating, but there is a solution.

## The Importance of Knowing Your Equipment

Using a 15-watt UV laser with a 210 lens, it is crucial to understand the capabilities and limitations of your equipment. In a recent project, the engraving of the phrase "500 strikeout" and the date was satisfactory, but the location "Battle Mountain" was not as pronounced. This is where the knowledge of LightBurn's features comes into play.

## Converting Text to Path

One of the most effective ways to address engraving inconsistencies is to convert your text to paths within LightBurn. This process transforms your text into a series of lines, allowing for greater control over the engraving process. Here’s how to do it:

1. **Select the Text**: Highlight the text string that you want to modify.
2. **Convert to Path**: Navigate to the edit menu and select the option to convert the text to a path. This action will break down the text into individual lines that can be manipulated.

By converting the text to paths, you gain the ability to select specific parts of your design for additional engraving passes.

## Rerunning Engraving Passes

After converting the text to paths, you can focus on the areas that require more attention. In the example mentioned, after running the initial engraving, it was clear that the word "Battle Mountain" needed further passes to achieve the desired darkness. Here’s how to proceed:

- **Select Specific Sections**: With the text now converted to paths, you can choose to rerun only the faint sections of your design. This is particularly useful for letters or words that did not engrave deeply enough.
- **Adjust Passes**: Run additional passes over the selected areas. In this case, running three more passes significantly improved the visibility of the engraving.

## Tips for Successful Engraving

- **Fragment Your Design**: If certain parts of your design are not flat or are inconsistent in depth, do not hesitate to fragment your design. This allows you to rerun specific sections without affecting the entire engraving.
- **Maintain Position**: It is essential to keep the item in the same position during the reruns. Moving the item can lead to misalignment and further inconsistencies.
- **Experiment with Passes**: Depending on the material and the depth of engraving required, you may need to experiment with the number of passes to achieve the best results.

## Conclusion

Converting text to paths in LightBurn is a powerful technique that can significantly enhance the quality of your engravings on softballs, baseballs, and similar materials. By allowing for precise adjustments and targeted reruns, this method can help you achieve a professional-looking finish. Remember to keep experimenting and refining your approach, and you will find that most of the time, you can achieve excellent results with your UV laser engraver. Happy engraving!

Learning how to use SCORING with your laser for fast sign assembly

Computer Creationz 2025-04-10 | 00:00 - Start
00:06 - Intro
03:02 - Sign Example
04:37 - Sign Parts
08:02 - Score Settings, Why Max and Min power settings matter!
09:47 - Putting it all together!
11:53 - Finished Signs

Understanding Scoring, max and min setting on your laser:
youtu.be/pjud3FHn9H4

In the world of laser cutting, scoring is a technique that can significantly enhance the assembly process of signs. Robert Kofoed from Computer Creations shares his insights on scoring while building a sign for his sister, illustrating how this method can streamline the alignment and assembly of various sign components.

## What is Scoring?
Scoring involves making shallow cuts in a material to create alignment guides for assembly. This technique is particularly useful when working with intricate designs or multiple components, ensuring that everything fits together perfectly without the need for guesswork.

## The Sign Project
Robert's project features a sign that reads "Because I said sew," a nostalgic phrase that resonates with many from the older generation. The sign is designed for his sister, an avid seamstress, and serves as a perfect example of how scoring can simplify the assembly process.

### Components of the Sign
The sign measures 2 inches high by 12 inches wide and includes:
- A painted border
- Cut-out text then painted
- Sublimated pieces made from Unisub hardboard

Robert emphasizes that understanding scoring is crucial for achieving precise placements of these components, particularly the text, which must be accurately positioned to avoid an awkward appearance.

## Using LightBurn for Scoring
To create the sign, Robert utilizes LightBurn, a software that allows for detailed control over laser cutting settings. He explains the importance of setting maximum and minimum power levels for scoring, which can greatly affect the quality of the score lines.

### Scoring Settings
For the scoring layer, Robert uses:
- **Speed**: 300 mm/s
- **Max Power**: 5%
- **Min Power**: 4%

These settings are tailored for a 100-watt Thunder Nova CO2 laser. The difference between max and min power is critical; it helps prevent scorching at the corners of the score lines, which can occur if the minimum power is set too high.

## The Scoring Process
1. **Design Preparation**: Robert prepares the design in LightBurn, ensuring that the scoring layer is clearly defined. He uses color coding for different functions: green for scoring, black for framing, blue for engraving, and red for cutting.
2. **Creating Score Lines**: By offsetting the text slightly inward, Robert generates score lines that serve as guides for placing the sublimated pieces accurately.
3. **Cutting the Components**: The components are cut from True Flat wood, a material Robert has recently started using and appreciates for its quality and ease of cutting.

## Assembly of the Sign
Once all components are cut, the assembly process becomes straightforward:
- **Placement**: Using the score lines as guides, Robert places the text and sublimated pieces onto the backer board.
- **Adhesive Application**: For this project, he opts for CA glue to secure the pieces, although he notes that for larger batches, using 3M adhesive would be more efficient.
- **Final Assembly**: The frame is added last, completing the sign with ease thanks to the prior scoring.

## Conclusion
Scoring is a valuable technique that can simplify the assembly of laser-cut signs, making the process faster and more accurate. Robert encourages anyone working with laser cutting to incorporate scoring into their workflow, as it can save time and improve the overall quality of the finished product.

If you found this information helpful, consider giving a thumbs up or subscribing for more insights into laser cutting techniques. Happy crafting!

Using The Right Fill modes for your Galvo lasers

Computer Creationz 2025-04-01 | 00:00 - Start
00:07 - Intro
02:09 - Setting your layer for Flood Fill or Offset Fill
04:37 - How the laser acts with Fill all shapes at once and Flood Fill
07:21 - Some Results with PIctures

Maximizing Engraving Efficiency with Flood Fill and Offset Fill on Galvo Lasers

TLDR: This blog post explores the benefits of using Flood Fill and Offset Fill settings in LightBurn for Galvo lasers, demonstrating how these features can enhance engraving speed and quality compared to traditional methods used with gantry-style lasers.

In the world of laser engraving, the transition from gantry-style CO2 lasers to Galvo lasers can be a game changer. Robert Kofoed from Computer Creations shares insights on optimizing engraving settings, particularly focusing on the Flood Fill and Offset Fill commands in LightBurn. This post will delve into the advantages of these settings and how they can significantly improve engraving speed and quality.

## Understanding Galvo Lasers
Galvo lasers operate differently from traditional gantry-style lasers. While many engravers are accustomed to specific settings that work well with gantry machines, Galvo lasers require a different approach to achieve optimal results. One of the key features that can enhance performance is the Flood Fill command, which is describes as a "godsend" for Galvo laser users.

## The Importance of Flood Fill
### What is Flood Fill?
Flood Fill is a setting in LightBurn that allows the laser to engrave in a more efficient manner. Unlike traditional methods where the laser moves back and forth across the entire design, Flood Fill enables the laser to focus on specific areas, reducing the overall engraving time and improving quality.

### Benefits of Using Flood Fill
1. **Increased Speed**: Kofid notes that using Flood Fill can drastically reduce engraving time. For example, one engraving took only 21 seconds with Flood Fill compared to 66 seconds using the standard fill method.
2. **Improved Quality**: The quality of engravings using Flood Fill is noticeably better. Artifacts and unclear letters that often occur with traditional methods are minimized, resulting in cleaner and more precise engravings.

## Comparing Engraving Methods
- **Standard Fill**: This method fills all shapes at once, moving the laser in a predictable back-and-forth pattern. While familiar to many users, it often results in longer engraving times and lower quality.
- **Flood Fill**: By enabling Flood Fill, the laser engraves in a more dynamic manner, focusing on groups of elements rather than the entire design at once. This method not only saves time but also enhances the clarity of the engraving.

### Visual Comparison
- The engraving using standard fill showed rough edges and artifacts, taking 66 seconds.
- The engraving using Flood Fill was much cleaner and took only 21 seconds, showcasing the effectiveness of this setting.

## Exploring Offset Fill
### What is Offset Fill?
Offset Fill is another setting available in LightBurn that can be beneficial depending on the design and material being used. It allows for a different approach to engraving that can yield better results in certain scenarios.

### When to Use Offset Fill
While it may not always outperform Flood Fill, it is worth experimenting with to see if it suits your engraving needs.

## Conclusion
The transition to Galvo lasers opens up new possibilities for engravers, especially with the use of advanced settings like Flood Fill and Offset Fill. By understanding and utilizing these features, users can achieve faster and higher-quality engravings. Kofid encourages engravers to experiment with these settings to enhance their results and efficiency.

If you are new to Galvo lasers or looking to improve your engraving process, consider incorporating Flood Fill and Offset Fill into your workflow. These tools can make a significant difference in the quality and speed of your projects, ultimately leading to better outcomes and satisfied customers.

Thunder Laser Ignite 2025, classroom and hands on Laser instruction

Computer Creationz 2025-03-24 | thunderlaserusa.com/ignite

Thunder Laser Ignite 2025: A Unique Hands-On Learning Experience

Thunder Laser Ignite 2025 is an upcoming event offering hands-on laser instruction from industry experts, taking place from August 7th to 9th in Quitman, Texas. With limited spots available, attendees will benefit from direct interaction with professionals and practical training on laser equipment.

The world of laser technology is rapidly evolving, and for enthusiasts and professionals alike, staying updated is crucial. One exciting opportunity to enhance your skills and knowledge is the upcoming **Thunder Laser Ignite 2025** event. This blog post will delve into what this event entails, and why you should consider attending.

Even Overview
**Thunder Laser Ignite 2025** is set to take place from **August 7th to 9th** at **Thunder Laser USA** in Quitman, Texas. Following the success of last year's event, which sold out quickly, this year’s gathering promises to be even more engaging and informative. The event is designed to accommodate **100 participants**, providing an intimate setting for learning and networking.

Hands-On Training
One of the standout features of Thunder Laser Ignite 2025 is the **hands-on training** component. Unlike many traditional seminars, this event allows participants to engage directly with laser equipment. Attendees will have access to workstations set up with various lasers, enabling them to:
- Explore lasers they are interested in or currently own
- Ask questions and receive guidance from experts
- Apply classroom knowledge in a practical setting

This hands-on approach is particularly beneficial, as it reinforces learning and helps attendees retain crucial information about operating lasers effectively.

Why Attend?
The feedback from last year's participants was overwhelmingly positive, with many highlighting the value of the hands-on experience. Learning about laser technology is one thing, but being able to practice immediately afterward significantly enhances understanding and skill retention.

If you are considering expanding your knowledge or improving your operations in the laser industry, this event is an excellent opportunity. However, with limited spots available, it is advisable to register soon to secure your place.

Conclusion
Thunder Laser Ignite 2025 promises to be an enriching experience for anyone involved in laser technology. With expert speakers, hands-on training, and a supportive learning environment, attendees will leave with new skills and insights that can elevate their work. If you are interested in attending, do not hesitate to sign up, as spots are expected to fill quickly. For more information, visit the Thunder Laser website and reach out with any questions you may have.

Galvo Rotary 101: Easy Setup & Essential Tips!

Computer Creationz 2025-03-16 | Haotian Laser
https://haotianlaser.store

The Links below are my Amazon Affiliate Links. By using the links below you are helping support this channel. Thank You!
Wixey Digital Angle Gauge
amzn.to/4iwZTYp

Engineering Square
amzn.to/3FywwH2

00:00 - Start
00:16 - The Basic of using a Rotary
04:05 - Get Started in LightBurn
07:29 - Basic Chuck Rotary Settings in LightBurn
10:06 - Installing the Rotary and set alignment
12:51 - Leveling the Tumbler
15:56 - Set Focus
17:00 - Finalize Design in LightBurn
18:15 - Preview Modes
20:24 - Split Size Entry
22:27 - Testing the steps per rotation in LIghtBurn
23:50 - Time to Engrave the Tumbler

This guide provides a step-by-step process for setting up a rotary on a galvo laser engraver, covering necessary tools, alignment techniques, and software settings to ensure accurate engraving results.

In this guide, we will explore the process of setting up a rotary on a galvo laser engraver. Whether you are using a CO2, fiber, or UV laser, the steps outlined here will help you achieve accurate and professional results. This tutorial is designed to be straightforward, providing a solid foundation for beginners and experienced users alike.

## Tools and Materials Needed
Before we begin, gather the following tools and materials:
- A 12 oz Koozie (or similar item to engrave)
- Blue painters tape
- An engineering square with a flat bottom
- A black Sharpie marker
- A Wixie digital angle gauge (highly recommended for accuracy)

## Step 1: Preparing the Koozie
1. **Apply Blue Painters Tape**: Start by wrapping a piece of blue painters tape around the Koozie. This will serve as a surface for marking.
2. **Mark a Vertical Line**: Use the engineering square to ensure that the line you draw with the Sharpie is perpendicular to the bottom and top of the Koozie. This line will help you align your engraving later.
3. **Measure the Diameter**: Measure the diameter of the Koozie, as this will be needed for the engraving software later.

## Step 2: Setting Up LightBurn
1. **Open LightBurn**: Launch the LightBurn software on your computer. You do not need to connect your rotary to the laser at this point.
2. **Draw a Line**: Use the pencil tool to draw a horizontal line in the software. Hold down the shift key to ensure the line is straight.
3. **Center the Line**: Select the line and press the "P" key to center it on the design grid. This line will be used to align with the Koozie.

Step 3: Aligning the Rotary
1. **Connect the Laser**: Once the line is drawn, connect your laser to LightBurn. Ensure the rotary is unplugged from the laser to allow free movement.
2. **Frame the Line**: Select the line you created and hit the frame button. This will project the line onto the laser bed.
3. **Align the Koozie**: Place the Koozie in the rotary and adjust it so that the black line you drew on the Koozie aligns with the projected red line from the laser. Secure the rotary once aligned.

Step 4: Leveling the Koozie
1. **Use the Wixie Gauge**: Place the Wixie digital angle gauge on top of the Koozie. Adjust the rotary until the gauge reads zero, ensuring that the Koozie is level with the laser head.
2. **Focus the Laser**: Use a predetermined focus stick to adjust the laser head to the correct height for engraving.

Step 5: Finalizing Settings in LightBurn
1. **Input Rotary Settings**: In LightBurn, go to the rotary setup tool. Select the Chuck type rotary and enable the rotary switch. Set the steps per rotation according to your rotary's specifications (e.g., 12,800 steps).
2. **Set Engraving Parameters**: Input the diameter of the Koozie to calculate the circumference. Adjust the engraving speed, frequency, and other settings as needed.
3. **Test the Setup**: Use the test feature in LightBurn to confirm that the rotary settings are correct. The rotary should make one full revolution and return to the starting point.

Step 6: Engraving the Design
1. **Select the Design**: Import your logo or design into LightBurn and ensure it fits within the engraving area.
2. **Frame the Design**: Frame the design to see how it will appear on the Koozie. Adjust as necessary to ensure proper placement.
3. **Start Engraving**: Once everything is set, start the engraving process. Monitor the engraving to ensure quality results.

Conclusion
Setting up a rotary on a galvo laser engraver involves careful preparation and alignment to achieve the best results. By following these steps, you can ensure that your engravings are precise and professional. Remember to adjust your settings based on the material and design for optimal outcomes. Happy engraving!

5 Years on YouTube, THANK YOU!

Computer Creationz 2025-03-04 | A quick video on looking back on 5 year of my YouTube channel. I’ve loved every minute of it. Please let me know in the comments what you’ve gotten from my channel and any suggestions for future content. Thanks again for all your support!

Audio I mentioned , my Amazon affiliate link
amzn.to/4i2Urg8

Mastering Photo Engraving and Jewelry Making with UV Galvo Lasers, focus and cylinder correction too

Computer Creationz 2025-02-28 | A big Thank You to Haotian Laser for sponsoring this video!

This video covers essential techniques for engraving photos and creating jewelry using UV Galvo lasers, including tips on image preparation, focus adjustments, and utilizing the wobble feature for cutting thin metals. In this comprehensive guide, we will explore the fascinating world of photo engraving and jewelry making using UV Galvo lasers. Whether you are a beginner or looking to refine your skills, this post will provide you with valuable insights and practical tips to enhance your projects.

Getting Started with Photography with your galvo

Before diving into engraving photos, it's essential to familiarize yourself with your UV laser setup. In this guide, we will focus on a 15-watt UV laser equipped with a 210 mm lens and a honeycomb tray, which is ideal for various substrates.

Basics of Photo Engraving

Engraving photos on different materials, such as black business cards or slate, requires specific techniques. Here are the steps to get started:

1. **Image Selection**: Choose high-resolution images for the best results. Low-resolution images may not engrave well.
2. **Image Format**: Understand the difference between PNG and JPEG formats. PNG files typically have a transparent background, making them preferable for engraving on dark surfaces. In contrast, JPEGs have a white background that will engrave unless removed.
3. **Importing Images**: Use LightBurn software to import your images. You can drag and drop or use the file import option.

Adjusting Your Images
Once your image is imported, you can make necessary adjustments:
- **Invert the Image**: For dark surfaces, invert your image to ensure that the engraved areas are visible.
- **Enhance Sharpness**: Use the sharpness adjustment to improve image clarity.
- **Adjust Gamma**: Adding gamma can enrich the image, especially when engraving on metal.

DPI Setting's
Setting the correct DPI (dots per inch) is crucial. A common mistake is using too high a DPI, which can negatively affect the engraving quality. A starting point of around 317-318 DPI with a line interval of 0.080 is recommended.

Utilizing the Wobble Feature for Cutting Thin Metals
The wobble feature in LightBurn is particularly useful for cutting thin metals, such as aluminum business cards. Here’s how to use it effectively:

1. **Select Wobble Mode**: Enable the wobble feature in your settings. This allows the laser to cut with a circular motion, which is more effective for thin materials.
2. **Set Parameters**: Adjust the step size and size of the circles. A step size of 0.05 and a circle size of 0.100 often yield good results.
3. **Test Cuts**: Perform test cuts to determine the number of passes needed to cut through your

Importance of Focus

Focus is critical when engraving, especially on glass. Here are some tips:
- **Glass Engraving**: When working with glass, you may need to defocus the laser by 2-3 mm from the standard focus distance indicated on your machine. This adjustment can significantly improve engraving quality.
- **Leveling**: Ensure that your engraving surface is level with the laser head. Using a digital angle gauge can help achieve precise leveling.

Cylinder Correction Mode

For cylindrical objects, such as tumblers, use the cylinder correction mode in LightBurn. This feature compensates for the curvature of the object, ensuring that your design is accurately engraved. Measure the distance from the mirrors to the engraving surface to set this up correctly.

Conclusions

Engraving photos and creating jewelry with UV Galvo lasers can be a rewarding experience. By understanding the nuances of image preparation, focus adjustments, and utilizing features like the wobble command, you can produce stunning results. With practice and experimentation, you will be able to master these techniques and create beautiful engraved items.

Thank you for reading! If you found this guide helpful, consider subscribing for more tips and tricks on laser engraving.

Wildlife art used in this video:
NWBDigital on Etsy

Haotian USA Store: https://haotianlaser.store

This is my affiliate link for this product.
Wixey angle gauge; amzn.to/4h1n5wE

00:00 - Start
02:56 - Basic Photos on a Galvo
14:05 - Cropping a Photo in LIghtBurn
16:43 - Using the Wobble Feature
21:20 - Cylinder Correction
27:12 - A few tips on Focus for Glass

Haotian 15 Watt UV Laser: First Uses, Material tests, My Initial Opinion, Customer Service Details.

Computer Creationz 2025-02-19 | I was not compensated for this video in any way from the Laser Manufacturer!

After receiving numerous requests for this video, I will share my experiences with the new 15 watt UV laser from Haotian Laser. . I aim to provide insights into the differences, materials tested, and overall impressions after weeks of use.

Unboxing and Initial Impressions
Upon ordering the UV laser, it arrived at my doorstep within 12 days. However, when it arrived the create lid was taped on instead of nailed down. This was not normal! Watch the video to find out what happened.

This experience reinforced the importance of purchasing equipment from reputable sources. Had I encountered issues with a less responsive company, proving the damage could have been a significant challenge.

Key Differences Between UV and Fiber Lasers
One of the first notable differences between the 15 watt UV laser and my 60 watt fiber laser is the cooling system. The UV laser requires a chiller that not only cools but also heats the water to an optimal temperature of 25°C before use. This means that there is a waiting period of about 15 minutes after turning on the chiller, especially in colder environments. In contrast, my fiber laser could be used immediately upon startup.

Setup and Configuration
Setting up the UV laser was straightforward, taking about an hour and a half. Unlike the fiber laser, the UV laser's source is located above the computer case, which means standard cases used for fiber lasers are not compatible. I also opted for a 700mm motorized tower, which I highly recommend for ease of use, especially when working with 300mm lens sizes.

Leatherette
One of the first materials I tested was leatherette. The UV laser performed exceptionally well, providing detailed engravings and the ability to cut through the material, which my fiber laser could not do. The settings provided by Haotian Laser were accurate, allowing for impressive results across various colors.

Coins
I also experimented with coins, a staple in my business. While the UV laser can engrave on brass and stainless steel, it operates at a slower pace compared to the fiber laser. For surface marking, the UV laser is adequate, but for three-dimensional work, the fiber remains the better option.

Ear Tags and Plastics
Marking cattle ear tags was another successful application. The UV laser produced smooth, readable markings in a matter of seconds. Additionally, I found it effective for marking on 3D printed parts, which is increasingly in demand.

Golf Balls and Hard Coolers
The detail achieved on golf balls was impressive, although I encountered some challenges with bright yellow ones golf balls. The UV laser also marked hard coolers effectively, producing contrasting colors based on the surface color and material.

Glass Engraving
While I had some initial struggles with glass, the results are promising. I used both rotary's and flat setups, and with further refinement, I expect to achieve excellent glass engravings.

Conclusion
Overall, my experience with the 15 watt UV laser has been great. The setup was easy, and the machine has performed flawlessly. I still have many settings to refine and materials to test, but I am excited about the potential applications. For anyone considering a UV laser, I recommend investing in a USB microscope for precise timing adjustments, as it significantly enhances the calibration process.

If you have any questions or specific topics you would like me to cover regarding the Haotian 15 watt UV laser, comment on this video. Thank you for reading, and I hope you found this information helpful!

Haotian Store: https://haotianlaser.store

USB Microscope, This is an affiliate link from Amazon so by purchasing from this link you help support the channel.
amzn.to/3ET1M2Y

Timing your galvo laser YouTube Video (Laser Everything)
youtu.be/gFvbrNnvijo?si=9kmr6ylJ2qLcb9aa

00:00 - Start
00:06 - Intro
00:46 - I was Horrified When I opened The Crate!
01:18 - Haotian Support, First Hand Experience !
04:48 - Special Consideration for 10 & 15 watt UV Lasers
08:17 - Lenses That I purchased with my 15 Watt UV
09:00 - Buy all your lenses upfront! You will thank me later
10:40 - Engraving Leatherette
12:00 - Engraving Coins with a UV Laser
13:17 - No Power settings on a UV Laser, Let that sink in!
13:47 - Engraving Ritchey Ear tags with ease!
14:34 - Pictures are Awesome !
14:46 - Engraving & Cutting Aluminum Business Cards
15:00 - Engraving 3d Printed materials like PETG and PLA
15:29 - Engraving Golf Balls
16:02 - Engraving Hard Plastics Like RTIC Coolers!
16:52 - Struggling with Glass but will get it dialed in!
17:49 - Do you Timing and Use a USB Microscope

Using Print & Cut for Large Sign Engraving, (it’s fast and easy)

Computer Creationz 2025-01-21 | In this video I will, show you the complete process on how to use the print and cut feature in LightBurn and in the actual laser. This video is longer due to the fact I don’t skip a step. The print and cut feature allows you to have the capability do a project halfway take the product out of the laser and use targets to align thing back up and finish the engrave. It works fantastic and once you learn the more advanced move you options on a laser increase by 10x. Enjoy

Aluminum tape link
amzn.to/3CeMWDc

00:00 - Start
02:01 - Overall project concept
04:25 - Starting from Scratch
13:58 - Putting in Layer Settings
18:11 - Framing the top portion of the sign
23:34 - Engraving the Top of the Sign
24:38 - Setting Targets on the Laser

Installing LIghtBurn and Lens Profiles for your new Haotian Galvo Laser

Computer Creationz 2025-01-15 | In this video I walk you through how to install LightBurn, ensuring that you install the right Ezcad2 driver that your galvo laser needs to communicate with LightBurn. Once installed I show you how to install each individual lens profiles that are provided on a usb stick from Haotian Laser. Once you have the lens profiles installed into LightBurn I will show you how easy it is to operate 2 lasers at the same time in LightBurm. If you’re new to Galvo lasers this video is for you!

https://haotianlaser.store
youtube.com/@UCo1uup7YA1sWY9vx-BnDeaw

00:00 - Start
00:19 - Download LightBurn Software
01:34 - Installing LightBurn Software on your computer
05:10 - Installing Lens info in to LightBurn
11:13 - Operating 2 Lasers at once in LIghtBurn.

60 Watt JPT MopaFiber vs 15 Watt Uv Laser (First Look)

Computer Creationz 2025-01-07 | In this short video I go over a few I didn’t know that! About the differences in physical make up and critical features between the two.

https://haotianlaser.store

Favorite Features in LightBurn 2024

Computer Creationz 2024-12-13 | In this video I discuss some of the things I changed with my business for 2024. I talk about what equipment I acquired and sold and why. This video is just an overview of certain functions in LightBurn that I use every day that are very helpful. I also let you know where I will be speaking in 2025. I would love to meet you at one of these events!

International personalization expo February 2025
personalizationpros.org

Thunder Laser USA
thunderlaserusa.com

Haotian Lasers
haotianlasers.com

00:00 - Start
00:07 - Intro
05:15 - Speaking Locations in 2025
06:56 - Shift + select Layer
08:38 - How to backup your Librarys and Settings the easy way!
12:32 - Variable Text Feature, What a great time saver
14:44 - Trim Tool Use
16:45 - Material Library/ Art Library
21:35 - Snap to Objects Feature
23:50 - Laser Position Tool (Great for Jig Use)

A quick way to dial in your full wrap tumblers. Lower you Lpi to 100

Computer Creationz 2024-12-02 | ...

The SECRET to Laser Engraving on Tumblers Like a Pro!

Computer Creationz 2024-11-19 | In this video I discuss about the logistics of handling larger tumbler orders. We also discuss how to load, unload, clean and repack handled tumblers for delivery. We talk about how to discuss with your customers on case quantity pricing as well.

Endura mark BLU
enduramark.com

Lens Digital for the Rotary's featured (My Affiliate Link)
lensdigital.com/aff/50

Thunder Laser USA
thunderlaserusa.com

JDS Industries for Tumblers
jdsindustries.com

00:00 - Start
00:07 - Intro
02:29 - Talk to your Customers about Case Prices
09:24 - Starting a second instance of LightBurn
15:25 - Pro Tip to eliminate a Laser head crash!
16:25 - Loading a tumbler in your rotary
17:03 - Looking at running two laser at the same time
18:08 - Changing out a tumbler on the PiBurn Grip 2
18:53 - Changing out a tumbler on the PiBurn V5
19:23 - How to Clean your engraved Tumblers
20:40 - Final Prep and Boxing
21:39 - Conclusion

Thunder Laser Ignite 2024 (Sneak Peak)

Computer Creationz 2024-11-08 | ...

Create STUNNING Christmas Ornaments with THIS Magic Material!

Computer Creationz 2024-11-04 | Create stunning Christmas ornaments using Unisub Hardboard! Watch this tutorial to see how to make beautiful ornaments for the holiday season. Are you using ply and then painting it white? give this Unisub Sublimation hardboard a try, Its easy to use and looks amazing!

jpplus.com/unisub-white-1-sided-hardboard-sheet

A Quick tip for more design space in LightBurn!

Computer Creationz 2024-10-07 | ...

Generate Stunning Laser Engraved Artwork on Polished Black Granite

Computer Creationz 2024-09-19 | In this video I take you step by step and show you how to create beautiful Images on Black Polished Granite. This is a simple process, but the secret is starting out with a top-quality image with insane detail. I've got just the answer, go to the Etsy shop listed below and pick out a highly detailed image and import into Lightburn. I am not affiliated with this Etsy shop in any way. Just found a great artist and wanted to showcase her work!

A little about the artist that made this stunning art!
I’ve been an artist for as long as I can remember, but my creative journey really took off through photography. I will never forget my first camera, back then they were plastic prefilled cameras that were basically disposable. Over the years, I developed my photo skills and won several first-place ribbons, including best of show, which gave me the confidence to keep pushing my creative boundaries. As I dove into photo manipulation, I discovered a whole new level of artistic expression, which eventually led me to laser design. I wanted to create designs that aren’t oversaturated, and that help boost other creators’ business goals.
Living in the Pacific Northwest, I’m inspired by everything with the outdoor life, so naturally this is the inspiration for my designs. My goal is to create something that stands out and supports other creators on their journey. If I can inspire or help others build their business goals, then I’m achieving mine as well.
Denise Teague

Note;
If you’re interested in some of her artwork to put on black granite, reach out to her on your selection before you purchase Not all of her artwork can be converted to a quality png due shading involved.

Etsy shop I referred to in the Video
etsy.com/shop/NWBDigital

The Laser I used was the Thunder Bolt Pro 22 with 1.5" lens
thunderlaserusa.com

White paint I used/ This is my affiliate link
amzn.to/4ewU37z

Granite source
jpplus.com

00:00 - Start
00:07 - Intro
04:01 - PNG vs JPEG what's the difference?
05:57 - For top quality engraves stay with Hi res artwork!
07:11 - Basic Layout for this project
09:44 - How to Frame the granite with your laser
11:40 - Setting for this project
14:08 - Text Settings
14:51 - Actual Engraving as it happens 10X
16:52 - The Magic Sauce, Let's take it up a notch!

Dont Miss Out: LensDigital (PiBurns) Latest Rotary Lineup

Computer Creationz 2024-09-14 | LensDigital has a brand-new rotary lineup for fall of 2024. I met with Stan and Len to provide everyone the new modifications to the ever-popular PiBurn Rotary lineup. This video is a bit longer but for great reason, we covered everything that is new on all three models. In this video you will get a great up-close look at how they function and what change/Upgrades have been incorporated into the new models coming October- November of 2024. They are currently in Pre Order status. I have included a coupon code to save you $100 before the end of September 2024.

Coupon Code for $100 discount: COMPUTERCREATIONSPI

lensdigital.com

00:00 - Start
00:07 - Welcome Stan & Len from LensDigital
09:23 - Piburn 5 or V Roller Rotary
10:35 - Roller Rotary Tail Stock Range
13:04 - Adjustable Magnetic Feet on all models
14:48 - Motor Upgrades accross the Lineup
17:06 - Spring Clamp Redesigned
19:27 - The New Grip 2
26:01 - Gear Reduction on all models (More Precise and Handles Heaver Items better)
27:25 - Very low motor profile( Great for Ultra fast lasers)
28:44 - A Good Look at the Omni Setup
30:22 - Pre Order status, Shipping windows
32:15 - Galvo Grip (Its New!)
35:07 - How do I order

Cowboy art on Black Polished Granite

Computer Creationz 2024-09-10 | ...

You can adjust cursor size in Lightburn 1.7.5 (not public yet)

Computer Creationz 2024-09-06 | Lightburn is always listening! Thank you for making such a great tool.

LightBurn 1.7 Prerelease look at the New Tools and Enhancements, get a first look!

Computer Creationz 2024-08-31 | In this video I cover some of the new tools and enhancements of LightBurn 1.7, looks like allot of good stuff.

00:00 - Start
00:07 - Intro
02:52 - What are Bundles in LightBurn
05:33 - Easier to See Interface
06:44 - Selection Tool Changes
07:24 - Line Tool changes
12:04 - Bar code/QR Code additions and Changes
14:16 - Material Test Card additions
16:06 - Gear Icon changes (Much Better Layout)

Making Massive Stencils with LightBurn and your laser

Computer Creationz 2024-08-27 | In this video I show you how to layout and use the Cut Shapes tool in LightBurn. This tool works great for separating a single graphic into pieces for very large stencils. This video is long but I didn’t want to leave anything out. I show you the process from start to finish.

Jig I used on this project
colonialbladeandwood.com/Ocart/index.php?route=product/category&path=71

00:00 - Start
00:07 - Into
03:31 - Size and Scope of this project
06:42 - Poster Board Layout
08:34 - Turning on Snap to Objects In LightBurn
10:52 - Pre Design for Large Stencils
13:45 - Using the Cut Shapes tool
18:06 - Smooth Movements with key strokes
22:20 - Send the design to the laser
23:28 - Laser Setup User Origin
24:39 - Cutting the Stencil out
25:42 - Volleyball Heart layout
36:29 - Text Stencils

Thunder Bolt & Bolt Pro 22 Comparison for cutting and engraving Ply, Tumblers and Leatherette

Computer Creationz 2024-08-11 | In this video I demonstrate the difference in speed for cutting and engraving on different products. Real time tests are illustrated and if your trying to decide on what model this video will give you some in site. Thunder laser has had no say as to the content of this video.

Bolt Pro 22 unboxing video
youtu.be/kfEulu_hwEM

thunderlaserusa.com

00:00 - Start
00:07 - High level specs on Bolt and Bolt Pro 22
07:37 - Cutting Speed Comp 1/8” and 1/4” ply
11:18 - Testing Leatherette
15:12 - Engraving Results on Leatherette

Quick way to go from 4” to 6” holes for laser exhaust upgrade

Computer Creationz 2024-08-03 | ...

Uncrating the Thunder Bolt Pro 22 Co2 Laser

Computer Creationz 2024-08-01 | In this video I will take you from truck delivery to rolling it into the shop, we talk about some tools to have on hand when you receive a laser. Simple ways to store you serial number on your laser. Step to take when uncrating your laser. If you haven’t done this before this video is for you.

thunderlaserusa.com

00:00 - Start
00:07 - Truck Delivery
00:39 - Tools to have on hand before you Laser Arrives
02:05 - Tip for saving your Laser Serial Number
02:37 - Crate Breakdown
03:14 - Removing the Lid
03:28 - Things to look for when you have the top off
04:36 - Removing the sides
08:08 - Crate is off what does it look like?
09:36 - First Look uncrated
12:18 - First Impressions
15:10 - Let Fire this thing up!
17:43 - Pictures of the Thunder Bolt Pro 22

Engraving Tri Color Romark acrylic with a Co2 Laser

Computer Creationz 2024-07-27 | In this video I cover how to generate a material test card for,the 3 color acrylic. How to determine your settings and hone in on what works best. I show you how to use sub layers in LightBurn. Check out this video and before long you too can create a great project with this tri color acrylic

lonestaradhesive.com

00:00 - Start
00:07 - Intro
03:54 - Simple sketch of how to use tri color
06:18 - Setting up your test card for tri color
10:38 - Test card clean up
13:55 - Set up using # passes and sub layers to save time
16:56 - Compate test results

Feeling Patriotic today!

Computer Creationz 2024-07-20 | ...

The Ultimate WiFi Upgrade: Asus ZenWiFi Pro ET12 (New WiFi for the Shop)

Computer Creationz 2024-07-20 | Upgrade your WiFi with the Asus ZenWiFi Pro ET12 router! Say goodbye to dead zones and slow internet with this ultimate WiFi upgrade for your shop.

In this short video I discuss how much I like the Asus ET12 Wifi router and Mesh system. Its been a huge upgrade to the Wi-Fi signal in my shop 125' away from the house. This system has tripled my signal.

Not a sponsored Video!

Listed Below is an Affilitate Link form Amazon. By using this link I may be compensated by Amazon and no cost to you!
amzn.to/3WeXibY

Hat Box Part 2 ( Missed Step)

Computer Creationz 2024-07-14 | A quick video on a process that I missed on the original video.

My apologies!

Making a Baseball Hat box from start to finish. (A great intermediate project)

Computer Creationz 2024-07-14 | In this video I take you from start to finish on this project. I don’t leave anything out we design using node editing, tool layers and many other tips and tricks. If you haven’t scored anything yet this video is for you. This handy hat box is a great intermediate project to grow your skills.

Hollyland Lark M2 wireless mic, this is my Amazon affiliate link I may be compensated if you use this link.
amzn.to/3zIDTZC

00:00 - Start
00:07 - Intro
02:37 - Hat Box Layout and Sizes
03:57 - Hat Box Specifics
06:55 - Generating curves with Node Editing
13:57 - Generating Offsets
18:09 - Adding Text
19:32 - Basics of Max and Min settings when SCORING
20:18 - Example of what a good score looks like
21:45 - Hat Box cut out
22:24 - Box Assembly
23:21 - Glue up process
27:25 - New Hollyland Lav Mic Info

Building a Template of an existing part from scratch in LightBurn

Computer Creationz 2024-06-08 | In this video I take you from start to finish of re designing a customers grill off of a quad racing bike. We fist start by tracing the existing part and do some node editing to dial in so the new part matches the old part. This idea is once we get the parameters dialed in and mounting holes we can drop in what ever design the customer requests. This video is long but I didn’t want to skip any critical steps.

00:00 - Start
00:07 - Intro
03:03 - Best way to Trace an Object
04:01 - Import you photo into LightBurn
08:39 - Clean up your trace in LightBurn
12:53 - Optimize shapes tool
14:52 - Optimize Shapes tool use (a real time saver)
17:06 - 1st version of template
18:28 - Modifing Height of Template
18:42 - Modify the width
20:55 - Expanding the width of tempalte
23:15 - Comparing new template to origional model
24:06 - Transfering mounting holes on to new template
24:29 - Aligning holes to new template
25:55 - Final template check and cutout
26:31 - Putting different elements on seperate colors
27:53 - Ventilation pattern design
30:18 - Final designs tweaks

Lonestar Leatherette Black to Copper Metalic co2 setting for the Thunder Bolt

Computer Creationz 2024-05-31 | In this video I show you the setting I came up with on my Thunder Bolt co2 Rf laser. The final setting were not what I expected and it provided a fabulous result! If you’re struggling with the metallic leatherette from Lonestar adhesive check this video out!

lonestaradhesive.com

7 Basic LightBurn Tips for new laser owners!

Computer Creationz 2024-05-24 | In this video I cover some tips that will help you master LightBurn when you starting out on your laser journey. One by one each of these tips can help you speed up you learning what every laser owner need when using LightBurn.

00:00 - Start
00:07 - Intro
00:36 - Using the Pencil Tool
03:16 - Using the Rectangle tool
04:11 - Rounding corners on a rectangle
05:12 - Different types of Selection Windows
06:41 - Absolute Coordinates the Easy Way
08:42 - Quick way to Rotate Something
09:09 - Key Strokes for Duplication

Engraving Leather Softballs

Computer Creationz 2024-05-16 | ...

Using Symbols & Characters in LightBurn for both Mac & PC

Computer Creationz 2024-05-05 | In this video I show you how to access and insert symbols and characters into your LightBurn design. I demo this on both Mac and Pc computers. Knowing about this can save a huge amount of time.

00:00 - Start
00:07 - Generating Symbols on a Mac
03:43 - Generating Symbols on Windows 11

Sports Stencils with your laser. It’s another option for some great Profit!

Computer Creationz 2024-04-25 | In this video I show you how to take a logo you use for engraving and turn that graphic into a functional stencil. I show you some basic node editing in this video as well. Check it out it can be a great way to meet allot of coaches that could lead to additional products.

00:00 - Start
02:02 - Demo on how the Number Stencil works
04:56 - Generating a Stencil in LightBurn
08:26 - Demo on how to Node Edit
11:38 - Making a Number template

Laser Design Club Information and Launch Date

Computer Creationz 2024-04-12 | In the short video I discuss the benefits you will receive if you subscribe to the Laser Design Club. The have some very nice features and some great training content. Be sure to click the link in this description to get notified when they go live!

Link to sign up to be notified when Laser Design Club goes Live!
laserdesignclub.com/waitlist_viacomputercreationz

Roko Twister Tray for the Thunder Bolt
https://computercreationz.online/

Thunder Bolt, Roko Twister tray, Rotoboss Talon, 40 oz Rainbow

Computer Creationz 2024-03-10 | Used a 4” lens
