CNC milling a mould for prepreg carbonfiber lamination R. Winters 2013-11-25 | This is a short video on how I milled a mould for a friend with my homebuild CNC-router. He will use it in his project to make carbonfiber prepreg parts. material: plywood (2x4cm)CAD/CAM: Siemens PLM NX 8,5 and EdingCNCmilling parameters:Roughing: 12mm endmill/10mm ballnose 18K rpm, feed 4,2m/min, depth of cut 3mm.finishing: 5mm ballnose, 15K rpm, feed 2,4m/min.music: Robot Love - Shockline
CNC milling aluminium 2part mould R. Winters 2014-07-06 | Milling a 2 part mould out of aluminium with my Blackmill CNC. project continues... Software: Siemens NX (CAD/CAM), Edingcnc (controller)Tooling: 11,5mm Pulsar TiCN coated Endmill and 4mm vhm ballmillvideomusic: The drift - Blackmill
CNC milling wooden shape model R. Winters 2014-06-24 | One of the first projects milled with my upgraded cnc. The steppermotors and drivers are replaced for a 4Nm closed-loop steppersystem. The acceleration is much higher now, ideal for 3D milling.Material: 3 construction wood beams (Oregon) glued together. Tooling: 14mm HSS endmill, 8mm HSS balnose and 4mm VHM Bullnose for finishing passesCNC software: Siemens NX8,5 (CAD/CAM) and EdingCNC (cnc-controller)(PROJECT CONTINUES.)videomusic: mPulse - Infinite Story
CNC milling PU foam moulds R. Winters 2014-04-24 | CNC job for a colleague Industrial Designer. 2 moulds out of hard Polyurethane (PU) foam. software used: Siemens NX 8,5 (CAD/CAM), EdingCNC video music:NIklas Thal - Herbstnebel

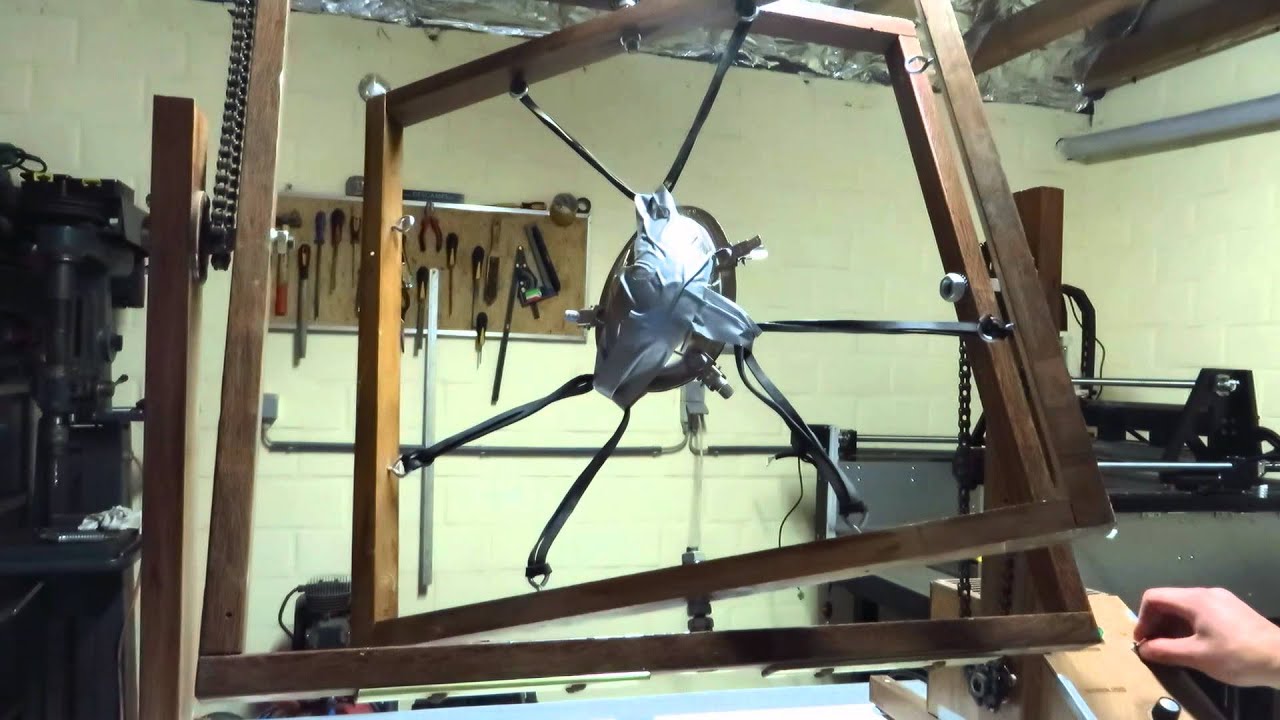

Rotational Molding Chocolate Easter Eggs R. Winters 2014-04-23 | Short overview of the rotomolding process for making chocolate Easter eggs with a selfmade rotational molding machine. Rotomoulder is driven by a 12VDC motor and regulated with Pulse Width Modulation (PWM) for different rotation speeds. The inner frame turns a little slower than the outer because the chocolate would evenly solidify at the inner wall of the 2-part mold. Video music:Robin Schulz - Willst Du

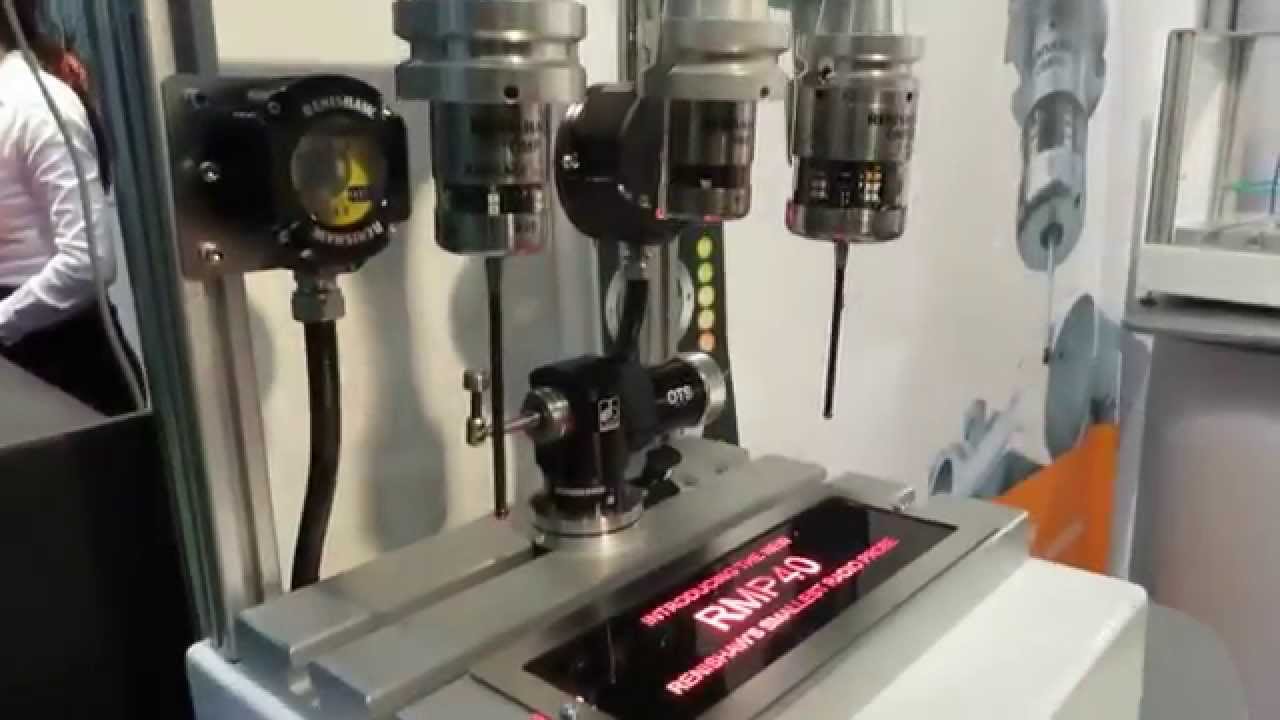

Visiting the MNE expo Kortrijk (2014 edition) R. Winters 2014-03-24 | Short impression of the MNE-expo at Kortrijk (Belgium). (5-6 Feb 2014)Videomusic:MitiS - Movements (feat. MaHi)
Engraving a logo stamp in Teflon® R. Winters 2014-03-21 | Engraving a logo stamp in Teflon®. It will be used to mark pottery with signature of the artist. I used this sort of plastic because it has one of the lowest friction coefficient.15° vhm engraving bit (1mm flat tip)feed: 980mm/min, RPM 16Kvideo music:Vibrasphere - Breathing Place
CNC Toolcrash Aluminium milling R. Winters 2014-03-21 | Milling in aluminium. A little to enthousiastic with cutting feed. Resulting in toolcrash. Specifications at moment of crash.feed:2000mm/min, tool rpm: 12K, depth of cut: 1mm, 4mm HSS 3-flute mill.
CNC engraving aluminium embossing die R. Winters 2014-02-19 | cnc engraving an embossing die in an aluminum plate. It will be used by Mat2Composites for a little composite project. Interested in further outcome? Visit his channel www.youtube.com/user/matthieutje65 Want to see more of my Blackmill CNC and other projects. Subscribe!videomusic: Chilly Gonzales - You Can Dance (Robotaki Instrumental Remix)

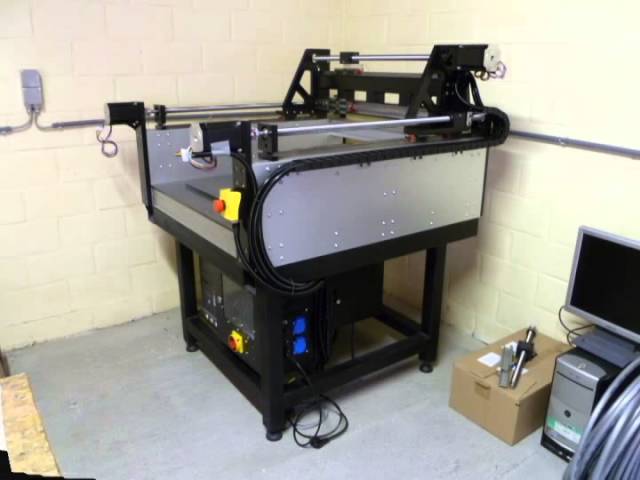

CNC building process Blackmill (slideshow) R. Winters 2014-01-21 | Slideshow:The building process of my "Blackmill" CNC router.Download the CAD assembly file at grabcad (for FREE) grabcad.com/library/blackmill-cnc-router-milling-machine-1(The 3D model could possible have some designfaults in it. I'll not take responsability for it. It was used to visualise the machine.)videomusic: Rank1 - Airwave (Aaron Static Remix)
CNC milling ER25 collet holder R. Winters 2014-01-21 | Milling a holder for my ER25 Collets out of rigid PVC. CAD/CAM software: Siemens NX 8,5CNC software: EdingCNC Subscribe for more CNC projects and other!videomusic: PrototypeRaptor - Timeless
Incremental Sheet Forming: proof of concept. part2/2 R. Winters 2013-12-21 | Testing incremental sheet forming on my Blackmill CNC. Incremental depth. 0,4mm - spiral toolpaths streamline/flowcut strategy.6mm HSS tool with transmission fluid 0,8mm Aluminum sheetpart modelled and G-code generated in Siemens NX8,5cnc-software: edingCNCvideomusic: Malakai - Blue Moon (Benny Loco Remix)
Incremental Sheet Forming: test set-up. part1/2 R. Winters 2013-12-21 | Making of the experimental set-up. Clamp system milled with the Blackmill CNC.SPIF tool made from broken HSS mill.Watch part 2 to see the experiment: Incremental sheet forming.Part modelled and G-code generated in Siemens NX8,5cnc software: EdingCNCVideomusic: Malakai-Blue Moon (Benny Loco Remix)
CNC milling a Lithophane R. Winters 2013-12-02 | Making of a lithophane gift in polystyrene for the 50th wedding anniversary of my grandparents..programs used: Adobe Photoshop, Deskproto 6.1 (trial), Siemens NX8,5, EdingCNC.Sheet thickness: 3mm. White: 0,5mm thick. Black 2,5mm thick.Roughing: 3mm Ballnose. Finishing: 1mm Balnose. distance between toolpaths: 0,15mmMusic: Uppermost-Mistakes
CNC aluminium milling test R. Winters 2013-10-05 | Test aluminium milling with my cnc mill. G-code is generated in Siemens NX7,5cnc-software; EdingCNCMilling parameters:Trochoidal roughing with 8mm HSS balnose, 12000rpm, depth 1mm, feed 1500mm/min, finishing, 5mm HSS ballnose, 9000rpm, feed 1000mm/min, contour, 6mm carbide end mill, 12000rpm, depth 1,5mm, feed 500mm/mintotal time 1h 02min
first steps of Y axis CNC router R. Winters 2012-10-13 | first steps of Y-axis. 2x 8,4Nm steppers for Y-axis with Leadshine drivers AM 882 and USBCNC CPU5B.
CNC- first test run Teknomotor HF spindle R. Winters 2012-07-26 | First test run with a Teknomotor (1,6KW -18.000rpm) and Delta vfd. For my cnc-milling machine. Items were purchased at Damencnc.
