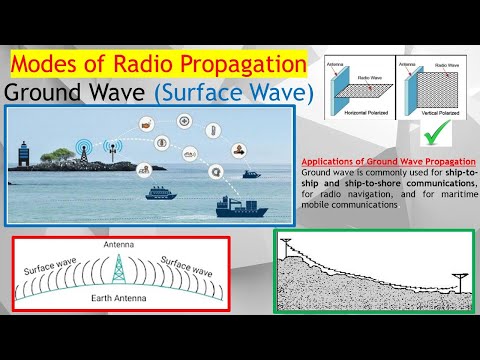

Name: Radio Wave Propagation #1. How EM Waves Travel Along Earth’s Surface – Ground Wave Explained! @technologiesdiscussion1676
Uploaded: 2026-09-19T08:17:00-05:00
Duration: 8 min 17 s
Description: Radio Wave Propagation #1. How EM Waves Travel Along Earth’s Surface – Ground Wave Explained!

Radio Wave Propagation #1. How EM Waves Travel Along Earth’s Surface – Ground Wave Explained!

Technologies Discussion 2026-09-19 | Radio Wave Propagation #1. How EM Waves Travel Along Earth’s Surface – Ground Wave Explained!

Visualize Antenna Performance Using 3D Radiation Pattern & 2D Polar / Cartesian Coordinate System.

Technologies Discussion 2025-10-16 | Antenna Design playlist. Watch these video to understand more on Antenna Design.
youtube.com/watch?v=RTtCxtSaG8w&list=PLFxhgwM1F4ywAyke2KC22BLBl1V4vV9Jt

Antenna #22. Visualize Antenna Performance: 3D Radiation Pattern, 2D Polar & 2D Cartesian Coordinate

Technologies Discussion 2025-10-13 | Antenna Design playlist. Watch these video to understand more on Antenna Design.
youtube.com/watch?v=RTtCxtSaG8w&list=PLFxhgwM1F4ywAyke2KC22BLBl1V4vV9Jt

Antenna #22. Visualize Ant Performance: 3D Radiation Pattern, 2D Polar/ Cartesian Coordinate System

To visualize antenna performance, engineers use a radiation pattern, which illustrates how an antenna directs or receives radio energy.

While the 3D spherical coordinate system is the most complete representation, it's often simplified into 2D plots for practical engineering use. The Cartesian coordinate system is one of these key 2D methods.

1. The 3D Radiation Pattern (Spherical Coordinates)
This is the most intuitive representation but can be complex to draw and interpret.
What it is: A three-dimensional surface where the distance from the origin (the antenna) to the surface represents the radiation intensity in that direction.
Pros:
Gives a complete, holistic view of the antenna's performance.
Clearly shows the main lobe, side lobes, and nulls in all directions.
Cons:
Can be cluttered and difficult to extract precise numerical data from.
Not ideal for technical reports or data sheets where specific cuts are important

2. 2D Pattern Cuts (Polar Coordinate System)
This is the most common and standard way to present antenna patterns in technical datasheets. It takes a "slice" through the 3D pattern.
What it is: A two-dimensional plot on a polar grid. The angle (θ or φ) is the direction and the distance from the origin is the radiation strength (usually in dB).
Polar plot shows how gain change with angle.

Pros:
Very clear for visualizing beamwidth, directivity, and sidelobe levels.
Intuitive for understanding angular coverage.
Cons:
Requires at least two plots (E-plane and H-plane) to characterize the antenna.
The logarithmic (dB) scale can compress the plot, making low-level sidelobes hard to see.

2. 2D Pattern Cuts (Polar Coordinate System)
Common Cuts:
Azimuth Plane (H-Plane): A horizontal slice, showing the pattern around the horizon.
Elevation Plane (E-Plane): A vertical slice, showing the pattern above and below the horizon.

3. 2D Pattern Cuts (Cartesian Coordinate System)
This is a powerful alternative to the polar plot, prized for its precision.
What it is: A standard X-Y graph.
X-Axis: The angle (in degrees), typically from -180° to +180°.
Y-Axis: The relative power, almost always in decibels (dB).

Key Characteristics:
Linear Angular Scale: The angles are spaced evenly, unlike the polar plot where they are radial.
Logarithmic Power Scale (dB): This is crucial. It allows you to see very low sidelobes (e.g., -30 dB) on the same plot as the main lobe (0 dB). The "flat" bottom of the plot corresponds to very weak radiation.

3. 2D Pattern Cuts (Cartesian Coordinate System)
Pros:
Excellent Dynamic Range: It's the best format for accurately reading and comparing very low sidelobe levels and deep nulls.
Precision: It's much easier to read exact numerical values for beamwidth, null depth, and sidelobe levels directly from the axes.
Easier to Plot: Standard graphing tools can easily generate these.
Cons:
Less Intuitive: The direct visual connection between the shape on the graph and the physical direction of radiation is lost. A "lobe" looks like a peak, not a lobe pointing in a direction.
Can be less immediately understandable for a quick visual assessment of antenna coverage.

How Self-Driving Cars (Case Study) Really Work: The 5 AI Secrets Powering Autonomous Vehicles.

Technologies Discussion 2025-10-09 | Artificial Intelligence (AI) playlist:
youtube.com/watch?v=deCJN0gfc_k&list=PLFxhgwM1F4yydQIq-ab2jYjPUL9LITF8_

Case Study to Demo How Autonomous Vehicles Use the 5 Components of Artificial Intelligence (AI)

AI #4. How AIs 5 Core Components (Case Study) Create Autonomous Vehicles (Future of Transportation)

Technologies Discussion 2025-10-06 | Artificial Intelligence (AI) playlist:
youtube.com/watch?v=deCJN0gfc_k&list=PLFxhgwM1F4yydQIq-ab2jYjPUL9LITF8_

Example (Autonomous Vehicle)
A perfect example of an application that integrates all five core components of AI is a modern autonomous vehicle (like a Tesla vehicle).
Let's break down how it uses each of the five components to navigate a real-world scenario, such as making a left turn at a busy intersection.

Application: Autonomous Vehicle
Here’s how the self-driving car employs all five components simultaneously.
1. Learning
The car doesn't come pre-programmed with every possible scenario. It learns through massive amounts of data.
How it's used: The AI system is trained on millions of hours of video from cameras, LiDAR, and radar data, all labeled by humans. It learns to recognize what a "car," "pedestrian," "traffic light," "stop sign," and "road curvature" look like under various conditions (rain, snow, night, day). It also learns complex patterns, like the body language of a pedestrian who might be about to step into the street.

2. Perception
This is the car's ability to "see" and "hear" its environment in real-time.
How it's used: The car's sensors (cameras, radar, ultrasonic sensors) continuously feed raw data. The AI's perception system fuses this data to:
Identify objects: "That's a blue sedan 50 meters ahead moving at 40 km/h."
Understand the scene: "The traffic light is red. There is a cyclist in the bike lane to my right. The road is wet."
Localize itself: "I am in the center lane of Orchard Road, 10 meters from the intersection."

3. Reasoning
Once the car perceives the world, it must make sense of it and predict what will happen next.
How it's used: Based on the perceived objects and traffic rules, the AI reasons:
"The sedan ahead is braking, so it will likely slow down."
"The pedestrian on the curb is looking at their phone and not at the road, so they are less likely to cross suddenly."
"The green light means I have the right-of-way, but I must yield to any oncoming traffic or pedestrians already in the intersection."

4. Problem-Solving
This is where reasoning leads to action. The car has a primary goal (navigate to the destination safely and legally) and must solve the problem of how to achieve it in the next few seconds.
How it's used: For our left turn scenario, the problem is: "How do I safely complete this turn?"
Goal: Execute a left turn.
Constraints: Avoid collisions, obey traffic laws, ensure passenger comfort.
Possible Actions: Accelerate now, wait for the oncoming truck to pass, or abort the turn if it becomes unsafe.
Solution: The AI selects the optimal action: "Slow down slightly to let the oncoming truck pass, then proceed with the turn once the path is clear."

5. Language Understanding
This goes beyond just understanding human speech. In AI, it means understanding symbols, signs, and commands.
How it's used: The car must interpret "language" in its environment:
Traffic Signs: It reads and understands the meaning of a "Stop," "Yield," or "Speed Limit 35" sign.
Traffic Signals: It understands that a red light means "stop," a green light means "go," and a yellow light means "prepare to stop."
Human Communication (if applicable): It might understand a voice command from the passenger like, "Take me home," and integrate that into its navigation goal.

This seamless integration of all five components is what makes modern AI applications like self-driving cars so powerful and complex. They are not just following a script; they are dynamically perceiving, learning, reasoning, and solving problems in a real-world environment.

AI #3. How AI See (Perception) Images & Understand Your Language (Multimodal AI Explained)

Technologies Discussion 2025-09-29 | Artificial Intelligence (AI) playlist:
youtube.com/watch?v=deCJN0gfc_k&list=PLFxhgwM1F4yydQIq-ab2jYjPUL9LITF8_

AI #3. Perception & Language Understanding Forming Part of Components of Artificial Intelligent (AI)
AI #3. How AI Learns to See, Hear & Comprehend (Future is Here): Perception & Language Understanding

4. Perception (Interpreting Sensory Input)
Perception is the ability to interpret and make sense of the world from sensory inputs. It's about extracting meaningful information from raw data, much like human senses.
Sub-fields:
Computer Vision: Interpreting visual data from the world (images, videos). This includes object recognition, facial recognition, and scene understanding.
Speech Recognition: Converting spoken language into text.
Sensor Processing: Interpreting data from other sensors like LiDAR, radar or thermal cameras.
Example: A self-driving car uses perception (GPS, cameras, radar) to identify location, pedestrians, read road signs, and see lane markings.

The Analogy: The Librarian and the Customer
Imagine a library that contains every book, every article, every scrap of writing, and every public conversation ever recorded. This library is the AI's training data.
The AI is the Librarian. This isn't an ordinary librarian; she has read, indexed, and memorized the entire contents of the library. However, she has never once stepped outside the library walls. She has never felt the sun, tasted an apple, or had a real conversation. Her entire reality is the information contained in the books.
You are the Customer. You walk into the library with a question.

How Perception Works:
1. Your Question (The Input):You ask the librarian, "What does a sunset look like?"
2. The Librarian's "Perception" (The AI's Processing):
The librarian has never seen a sunset. So, instead of recalling a personal memory, they rapidly cross-reference thousands of descriptions:
They find poetry books describing sunsets as "a blazing orange dipping below a purple horizon."
They find science textbooks explaining the "Rayleigh scattering" of light.
They find romance novels that call sunsets "breathtakingly beautiful."
They find travel guides that say "sunsets in Hawaii are particularly spectacular."

3. The Librarian's Answer (The AI's Output):
The librarian synthesizes all this information and gives you a detailed, accurate, and even poetic description: "A sunset is a daily event where the sun appears to descend below the horizon, often creating a vivid display of colors like red, orange, and pink due to the scattering of sunlight in the atmosphere. It is frequently associated with feelings of peace, romance, and the end of a cycle.“
The Key Insight: The Difference Between "Knowing" and "Experiencing"
The Customer (You) experiences a sunset. You feel the warmth fade, you smell the evening air, you feel a specific emotion. Your perception is direct and sensory.
The Librarian (The AI) knows about sunsets. Their "perception" is a statistical model of language built from second-hand accounts. It's brilliant and informative, but it lacks the direct, conscious experience.

When the Analogy Explains AI's Limitations:
This analogy perfectly illustrates AI's weaknesses:
Lack of True Understanding: If you ask the librarian, "How did you feel the last time you saw a sunset?" they cannot answer from experience. They might generate a plausible-sounding emotional response by cobbling together phrases from novels, but it's not a real feeling. Similarly, an AI doesn't understand sadness; it understands the word "sadness" and its contextual usage.
Bias and Gaps: If the library's collection is biased (e.g., most books about success are written by men), the librarian's answers will reflect that bias. The AI's perception is only as good as the data it was trained on.
No Common Sense: If you ask, "Can I use a sunset to fry an egg?" a human would instantly know that's ridiculous. The librarian would have to search for any connection between "sunset" and "frying an egg." They might find a poem that makes that connection and give a confusing answer, because they lack a real-world model of physics and cause-and-effect.

In simple terms, the Language Understanding of AI Components refers to the breakdown of how an Artificial Intelligence system processes, comprehends, and generates human language—that is, its ability to understand, interpret, and generate human language in a valuable way. It's not one single magic trick but a pipeline of specialized components working together.
Think of it like the process of reading a book:
You see the squiggles on the page (characters).
You recognize them as words (words).
You figure out the grammatical role of each word (syntax).
You understand the meaning of the sentence (semantics).
You grasp the author's intent or the implied meaning (pragmatics).

Pitched AI 2 Brains (Reasoning & Problem-Solving) They Work Together Rather Than Against Each Other.

Technologies Discussion 2025-09-26 | Artificial Intelligence (AI) playlist:
youtube.com/watch?v=deCJN0gfc_k&list=PLFxhgwM1F4yydQIq-ab2jYjPUL9LITF8_

How AI Actually Reasoning (Deductive Vs Inductive Vs Abductive)

Technologies Discussion 2025-09-24 | Artificial Intelligence (AI) playlist:
youtube.com/watch?v=deCJN0gfc_k&list=PLFxhgwM1F4yydQIq-ab2jYjPUL9LITF8_

Our Brain Uses 3 Types of Artificial Intelligence (AI) Reasoning: Deductive, Inductive & Abductive.
3 Types of AI Reasoning Explained (And How We Use Them Daily) Deductive, Inductive & Abductive.

AI #2. The Crucial Difference Between Reasoning and Problem-Solving in AI (Reasoning Before Solving)

Technologies Discussion 2025-09-22 | Artificial Intelligence (AI) playlist:
youtube.com/watch?v=deCJN0gfc_k&list=PLFxhgwM1F4yydQIq-ab2jYjPUL9LITF8_

AI #2. Problem-Solving AI Vs Reasoning AI. Most AI Task, Reasoning First Before Problem-Solving.

3. Problem-Solving (Finding a Solution to a Goal)
Problem-solving is a critical component of AI, focusing on the ability of machines to analyze problems, devise strategies, and find solutions.
AI systems employ various algorithms and techniques to tackle problems, often using heuristics and optimization methods.
For instance, search algorithms can explore possible paths or solutions to find the best one. Planning algorithms can create sequences of actions to achieve desired goals. Optimization algorithms can optimize solutions based on specific criteria.

Types of Problem-Solving Technique
Search & Optimization:
Constraint Satisfaction:
Game Theory:

3. Problem-Solving (Finding a Solution to a Goal)
Problem-solving involves finding a path from a given initial state to a desired goal state. It requires defining the problem, planning a sequence of actions, and overcoming obstacles.
Techniques:
Search & Optimization: Searching through a set of possible solutions to find the best one (e.g., Google Maps finding the fastest route).
Constraint Satisfaction: Solving problems where the solution must meet a set of constraints or rules (e.g., scheduling classes so no teacher is in two places at once).
Game Theory: Making strategic decisions in competitive situations.
Example: A chess engine like AlphaZero is a master of problem-solving, evaluating millions of possible moves to find the one that maximizes its chance of winning.

Example: Planning a Trip
Let's imagine an AI assistant helping you plan a weekend trip.
1. The Reasoning Component
First, the AI needs to reason about the information you give it and its own knowledge.
User Input: "I want to go to a warm beach this weekend. I have a budget of $500."
AI's Knowledge Base: Facts like "Miami is a beach city," "Miami is in Florida," "Florida is warm in summer," "Flights to Miami cost ~$300," "Hotels in Miami cost ~$200/night," "A weekend is two nights."

The AI now begins to reason:
Deductive Reasoning: "If Florida is warm, and Miami is in Florida, then Miami is warm." (This uses logic to derive a new fact).
Logical Inference: "The user wants a warm beach. Miami is a warm beach. Therefore, Miami is a potential destination."
Constraint Checking: "The budget is $500. A flight is $300. A hotel for two nights is $400. $300 + $400 = $700. $700 more than $500." (This uses arithmetic, a form of symbolic reasoning).
Conclusion: "The trip to Miami exceeds the budget."
This entire process is reasoning. The AI isn't The AI will now search through these possibilities. For example:
Action: Search for beaches within driving distance.
New State: Potential destination: Outer Banks, NC. Cost: $100 for gas, $250 for hotel. Total: $350.
Check Goal: $350 ≤ $500. Goal is achieved!
The process of generating options, evaluating them against the goal, and selecting a successful path is problem-solving. It used the conclusions from its reasoning (e.g., "Miami is too expensive") to guide its search toward a viable solution.
solving the problem yet; it's just figuring out what is true and what isn't based on logic and constraints.

The Problem-Solving Component
Now that the AI has reasoned that the initial idea fails, it needs to solve the problem: "Find a warm beach destination for a weekend that costs ≤ $500."
The AI switches to a problem-solving mode. It defines:
Initial State: User is at home, has $500, wants a beach trip.
Goal State: User is on a warm beach, total cost ≤ $500.
Possible Actions: Search for alternative destinations, search for cheaper flights on different days, search for cheaper accommodation, suggest a driving destination to save on flight costs.

How AI Actually Think & Act: Critical Difference Between AI 1) Reasoning & 2) Problem-Solving.

Technologies Discussion 2025-09-19 | Artificial Intelligence (AI) playlist:
youtube.com/watch?v=deCJN0gfc_k&list=PLFxhgwM1F4yydQIq-ab2jYjPUL9LITF8_

AI Normally Starts with Learning (Identify Objects) then Reasoning: Basic AI Components for Beginner

Technologies Discussion 2025-09-17 | Artificial Intelligence (AI) playlist:
youtube.com/watch?v=deCJN0gfc_k&list=PLFxhgwM1F4yydQIq-ab2jYjPUL9LITF8_

Components of AI: Learning (FOCUS), Reasoning, Problem-solving. Perception, Language Understanding.

AI #1. AI Components: Learning, Reasoning, Problem-solving, Perception, Language Understanding.

Technologies Discussion 2025-09-15 | Artificial Intelligence (AI) playlist:
youtube.com/watch?v=deCJN0gfc_k&list=PLFxhgwM1F4yydQIq-ab2jYjPUL9LITF8_

A Helpful Analogy: The Child's Brain
Imagine teaching a child what a "cat" is. You don't give them a textbook with cats. Instead, you point to various animals and say: "That's a cat," or "That's not a cat." Over time, the child's brain identifies the patterns (whiskers, tail, fur, size, behavior) and builds a model of "cat-ness." It can then correctly identify a cat it has never seen before.

AI works in a very similar way. It is trained on vast amounts of data (thousands of cat pictures) to recognize the underlying patterns itself. This process is called machine learning, which is a primary driver of modern AI.

The Simple Definition
At its core, Artificial Intelligence (AI) is the field of computer science dedicated to creating systems capable of performing tasks that typically require human intelligence.
These tasks include:
Learning
Reasoning
Problem-solving
Perception
Language Understanding
Think of it as the project of building machines that can "think" and act intelligently.

Learning (Acquiring Information and Rules)

Learning is a fundamental component of AI, where machines acquire knowledge and improve their performance over time.
Machine learning algorithms enable systems to learn from data, identify patterns, and make predictions or decisions based on it.
By analyzing large datasets, machines can extract meaningful insights, recognize trends, and adapt their behavior accordingly.

Before AI:
Traditional Programming: A human writes very detailed instructions (code). The computer follows these instructions exactly to produce an output.
Input (Data) + Program (Rules) = Output

This is the process of acquiring data and turning it into actionable knowledge. It's about identifying patterns and building models from experience.

Types of Learning:

Traditional Programming: A human writes very detailed instructions (code). The computer follows these instructions exactly to produce an output.
Input (Data) + Program (Rules) = Output

AI Learning: A human provides the computer with data and a general learning algorithm. The computer analyzes the data to find patterns and create its own set of rules (a model). It then uses these self-generated rules to make predictions or decisions on new data.
Input (Data) + Output (Answers) = Program (Model/Rules)

Machine Learning (ML): The cornerstone of modern AI. Instead of being explicitly programmed for every task, ML algorithms learn from data.

Deep Learning: A subset of ML using artificial neural networks with many layers ("deep" structures) to learn complex patterns from vast amounts of data.

Example: A recommendation system on Netflix learns your viewing habits to suggest new shows you might like.

2. Reasoning (Drawing Conclusions from Knowledge)

Reasoning is the ability of AI systems to apply logic, rules, and knowledge to draw conclusions and make informed decisions. This process involves using logical and deductive techniques to process information and arrive at sound outcomes.
For example, AI systems can employ rule-based reasoning, where they apply predefined rules and logical operations to solve problems. Alternatively, they can utilize symbolic reasoning, which involves manipulating symbols and relationships to derive new information.
Types of Reasoning:
Deductive Reasoning
Inductive Reasoning
Abductive Reasoning

2. Reasoning (Drawing Conclusions from Knowledge)
Types of Reasoning:
Deductive Reasoning: Applying general rules to specific cases to reach a guaranteed logical conclusion ("Mathematics: For writing proofs (e.g., If a more than b and b more than c, then a Should be more than c")
Inductive Reasoning: Making generalized conclusions from specific examples ("Every swan I have seen is white; therefore, all swans are white."). This is probabilistic, not guaranteed.
Abductive Reasoning: Forming the most likely hypothesis from an incomplete set of observations ("The grass is wet, so it probably rained."). This is about "inference to the best explanation."

Reasoning: Using the knowledge gained from learning to make logical inferences. It's the bridge between knowledge and action.

Analogy: If an AI's knowledge is a vast library of books (its training data), reasoning is the librarian who can read those books, connect ideas from different volumes, and answer a complex question you just asked.

EMC Shielding Explained: Why Low Freq Reflect (Impedance Mismatch) & High Freq Absorb (Skin Depth)

Technologies Discussion 2025-09-12 | EMC playlist. Watch these video to understand more on EMC.
youtube.com/watch?v=JDTgy5RLIhk&list=PLFxhgwM1F4ywicEggR3pzF0FcFcGQvZ82

EMC Shielding. Low Freq: Reflection (Impedance Mismatch) High Freq: Absorption (Skin Depth)

EMC Basics: How Shielding Effectiveness Changes with Freq: (E- or H-field) Vs (Plane Wave)

Technologies Discussion 2025-09-10 | EMC playlist. Watch these video to understand more on EMC.
youtube.com/watch?v=JDTgy5RLIhk&list=PLFxhgwM1F4ywicEggR3pzF0FcFcGQvZ82

Shielding Effectiveness: Near Field (E- or H-field) @ Low Freq. Far Field (Plane Wave) @ High Freq

EMC #28. Shielding Design: Near Field, Low Freq (E- & H-field) & Far Field, High Freq (Plane Wave)

Technologies Discussion 2025-09-08 | EMC playlist. Watch these video to understand more on EMC.
youtube.com/watch?v=JDTgy5RLIhk&list=PLFxhgwM1F4ywicEggR3pzF0FcFcGQvZ82

The Core Principle: Near Field Vs Far Field
The first concept is understanding the region around a source:
Near Field: The region close to the source (within a distance less than λ/2π). In this region, the E and H fields are independent and behave differently.
Far Field: The region far from the source (beyond λ/2π). The E and H fields are coupled together into a plane wave, where their ratio is fixed (the impedance of free space, 377 Ω).

Why does this matter? Because the mechanism by which a shield works depends entirely on whether it's interacting with a high-impedance E-field, a low-impedance H-field, or a plane wave.

1. Shielding at Low Freq (Near Field Dominates)
At low freq (e.g., below 1 MHz for many applications), the wavelength is long, so the near field extends far from the source. This is where shielding is most challenging & field-dependent.
A. Shielding against Low-Freq ELECTRIC Fields
Mechanism: E-fields are high-impedance fields. Shielding works primarily through reflection. The shield acts as a conductive barrier that creates an "equipotential cage." The incoming field induces charges on the outside surface, and the resulting potential difference drives image currents that cancel the incident field.

A. Shielding against Low-Freq ELECTRIC Fields
Effectiveness: Very High. Even a thin conductive layer (like paint, foil, or a poorly grounded mesh) can provide more than 80 dB of attenuation. The key is to have a continuous conductive path. Grounding the shield is absolutely critical to provide a path for the induced currents to flow to earth, completing the cancellation mechanism.
Example: Shielding a sensitive audio cable from 60 Hz AC hum from a power line. A simple braided shield, well-grounded at one end, is highly effective.

B. Shielding against Low-Freq MAGNETIC Fields
Mechanism: H-fields are low-impedance fields. Shielding works primarily through diverting the magnetic flux, not reflecting it. The shield provides a low-reluctance (easy) path for the magnetic flux lines to travel around the sensitive area instead of through it.
Effectiveness: Very Difficult. Reflection is poor because the wave impedance is low. The shield must:
Have High Permeability (μᵣ): Materials like MuMetal, Co-Netic alloy, or pure iron have permeabilities thousands of times greater than free space, acting as a "short circuit" for magnetic flux.
Be Thick: More material provides more cross-sectional area to carry the flux without saturating.
Avoid Saturation: If the magnetic field is too strong, it will saturate the high-μ material, causing its permeability to drop to nearly 1, making the shield completely ineffective. This is the biggest challenge.

2. Shielding at High Freq (Far Field Dominates)
At high freq (e.g., more than 30 MHz), the wavelength is short, and we are almost always in the far field region. The radiation is a plane wave (E and H fields are coupled).
Mechanism: Shielding effectiveness is dominated by absorption Loss, with reflection also playing a key role.
Absorption Loss (A): This is the primary mechanism. When an EM wave hits a conductive material, it induces currents. Due to the electrical resistance of the material, this energy is converted into heat. Absorption loss increases with the square root of frequency (√f), conductivity (σ) and permeability (μ). This is why even thin copper foil is fantastic at GHz frequencies—the absorption loss is very high.

2. Shielding at High Freq (Far Field Dominates)
At high frequencies (e.g., more than 30 MHz), the wavelength is short, and we are almost always in the far field region. The radiation is a plane wave (E and H fields are coupled).
Reflection Loss (R): Still important, but less dominant than at low-frequency E-field shielding. It depends on the mismatch between the wave impedance (377 Ω) and the shield's intrinsic impedance.
Multiple Reflection (B): A minor correction factor for waves re-reflecting inside the shield.

Electric Fields
The total loss for an electric field is obtained by combining the absorption and reflection losses. The multiple reflection correction factor B is normally neglected in the case of an electric field, since the reflection loss is so great and the correction term is small. At low frequency, reflection loss is the primary shielding mechanism for electric fields. At high frequency, absorption loss is the primary shielding mechanism.
Magnetic Fields
The total loss for a magnetic field is obtained by combining the absorption loss and the reflection loss. If the shield is thick (absorption loss exceeding 10 dB), the multiple reflection correction factor B can be neglected. Else, the correction factor, B, must be included.

EMI Shielding: Why Absorption, Reflection & Multiple Reflection Matter for A Good Shielding Design.

Technologies Discussion 2025-09-05 | EMC playlist. Watch these video to understand more on EMC.
youtube.com/watch?v=JDTgy5RLIhk&list=PLFxhgwM1F4ywicEggR3pzF0FcFcGQvZ82

The Hidden Reason Why Your Shielding Isn't Working: Absorption + Reflection + Multiple Reflection

3 Parameters (Absorption + Reflection + Multiple Reflection) Controlling EMC Shielding Effectiveness

Technologies Discussion 2025-09-03 | EMC playlist. Watch these video to understand more on EMC.
youtube.com/watch?v=JDTgy5RLIhk&list=PLFxhgwM1F4ywicEggR3pzF0FcFcGQvZ82

EMC #21. Absorption or Reflection? How to Properly Design a Shield Against ALL EMI Fields.

Technologies Discussion 2025-09-01 | EMC playlist. Watch these video to understand more on EMC.
youtube.com/watch?v=JDTgy5RLIhk&list=PLFxhgwM1F4ywicEggR3pzF0FcFcGQvZ82

EMC #21. Shielding Effectiveness Guide Against Electric & Magnetic Fields: Absorption & Reflection.
EMC #21. RIGHT Ways to Build a Shield: Absorption Vs Reflection for Electric, Magnetic & Far Fields.

What is EMC Shielding Effectiveness?
EMC Shielding Effectiveness (SE) is a quantitative measure of how well a shield attenuates (reduces) electromagnetic energy. It describes the ability of a material or enclosure to block electromagnetic fields from either escaping (to comply with emissions standards) or entering (to improve immunity/susceptibility).
In simple terms, it's a score that tells you how good a shield is at its job.

The Core Concept: Attenuation
Shielding doesn't eliminate EM energy; it attenuates it. Think of it like soundproofing a room. You don't make the sound inside disappear, but you significantly reduce how much of it gets out (and how much noise from outside gets in).
Shielding Effectiveness is the ratio of the field strength without the shield to the field strength with the shield. Because this ratio can be enormous (spanning many orders of magnitude), it is measured in decibels (dB).

For a continuous sheet of conductive material, the shielding effectiveness can be estimated by the three terms formula. It includes the two principal mechanisms that reduce the field intensity :
1) absorption (A), 2) Reflection (R) and 3) Multiple Reflection (B).

Absorption (A): The electromagnetic wave that isn't reflected penetrates the shield material. As it travels through, its energy is converted into a small amount of heat due to resistive losses (eddy currents). Absorption effectiveness increases with shield thickness, frequency, and the material's conductivity and permeability. Materials with high permeability (like steel or specialty alloys) are great for absorbing magnetic fields.

The absorption loss, A expresses the energy dissipation that occurs when a field propagates through a conductor.
As the field propagates through the shield of thickness t (cm), it is attenuated exponentially.

Reflection (R): The shield acts as a mirror, reflecting incoming electromagnetic waves. This is primarily due to a mismatch in the impedance between the source and the shield material. Good conductors (like copper, aluminum) with high mobile charge carriers (electrons) are excellent reflectors. Reflection is the dominant mechanism for attenuating electric fields and plane waves.

A shield also impedes an electromagnetic wave by reflection loss

Multiple Reflections (B): Inside the shield, the wave that wasn't absorbed on the first pass can be reflected off the inner surface and bounce back and forth. Each time it hits a boundary, some energy escapes. This mechanism is generally significant only for thin shields or materials with low absorption. For thick, effective shields, it can often be neglected.

When the absorption losses are small, the energy reflected back into the shield at the second boundary cannot be ignored. This is true in the case of thin shield. As a Apertures and Seams: This is often the most critical practical factor.
Any hole, slot, or gap in the shield acts as an antenna, drastically reducing effectiveness.
The maximum SE is often determined by the largest aperture, not the material itself.
Seams and joints must be designed carefully with conductive gaskets, finger stock, or EMI shielding tape to maintain continuity.
Rule of Thumb: The shielding effectiveness of a hole is worst when its maximum dimension is ≥ ½ the wavelength of the frequency of concern. For a 1 GHz signal (wavelength = 30 cm), a hole larger than 15 cm would be a major leak. Many small holes are better than one large hole.
result, we need to consider the effect of multiple reflection for magnetic field shielding effectiveness.

The term B in the shielding effectiveness equation accounts for the re-reflection. B is always negative.

Key Factors Influencing Shielding Effectiveness
Material Properties:
Conductivity (σ): Higher conductivity (e.g., copper, silver) improves reflection.
Permeability (μ): Higher permeability (e.g., steel, mu-metal) improves absorption, especially of low-frequency magnetic fields.
Thickness (t): Increased thickness directly improves absorption.
Frequency (f):
Reflection losses decrease with frequency for plane waves but are complex in the near field.
Absorption losses increase with frequency. This is why high-frequency signals (like GHz range) are much easier to shield than low-frequency power line hum (50/60 Hz).

Understand Why Your 5G is Either Super-Fast or Everywhere: 2 Freq Bands (Sub6) Vs (Millimeter Wave)

Technologies Discussion 2025-08-28 | How 5G Provide Connectivity to Unlocking Affordable Edge Computing & Portable Cloud Services.
youtu.be/vwQuAV29j0A

Why 5G has 2 Freq Bands: FR1 (Sub6) for IoT & FR2 (Millimeter Wave) for High Data Rate & Low Latency

How 5G, Edge Computing & Portable Cloud Making Supercomputing Power Cheap & Accessible for Everyone.

Technologies Discussion 2025-08-25 | How 5G Provide Connectivity to Unlocking Affordable Edge Computing & Portable Cloud Services.

The Core Problem: The Latency of Traditional Cloud Computing
In a traditional cloud model (e.g., AWS, Azure, Google Cloud), data is generated by a device (your phone, a factory sensor, a security camera), sent over a network to a massive, centralized data center hundreds or thousands of miles away, processed there, and then instructions are sent back.

This creates latency (delay): Even a few hundred milliseconds of delay is unacceptable for real-time applications.

It consumes massive bandwidth: Streaming endless HD video from cameras to the cloud is incredibly expensive and inefficient.

It's not portable: A reliable, high-speed connection to a central cloud is impossible on a moving vehicle or in a temporary pop-up location.

How 5G Solves This: The Technical Synergy
5G isn't just one technology but a suite of features that perfectly complement edge computing. The diagram below illustrates how 5G and Mobile Edge Computing (MEC) work together to transform this model:

1. Ultra-Low Latency (1ms or less):

What it is: 5G dramatically reduces the time it takes for a data packet to travel from a device to the processing point and back.

How it enables Edge/Cloud: This low latency makes it feasible to process data at the edge (e.g., at a 5G cell tower) instead of sending it to a central cloud. For applications like autonomous vehicles, remote surgery, or competitive cloud gaming, even a 20ms delay is too long. 5G's 1ms latency makes these real-time applications possible and reliable.

2. Enhanced Mobile Broadband (eMBB) - High Speed & Capacity:

What it is: 5G offers significantly higher data rates (multi-Gbps peak speeds) and can connect a vast number of devices per square kilometer.

How it enables Edge/Cloud: This high throughput allows for the seamless uploading and downloading of large workloads to and from local edge servers. For example, a developer can instantly deploy a complex AI model to a portable edge server on a construction site, or an entire stadium of users can experience high-quality AR simultaneously without network congestion.

3. Network Slicing:

What it is: This is a revolutionary feature of 5G that allows operators to create multiple virtual, independent networks on top of a single physical 5G infrastructure.

How it enables Affordable Edge/Cloud: A provider can offer different tiers of service on a shared infrastructure:

Slice 1 (Low Cost, High Latency): For basic IoT sensors (e.g., parking meters) that send small data packets infrequently.

Slice 2 (Premium, Ultra-Low Latency): For a factory's real-time robotic control system, guaranteeing performance as if it were on a dedicated private network.
This drives affordability by maximizing the use of physical hardware and allowing customers to pay only for the level of performance they need.

4. Built-in Edge Computing (MEC):

What it is: Multi-access Edge Computing (MEC) is a core part of the 5G architecture. It allows cloud computing capabilities and IT service environments to be deployed directly at the 5G base station (gNodeB).

How it enables Portable Cloud Services: This is the ultimate enabler of portability. Instead of building a physical data center, a company can rent compute power on a MEC server at a 5G tower. This means a "cloud" can now be mobile:

A news crew can set up a pop-up studio and have near-instantaneous rendering and video editing power via the local 5G tower.

A shipping port can deploy computer vision on containers using cameras connected to the local MEC server, with no need for fiber optic cables to a central cloud.

How This Unlocks "Affordable" and "Portable" Services
Affordability:

Reduced Bandwidth Costs: Processing data locally at the edge means only the most important results (e.g., "anomaly detected," "assembly complete") are sent to the central cloud, not the raw video stream. This drastically reduces expensive bandwidth usage.

Pay-As-You-Go Models: Network slicing and cloud-native technologies allow providers to offer flexible pricing. A small startup can access powerful edge computing for a monthly fee without investing in its own servers.

Operational Efficiency: Predictive maintenance on machinery using real-time analytics at the edge prevents million-dollar downtime events, offering massive ROI.

Portability:

Location Independence: With ubiquitous 5G coverage, your "cloud" is wherever the network is. A powerful computing environment can be deployed on a truck, ship, or temporary field hospital. The connectivity and the compute power travel with the operation.

Rapid Deployment: Setting up a connected smart environment (e.g., a pop-up retail store with AR mirrors) is as simple as having 5G receivers and connecting to the edge services provided by the local carrier. There's no need to wait for wired internet installation.

Satellite Communication. Orbit Parameters: Ascending & Descending Nodes, Apogee & Perigee and More!!

Technologies Discussion 2025-08-21 | Satellite Communication playlist.
youtube.com/watch?v=pmzuvS-77bI&list=PLFxhgwM1F4yzyFYJJpulioCIAbI8KOJte

Satellite Communication #5. Apogee & Perigee, Ascend & Descend Nodes, Line of Apsides & Eccentricity

Technologies Discussion 2025-08-18 | Satellite Communication playlist.
youtube.com/watch?v=pmzuvS-77bI&list=PLFxhgwM1F4yzyFYJJpulioCIAbI8KOJte

Orbital Parameters

Ascending and Descending Nodes
Apogee & Perigee
Line of Apsides
Semi-major Axis
Eccentricity
Inclination
Prograde Orbit
Retrograde Orbit
Argument of Perigee
True Anomaly of the Satellite

Ascending Node (☊): The point where the orbiting body crosses the reference plane (equatorial plane) from south to north (i.e., moving upward relative to the reference plane).

Descending Node (☋): The point where the orbiting body crosses the reference plane (equatorial plane) from north to south (i.e., moving downward relative to the reference plane).

Apogee
The point in an orbit farthest from Earth.
For the Moon, apogee is about 405,500 km from Earth on average.
Objects at apogee move slowest in their orbit (due to Kepler's laws).

Perigee
The point in an orbit closest to Earth.
For the Moon, perigee is about 363,300 km from Earth on average.
Objects at perigee move fastest in their orbit.

Line of Apsides: Line joining perigee and apogee through centre of the Earth. It is the major axis of the orbit. One-half of this line’s length is the semi-major axis equivalents to satellite’s mean distance from the Earth.

The semi-major axis of an ellipse is half the length of its longest diameter, also known as the major axis. It represents the distance from the center of the ellipse to its farthest point.

The orbit eccentricity, e is the ratio of the distance between the centre of the ellipse and the centre of the Earth to the semi-major axis of the ellipse.

Apogee = a + e
= a (1 + e)

Perigee = a – e
= a (1 - e)

The inclination of a satellite refers to the angle between the orbital plane of the satellite and a reference plane, usually the Earth's equatorial plane. It is a key orbital parameter that determines the satellite's coverage and motion relative to the Earth.

A prograde orbit is an orbit in which a satellite (or celestial object) moves in the same direction as the rotation of the primary body it orbits. For Earth, a prograde orbit means the satellite moves eastward, in the same direction as Earth's rotation.

A retrograde orbit is an orbit in which a satellite or celestial body moves in the opposite direction to the rotation of the primary body it orbits (or opposite to the dominant orbital direction of the system). Most planets and moons in the solar system orbit in the same direction as their primary body's rotation (prograde orbit).
A retrograde orbit moves in the opposite direction (e.g., clockwise if the primary rotates counterclockwise).

Argument of Perigee: This parameter defines the location of the major axis of the satellite orbit. It is measured as the angle ω between the line joining the perigee and the centre of the Earth and the line of nodes from the ascending node to the descending node in the same direction as that of the satellite orbit.

True anomaly of the satellite. This parameter is used to indicate the position of the satellite in its orbit. This is done by defining an angle θ, called the true anomaly of the satellite, formed by the line joining the perigee and the centre of the Earth with the line joining the satellite and the centre of the Earth

Why Your Vector Network Analyzer, VNA Measurements Are Wrong (And How to Fix It with Calibration)

Technologies Discussion 2025-08-14 | S-Parameters playlist.
youtube.com/watch?v=_p0efFhCt6I&list=PLFxhgwM1F4yyAu86pAYE5KTppq0xZ8NFr

Practical Aspect of S-Parameters: Vector Network Analyzer. Why Calibration Is a MUST B4 Measurement.
Vector Network Analyzer, VNA Calibration Explained: The Practical Guide to S-Parameter Measurement

S-Parameters #10. Fix Your VNA Measurements! How to Shift Reference Planes for Accurate Data.

Technologies Discussion 2025-08-11 | S-Parameters playlist.
youtube.com/watch?v=_p0efFhCt6I&list=PLFxhgwM1F4yyAu86pAYE5KTppq0xZ8NFr

S-Parameters #10. How to Shift VNA Reference Plane (Calibration) for Accurate Scattering Measurement

A Vector Network Analyzer (VNA) is an electronic test instrument used to measure the electrical performance of high-frequency components, circuits, and networks. It characterizes devices by analyzing their Scattering parameters (S-parameters), which describe how RF (radio frequency) signals interact with the device under test (DUT).

The two basic types of network analyzers are
Scalar Network Analyzer (SNA)—measures amplitude properties only
Vector Network Analyzer (VNA)—measures both amplitude and phase properties

Measures S-Parameters – Quantifies how a DUT responds to RF / Microwave signals (reflection and transmission).
S11 (Input Reflection) – Return loss or impedance match at Port 1.
S21 (Forward Transmission Gain/Loss) – Signal transfer from Port 1 to Port 2.
S22 (Output Reflection) – Return loss at Port 2.
S12 (Reverse Transmission Gain/Loss) – Signal transfer from Port 2 to Port 1.

A VNA uses an internal source to generate a known stimulus signal, which is then applied to the input port of the DUT. Some of the signal is reflected from the input port, while some of it passes through the DUT and reaches the output port. The VNA characterizes the performance of the DUT in terms of its reflection and transmission coefficients by measuring the magnitude and phase of both the incident and reflected waves at each port.

2. Frequency Domain Analysis – Evaluates performance across a range of frequencies (MHz to THz).

3. Magnitude & Phase Measurements – Unlike scalar network analyzers, a VNA measures both amplitude and phase response.

4. Impedance & Admittance Analysis – Helps in matching network design

A Vector Network Analyzer (VNA) measures S-parameters to characterize the frequency response of RF and microwave devices. However, before taking measurements, calibration is essential to:
Remove Systematic Errors – Calibration eliminates inaccuracies caused by cable losses, connector mismatches and VNA imperfections.
Ensure Accuracy – By referencing known standards (e.g., open, short, load, and thru), the VNA compensates for hardware limitations.
Improve Repeatability – Proper calibration ensures consistent results across different test setups.
Account for Environmental Effects – Temperature changes and cable movement can introduce errors, which calibration helps mitigate.
Without calibration, S-parameter measurements may include significant errors, leading to unreliable data.

What is Free Space Path Loss Equation. FSPL (Function of Freq & Distance Between Tx & Rx Antenna)

Technologies Discussion 2025-08-07 | Antenna Design playlist. Watch these video to understand more on Antenna Design.
youtube.com/watch?v=RTtCxtSaG8w&list=PLFxhgwM1F4ywAyke2KC22BLBl1V4vV9Jt

Antenna #21. How to Derive the Free Space Path Loss (FSPL) Eq from Friis Transmission Formula.

Technologies Discussion 2025-08-04 | Antenna Design playlist. Watch these video to understand more on Antenna Design.
youtube.com/watch?v=RTtCxtSaG8w&list=PLFxhgwM1F4ywAyke2KC22BLBl1V4vV9Jt

Antenna #20. How to Derive the Friis Transmission Equation & Apply to Calculate Receiver Power, Pr.
youtu.be/aHE-x_6bNRA

In telecommunications, the free-space path loss (FSPL) (also known as free-space loss, FSL) is the decrease in signal strength of a signal traveling between two antennas on a line-of-sight path through free space. The "Standard Definitions of Terms for Antennas", IEEE Std 145-1993, defines free-space loss as "The loss between two isotropic radiators in free space, expressed as a power ratio."

𝐹𝑆𝑃𝐿=32.44 + 20 log f (MHz) + 20 log r (km)

Free-space path loss (FSPL) increases with the square of the distance between the antennas because radio waves spread out following the inverse square law. It decreases with the square of the wavelength of the radio waves and does not account for any power loss in the antennas themselves due to imperfections (such as resistance) or environmental interactions (such as atmospheric absorption).

FSPL is rarely used in isolation but rather as part of the Friis transmission formula, which incorporates antenna gain. It is a key factor in power link budgets for analyzing radio communication systems, ensuring sufficient signal strength reaches the receiver for intelligible transmission.

Define the concept of Free Space Propagation.

Free space assumes a channel free of all hindrances or obstacles to RF propagation such as absorption, reflection, refraction or diffraction. The energy arriving at the receiver is assumed to be only a function of the distance from the transmitter (following the inverse square law). A free space channel characterizes an ideal RF propagation path.

Three Types of Radio Wave Propagation: 1) Ground Wave, 2) Sky Wave & 3) Space Wave.

Technologies Discussion 2025-07-31 | Modes of Radio Propagation Playlist
youtube.com/watch?v=c3d_QpAxTd8&list=PLFxhgwM1F4yz5p8mJY5zyVLxMfs_avQEI

Radio Wave Propagation #2. How to Obtain Max Distance of Space Wave Direct & Ground Reflected Waves.

Technologies Discussion 2025-07-28 | Modes of Radio Propagation Playlist
youtube.com/watch?v=c3d_QpAxTd8&list=PLFxhgwM1F4yz5p8mJY5zyVLxMfs_avQEI

Radio Wave Propagation #2. Space Wave Propagation Formula Explained. Direct & Ground Reflected Waves

Space Wave Propagation is a mode of radio wave propagation where electromagnetic waves travel directly from the transmitting antenna to the receiving antenna, either along the line-of-sight (LOS) or after reflecting off the Earth's surface or troposphere.

A direct wave (or space wave) travels in a straight line from the transmitting antenna to the receiving antenna. This type of radio signaling is often called line-of-sight (LOS) communication.
Direct waves are neither refracted nor do they follow the Earth's curvature.
They can be blocked or reflected by obstacles and cannot travel beyond the horizon or behind obstructions.

Characteristics of Space Wave Propagation:
1. Frequency Range:
Typically used for VHF (30 MHz – 300 MHz) and UHF (300 MHz – 3 GHz) signals.
Commonly employed in TV broadcasting, FM radio, mobile communications, and radar systems.

2. Line-of-Sight (LOS) Dependency:
Since space waves travel in a straight line, the transmitting and receiving antennas must be within each other’s visible horizon.
Obstacles like buildings or mountains can block the signal.

3. Limited by Earth’s Curvature:
The maximum distance for LOS communication is determined by the height of the antennas.
Formula for LOS distance:

d = maximum distance (in meters)
hT = height of transmitting antenna (in meters)
hR = height of receiving antenna (in meters)

4. Tropospheric Effects:
Space waves can be slightly refracted due to changes in the troposphere's refractive index.
Sometimes, tropospheric ducting can extend the range beyond LOS under certain atmospheric conditions.

5. Multipath Propagation:
The signal may reach the receiver via multiple paths (direct + reflected waves), causing fading or interference.

Advantages of Space Wave Propagation:
Suitable for high-frequency communication (VHF/UHF).
Provides stable and high-quality signals within LOS range.
Less affected by atmospheric layers compared to sky wave propagation.
Disadvantages:
Limited range due to Earth’s curvature.
Requires tall antennas for long-distance communication.
Susceptible to obstacles and terrain blocking.

Circuit Theory: Cable (Perfect Short Circuit). Transmission Line Theory: Impedance Vary with Length.

Technologies Discussion 2025-07-24 | Transmission Line Theory playlist. Watch these video to understand more on Transmission Line Theory.
youtube.com/playlist?list=PLFxhgwM1F4yz620k0WcHdRrO5JRAC0yFh

Related video: youtu.be/mrU84J3e26Y
Tx Line #1. Key Difference Between Transmission Line Theory & Circuit Theory is Electrical Size!

Transmission Line #1. Difference Between Transmission Line & Circuit Theory (Short): Wavelength, λ.

Technologies Discussion 2025-07-21 | Transmission Line Theory playlist.
youtube.com/watch?v=mrU84J3e26Y&list=PLFxhgwM1F4yz620k0WcHdRrO5JRAC0yFh

Transmission Line #1. Difference Between Transmission Line Theory & Circuit Theory: Electrical Size!
Transmission Line #1. Size λ: Circuit Theory (Short Circuit) Vs Transmission Line (Impedance Vary)
Transmission Line #1. Circuit Theory (Short Circuit) / Tx Line (Impedance Vary): Electrical Size, λ.
Transmission Line #1. SHORT Circuit (Circuit Theory) That Isn't Short (Tx Line Theory) Becos of λ.
Transmission Line #1. Why a "Short Circuit" (Circuit Theory) Isn't Always Short (The λ Mystery)

The key difference between transmission line theory and circuit theory is electrical size.

Transmission lines may be a considerable fraction of a wavelength or even many wavelengths in size.

Circuit theory (DC / low freq) assumes that the physical dimensions of the network (or cable) are much smaller than the electrical wavelength.

In transmission lines, the inductance (L) & capacitance (C) per unit length introduce a delay in the propagation of electrical signals. Here's why:
1. Basic Concept of Wave Propagation in Transmission Lines
A transmission line can be modeled as a distributed network of series inductance (L) and shunt capacitance (C).
When a voltage signal is applied, the inductance resists sudden changes in current, while the capacitance resists sudden changes in voltage.
This interaction causes the signal to propagate as a wave rather than instantaneously.

2. Propagation Delay Due to L & C
The speed of propagation (v) in a transmission line is determined by:
Higher L (inductance) → Slows down signal propagation because it opposes rapid current changes.
Higher C (capacitance) → Slows down signal propagation because it takes time to charge/discharge the line.
Thus, the more L and C per unit length, the slower the signal travels.

3. Intuitive Explanation
Inductance (L): Acts like "inertia" against current changes, causing a lag.
Capacitance (C): Acts like a "storage" that needs time to fill up (charge) before voltage builds up.
Together, they create a low-pass filter effect, delaying high freq components.

Transmission line is a distributed parameter network, where voltage and current can vary in magnitude and phase over its length, while circuit analysis deals with lumped elements, where voltage and current do not vary appreciably over the physical dimension of the elements.

A transmission line is often schematically represented as a two-wire line since transmission lines always have at least two conductors.

1. Assumptions and Applicability:
Circuit Theory (Lumped Element Model):
Assumes that electrical components (resistors, capacitors, inductors) are lumped and that the physical dimensions of the circuit are much smaller than the wavelength of the signals.
Works well for low freq applications (DC or AC where wavelength is large compared to circuit size).
Ignores wave propagation effect (no time delay in signal transmission).
Transmission Line Theory (Distributed Model):
Considers the distributed nature of electrical parameters (resistance, inductance, capacitance, and conductance per unit length).
When the circuit size is comparable to or larger than the signal wavelength (Eg. High freq, Rf or microwave or high-speed digital signals).
Accounts for wave propagation, reflections and impedance matching.

2. Signal Behavior:
Circuit Theory:
Treats voltage and current as the same at all points in a node (no phase delay).
Kirchhoff’s Voltage Law (KVL) and Kirchhoff’s Current Law (KCL) apply directly.
Transmission Line Theory:
Voltage and current vary along the length of the line due to wave propagation.
Must account for time delay and phase shift due to finite propagation speed.
Requires analysis using telegrapher’s equations, which describe wave behavior.

3. Key Parameters:
Circuit Theory:
Uses lumped elements: R, L, C.
Impedance is simply the ratio of voltage to current (Ohm’s Law).
Transmission Line Theory:
Uses distributed parameters:
Series resistance (R) and inductance (L) per unit length.
Shunt conductance (G) and capacitance (C) per unit length.

4. Effects Considered:
Circuit Theory:
Neglects electromagnetic wave effects.
No consideration for reflections or standing waves.
Transmission Line Theory:
Must account for:
Reflections (due to impedance mismatches).
Standing waves (when reflections interfere with incident waves).
Signal integrity issues (Eg. ringing, crosstalk in high-speed circuits).

5. When to Use Which?
Use Circuit Theory When:
The circuit dimensions are ≪ λ (wavelength of the signal).
Dealing with low freq power systems or analog circuits (Eg. audio frequencies).
Use Transmission Line Theory When:
The circuit size is ≥ λ/10.
Working with RF, microwave, or high-speed digital signals (Eg. PCB traces, antennas, optical fibers).

Explain Why 3-Port Power Divider Network Can’t Be Matched, Reciprocal & Lossless Simultaneously.

Technologies Discussion 2025-07-17 | Power Dividers & & Directional Couplers
youtube.com/watch?v=zprCdHuYPQw&list=PLFxhgwM1F4yw6Tr6WXznuCEa7xhxWQgkS

Power Divider #2. Why Can't a 3-Port Power Divider Be Simultaneously Matched, Reciprocal & Lossless?
youtu.be/AFaQrfqYTrA

Why 3-Port Power Divider Network Can’t Be Matched, Reciprocal & Lossless Simultaneously. Explain what Matched, Reciprocal & Lossless is individually.

Power Divider #5. The 3dB Loss Mystery - Why T-Junction Resistive Dividers Waste Half Your Power.

Technologies Discussion 2025-07-14 | Power Dividers & & Directional Couplers
youtube.com/watch?v=zprCdHuYPQw&list=PLFxhgwM1F4yw6Tr6WXznuCEa7xhxWQgkS

Power Divider #5. T-Junction Resistive Power Divider: Why Half Power is Lost in Resistors Explained?
Power Divider #5. Why is Half Power Lost in Resistors (Heat) for T-Junction Resistive Power Divider.

A T-junction resistive power divider is a simple and common microwave component used to split an input signal into two output signals with equal or unequal power division. In this specific case (#5), we're analyzing a 3-port equal-split (3 dB) power divider, where half of the input power is delivered to each output port, and the other half is dissipated in the internal resistors.

Key Characteristics of the Resistive Power Divider
Equal Power Division: The input power
Pin is split equally between the two output ports (P2=P3=Pin/2)
Resistive Loss: Half of the input power is dissipated in the internal resistors (hence, it's lossy).

Impedance Matching: All ports are matched to the characteristic impedance
Z0 (typically 50 Ω).

Isolation: The two output ports are isolated from each other (no power transfer between them).

Circuit Diagram
The T-junction resistive power divider consists of:

Input Port (Port 1): Connected to the source with impedance Z0.

Output Ports (Port 2 & Port 3): Each terminated in Z0.

Resistors: Two resistors of value Z0 arranged in a "T" configuration:

One resistor (R=Z0) between Port 2 and Port 3.

Two resistors (R=Z0) connecting Port 1 to Port 2 and Port 1 to Port 3.

Why Half the Power is Dissipated?
The divider is resistive, meaning it inherently consumes power.

Only half of
Pin reaches the output ports; the rest is lost as heat in the resistors.

This makes the resistive divider lossy compared to a Wilkinson divider (which is lossless when ports are matched).

Advantages & Disadvantages
✅ Advantages:

Simple design.

Broadband operation (works over a wide frequency range).

All ports are matched (S11 = S22 = S33 =0)

Good isolation between output ports.

❌ Disadvantages:

High power loss (50% dissipation).

Not suitable for high-power applications due to resistor heating.

Friis Transmission Formula Explained: How to Apply this Equations to Obtain the Receiver Power, Pr.

Technologies Discussion 2025-07-10 | Antenna Design playlist. Watch these video to understand more on Antenna Design.
youtube.com/watch?v=RTtCxtSaG8w&list=PLFxhgwM1F4ywAyke2KC22BLBl1V4vV9Jt

Related Video: youtu.be/aHE-x_6bNRA
Antenna #20. How to Derivation the Friis Transmission Formula & Apply to Calculate Receiver Power.

Antenna #20. How to Derive the Friis Transmission Equation & Apply to Calculate Receiver Power, Pr.

Technologies Discussion 2025-07-07 | Antenna Design playlist. Watch these video to understand more on Antenna Design.
youtube.com/watch?v=RTtCxtSaG8w&list=PLFxhgwM1F4ywAyke2KC22BLBl1V4vV9Jt

Antenna #20. How to Derivation the Friis Transmission Formula & Apply to Calculate Receiver Power.

The Friis transmission formula is used in telecommunications engineering to calculate the power received by an antenna. Under idealized condition, it expresses the power at the terminals of a receiving antenna as the product of the incident wave's power density and the effective aperture of the receiving antenna. This assumes a known transmit power from another antenna at a given distance.

First introduced in 1946 by Danish-American radio engineer Harald T. Friis, the formula is also referred to as the Friis transmission equation.

Let’s assume the following parameters:
Transmitted power (PT) = 1 Watt (30 dBm)
Transmitting antenna gain (GT) = 2 (3 dBi)
Receiving antenna gain (GR) = 1.5 (1.76 dBi)
Frequency (f) = 2.4 GHz (common Wi-Fi frequency)
Distance (r) = 100 meters

Step 1: Calculate the Wavelength (λ)
Step 2: Apply the Friis Formula
Step 3: Convert to dBm (for practical interpretation)

At 100 meters, with the given parameters, the received power is approximately -45.3 dBm, which is a typical signal strength for a Wi-Fi link at that distance.

Limitations
Only valid in far-field (Fraunhofer region) r ≫2D2/λ, where D is the largest antenna dimension.
Does not account for:
Atmospheric absorption
Multipath fading
Obstructions (buildings, trees)
Ground reflections

The Friis formula is essential for link budget analysis in wireless systems, helping engineers design communication links by estimating signal strength over distance. For real-world scenarios, additional factors like fading and environmental losses must be considered.

Explain Four Maxwell Equations (Gauss, Faraday & Ampere Law) in a SIMPLE Way that All can Understand

Technologies Discussion 2025-07-02 | Microwave Engineering playlist.
youtube.com/watch?v=09n9ZyErKCI&list=PLFxhgwM1F4yyiTGc8ovO4Zqzs67lhEE-_

Related Video: youtu.be/wfPEA04xkA8
Microwave #2. Maxwell’s Equations Explained SIMPLY: Gauss, Faraday & Ampere’s Law for All to Know.

Microwave #2. Maxwells Equations (Gauss: Electric & Magnetic Field, Faraday & Ampère Law) Explained

Technologies Discussion 2025-06-30 | Microwave Engineering playlist.
youtube.com/watch?v=09n9ZyErKCI&list=PLFxhgwM1F4yyiTGc8ovO4Zqzs67lhEE-_

Microwave #2. Maxwell’s Equations Explained SIMPLY: Gauss, Faraday & Ampere’s Law for All to Know.
Microwave #2. Maxwell’s Equations EXPLAINED (Gauss, Faraday, Ampere) Easiest Breakdown for Beginner!

Maxwell's equations are a set of four fundamental laws that describe how electric and magnetic fields interact and propagate. They form the foundation of classical electromagnetism, optics, and electric circuits, and even lead to the prediction of electromagnetic waves (like light). Here they are in both integral and differential forms:

1. Gauss’s Law for Electricity
Describes how electric charges produce electric fields.

2. Gauss’s Law for Magnetism
States that there are no "magnetic charges" (monopoles).

3. Faraday’s Law of Induction
Describes how a changing magnetic field induces an electric field.

4. Ampère’s Law (with Maxwell’s Correction)
Describes how electric currents and changing electric fields produce magnetic fields.

ZigBee #1. How This Global Standard Power Smart Applications with Low Cost, Long Battery Life & More

Technologies Discussion 2025-06-23 | ZigBee playlist.
youtube.com/watch?v=T4n1l3HcYh0&list=PLFxhgwM1F4yzOfk18XqHOsS4fX6bJMmjS

ZigBee #1. ZigBee: 1st Low Power & Mesh Network. Roles of ZigBee End Device, Router & Coordinator.

ZigBee is a standard that defines a set of communication protocols for low-data-rate, short-range wireless networking. ZigBee-based wireless devices operate in the 868 MHz, 915 MHz and 2.4 GHz frequency bands, with a maximum data rate of 250 Kbps.

ZigBee is primarily designed for battery-powered applications that require low data rates, low cost, and long battery life. In many ZigBee applications, the wireless device is active for only a very limited time, spending most of its time in a power-saving mode (also known as sleep mode). As a result, ZigBee-enabled devices can operate for several years before their batteries need replacement.

The ZigBee standard is developed by the ZigBee Alliance, a nonprofit organization established in 2002 that is open to all interested members. The alliance includes hundreds of member companies spanning various industries, such as semiconductor manufacturers, software developers, original equipment manufacturers (OEMs), and installers.

ZigBee adopts IEEE 802.15.4 as its Physical Layer (PHY) and Medium Access Control (MAC) protocols. As a result, any ZigBee-compliant device also complies with the IEEE 802.15.4 standard.

IEEE 802.11 is a family of standards, and IEEE 802.11b is selected here because it operates in the 2.4 GHz band—the same frequency used by Bluetooth and ZigBee. IEEE 802.11b offers a high data rate (up to 11 Mbps), with wireless Internet connectivity being one of its typical applications. Its indoor range is usually between 30 and 100 meters.

In contrast, Bluetooth has a lower data rate (under 3 Mbps) and a shorter indoor range, typically 2–10 meters. A common Bluetooth application is in wireless headsets, where it enables communication between a mobile phone and a hands-free headset.

ZigBee has the lowest data rate and complexity among these three standards, along with significantly longer battery life. While its low data rate makes it unsuitable for high-bandwidth applications like wireless Internet or CD-quality audio streaming (requiring over 1 Mbps), ZigBee is ideal for transmitting simple commands or collecting sensor data (e.g., temperature or humidity). Compared to Bluetooth and IEEE 802.11b, ZigBee provides the most power-efficient and cost-effective solution for such use cases.

There are two types of devices in an IEEE 802.15.4 wireless network: full-function devices (FFDs) and reduced-function devices (RFDs). An FFD can perform all the functions described in the IEEE 802.15.4 standard and can take on any role in the network. An RFD, on the other hand, has limited capabilities. For example, an FFD can communicate with any other device in the network, while an RFD can only communicate with an FFD. RFDs are designed for very simple applications, such as turning a switch on or off. They also typically have less processing power and smaller memory sizes compared to FFDs.

In an IEEE 802.15.4 network, an FFD (Full-Function Device) can assume three roles: coordinator, PAN coordinator, or device. A coordinator is an FFD capable of relaying messages. If the coordinator also serves as the primary controller of a Personal Area Network (PAN), it is called a PAN coordinator. If a device does not function as a coordinator, it is simply referred to as a device.
The ZigBee standard uses slightly different terminology:
A ZigBee coordinator corresponds to an IEEE 802.15.4 PAN coordinator.
A ZigBee router is a device that can act as an IEEE 802.15.4 coordinator.
A ZigBee end device is neither a coordinator nor a router.
ZigBee end devices have the smallest memory, least processing power, and minimal features, making them typically the least expensive devices in the network.

Multiple Access #2. Network Sharing: Multiplexing Vs Multiple Access Methods. Sharing Resources.

Technologies Discussion 2025-06-16 | Multiple Access playlist.
youtube.com/watch?v=xP98C7etMjI&list=PLFxhgwM1F4ywpqJ9bC0DNbYuYLKBnryqa

Multiple Access and Multiplexing are both techniques used in telecommunications to share a common communication medium among multiple users or devices. However, they serve different purposes and operate in distinct ways.

Multiplexing
Definition: Multiplexing is a technique that combines multiple signals into one signal over a shared medium. It allows multiple data streams to share the same communication channel efficiently.
Purpose: To maximize the utilization of the available bandwidth by transmitting multiple signals simultaneously.
Where it is used: Typically implemented at the physical layer of the OSI model.

Frequency Division Multiplexing (FDM)
Time Division Multiplexing (TDM)
Code Division Multiplexing (CDM)

Multiple Access
Definition: Multiple access is a technique that allows multiple users or devices to share the same communication medium without interfering with each other. It ensures that multiple users can access the network simultaneously.
Purpose: To enable efficient sharing of a communication medium among multiple users or devices.
Where it is used: Commonly used in wireless and cellular networks (e.g., Wi-Fi, LTE, 5G).

Frequency Division Multiple Access (FDMA)
Time Division Multiple Access (TDMA):
Code Division Multiple Access (CDMA):
Orthogonal Frequency Division Multiple Access (OFDMA):
Spatial Division Multiple Access (SDMA).

Carrot Cake Black & White 1) Chey Sua, 2) Fried Carrot Cake, 3) He Zhong 4) Hai Sheng & 5) Song Han

Technologies Discussion 2025-06-15 | youtube.com/watch?v=RvGTjC24aUE&list=PLFxhgwM1F4ywySjm4jIwbfHShcLm6U4XF

Pls let me know if you have other recommendation.

FDMA, TDMA, CDMA, OFDMA & SDMA: Freq, Time, Code, Orthogonal Freq & Spatial Division Multiple Access

Technologies Discussion 2025-06-13 | Multiple Access playlist.
youtube.com/watch?v=xP98C7etMjI&list=PLFxhgwM1F4ywpqJ9bC0DNbYuYLKBnryqa

Related Video: youtu.be/Vz7H6J6RmFU
Multiple Access #4. Cellular Network with the Types of Multiple Access TDMA, FDMA, CDMA, OFDMA, SDMA

Multiple Access #1. Transmission Modes Made Simple: A Guide to Simplex, Half Duplex & Full Duplex.

Technologies Discussion 2025-06-11 | Multiple Access playlist.
youtube.com/watch?v=xP98C7etMjI&list=PLFxhgwM1F4ywpqJ9bC0DNbYuYLKBnryqa

In communication systems, simplex, half-duplex, and full-duplex refer to the direction of data transmission between devices:

1. Simplex Communication
Unidirectional (one-way communication).

One device can only transmit, and the other can only receive.

Example:

Keyboard → Computer (keyboard sends data, but doesn't receive).

Television broadcasting (TV station sends signals, viewers only receive).

2. Half-Duplex Communication
Two-way, but one direction at a time (alternating transmission).

Devices can both send and receive, but not simultaneously.

Example:

Walkie-talkies (users say "Over" to switch between talking/listening).

Traditional two-way radios.

3. Full-Duplex Communication
Two-way simultaneous communication.

Devices can transmit and receive data at the same time.

Example:

Phone calls (both parties can speak and listen simultaneously).

Modern Ethernet networks (using separate channels for sending/receiving).

Technical Notes
Full-duplex often requires separate channels (e.g., different frequencies or wires) to avoid interference.

Half-duplex uses shared medium (like a single wire or frequency) with protocols to manage turn-taking (e.g., CSMA/CD in old Ethernet).

We need simplex, half-duplex, and full-duplex communication modes because different applications have different requirements for cost, complexity, efficiency, and practicality. Each mode serves a unique purpose based on the nature of the communication.

1. Why Simplex?
When one-way communication is sufficient.

Cheaper & simpler hardware (no need for bidirectional circuitry).

Use cases:

Broadcasting (TV, radio, emergency alerts).

Sensors & monitoring (temperature sensors sending data to a controller).

Printers (computer sends print jobs, printer doesn’t send data back).

2. Why Half-Duplex?
When two-way communication is needed, but not simultaneously.

Reduces cost & complexity compared to full-duplex (shared channel).

Avoids signal collisions (since only one device transmits at a time).

Use cases:

Walkie-talkies & CB radios (users take turns speaking).

Older Ethernet (Hub-based networks) – Used CSMA/CD to avoid collisions.

Serial communication (RS-485) – Used in industrial control systems.

3. Why Full-Duplex?
When real-time, simultaneous two-way communication is critical.

Faster & more efficient (no waiting for turn-taking).

Requires more advanced hardware (separate channels for Tx & Rx).

Use cases:

Phone calls (both parties can speak & listen at once).

Modern Ethernet (Switched networks) – Uses separate wires for sending/receiving.

5G & fiber optics – High-speed internet relies on full-duplex.

Conclusion
Simplex → When feedback isn’t needed (cheap & simple).

Half-duplex → When two-way communication is needed, but cost matters.

Full-duplex → When speed & real-time interaction are critical.

Each mode exists because not all applications need the highest performance (and cost) of full-duplex. The right choice depends on budget, technical requirements, and use case.

S-Parameters #5. Is Your Network Reciprocal & Lossless? How to Find the Input Return Loss Explained.

Technologies Discussion 2025-06-09 | S-Parameters playlist.
youtube.com/watch?v=_p0efFhCt6I&list=PLFxhgwM1F4yyAu86pAYE5KTppq0xZ8NFr

A two-port network is known to have the following scattering matrix:

Determine if the network is reciprocal and lossless. If port 2 is terminated with a matched load, what is the return loss seen at port 1? If port 2 is terminated with a short circuit, what is the return loss seen at port 1?

ANS (Reciprocal)
A network is reciprocal if it is passive and contains only reciprocal materials that influence the transmitted signal. For example, attenuators, cables, splitters and combiners are all reciprocal networks, where Smn = Snm in each case, meaning the S-parameter matrix is equal to its transpose.
[S] is not symmetric, the network is not reciprocal.

A lossless network is one that does not dissipate any power. Mathematically, this is expressed as:
This means that the sum of the incident powers at all ports is equal to the sum of the outgoing (e.g., reflected) powers at all ports. This implies that the S-parameter matrix is unitary, which can be expressed as:
(S)H (S) = (I)
where (S)H is the conjugate transpose of (S) and (I) is the identity matrix.

Where to Eat Chill Crab in Spore: Jumbo, Red House, No Signboard, Mellben, Long Beach & Ban Leong.

Technologies Discussion 2025-06-08 | youtube.com/watch?v=RvGTjC24aUE&list=PLFxhgwM1F4ywySjm4jIwbfHShcLm6U4XF

Types of Constellation Diagram Errors: IQ Imbalance, Quadrature Error & I/Q Offset / Carrier Leakage

Technologies Discussion 2025-06-06 | Digital Modulation playlist.
youtube.com/watch?v=LkG0iXV4d2E&list=PLFxhgwM1F4yz7yNTuMFobkrC8LLMDBuA_

Related Video: youtu.be/bmiuIgjT9mo
Digital Modulation #7. Types of Constellation Diagram Errors: Quadrature, IQ Imbalance & IQ Offset.

S-Parameters #4. Why use Power & Normalization Waves for RF/Microwave instead of Voltage & Current.

Technologies Discussion 2025-06-04 | S-Parameters playlist.
youtube.com/watch?v=_p0efFhCt6I&list=PLFxhgwM1F4yyAu86pAYE5KTppq0xZ8NFr

S-Parameters #4. Deriving Power & Normalized Waves Equations in Scattering Matrix for Microwave Eng.
S-Parameters #4. Why Voltage & Current CANT Use in Scattering Matrices: Use Power & Normalized Waves
S-Parameters #4. Why Voltage & Current Fail in RF / Microwave. Power Waves & Normalization Explained

The one-port relationship can be extended to the two-port network as shown by replacing a and b by the column vectors [a] and [b]. These power wave vectors are related to each other by an S-matrix containing four complex parameters as follows:

The one-port relationship can be extended to the two-port network as shown by replacing a and b by the column vectors [a] and [b]. These power wave vectors are related to each other by an S-matrix containing four complex parameters as follows:

S-Parameters are measured by sending a single-frequency signal into the network (or "black box") and detecting the amount of waves exiting each port.

Power, voltage, and current (incident waves) can be considered as waves traveling in both directions.

For a wave incident on Port 1, some part of this signal reflects back out of that port and some portion of the signal exits other ports.

S11 refers to the signal reflected at Port 1 for the signal incident at Port 1. Scattering parameter S11 is the ratio of the two waves, b1/a1.

S21 refers to the signal exiting at Port 2 for the signal incident at Port 1. Scattering parameter S21 is the ratio of the two waves, b2/a1.

S22 refers to a signal exiting at Port 2 for an incident signal at Port 2. Scattering parameter S22 is the ratio of the two waves, b2/a2.

S12 refers to a signal exiting at Port 1 for an incident signal at Port 2. Scattering parameter S12 is the ratio of the two waves, b1/a2.

S-parameters depend upon the network and the characteristic impedances of the source and load used to measure it and the frequency measured at.

i.e.
if the network is changed, the S-parameters change.
if the frequency is changed, the S-parameters change.
if the load impedance is changed, the S-parameters change.
if the source impedance is changed, the S-parameters change

Impedance Matching #3. Designing the Easiest Series & Shunt Elements, L&C L-Section Matching Network

Technologies Discussion 2025-06-02 | Impedance Matching playlist.
youtube.com/watch?v=VYor6jGA1-4&list=PLFxhgwM1F4yxNelYq8IuV-qancL8186LV

Impedance Matching #3. How to Design L Section Network with Lumped Elements Inductor & Capacitor.

Designing an L-matching network using a lumped inductor and capacitor involves transforming a given load impedance (ZL) to a desired input impedance (Zin) at a specific frequency. The L-section matching network is one of the simplest matching topologies and can be configured in two possible arrangements:

Series-L, Shunt-C

Shunt-L, Series-C

The choice depends on whether the load impedance is higher or lower than the source impedance (usually RS = 50Ω)

Step-by-Step Design Procedure
Assume we want to match a load impedance ZL=RL+jXL to a purely resistive source ZS=RS at frequency f.

1. Normalize the Impedances
First, normalize the load impedance with respect to RS

Determine the Matching Topology
(load resistance is larger than source resistance) → Use Shunt-C, Series-L
(load resistance is smaller than source resistance) → Use Shunt-L, Series-C

8 Must-Try Crab Styles Ranked! Chilli vs Pepper vs Butter vs Salted Egg vs Steamed vs Bee Hoon Carb.

Technologies Discussion 2025-06-01 | youtube.com/watch?v=RvGTjC24aUE&list=PLFxhgwM1F4ywySjm4jIwbfHShcLm6U4XF

Singapore Food Series Discussion

Roles of Impedance Matching/Transformer: Matched (Max Power Transfer) vs Unmatched (Wave Reflection)

Technologies Discussion 2025-05-31 | Impedance Matching playlist.
youtube.com/watch?v=VYor6jGA1-4&list=PLFxhgwM1F4yxNelYq8IuV-qancL8186LV

Related Video: youtu.be/VYor6jGA1-4
Impedance Matching #1. Maximum Power Transfer Explained: Compare Matched vs Mismatched (Reflected).

Antenna #19. How to Proof the Max Directivity & Effective Area Relationship (Derivation + Equation)

Technologies Discussion 2025-05-30 | Antenna Design playlist. Watch these video to understand more on Antenna Design.
youtube.com/watch?v=RTtCxtSaG8w&list=PLFxhgwM1F4ywAyke2KC22BLBl1V4vV9Jt

An antenna's maximum directivity represents its ability to focus radiated power in a specific direction, while its maximum effective area represents the equivalent area it can capture electromagnetic energy from. These two concepts are related, with higher directivity generally leading to a larger effective area.

Definition:
Directivity measures how much more concentrated the antenna's radiation is in one direction compared to an isotropic antenna (which radiates equally in all directions).

Relationship to Radiation Pattern:
Directivity is a property of the antenna's radiation pattern, describing the power density in a particular direction.

Maximum Value:
The maximum directivity is the highest value of the radiation pattern, often expressed in decibels (dB).

Factors Affecting Directivity:
Antenna size, frequency and shape all influence directivity.

Example:
A large parabolic dish antenna will have a higher directivity than a small dipole antenna.

Definition:
Effective area, also known as effective aperture, quantifies the area an antenna presents to an incoming electromagnetic wave.

Capturing Electromagnetic Energy:
It's the area that determines how much power from the incoming wave is captured by the antenna.

Relationship to Directivity:
The effective area is directly proportional to the directivity.

Maximum Effective Area:
The maximum effective area is the largest value of the antenna's effective area over all directions.

Example:
A larger, high-gain antenna will have a larger effective area, enabling it to capture more incoming power.

For any antenna, the maximum directivity (D0) and maximum effective area (Aem) are fundamentally related through the formula:

where λ is the wavelength of the electromagnetic wave.
This means higher directivity antennas generally have a larger effective area, but the relationship depends on wavelength.
In summary:
Directivity focuses on the concentration of radiated power.
Effective area focuses on the amount of incoming power captured.
These two concepts are interconnected, with higher directivity generally leading to a larger effective area.
Both directivity and effective area are important parameters for evaluating antenna performance.

Let's derive the relationship between directivity and maximum effective area based on the geometrical arrangement. Antenna 1 serves as the transmitter, while Antenna 2 functions as the receiver. The effective areas and directivities of each are represented by At, Ar, Dt, and Dr, respectively.

Impedance Matching #1. Designing Matched (Max Pwr Transfer) Vs Mismatched (Reflection) to the Load

Technologies Discussion 2025-05-28 | Impedance Matching playlist.
youtube.com/watch?v=VYor6jGA1-4&list=PLFxhgwM1F4yxNelYq8IuV-qancL8186LV

Impedance Matching #1. How to Achieve Max Power Transfer! Matched vs Mismatched Condition Explained.
Impedance Matching #1. RF & Electronics Basics: Impedance Matching for Maximum Power Transfer.
Impedance Matching #1. How to Design for Matched (Max Pwr Transfer) Vs Mismatched (Reflection) Case.

Impedance matching is a technique in electrical engineering that aims to minimize signal reflection and maximize power transfer by making the impedance of a source match the impedance of a load. This is particularly important in radio frequency (RF) designs, where efficient power transfer is crucial.

Why is Matching Important?
Without impedance matching, a signal encountering a mismatched impedance will be reflected back towards the source, reducing the power delivered to the load and potentially causing signal distortions.

Impedance matching can be achieved through various techniques, including:

Transformers: Transformers can transform impedance levels, allowing for a match between a source and load with different impedances.

Resistive Matching: Using a resistive network can help to "dampen" the impedance, reducing reflections.

Reactance Matching: Reactance matching uses capacitors or inductors to adjust the impedance at specific frequencies, according to Electronic Design.

Matching Networks: These are circuits designed to transform an impedance, as discussed by Microwaves & RF.

The Matched Line - Non-resonant or Flat Line
Figure above shows a transmission line with characteristic impedance, Zo connected between a source impedance, ZS and a load impedance, ZL. For maximum power transfer to occur,
ZS = ZO

At the load end, the line is matched to the load when ZL = ZO

Maximum power transfer from the source to the load; all the energy from the line is absorbed by the load. There is no reflected signal.
TL is non-resonant or flat under matched condition. There is no standing wave.
The impedance anywhere along the transmission line equals to Zo.

The MisMatched Line (ZL  ZO)
Signal can propagate in both directions in a TL
Signal propagating from source toward load is called incident wave Ei
Signal propagating from load towards source is called reflected wave Er
Incident and reflected waves occur combine to form standing waves

Power generated by the source will be partially absorbed by the load. The rest is reflected to the source no maximum power transfer
Extreme case of mismatched condition occurs when ZL is either open-circuit or short circuit. Total reflection occurs at the load. No power is absorbed by the load
For a mismatched line, the impedance is different at different points of the line; the impedance repeats at every half wavelength

Disadvantage of Mismatch
Presence of reflected signal (waves) in addition to incident signal (waves) or applied signal when there is mismatch; maximum power transfer not obtained.

Reflection of power from the load to the source may damage the source

Presence of high voltage standing wave may cause cable dielectric breakdown

EMC #72. EFT/Burst Test (IEC/EN61000-4-4) Setup, Configuration & How to Select Test Level Explained!

Technologies Discussion 2025-05-26 | EMC playlist. Watch these video to understand more on EMC.
youtube.com/watch?v=JDTgy5RLIhk&list=PLFxhgwM1F4ywicEggR3pzF0FcFcGQvZ82

What are Electrical Fast Transients (EFT)?
Inductive loads—such as relays, switch contactors, or heavy-duty motors—generate bursts of narrow high-frequency transients on the power distribution system when de-energized. These fast transients can also occur when the utility provider switches power factor correction equipment on or off. A common source of power line transients is sparking, which happens when an AC power cord is plugged in, equipment is turned off, or circuit breakers are opened or closed.

Test Procedure for EFT/Burst (IEC/EN 61000-4-4)

1. Test Equipment Required
EFT/Burst Generator (compliant with IEC 61000-4-4)
Coupling/Decoupling Network (CDN)
Ground Reference Plane (GRP)
Monitoring Equipment (oscilloscope, EUT performance check tools)

2. Test Setup & Configuration
The EUT (Equipment Under Test) is placed on an insulated support (10 cm above the ground reference plane).
Power & signal cables are arranged as per standard (typically 1 m).
Coupling Methods:
Power Supply Ports: Via CDN (Coupling/Decoupling Network).

2. Test Setup & Configuration
The EUT (Equipment Under Test) is placed on an insulated support (10 cm above the ground reference plane).
Power & signal cables are arranged as per standard (typically 1 m).
Coupling Methods:
I/O & Communication Ports: Via capacitive coupling clamp (for cables more than 5 m, clamp is preferred).

Transient-induced noise conductively couples to the end equipment via the AC power cord, DC power lines, and signal/control lines. Inside the equipment, if proper filtering is not implemented, the noise can propagate to different PCBs. Noise coupling within the equipment can occur either directly or indirectly. Direct coupling happens when the transient (manifested as noise) flows through susceptible circuits via supply, ground, signal, or control lines. Indirect coupling occurs through electromagnetic radiation to adjacent conductive surfaces.

Transient-induced noise can be both common mode and differential mode noise. Common-mode noise is present or “common” to both conductors and is typically “in phase” within the conductors. Differential noise is present on only one conductor or present in opposite phase in both conductors.

4. Test Execution
Pre-Test Check: Verify EUT functionality before testing.
Polarity Selection: Test both positive & negative polarities.
Test Duration:
1 minute per test point (for each coupling path).
Burst Duration: 15 ms with 300 ms pause between bursts.
Coupling Modes:
Power Ports: Apply bursts via CDN (L, N, PE).
Signal/Data Lines: Use capacitive clamp (if applicable).
Monitoring: Continuously check EUT for malfunctions (errors, resets, data corruption).

Transient-induced noise is likely to interfere with:
Power and ground signals
Reset circuits
Clock/oscillator signals
Edge-sensitive triggers
High-frequency digital signals
Analog signals
Communication blocks such as I2C, SPI, UART
CPU
Flash/RAM

When transient-induced noise affects one or more of these blocks, the following types of system failures can occur:
Reset
Latch-Up
Corruption of Analog and Digital Signals
Communication Failure
Memory Corruption

Reset
Due to transient-induced noise, the device can undergo one of the following resets:
External reset
Power-on reset
Low Voltage Detect (LVD) based reset
Brownout reset
Watchdog reset
Software reset

An external reset can be triggered by the transient-induced noise on the reset pin. Therefore, an external reset can happen due to supply voltage dips or ground reference shift, depending on whether the reset pin is active HIGH or LOW. Some controllers have alternate reset pins. In such cases, the device can reset due to the noise on alternate reset pins also.

5. Post-Test Evaluation
Performance Criteria (As per IEC 61000-4-4):
Criteria A: Normal operation within specifications.
Criteria B: Temporary degradation, self-recovery.
Criteria C: Temporary malfunction, requires manual intervention.
Criteria D: Permanent damage or failure.
