Motor Control Trainer MCT-24V-3PHbetechnical.ca2026-09-22 | Motor Control Trainer MCT-24V-3PHVFD Power & Control Theory Short Coursebetechnical.ca2024-03-31 | FREE VFD COURSE ENROLLMENT COUPON BELOW This video outlines the content for our short course on VFDs. The course contains video lessons, assignments and quizzes. Test your basic knowledge of VFDs by enrolling in the course. Here is a link to a FREE enrollment (regular US 39.99)
Please view the video above before enrolling in the course!
What is covered: Generic terms that apply to all VFD manufacturers are covered. Wiring, programming and commissioning of different manufacturers are covered. In depth VFD setup is covered using professional drive commissioning software that is included free in the course. The student can follow along and adjust parameters using the software. Also included and demonstrated is VFD simulation software that replicates exactly the front panel buttons of a modern VFD. The student is walked through the steps of setting up a drive and important points learned over the years are covered. Periodic inspection and maintenance of VFDs and electric motors is covered. The tasks involved in maintaining and troubleshooting equipment are covered.

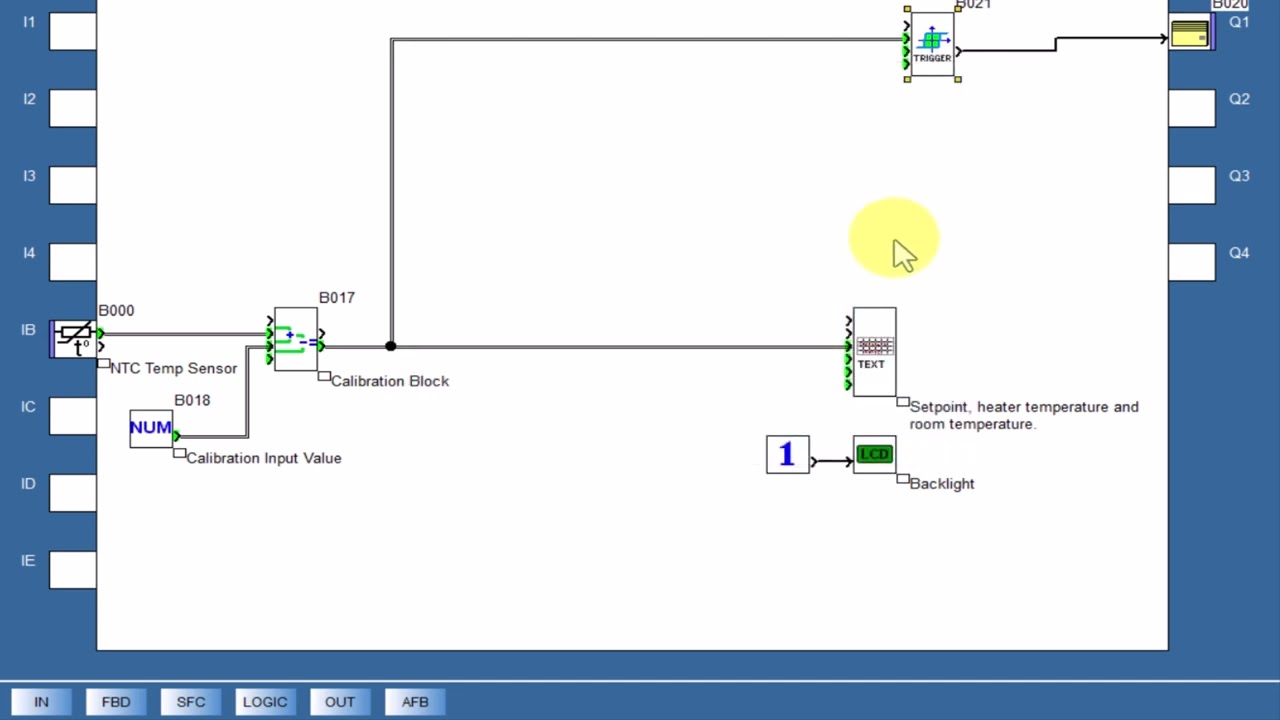

Other important information covered in the course include: Working safely with VFDs and the hazards associated with VFD commissioning. VFD power and control wiring. Line, load and DC link reactors. The DC bus. Sink & source wiring. VFD digital and analog inputs and outputs. VFD motor braking. Inverter rated motors. Motor turn down ratios. Basic VFD theory of operation. Basic Motor theory of operation. Constant torque and variable torque modes. Volts per hertz ratios. Pump & fan applications. Auto-tuning. VFD wiring schematics are explained and demonstrated with design software. 2-wire control transition and run at power up. 3- wire control with forward and reverse.SRT100 DAI+ Smart Relay Mini PLC Trainerbetechnical.ca2023-08-01 | An overview of our Smart Relay Training System used for instructing advanced electrical controls. The core controller is a low cost solution for many electrical control projects. Various manufacturers offer smart relays. Our Zelio based unit is backed up by free highly supported programming software. The unit can be programmed in ladder logic, function block diagram and sequential function chart. The latest software includes PID blocks, NTC temperature sensor inputs and updated USB drivers.On Off Heater Control with Temperature Differential Using Smart Relay PLC & 2 Wire NTC Sensorbetechnical.ca2023-05-15 | I demonstrate how to set up an on-off heater control circuit using a smart relay. I created a miniaturized heating circuit using inexpensive commonly available components. The heating circuit allows the setpoint to be adjusted. Also, differential temperature control is setup. Differential control prevents short cycling of heating and cooling systems. Short cycling wastes energy and shortens the life of equipment. The miniaturized heating system is demonstrated on our SRT100 DAI+ Smart Relay / PLC Trainer, used in Schools and Colleges.How to Connect an NTC Temperature Sensor to a Smart Relay PLCbetechnical.ca2023-05-10 | I demonstrate how to select, program and add calibration for an NTC temperature sensor connected to a Zelio Smart Relay (mini PLC). The smart relay operates at 24VDC. The NTC connects to an analog input and is configured in a pre-defined function block. I set up a display to show the measured value and show how to calibrate the sensors. system is demonstrated on our SRT100 DAI+ Smart Relay / PLC Trainer, used in Schools and Colleges. The setup is demonstrated on our SRT100 DAI+ Smart Relay / PLC Trainer, used in Schools and Colleges.MCT Cold Loop Check - Control Circuit Testing & Power Upbetechnical.ca2023-02-27 | I demonstrate how to test a basic electrical circuit to ensure that the circuit protective devices do not trip when the circuit is energized. An ohmmeter is used to check the resistance of the circuit when the circuit is operated cold. This type of test is called a cold loop test and can be used on many types of circuits in the field. The test is performed on one of our motor control trainer boards.MCT 24VDC 3PH Motor Control Board Overviewbetechnical.ca2023-02-25 | This is a short overview of the MCT 24VDC 3PH Electric Motor Control Training System. The different parts of the system are explained. An overview of working safely with the system is provided. Also, testing the motor overload protection relay is demonstrated.August 18, 2022betechnical.ca2022-08-18 | Testing 4 Amp ATDR class CC fuses protecting a 1/3 HP, Marathon 4 in 1, 3-phase, 3600 RPM induction motor. The motor is protected by an overload relay and is controlled with a reversing starter without an anti pugging timer.Harmonics in Electrical Systems Online Coursebetechnical.ca2022-03-21 | Harmonics in Electrical Systems Online Course
This is not a power engineering course. This course is designed for practical applications - (troubleshooting & maintenance of systems) and harmonic mitigation solutions for individual loads. An overview of IEEE 519-2014 will be provided. IEEE 519-2014 sets goals for designing electrical systems that contain both linear and non-linear loads
Having an overview of IEEE-519-2014 will help you when working with Companies that may be installing system wide harmonics mitigation equipment in your facility.
This course is designed to help Electricians, Maintenance Technicians and Facility Managers understand the cause and effect of harmonics on electrical systems. Electrical trouble-shooters will find this course useful and will be a great addition to their troubleshooting tool kit.
The course explains how harmonics are created in an electrical system and lists the type of loads that cause harmonics. Information is presented in a simple concise manner without complicated mathematics. Simple methods for identifying and isolating harmonic causing loads are covered. Basic information along with the following are covered throughout the course:
Linear and Non-linear loads are discussed, and the importance of auditing loads is stressed, for the purpose of troubleshooting systems.
Current and voltage harmonics are explained and demonstrated using measuring instruments.
Total harmonic distortion and components that make up that distortion are explained. Distortion on current waveforms and the relationship between voltage distortion is explained.
Harmonic components that make up a distorted signal are broken down to individual harmonics.
Positive and negative sequence harmonics are discussed and the effects of these harmonics on electric motors is stressed.
Triplen harmonics are explained along with the hazards that they pose on electrical distribution systems.
K factor transformers are covered along with troubleshooting problems caused by harmonics.
Harmonic analyzers, industrial scopemeter and hand-held instruments are discussed in this course.
Passive and active filters used to minimize harmonics are discussed.PowerFlex 525 & Connected Components Workbenchbetechnical.ca2022-02-08 | This is a quick overview of using Rockwell Automation Connected Components Workbench (CCW) to configure a PowerFlex 525 drive. I demonstrate some of the software capabilities, including operating the drive from the software.Electric Motor Control Trainer System MCT 24V 3PHbetechnical.ca2022-01-21 | This video briefly outlines our Electric Motor Control Trainer System that is used in Trade Schools, Colleges and Public Companies to develop skills in electric controls and across-the-line motor starting.
Here is a link to our website contact page: betechnical.ca/contact Here is a link to a brochure with additional information about the trainer: https://www.betechnical.ca/wp-content...

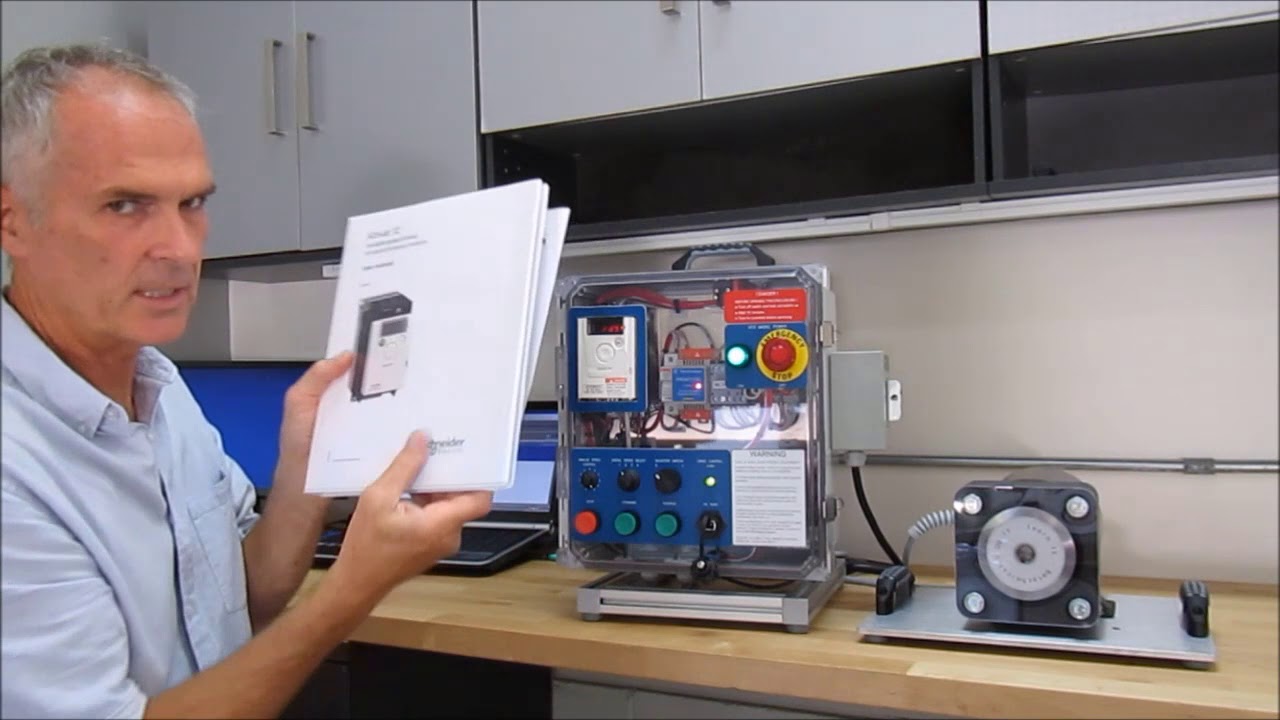

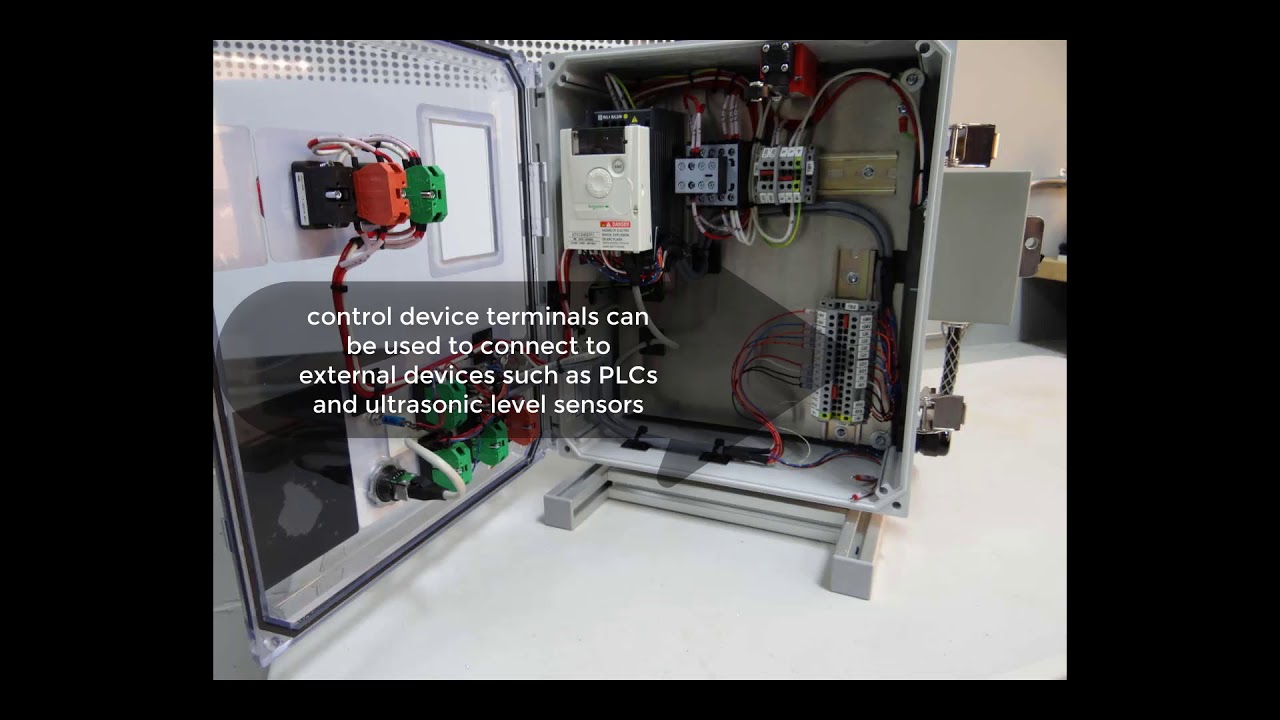

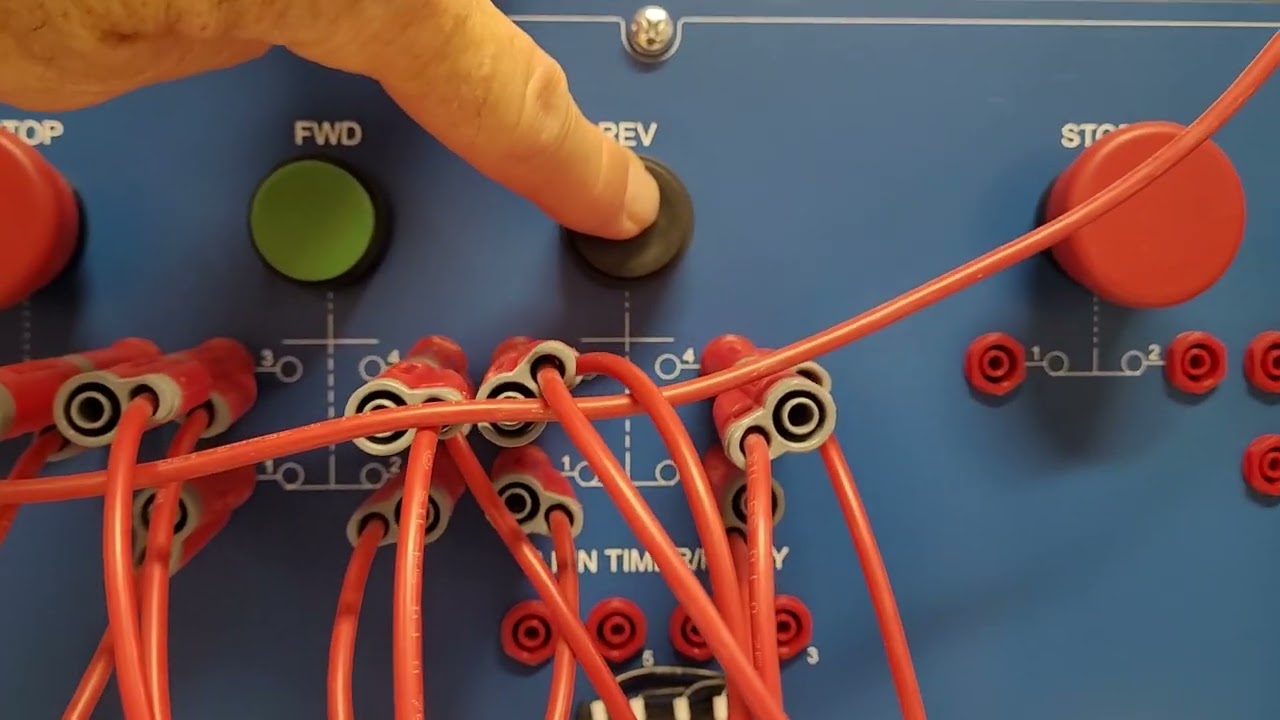

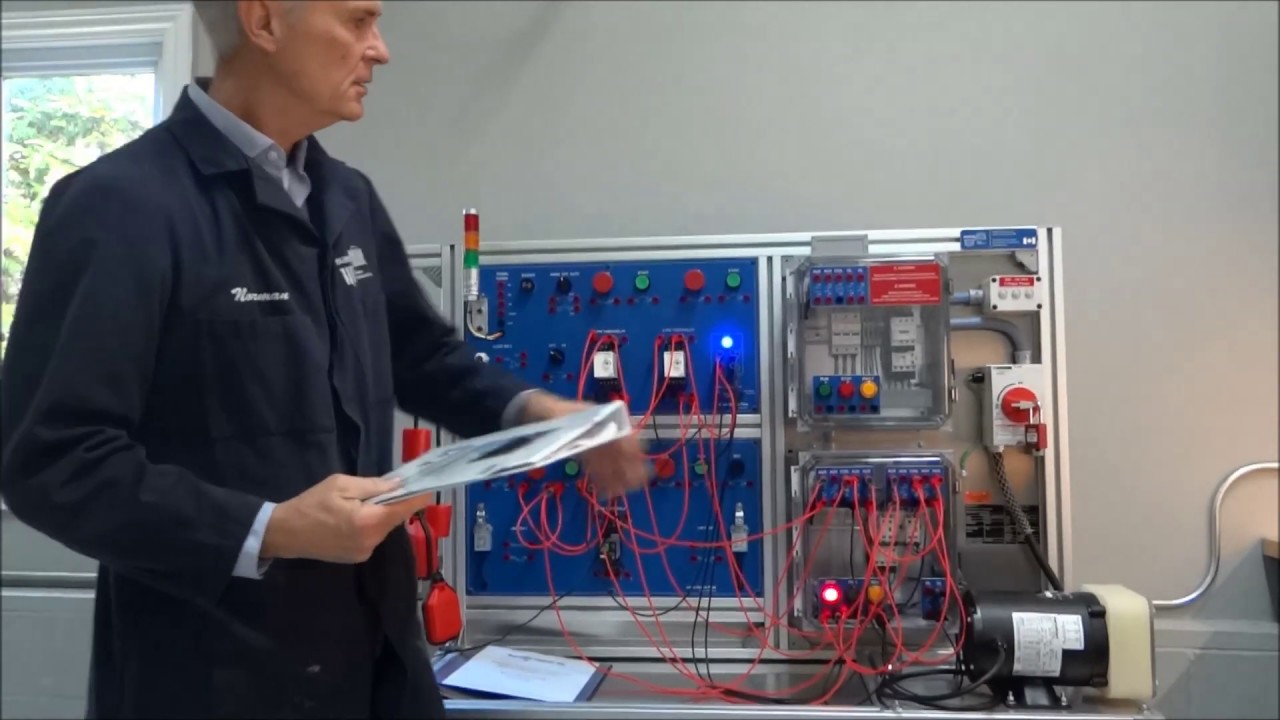

Description Basic to advanced low voltage motor control circuit design, wiring and testing. Safe reliable Class2 24V control voltage supply. Multifunction timers, contact relays, liquid level switches, limit switches, selector switches and multiple push buttons. Non-reversing and reversing motor starters with low voltage coils, adjustable overloads with test and trip function.

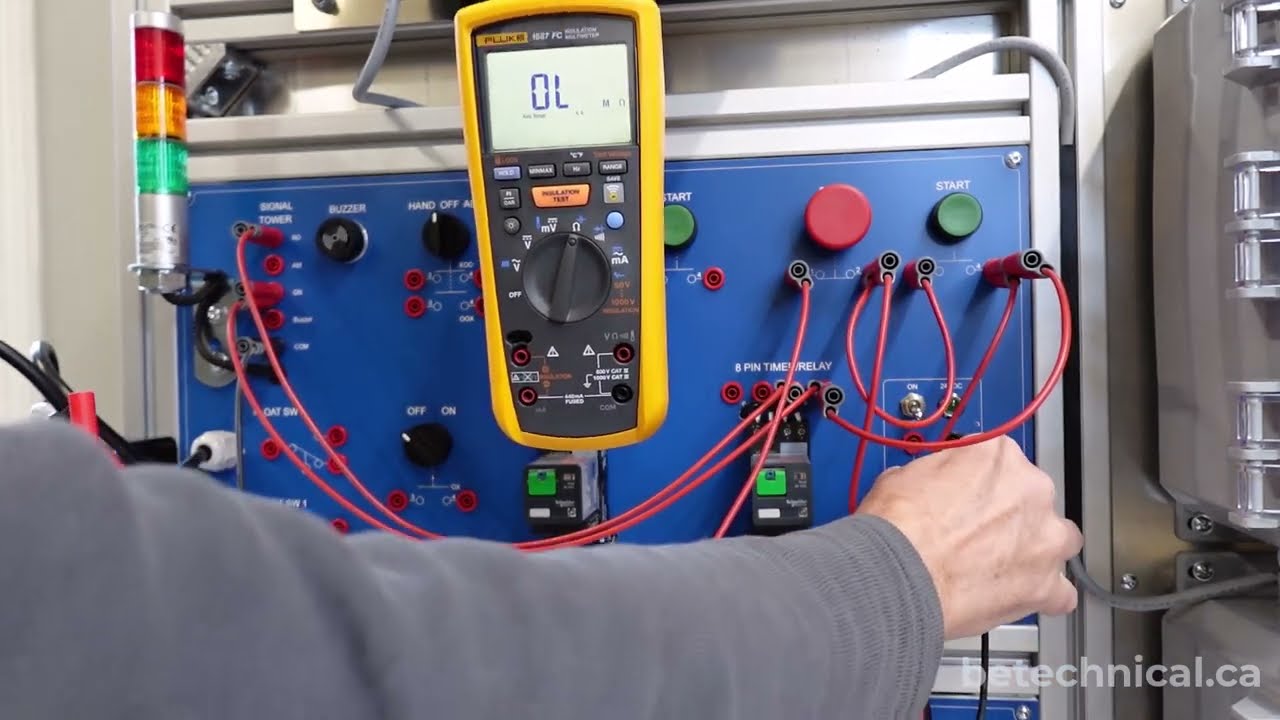

MCT Training Course Outline: Industrial motor control component hardware familiarization exercise. Industrial control system schematic reading and system wiring. Control system set-up and commissioning. Measure motor inrush current & running current and set-up motor overload protection devices. Troubleshoot motor overload tripping. Surge and transient suppression in industrial motor control circuits (Immunity and Emissions). 2-wire control & 3-wire control circuits wired and tested. Liquid level control system wiring - Pump up & Pump down, Hand-off-Auto, Differential level control (sump filling and sump emptying). Reversing motor starter control wiring using mechanical and electrical interlocking. Reversing starter push button control and selector switch control for reversing starters. Position control using overtravel limit switches in reversing starters. Control relay & timing relay coil, contact and socket pinout exercise. Industrial control relay circuit design and applications. Read and apply timing charts to industrial control applications. TON & TOFF delay circuit design, wiring and set-up. Sequential blower start-up and shut down control using TON and TOF timer functions. Symmetrical flasher alarm circuit applied in liquid level control circuit. Combined control relay and timing relay exercises. Motor control pilot device wiring, testing and troubleshooting using a schematic diagram. Troubleshoot wiring and system faults using electrical testers and trade knowledge gained during motor control training.
Learning Outcome Upon successful completion of this course, a participant will have gained practical knowledge and experience in identifying, wiring, setting up and troubleshooting common industrial motor control systems, including; control relay circuits, TON, TOFF & timer flashers, 2-wire & 3-wire control, pump up and pump down, hand off auto pump control, reversing starter control, limit position, mechanical & electrical interlocking and motor overload protection.SoMove Basic Function Overviewbetechnical.ca2021-11-02 | A basic overview of some of the commonly used functions in Schneider Electric SoMove is shown in this video. Basic parameter groups are shown, along with the operate and monitoring window tab.Connecting to ATV12 Drive With a USB-RJ45 Cable and SoMovebetechnical.ca2021-10-26 | I show how to connect to an ATV12 VFD using the Schneider Electric SoMove drive setup software and a USB to RJ45 connection cable.

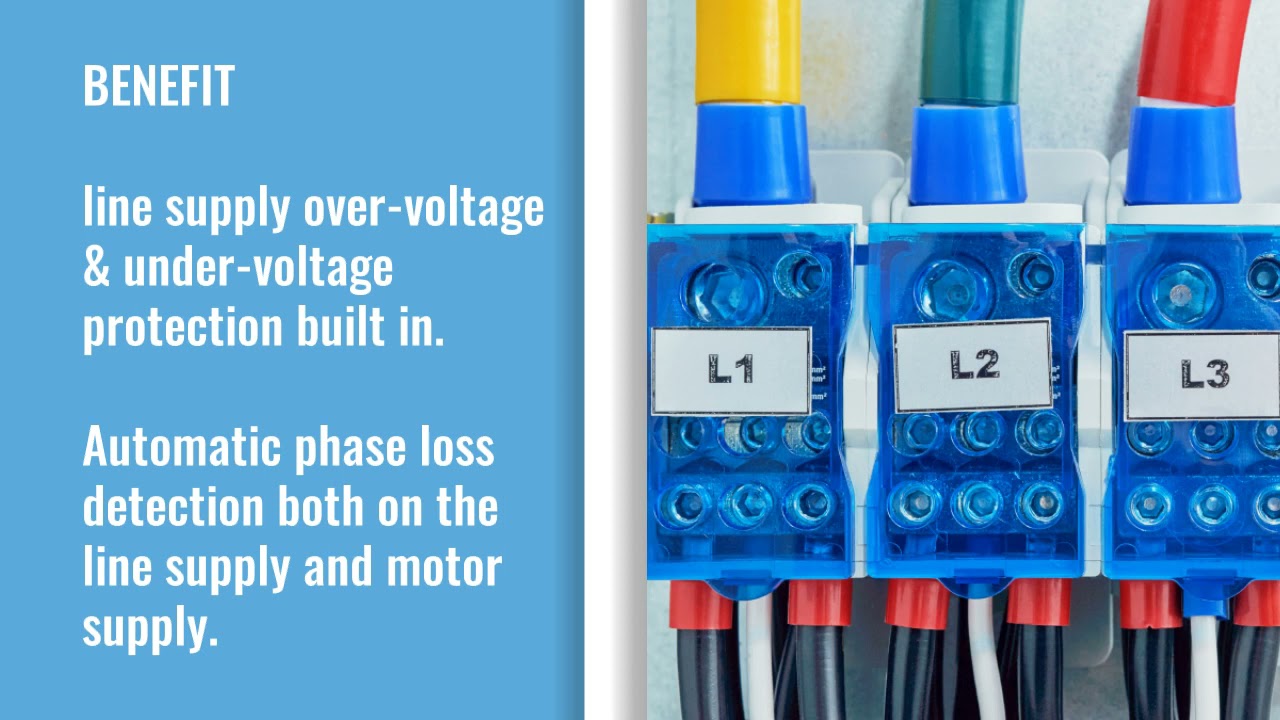

The part number and description of the cable is below: Schneider Electric TCSMCNAM3M002P Connection cable USB/RJ45 - for connection between PC and driveWhat are the Benefits of Using Variable Frequency Drivesbetechnical.ca2021-10-03 | The benefits and some drawbacks of using variable frequency drives (VFDs) is discussed in this video. This training video is a small snippet of an in-depth online course that covers all aspects of using VFDs to control electric motors. Comment and ask for a coupon for 50% off the regular price of the full course.

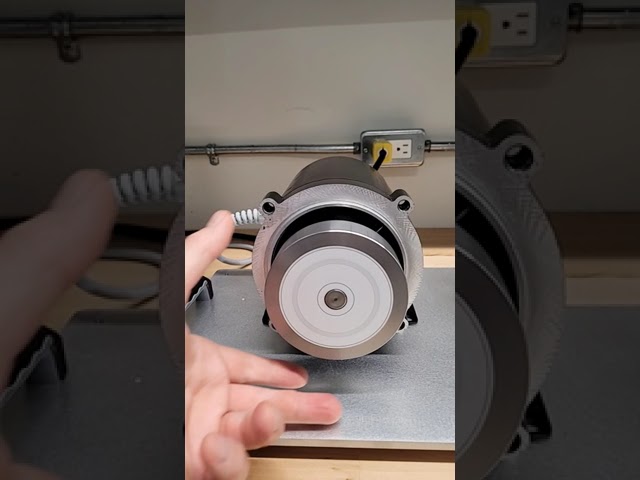

Here is a link to preview all course material: udemy.com/course/variable-frequency-drives-wire-setup-troubleshoot/?referralCode=0A06B3FBB2753793CD42What is DC Injection Braking on a VFD?betechnical.ca2021-08-11 | VFD DC injection braking can be used to quickly stop a 3-phase induction motor. The drive applies DC to two of the windings of the motor which causes a spinning rotor to slow down as it rotates through the stationary magnetic field. The magnetic field produced in the rotor bars is opposite to the stationary field. Some VFDs only use DC injection at a standstill, this prevents the rotor from freely spinning. This video is a sample of my VFD online training course. For information, please visit: udemy.com/course/variable-frequency-drives-wire-setup-troubleshoot/?referralCode=0A06B3FBB2753793CD42ATV12 VFD Injection Braking at a Standstill #shortsbetechnical.ca2021-08-11 | This is a snippet from my Variable Frequency Drive course. It shows how a VFD uses DC injection braking at a standstill to prevent the rotor of an induction motor from spinning freely.
For information, please visit: udemy.com/course/variable-frequency-drives-wire-setup-troubleshoot/?referralCode=0A06B3FBB2753793CD42VFD Monitoring Parameters for Troubleshooting and Maintenancebetechnical.ca2021-08-11 | I show how to use the ATV12 monitoring mode to view VFD monitoring parameters. This technique is useful in troubleshooting and maintaining variable frequency drives and motor systems. This video is a sample of my Variable Frequency Drive Course that is delivered online.
Leave a comment and ask for 50% off and I will send you a reply with a discount coupon.
This video briefly introduces a VFD course that I have recently published online. It's an extensive course that begins with basic VFD applications and theory, and finishes with maintenance and troubleshooting.How to Use The Scope in SoMove Schneider Electric Drive Commissioning Softwarebetechnical.ca2021-07-15 | I demonstrate some of the features in the Scope function found in SoMove drive software by Schneider Electric. I capture traces from a running drive. The Scope function is powerful and fun to use.
This video is one of many videos from our on-line VFD training course. The course will be released to all soon.VFD Regen Diodes and the Brake Chopper Circuitbetechnical.ca2021-03-13 | I demonstrate power flow from a motor that is generating energy back to the inverter section of a variable frequency drive. The energy is returned to the DC bus. When the DC bus voltage level peaks out, the energy is sent to a braking resistor. A brake chopper circuit is simulated using NI Multisim.How a 3 Phase Pulse Width Modulation (PWM) VFD Inverter Works Simulationbetechnical.ca2021-03-13 | Variable Frequency Drives - Wire / Setup / Maintain & Troubleshoot VFD Online course. Comment and I'll send a coupon for 50% off.
I construct a 3 phase inverter in NI Multisim and demonstrate the operation using oscilloscopes connected to the inverter output. I explain how the IGBT gates are controlled by a PWM sinusoidal controller. Switching frequency and modulation frequency are explained.Single Phase Inverter Simulation Using Insulated Gate Bipolar Transistors IGBTsbetechnical.ca2021-03-13 | This video shows a simulation of a single phase inverter using IGBTs. I explain how the IGBTs are controlled using a digital clock pulse set to a 50% duty cycle and a clock frequency of 60Hz. The timing of the clock pulse is adjusted to control the positive and negative alternation. The circuit is built and simulated using NI Multisim.Single Phase Inverter Simulation Using Mechanical Switchesbetechnical.ca2021-03-13 | I build a simple DC to AC inverter using NI Multisim. I use single pole switches to control power flow through the connected load. The applied voltage at the load is shown on an oscilloscope. In the next video I build an inverter simulation using insulated gate bipolar transistors - IGBTs.3 Phase AC to DC Rectifier and DC Bus Filteringbetechnical.ca2021-03-10 | I explain the power flow through the front end or converter section of a variable frequency drive. Current flow through the power diodes is shown. DC bus capacitive filtering and the commutation choke is explained. AC input waveforms and the resulting DC output trace is shown on an oscilloscope.VFD or Inverter Drive Power Component Schematicbetechnical.ca2021-03-10 | This video shows the main power component sections of a variable frequency drive or "inverter drive". I break down the main sections of the drive and briefly explain the function of each section.Understanding Single Phase Rectifiers - Single Phase Full Wave Bridgebetechnical.ca2021-03-08 | This video shows how AC current is converted to DC current. Filtered and unfiltered voltage is shown on an oscilloscope and the current flow through the rectifier diodes is explained in simple terms. Single phase full wave bridge rectifiers are shown in the video. Conventional current flow is used to explain the circuit operation. National Instruments Multisim is used to build and simulate the circuits.Schneider Electric ATV12 3 Wire Controlbetechnical.ca2020-09-15 | This video is a sample of my comprehensive VFD online course. Click on this link to view more sample material. udemy.com/course/variable-frequency-drives-wire-setup-troubleshoot/?referralCode=0A06B3FBB2753793CD42

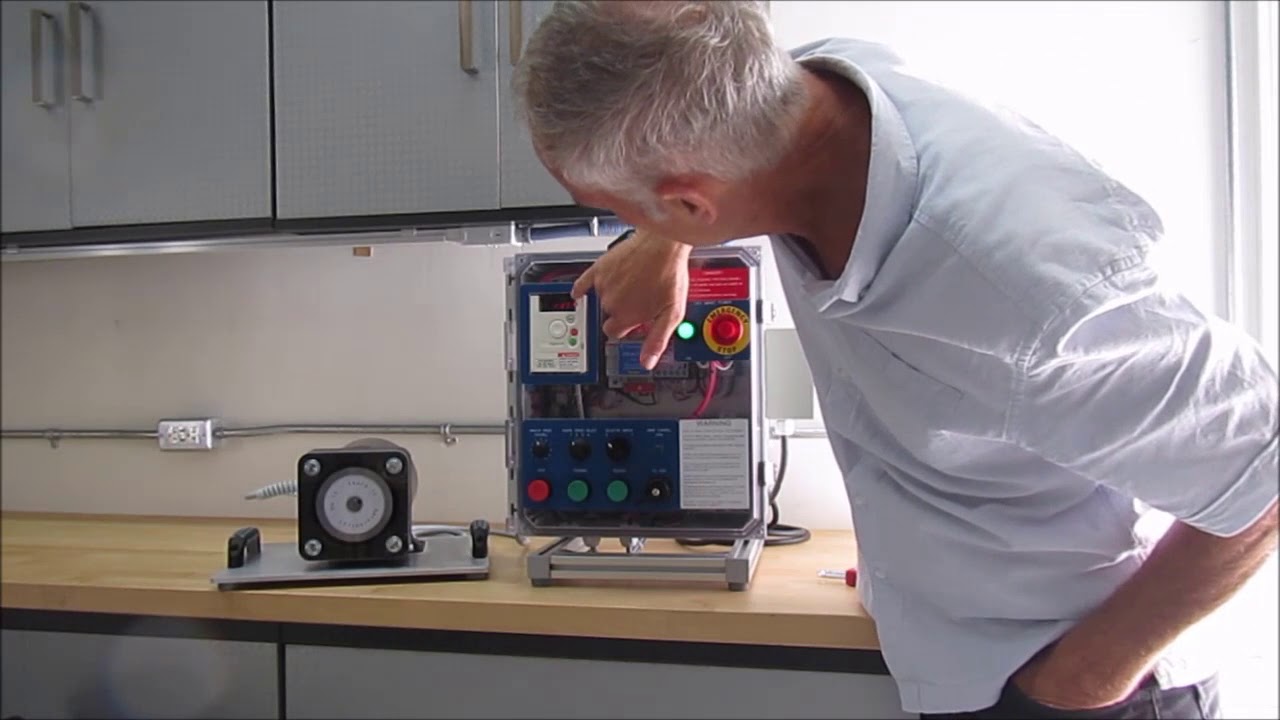

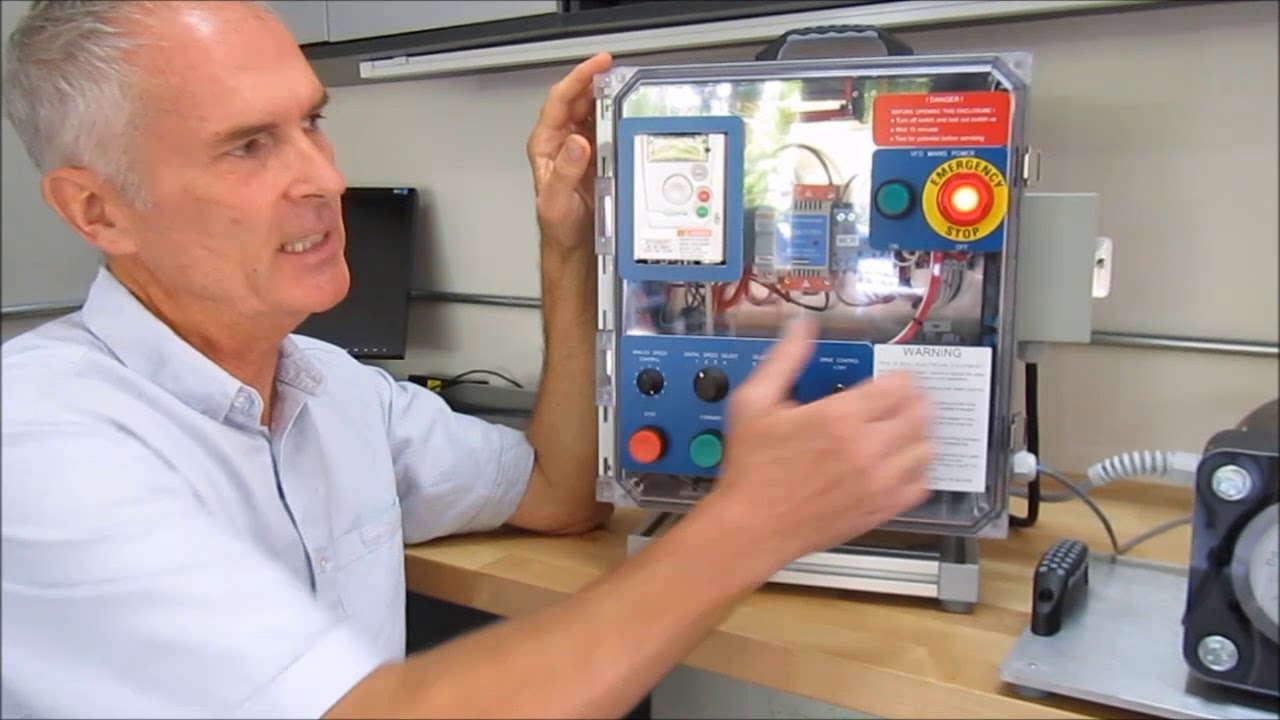

This video describes how to connect a Schneider Electric ATV12 VFD to operate in 3-wire control mode in both forward and reverse directions. It also describes how to connect a potentiometer to be used as a speed reference.ATV12 Sink & Source Wiring Explainedbetechnical.ca2020-09-08 | In this video I draw two different control configurations, one using source wiring and one using sink wiring. I go over the connections first in the Schneider Electric ATV12 User Manual.Variable Frequency Drive Line Power & Motor Output Wiring Schneider Electric ATV12betechnical.ca2020-05-29 | Introduction of basic wiring of 120 volt variable frequency drive. Electrical safety hazards, wiring methods, fuse and circuit breaker requirements are discussed. A short demo on how to run the drive without control devices is also shown. A demonstration on parameter setup will be shown in the next videos.Understanding 3 Phase Powerbetechnical.ca2020-05-12 | This Multisim demonstration helps in understanding 3-phase power by creating a 3-phase WYE system from separate single phase power sources.ADVANCED METERS 3 TUTORIALbetechnical.ca2020-05-12 | This tutorial demonstrates how to use a 4 channel oscilloscope in Multisim. A 3-phase half wave rectifier is constructed and tested with the oscilloscope. The 3-phase have wave rectifier is not widely used in industry, but is helpful, when studied, in understanding 3-phase full wave rectifiers.ADVANCED METERS 2 TUTORIALbetechnical.ca2020-05-12 | How to use a 2 channel oscilloscope to measure current and voltage in resistive, inductive and capacitive AC circuits.ADVANCED METERS 1 TUTORIALbetechnical.ca2020-05-12 | How to use a 2 channel oscilloscope in Multisim.BASIC METERS TUTORIALbetechnical.ca2020-05-12 | How to build basic circuits and use simple electrical meters in Multisim.MULTISIM SETUP TUTORIALbetechnical.ca2020-05-12 | Multisim basic setup tutorial used for creating and testing electrical circuits.MCT 24VAC 3PH INTRObetechnical.ca2019-11-03 | This is a basic overview of our motor control training unit. The safety features are highlighted along with some of the control scenarios that are covered in the workbooks. A reversing starter project with anti-plugging timers is also demonstrated.VFID T120V BR VIDEO 6 - Main Variable & Fixed Speed Pumpbetechnical.ca2019-08-11 | This video demonstrates one of our integration labs that interfaces two drive units together. A main variable speed pump tries to maintain water pressure in a water delivery system. When demand can not be supported by the main variable speed pump, a fixed speed auxiliary pump is energized to boost the pressure.VFID T120V BR VIDEO 5 - Braking Methodsbetechnical.ca2019-08-11 | In this video motor braking methods are explained. Two methods are demonstrated, ramp adaptation and dynamic braking with the use of a braking resistor and braking control module.VFID T120V BR VIDEO 4 - 3-Wire Control Low Voltage Protectionbetechnical.ca2019-08-11 | In this video we explain the importance of using 3-wire control or low voltage release to protect the operator and the equipment on resumption of power after a failure in the mains or circuit trip.VFID T120V BR Video 3 - 2-Wire Control & Catch a Spinning Loadbetechnical.ca2019-08-11 | This video explains how to set-up a VFD in low voltage release or 2-wire control mode. VFD operating behavior after a power failure is explained and set-up. Catch a spinning load or catch on the fly is also explained and set-up.VFID T120V BR Video 2 - Local Control Mode & Motor Parametersbetechnical.ca2019-08-11 | This video explains the importance of entering the correct motor parameters and how to run the drive in local mode. Local mode allows control of the drive without using any physical hard-wired control devices.VFID T120V BR Video 1- Turning On Mains Power and the DC Bus LEDsbetechnical.ca2019-08-11 | This video demonstrates turning on the mains power to the drive and explains the function of the DC bus charge LEDs.VFID-T120V-BR Variable Frequency Drive Trainer Unit Introductionbetechnical.ca2019-08-11 | This is a basic hardware overview of the VFID-T120-BR variable frequency drive training unit offered by betechnical.ca. The trainer is supplied with student workbooks and learning resource material. Numerous drive projects are set-up such as: 2-wire control, 3-wire control, analog speed control, digital speed select, braking, catch a spinning load, main and auxiliary pump and all aspects of VFD maintenance and troubleshooting. The drive trainer can be programmed manually or by using a user friendly VFD setup up software program.Degator Machine Reworkbetechnical.ca2019-01-29 | ...M221 PLC Trainer System Bits & MCRbetechnical.ca2019-01-04 | ...VFID T120V 2018betechnical.ca2018-11-25 | Our newly redesigned VFD Motor Control Trainer. The new unit is lightweight and portable. It can be shipped with an optional braking resistor and control module.Mini PLC Automation Trainerbetechnical.ca2017-12-11 | This mini automation trainer is a powerful tool for instructing basic automation programming, system commissioning, and automation development. The workbooks include hardware familiarization, wiring, IO testing and simple to advanced automation exercises. This is also a perfect trainer to introduce five rung PLC programming.Conveyor and Punch Machine Training Unitbetechnical.ca2017-11-30 | This is a quick video demonstrating one of the programming exercises involved when training on our new Conveyor and Punch Machine Trainer. The exercises start off fairly basic and build upon each other until fully automatic mode can be programmed and set up.

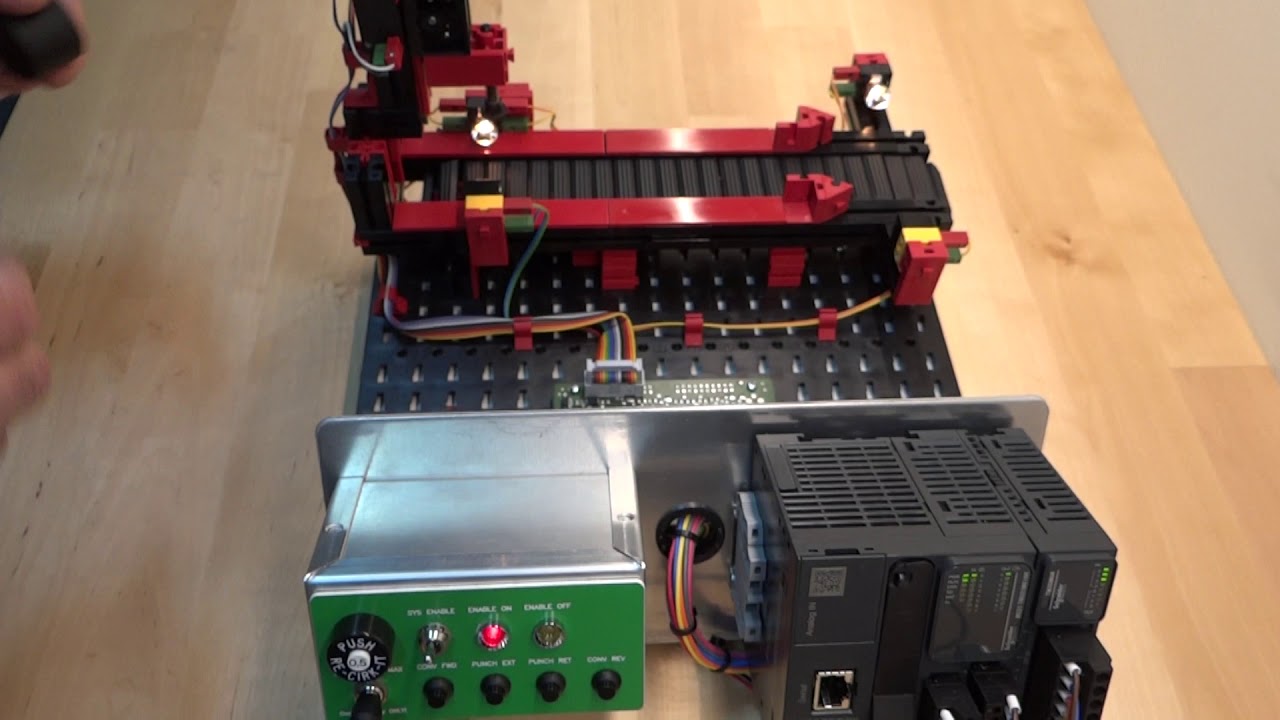

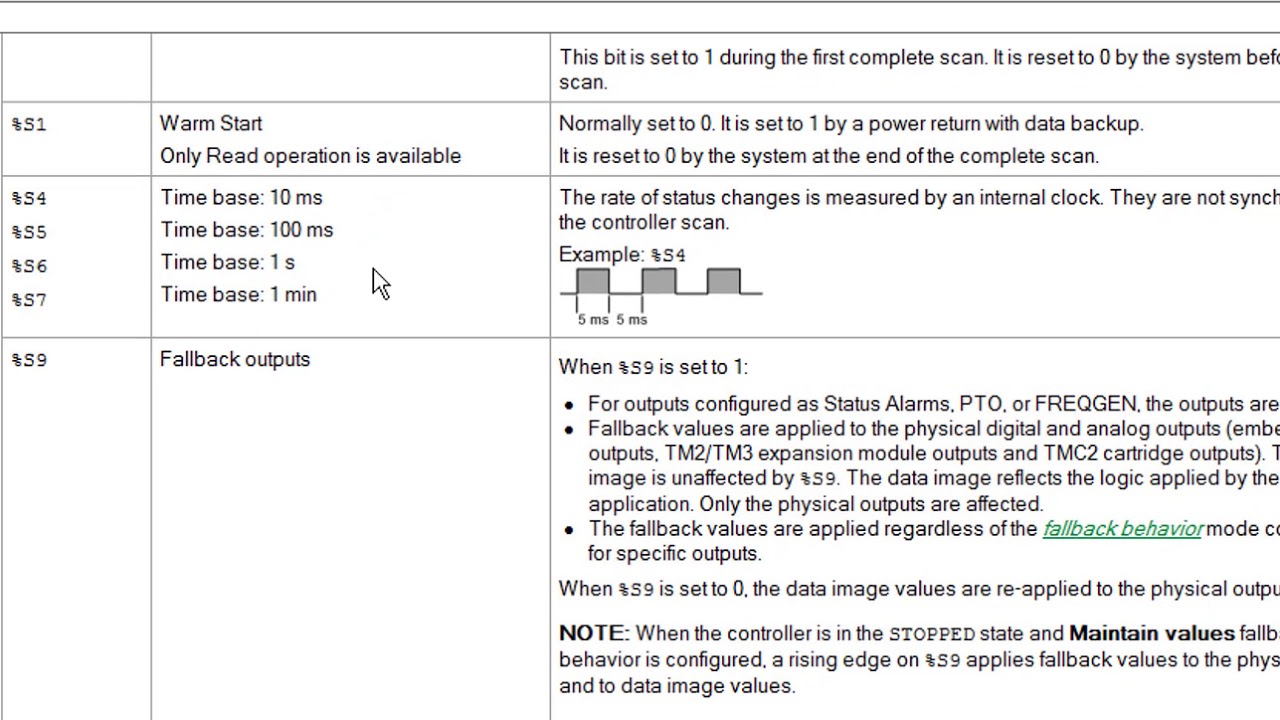

This model is shown with a Schneider MODICON M221 PLC which is an incredibly user-friendly PLC. Our preference is the Modicon M221 PLC however, we can build this trainer with any model Smart Relay or PLC. We provide workbooks and Instructor solution labs.M221 PLC Trainer MCRbetechnical.ca2017-04-28 | This video is the third in a series of videos to accompany our new Modicon M221 PLC training hardware. The video demonstrates the use of basic programming functions and how to program an MCR. The video also demonstrates the application of the rising edge on an input. The rising edge prevents a button from being held against a reset or trip.
