Michael Faradays 1st motor from 1821 Nates Garage 2021-06-13 | This is a working model of Michael Faraday's 1821 Electric Motor.
Anaglyph Theory - Threads of information stitch the fabric of spacetime. Nates Garage 2024-10-31 | Explore a personal science theory that combines quantum information and the geometry of spacetime to redefine our understanding of physical reality. Discover a new theoretical equation for quantum gravity that could change the landscape of physics.Additional details: https://anaglyph.site
Twisted Torch Nates Garage 2024-01-14 | - Continuous rotation servo motor- EL wire- Electrical slip ring
Neodymium magnet floating on mercury Nates Garage 2023-01-01 | WARNING: Please do not attempt! Liquid mercury alone can be hazardous to your health but heated mercury fumes are very deadly.- Copper inner electrode & outer ring- Shorted 12V/8A NiMH battery
EM Induction Launcher Nates Garage 2022-12-23 | High Voltage DC Induction Launcher- ZVS Driver (12V/8A to 500V/?A)- Single Cap (630V/4,700uF)- Coil (36 turns of insulated 12-AWG solid copper)
Plasmatazz! Nates Garage 2022-08-06 | More high-voltage fun!Demo of the Lorentz force with 10,000V DC and a 6" ring magnet 🧲
Plasmaelstrom Nates Garage 2022-07-19 | Plasma + Maelstrom = Plasmaelstrom?Testing my new ZVS Driver / Flyback Transformer setup with some cool high-voltage arcs in a magnetic field.

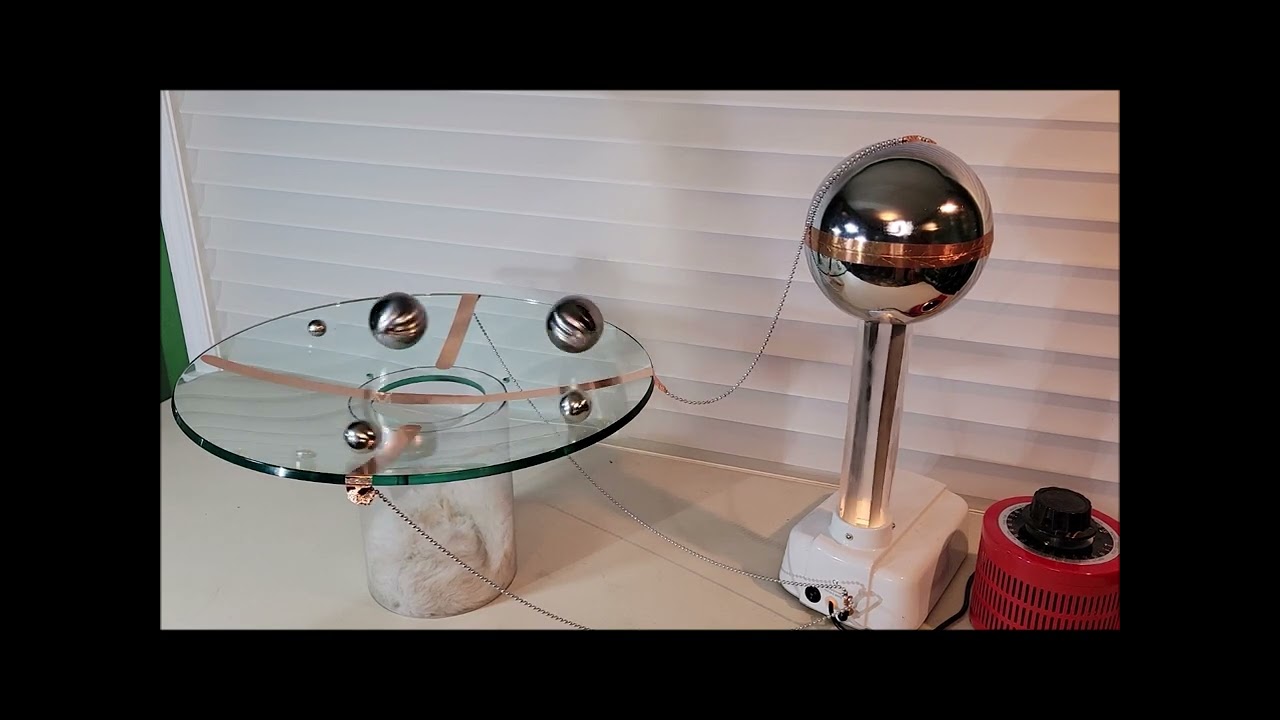

Ball Cyclotron powered by Van de Graaff Nates Garage 2022-05-03 | A static-electricity machine continuously pushing/pulling steel balls around in a circle.
Magnetic Oxyhydrogen (HHO) Generator Experiment Nates Garage 2021-06-12 | Oxyhydrogen production experiment (aka Brown's Gas / HHO generator). This is an HHO generator combined with a Homopolar motor to see if the magnetism combined with the motion through a liquid will wick away gas bubbles. There's a 3" neodymium ring mag inside a 6" neodymium ring; the nickel plating on the magnets serves as the anode/cathode. There's a saltwater solution contained between the magnets. The test power source was a 12V/10A NiMH battery.

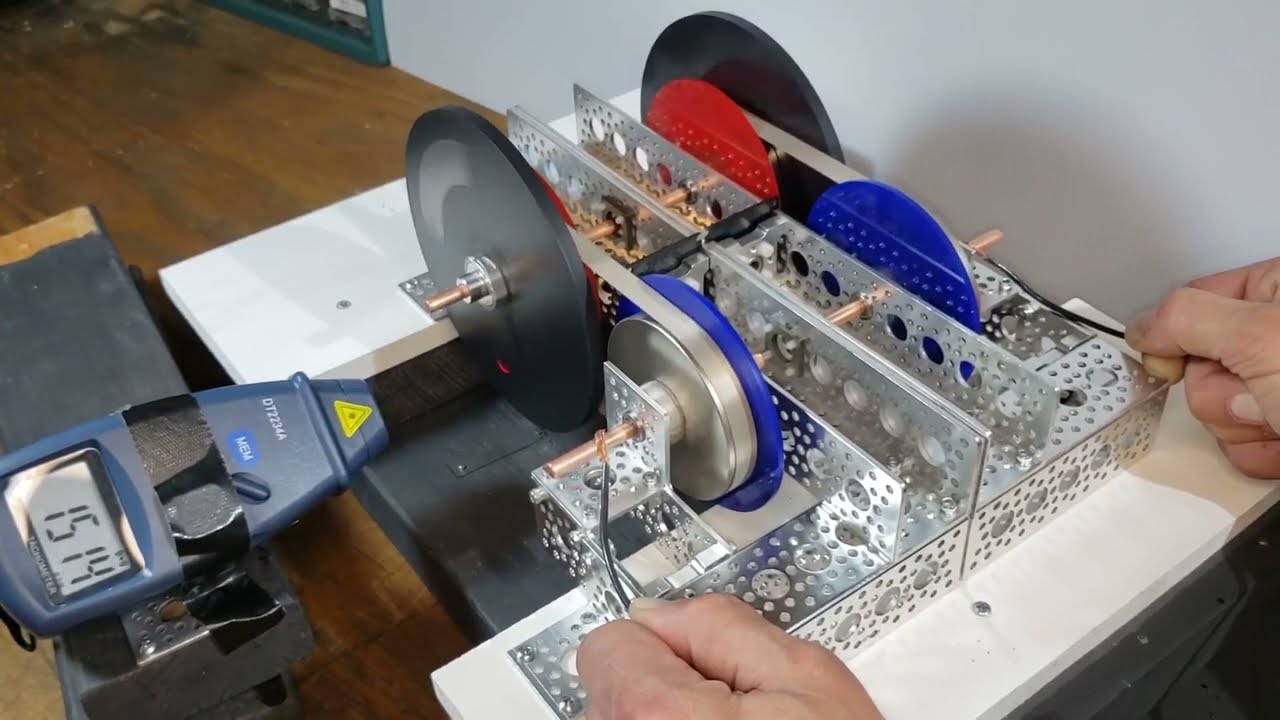

Homopolar Motor - Teslas Unipolar Dynamo (Patent No. 406,968) Nates Garage 2021-05-14 | This is a working model of N. Tesla's 1889 Dynamo Electric Machine (Patent No. 406,968), with a few small modifications.patents.google.com/patent/US406968A/enThis type of motor goes by many different names including Faraday's Disc, Acyclic, Unipolar, Homopolar Dynamo/Motor.The power supply is 12V/8A DC.More Info:- Four neodymium ring magnets (3" OD, 1/4" ID, 1/2" Thick)magnet4less.com/rare-earth-ring-magnets-3-in-od-x-1-4-in-id-x-1-2-in-neodymium-n42- 1/4" copper rod as the conducting shafts- The conductive belt material connecting the magnets together is "Faraday Tape", it's a very flexible conductive material. I stuck two strips together using the sticky side, so the outside is just a flexible belt-like material.Notice that the bottom copper axle is not connected in the middle, only the top axle is a full shaft that connects two magnets together.The colored acrylic discs indicate the magnetic pole direction. The two magnets with blue on the interior have South poles facing inward; the red indicates North poles facing inward. The black ABS plastic discs on the exterior prevent the belt from falling off.The framing is made of aluminum channeling but it is important to electrically insulate each rotating magnet from the conductive frame, you can see thin strips of plastic between the main aluminum supports, in both the x/y directions. The only conductive connections touching the magnets should be the copper rods and the conductive tape/belt.How a homopolar motor works:en.wikipedia.org/wiki/Homopolar_motor
