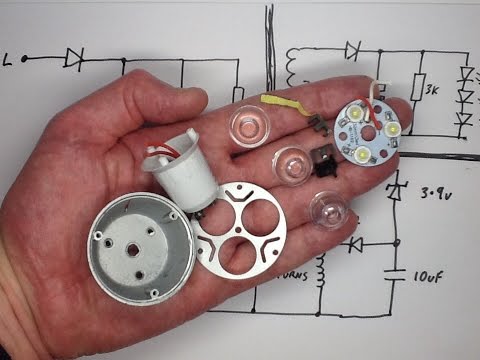

Total teardown and schematic of the Poundland GU10 LED lamp.

bigclivedotcom 2026-09-20 | Total teardown and schematic of the Poundland GU10 LED lamp.

Brake fluid moisture tester (with schematic)

bigclivedotcom 2024-10-20 | Your car's braking system uses hydraulic pressure to activate the pistons that push the brake pads against the rotors. It's important that the fluid is routinely checked for progressive moisture absorption, as the fluid is usually glycol based and very hygroscopic.

Water contamination of the glycol can result in a lower boiling point and liberation of bubbles of gas in use. That gas is more compressible than liquid, so it can make the brakes less effective.

This tester can be dipped into the brake fluid reservoir to give an instant indication of the fluid's condition, by measuring its electrical conductivity.

This unit used very different circuitry than I was expecting. It took a surprising amount of time to reverse engineer it. The unit claims to be suitable for DOT3, 4 and 5 brake fluid, although DOT 5 is actually oil based. I wonder if they mean DOT5.1 which is glycol based.

On closer examination, the markings on the side are a measurement scale in mm. Maybe to indicate depth in the liquid.

If you enjoy these videos you can help support the channel with a dollar for coffee, cookies and random gadgets for disassembly at:- bigclive.com/coffee.htm
This also keeps the channel independent of YouTube's algorithm quirks, allowing it to be a bit more dangerous and naughty.

#ElectronicsCreators

Power tool battery level indicator for 5 cell packs

bigclivedotcom 2024-10-18 | Although intended for power tools, this module will also be useful for equipment with 5-cell lithium battery packs, commonly referred to as 18V batteries or sometimes 21V batteries.

The circuitry is very basic, with just four LEDs with resistors and zener diodes in series with them so they light at vague thresholds, and a small MOSFET with simple timer circuit to hold the display lit for a few seconds after the button is released.

For a specialist application you could swap the zener diodes for custom thresholds.

As supplied, the LEDs light up at the following thresholds:-

1 = 2.5V and above. It just has a resistor in series with the LED.
2 = 17.5V and above. That equates to an individual cell voltage of 3.5V. (10-20% charge)
3 = 18V and above. That equates to an individual cell voltage of 3.6V (30-40% charge)
4 = 19.3V and above. That equates to an individual cell voltage of 3.9V. (75% and above)

Because the voltage across the zener and LED will vary with current, there is a slight ramp of intensity with voltage at each threshold.

These modules are compatible with some generic Chinese power tool batteries, but in some cases the blanking plate where they go is actually moulded into the plastic.

If you enjoy these videos you can help support the channel with a dollar for coffee, cookies and random gadgets for disassembly at:- bigclive.com/coffee.htm
This also keeps the channel independent of YouTube's algorithm quirks, allowing it to be a bit more dangerous and naughty.

#ElectronicsCreators

Simple USB LED panel for adding light anywhere

bigclivedotcom 2024-10-16 | This is quite a handy little panel. It would be perfect for adding a splash of light in the back of equipment where a spare USB connection was available, or with a spare charger as a power source.

Even the biggest panel has a fairly low power rating of 2.5W. But that still provides a useful level of light. The LEDs are also being used well within the current rating, and the resistors are not being stressed either.

The style of the PCB also means it could be retrofitted into an outdoor floodlight casing for off-grid applications where a low level floodlight is needed.

If you choose to solder wires directly to the panel, it will need preheated first to make soldering easier, as it is an aluminium core PCB.

I got this from AliExpress for about $1. It was part of their "choice" range that gives free shipping when the goods total is above $10.

Here's the listing I got it from, but note that you can usually find other sellers if this one hikes the price up.
aliexpress.com/item/1005006401939984.html
Note that when they say "8 pcs" they mean the number of LEDs and not the number of complete PCBs you will receive.

If you enjoy these videos you can help support the channel with a dollar for coffee, cookies and random gadgets for disassembly at:- bigclive.com/coffee.htm
This also keeps the channel independent of YouTube's algorithm quirks, allowing it to be a bit more dangerous and naughty.

#ElectronicsCreators

Inside a Chinese aroma atomising unit

bigclivedotcom 2024-10-14 | A fairly attractive variant on the chemical air aromatizers often called air fresheners. More suited to masking bad odours than getting rid of the base problem. This one has a very futuristic design and pleasingly minimal control PCB.

The best bit of the listing was when it said the unit could be used to "impress your friends and make them smell very good when they visit."

As with the high profile Air Wick units, this one also has an oil based excipient (carrier) for the aroma chemicals. The base for these seems to be related to low odour kerosene.

The method of dispersion is ultrasonic atomisation via a lithium cell powered drive circuit and piezo atomising disk. The unit can be recharged with a micro USB cable, and has a few modes with different time delays between each burst of aroma, or the ill advised continuous mode.

This is exactly what I was talking about when I said that the Chinese manufacturers would make their version of the Air Wick Mist with an absolutely minimalist design. I doubt you could get more minimalist than this.

When it arrived the aroma bottle had a cap and foil seal, but the wick was supplied separately. The neck of the bottle did not fit into the unit at all until it had been filed down in size to fit.

If you enjoy these videos you can help support the channel with a dollar for coffee, cookies and random gadgets for disassembly at:- bigclive.com/coffee.htm
This also keeps the channel independent of YouTube's algorithm quirks, allowing it to be a bit more dangerous and naughty.

#ElectronicsCreators

Naomi Wus Nukit 222nm sterilising excimer light

bigclivedotcom 2024-10-11 | This is not a sponsored video. I feel it's important that people should know about this evolving technology, and Naomi is working on making it affordable.

During the pandemic YouTuber Naomi Wu presented plans for traditional mercury vapour based UVC sterilising lights with a special housing, to sterilise air in a room without exposing the occupants to the 254nm UVC light.

With the evolution and availability of the new era 222nm excimer lamps, Naomi has gone on to design a full product designed to be easy and convenient to deploy in populated areas like medical practices, waiting rooms, retail environments, food preparation areas and live events.

The special feature of the 222nm wavelength is that it is long enough to deactivate viral and bacterial air contaminants, but short enough not to pass through the outer layer of dead skin or the tear-layer of humans. That means that it is currently considered safe to use in occupied areas.

The filter on the front of the light seems to specifically pass 222nm. Without it there is a very slight hump in the spectral output at around 237nm. The filter attenuates that completely.

Excimer is an abbreviation of Excited-Dimer, where a dimer is the joining of two molecules. In the case of the excimer lamps the molecules are encouraged to bond temporarily in a plasma discharge, and when they revert back to their non-excited state they emit a photon of light at a specific wavelength determined by the chemistry. In this case it's molecules of Krypton and Chlorine that form brief molecules of Krypton-Chloride (KrCl), before reverting back and emitting 222nm photons in the process.

The process of creating the plasma is very similar to dielectric barrier ozone generators. By coupling to the gasses capacitively the lamp also avoids contaminating the gasses with the electrode materials.

Note that the unit uses 500mA at 12V (6W) but has a generously rated 12W power supply that runs cool.

This technology looks like it may be valuable in medical, care, travel or social environments to limit the spread of pathogens.

Here's a link to Naomi's pleasingly-named online shop:-
cybernightmarket.com/products/nukit-lantern-far-uvc-light

Inside a 3D printing pen

bigclivedotcom 2024-10-09 | There's probably a legitimate use for these things. But I'm not sure what it is yet.

You plug it into a suitably rated (2A) USB power supply, load standard PLA filament and can then doodle with a stream of molten plastic.

The circuitry is VERY cost optimised with the buttons and LEDs most likely being multiplexed on the same pins as the LCD display. But other than that it contains what you'd expect. An H-bridge motor driver, MOSFET for the heater and a voltage regulator for the microcontroller.

I started doing a full reverse engineering on this, but after my sharp meter probe had slipped off a microscopic resistor connection for the 50th time I stopped.

This thing is surprisingly well made for the cost. It has a custom ceramic heater tip and a robust metal filament drive system.

Sorry for the lack of schematic. This video came too close to another that had taken three evenings to reverse engineer, and I just wasn't in the mood for a cryptic multiplexing system with LEDs, LCD display, buttons and analogue sensing all multiplexed onto a low pin-count microcontroller.

If you enjoy these videos you can help support the channel with a dollar for coffee, cookies and random gadgets for disassembly at:- bigclive.com/coffee.htm
This also keeps the channel independent of YouTube's algorithm quirks, allowing it to be a bit more dangerous and naughty.

#ElectronicsCreators

Teardown of a firework bulb - with schematic

bigclivedotcom 2024-10-07 | It's 11 years since I first looked at a very expensive Calex branded version of this bulb. At that time they were using a capacitive dropper and had all the LEDs in series.

I was expecting it to be the same, or maybe a linear regulator. But it's not. And the LED wiring arrangement is different too. Probably to make manufacturing simpler, allow a wider voltage range and also allow for the same LED structure to be adapted to different sized bulbs.

These bulbs are now available at a much lower cost online, and in a wide range of colours including warm, cold and golden white, blue, ice blue, green, yellow, red, pink and purple.

If you enjoy these videos you can help support the channel with a dollar for coffee, cookies and random gadgets for disassembly at:- bigclive.com/coffee.htm
This also keeps the channel independent of YouTube's algorithm quirks, allowing it to be a bit more dangerous and naughty.

Programming a common remote cloning button

bigclivedotcom 2024-10-07 | This is a classic cloning button intended for low security fixed code remote controls. It will not work with vehicle code-hopping remotes and must also be the same frequency as the remote you are cloning.

To use it, click the button four times, holding the button continuously after the fourth press. After several seconds the remote will start flashing its LED and then a few seconds later it will go static.
At that point release the button, and then pair your existing remote by holding them next to each other and pressing and holding both remote's buttons at the same time.
The cloning button will blink randomly and then go static. At that point it should now operate as the original remote.

inside an optical trackball

bigclivedotcom 2024-10-05 | Having looked inside an odd analogue trackball, I decided it would be interesting to take my optical trackball apart and see what it looked like inside.
I have always preferred using a trackball instead of a mouse, as it stays in one position on the bench and is perfect for designing PCBs and other CAD applications.

This unit is quite old. I'd guess that modern ones will have the amazing mass produced single chip sensor and processor arrangement inside, and probably a different style of ball, as this one looks quite complex with its pattern of embedded dots that don't wear off.

The biggest surprise in this unit was that the sensing chip did not look directly at the ball surface. The lens was coupled to a prism arrangement that deflected the image 90 degrees. I wonder if that was to facilitate easier mounting of the infrared LEDs, or maybe just repurposing an existing optical assembly from a mouse, where the sensor was mounted vertically on a PCB.

Once I had cleaned and reassembled this unit it worked absolutely fine as it had before.

There are quite a few different trackball devices available online, mostly quite expensive compared to a mouse input device. It appears that you can buy replacement balls for prominent models on AliExpress.

If you enjoy these videos you can help support the channel with a dollar for coffee, cookies and random gadgets for disassembly at:- bigclive.com/coffee.htm
This also keeps the channel independent of YouTube's algorithm quirks, allowing it to be a bit more dangerous and naughty.

#ElectronicsCreators

High voltage LED tester with VERY clever circuitry (and hidden features)

bigclivedotcom 2024-10-03 | It literally took me three evenings to reverse engineer this unit. The circuitry is very complex, but also very well designed. Unlike the previous horrifically dangerous unit I looked at, this one has the outputs isolated from the incoming mains supply. It's still 300V though, so can still give an odd DC zap if you get complacent with it.

The soft start is very simple, but very neat. The regulator chip that limits the current through the LEDs is very impressive in that it can handle a short circuit as standard.

There were two extra features I was unaware of. A low voltage mode for finding polarity of LEDs without risking damage to them, and a higher current mode that steps up from the standard 20mA current to 50mA after about 10 seconds when you are testing higher voltage LED arrays.

There are lots of clever quirks in the circuitry that were quite enjoyable to decipher. Especially the way the main power supply chip is actually an LED driver being used with an opto-isolated feedback hack on its overvoltage protection pin, normally used for detecting an open circuit load.

I did test the other unit, and it too has the 18V feature selected in the same way. But it doesn't have the higher current mode.

To toggle between the 300V and 18V modes you hold the leads together until the display flashes bars.

Very clever design. Both frustrating and a treat to reverse engineer.

If you enjoy these videos you can help support the channel with a dollar for coffee, cookies and random gadgets for disassembly at:- bigclive.com/coffee.htm
This also keeps the channel independent of YouTube's algorithm quirks, allowing it to be a bit more dangerous and naughty.

#ElectronicsCreators

ALDIs 400mm (16) inflatable glowing aqua orb - with schematic

bigclivedotcom 2024-10-01 | When I bought this I knew the remote control light puck was going to be small. It seems to be a common thing with these devices. But the ball itself can accommodate a custom light and power supply, so it can be made better. Perhaps even modified to have a remote solar panel.

The circuitry did throw up a couple of surprises though. Notably the LED that was completely upside down.

If you enjoy these videos you can help support the channel with a dollar for coffee, cookies and random gadgets for disassembly at:- bigclive.com/coffee.htm
This also keeps the channel independent of YouTube's algorithm quirks, allowing it to be a bit more dangerous and naughty.

#ElectronicsCreators

Inside a LIDL insect zapper - with schematic

bigclivedotcom 2024-09-29 | Not completely what I was expecting. I thought there might be a traditional electronic ballast for the tube, and while there is, it is somewhat simpler than I thought it would be. The zappy bit lacks the zest normally found in the eBay versions, and the manual is basically just warnings not to open the unit or let children play with it, so they may have tamed it down for that reason.

Interesting ballast though, and while the zapper section took longer than expected to reverse engineer, it is fairly conventional.

If you enjoy these videos you can help support the channel with a dollar for coffee, cookies and random gadgets for disassembly at:- bigclive.com/coffee.htm
This also keeps the channel independent of YouTube's algorithm quirks, allowing it to be a bit more dangerous and naughty.

#ElectronicsCreators

Elevator with no car door

bigclivedotcom 2024-09-28 | A very old lift that seems to have been partially modernised judging by the smooth takeoff and deceleration, and a little hint of an inverter whistle when moving.

This is at an old seaside accommodation with a long history. My friend who lives here says the elevator has never broken down in all the time he's been here. That's probably because it's not a "modern" one.

The last time I was in an elevator with no car door was when I was a very young kid, at the first library in East Kilbride.

Interesting LED flame shape bulbs - with schematic

bigclivedotcom 2024-09-27 | I added these to an order from AliExpress to check out how they looked and what the circuitry was like.

The circuitry isn't too bad, with an unusual control chip.
My only real issue is that they have done the common thing of pushing the intensity to the max, when this type of bulb seems more suited to low level decorative use. The LED filament in the simpler shape bulb did have quite a strong band of blue light from the LED chips under the phosphor.

Here's the listing I ordered the bulbs from, but note that I also ordered a star which had a section of LEDs out in it, so the quality isn't guaranteed. The listing may act as a springboard to other similar sellers.
aliexpress.com/item/1005003357188330.html

If you enjoy these videos you can help support the channel with a dollar for coffee, cookies and random gadgets for disassembly at:- bigclive.com/coffee.htm
This also keeps the channel independent of YouTube's algorithm quirks, allowing it to be a bit more dangerous and naughty.

#ElectronicsCreators

You cant even turn this unit off

bigclivedotcom 2024-09-25 | Aside from the very odd translation in the listing for this light, it appears that the extra cost-cut version has been stripped back to such a bare minimum that it has stability issues.

That's a big issue, since they have skimped to the point of removing the on/off switch, so the unit is active from the point it's assembled at the factory. When this one arrived its battery had been seriously over-discharged due to it turning on and off repeatedly while in its box.

Theoretically the box should block the PIR sensor from seeing movement completely, but I think it has created a situation where the sensor chips gain goes so high that it starts being affected by low level ambient electrical noise. It's not helped by the fact that there is no current limiting resistor for the LEDs, so the controller chip may be having thermal issues too, and the way its power is routed via the high current LED path also adds instability because the voltage will spike upwards when the LEDs turn off.

I tried the following things to try and solve the oversensitivity problem.

I added a 5.6 ohm resistor in series with the LEDs. Still false triggered.
I added a 22uF capacitor in parallel with the existing decoupling cap. Still false triggered.
I broke the positive track shared with the LED circuit and ran a direct link. Still false triggered.

The one thing that did seem to solve the problem was to put the unit on charge while in the box, suggesting that the battery voltage fluctuation and recovery when the LEDs turn off may have been an issue. That suggests that the cell impedance might be high because of the low capacity.
The charger was able to provide a more stable voltage under load.

If you enjoy these videos you can help support the channel with a dollar for coffee, cookies and random gadgets for disassembly at:- bigclive.com/coffee.htm
This also keeps the channel independent of YouTube's algorithm quirks, allowing it to be a bit more dangerous and naughty.

#ElectronicsCreators

Inside a Poundland bubble bear

bigclivedotcom 2024-09-23 | They may just be kids (or adults) toys, but some of the bubble blowing machines are very clever.

It makes me think that there might be someone whose full time job is designing mechanisms for these things.

This one is very neat. It has a motor with the fan on one end and the other end geared to turn a peristaltic pump and also a wiper arm. The pump uses rotating rollers to squeeze liquid through a tube to a port in the bubble producing section, and the arm then wipes that around the perimeter to create a film that the air then blows into bubbles.
