Uploaded January 2026 | Updated September 2026, 2 weeks ago

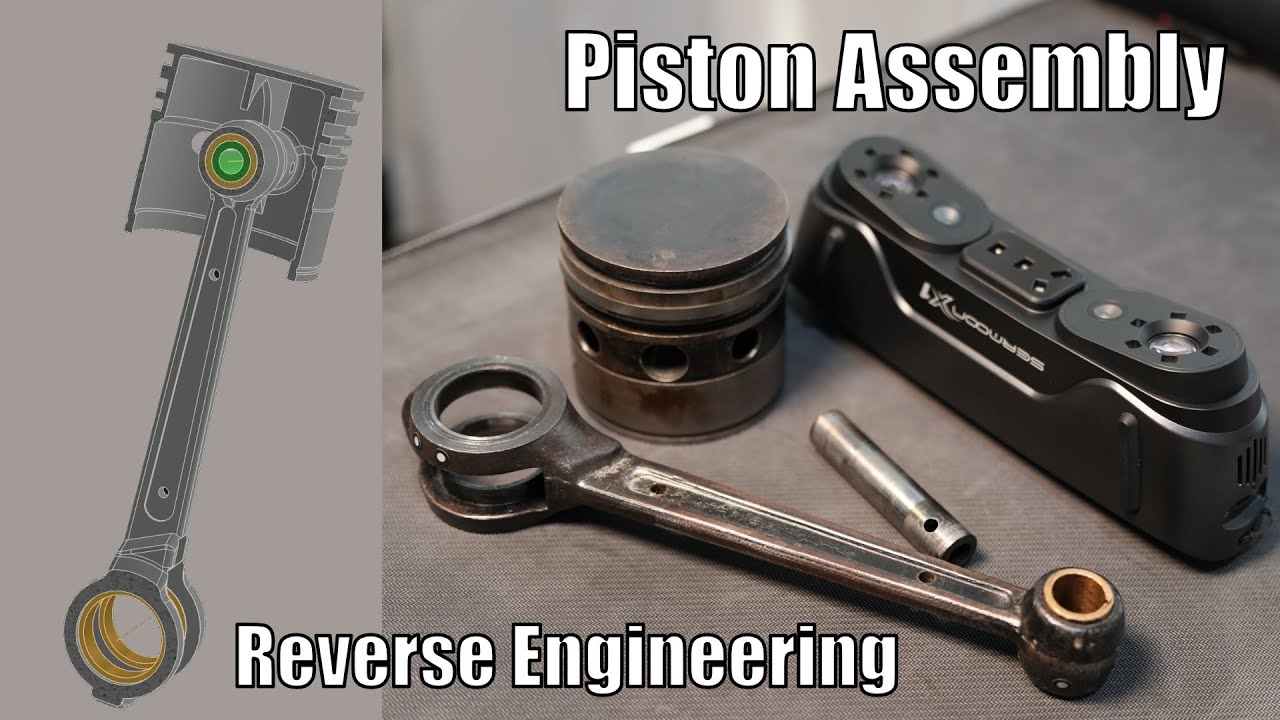

The workflow begins with high‑precision 3D scanning of the piston, connecting rod, and gudgeon pin. No additional measuring instruments are employed throughout the process. The resulting scan data is then utilized to generate a reverse‑engineered CAD model in Autodesk Inventor.
Note from reviewer: The Creality scanner was provided to me for review purposes. I was not paid to produce these videos, nor do I earn any commission from their product sales.
Creality Sermoon X1:
store.creality.com/products/creality-sermoon-x1-3d-scanner
#3dscanning #creality #reverseengineering #cad
