OK, I’m not a fan of outright recaps. But I’m finding “a little at a time” yields a lot.

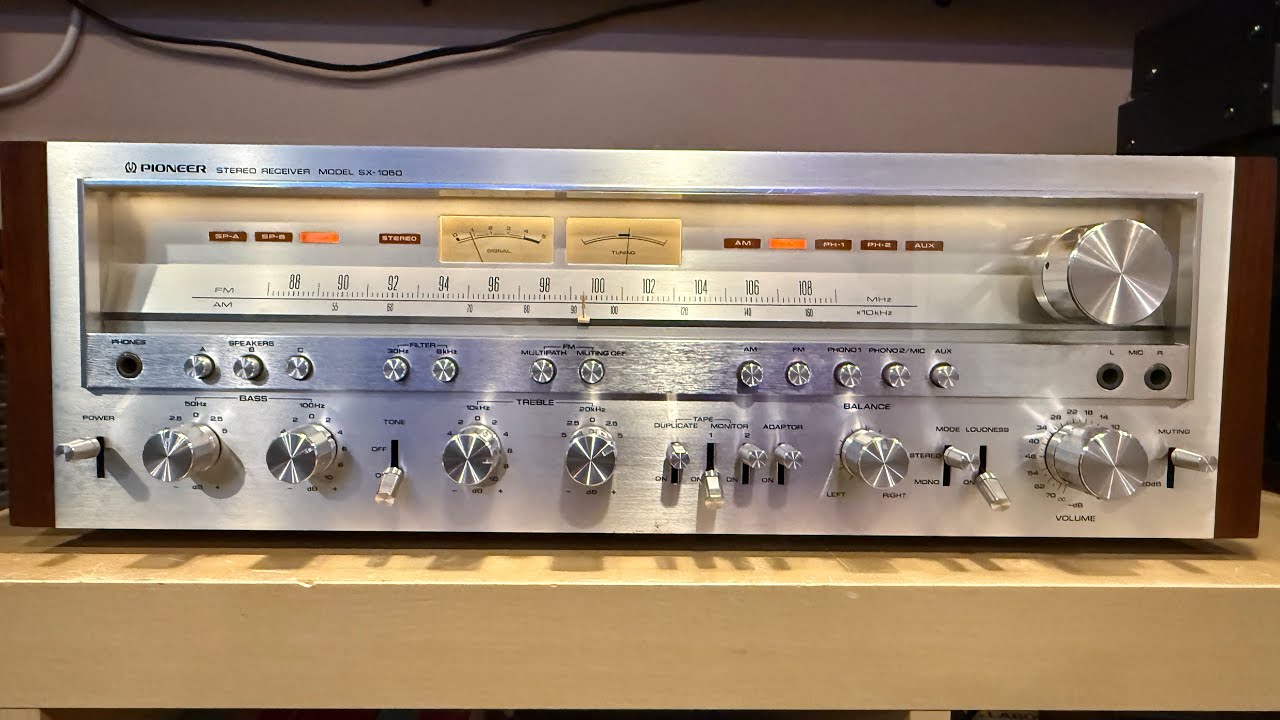

Let me explain. This SX-1050 was all original, and low hours based on usual power supply char marks. Had this for 5 years now but opened it up to inspect and discovered shrunken wrappers on many caps.
So I pulled out my high-quality capacitor stock and spent a couple hours replacing caps on these three boards. I also reflowed the solder on a couple dozen places where hot resistors and voltage regulators sit. This will maximize reliability into the future. Also reapplied thermal paste to the outputs as well as other hot regulators attached to metal plates.  Finally, I performed a DC offset and re-bias. It was dead on as it previously was.
For what it’s worth some capacitors when I spot checked were about 25% over spec capacitance wise. But most concerning were some capacitors had a resistance up to 16 ohms where they should be maximum of around 2 or 3.
I have to tell you this is one of the most serviceable Pioneers out there. While there’s a little bit of complexity, it generally comes apart straightforward, and you can get to everything without un soldering any wires. Pro tip, be sure to watch a YouTube video or two prior to digging in. Let someone else teach you that’s how I learned.
Right now there isn’t a single bulb dimming and this thing is giving it’s all to my Realistic Mach One speakers, which I consider inefficient and power-hungry.
I’m on vacation for a week to match my kids spring break. And I can’t wait to sleep in for a number of days and take it easy.
Welcome to spring everyone!
